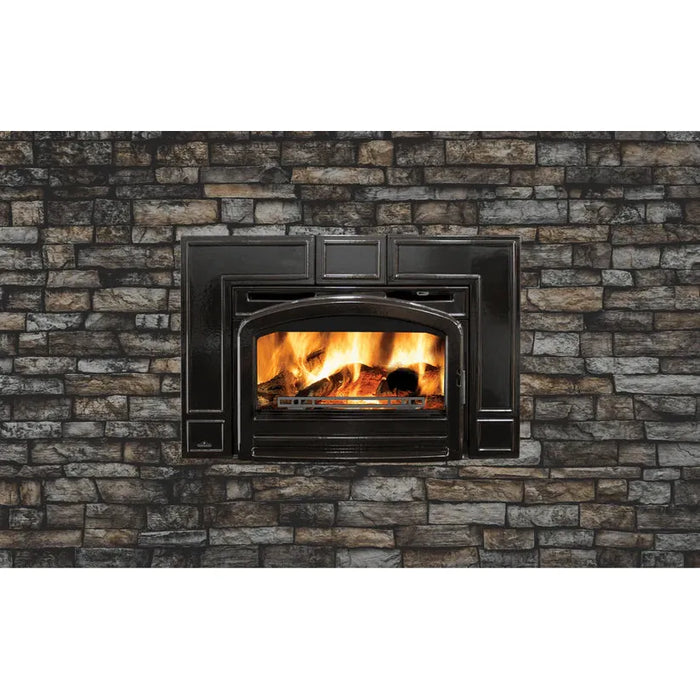

Napoleon Timberwolf Wood Fireplace Insert, Cast Iron Surround and Door
Timberwolf adds to their wood burning collection with the TI3TN-1 wood burning insert. Like the Napoleon EPI3TN-1 is has four stainless steel secondary air tubes that supercharge the fuel burning process and generate a beautiful display of YELLOW DANCING FLAMES. Complete with a removable painted black log retainer and a heat circulating blower, TI3TN is the perfect heating solution to replace and update drafty masonry fireplaces in a home or cottage.
Features
• Up to 55,000 BTU's
• 1.8 cu. ft. firebox capacity
• Weighted average emissions rate: 1.21 g/hr.
• Weighted average overall efficiency: 71.6%
• Largest ceramic glass viewing area in the industry
• Full refractory lined firebox
• Effective air wash
• Tested and certified to EPA 2020 cord wood requirements
• Minimum fireplace opening: 28"W x 22"H x 18"D
• Dual blower system included
• Flue Size: 6"
Dimensions & Specifications
| Construction | Steel |
|---|---|
| Fuel | Wood |
| BTU | 14,492 - 47,887 |
| EPA Rating | 1.21 |
| Heating Capacity Sq. Ft. | 1,500 |
| Firebox Capacity Cu/Ft. | 1.8 |
| Max Log Size | 18" |
| Burn Time/hrs | 8 |
| Chimney size and type | 6" |
| Insert Dimensions | 42-5/16" w x 29-1/2" h x 17-5/16" d |
| Minimum Fireplace Opening | 28" w x 22" h x 18" d |
| Weight | 496 |
| Blower | Included |
