MRCOOL DIY 4th Generation E Star 12k BTU Ductless Mini-Split Heat Pump Complete System 115V/60Hz

by MRCOOL
Save $100.00 Save $100.00
Original price $2,138.00
Original price $2,138.00 - Original price $2,138.00
Original price $2,138.00
Current price $2,038.00
$2,038.00 - $2,038.00
Current price $2,038.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

MRCOOL DIY 4th Generation E Star 12k BTU Ductless Mini-Split Heat Pump Complete System 115V/60Hz

Introducing the latest in home comfort technology, with the 4th Generation MrCool DIY 12K BTU, 22 SEER Ductless Heat Pump System.

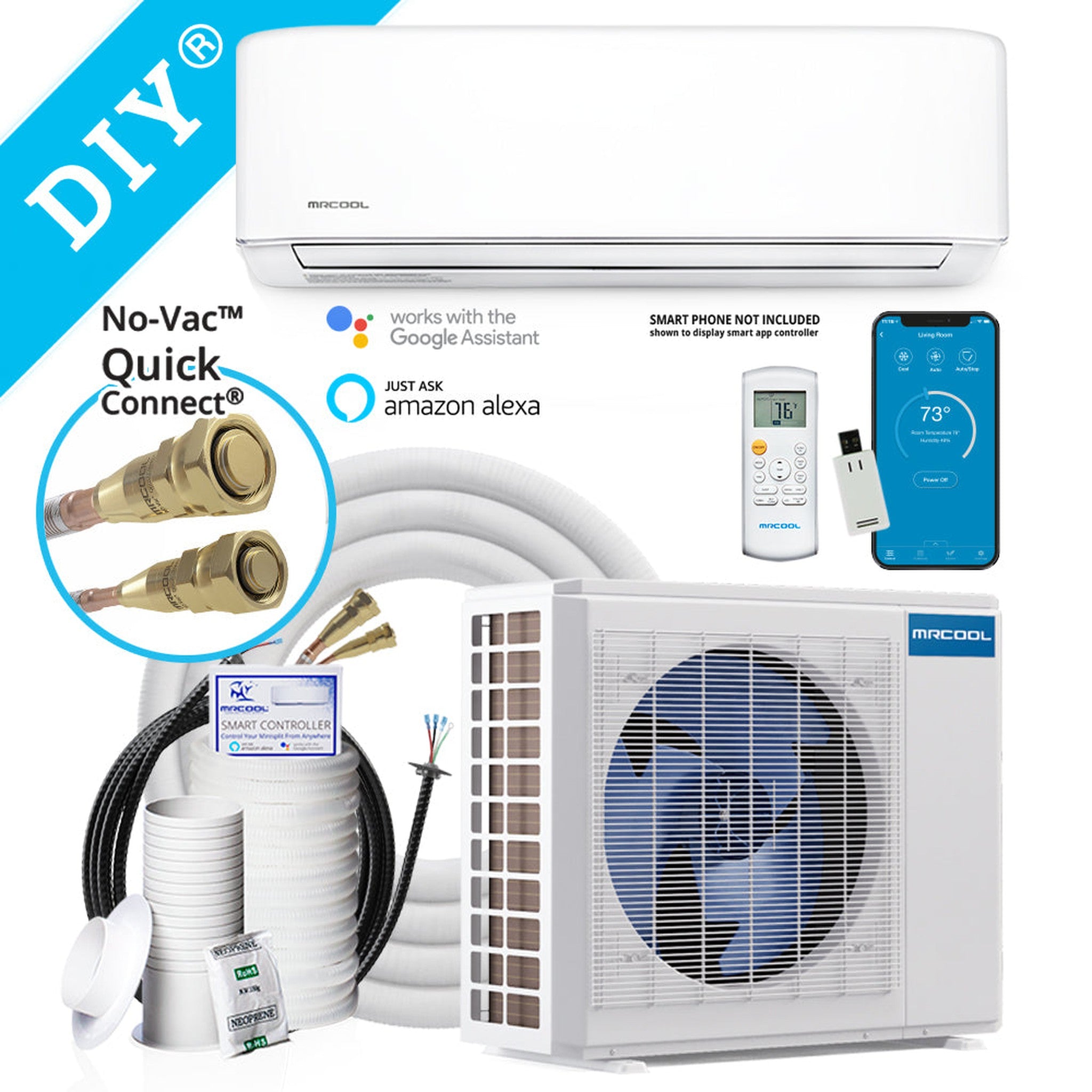

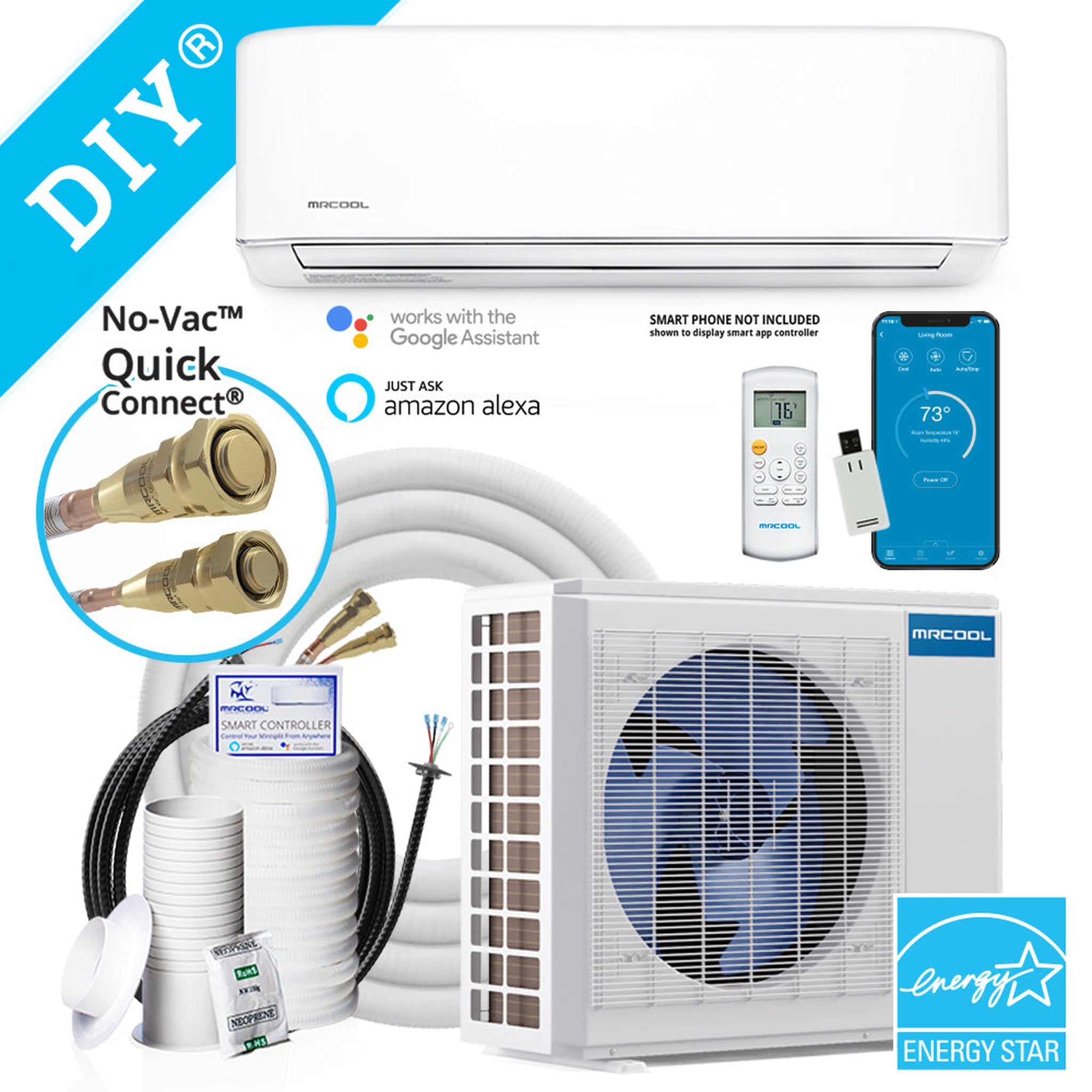

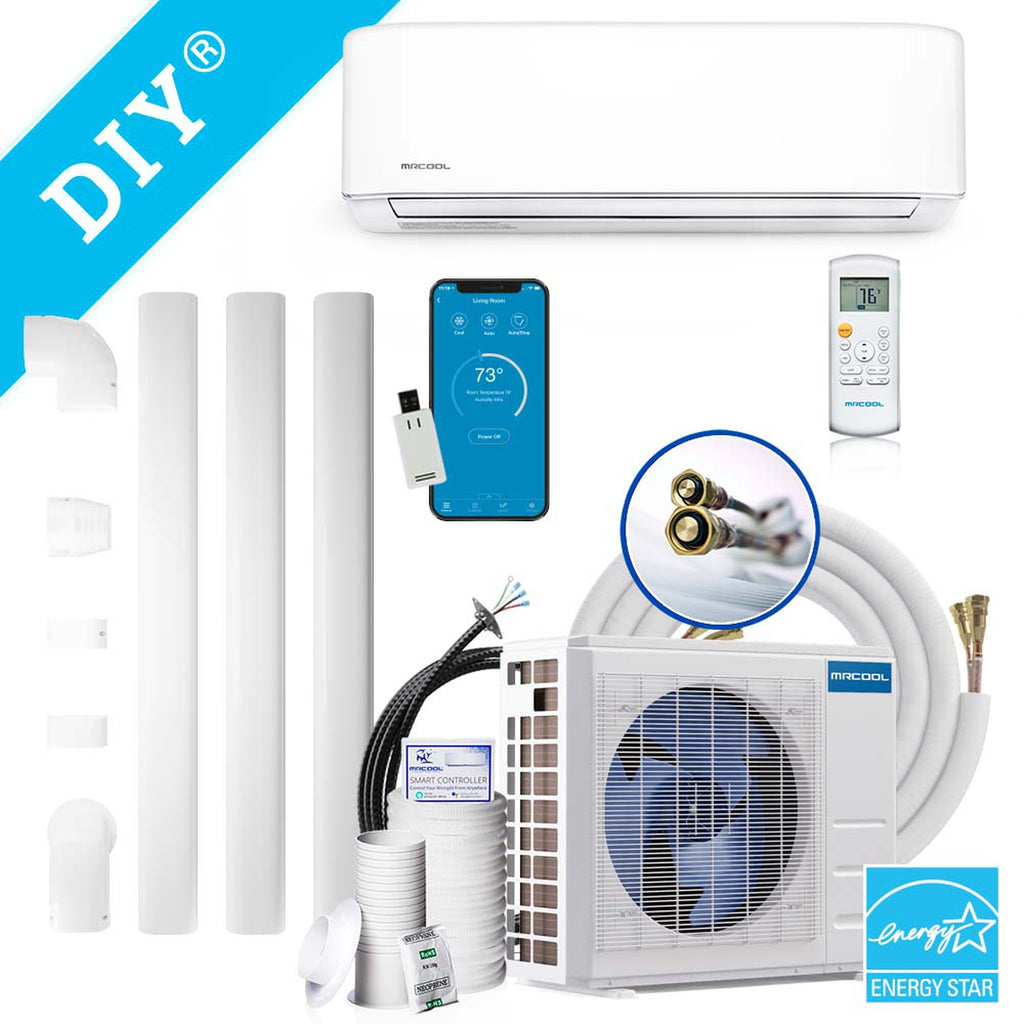

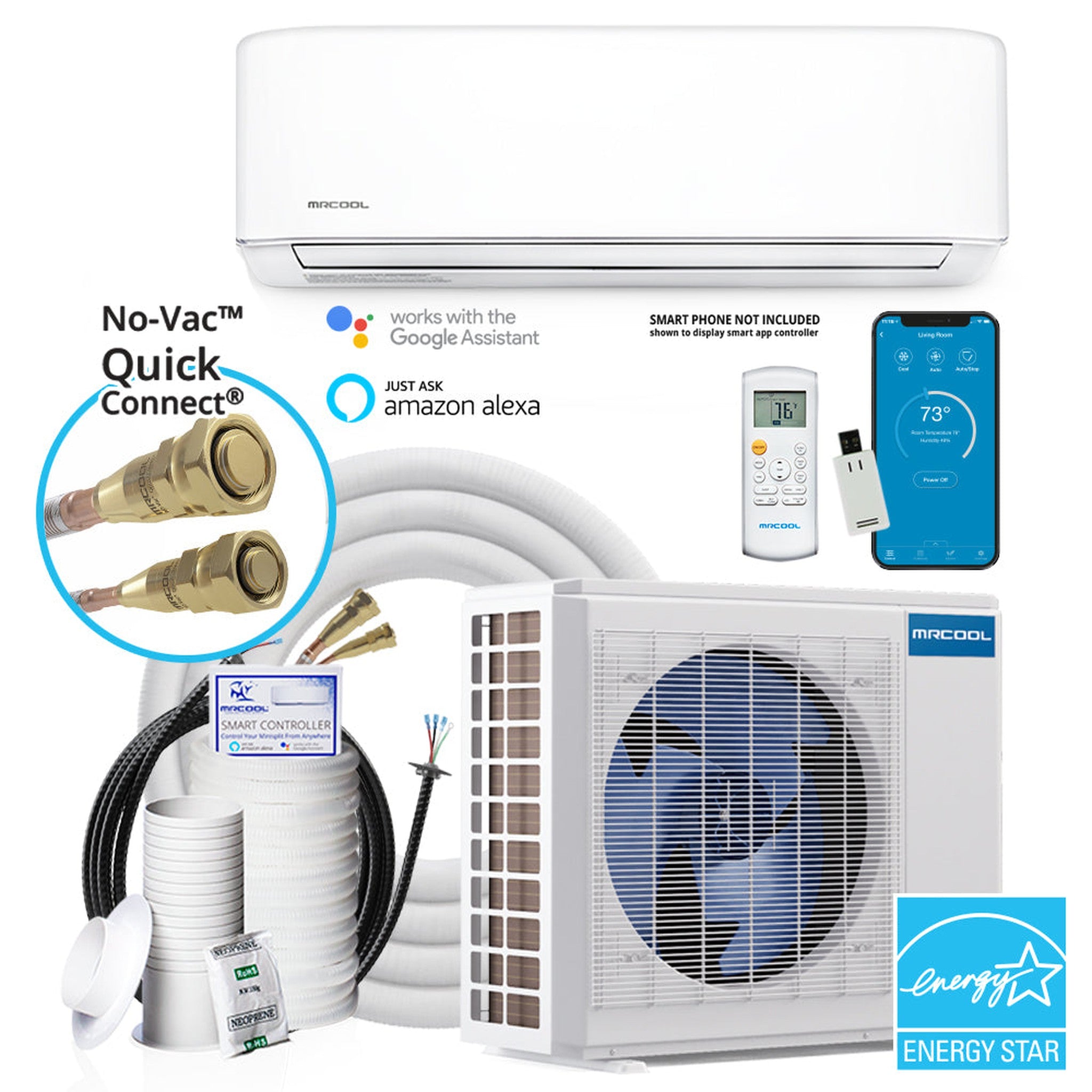

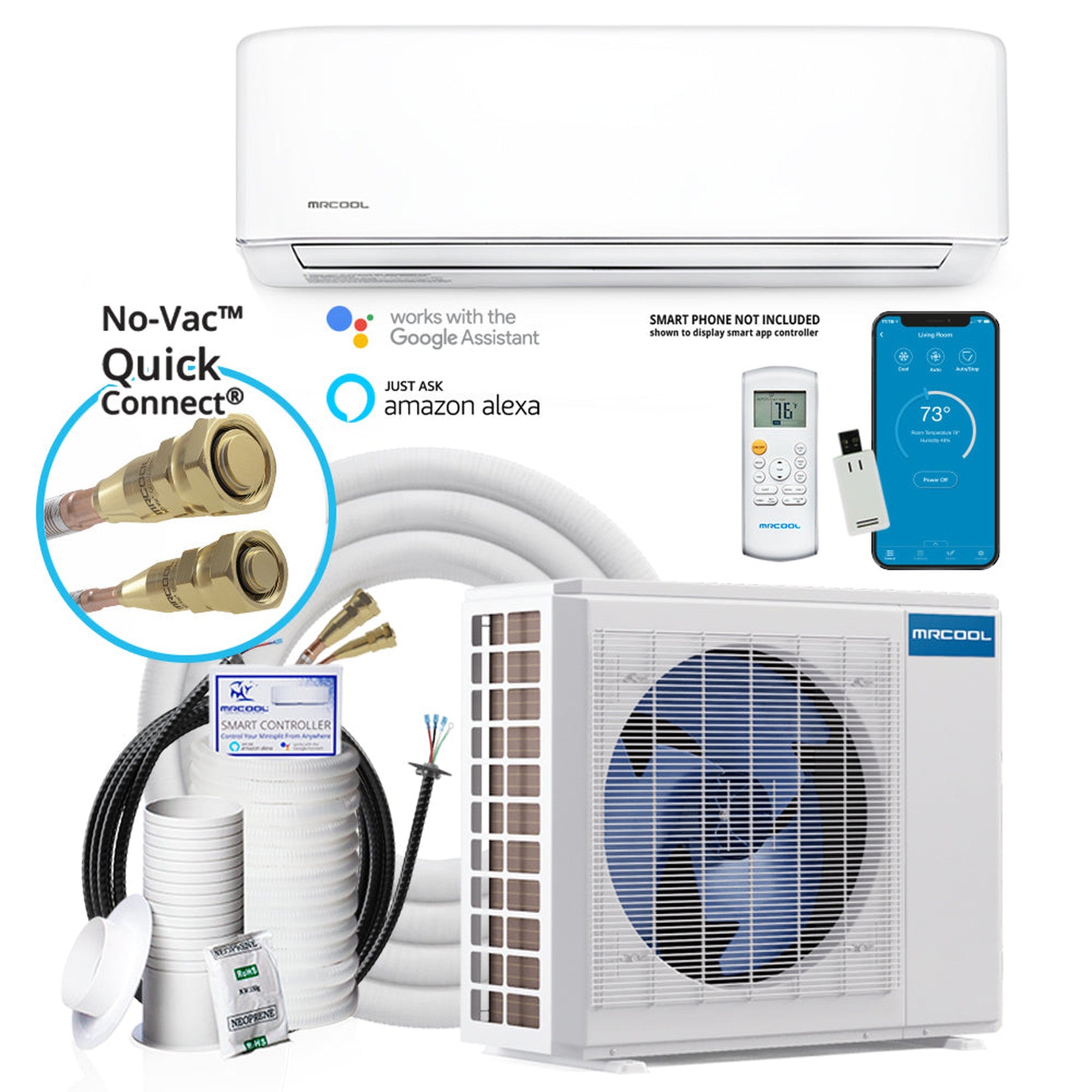

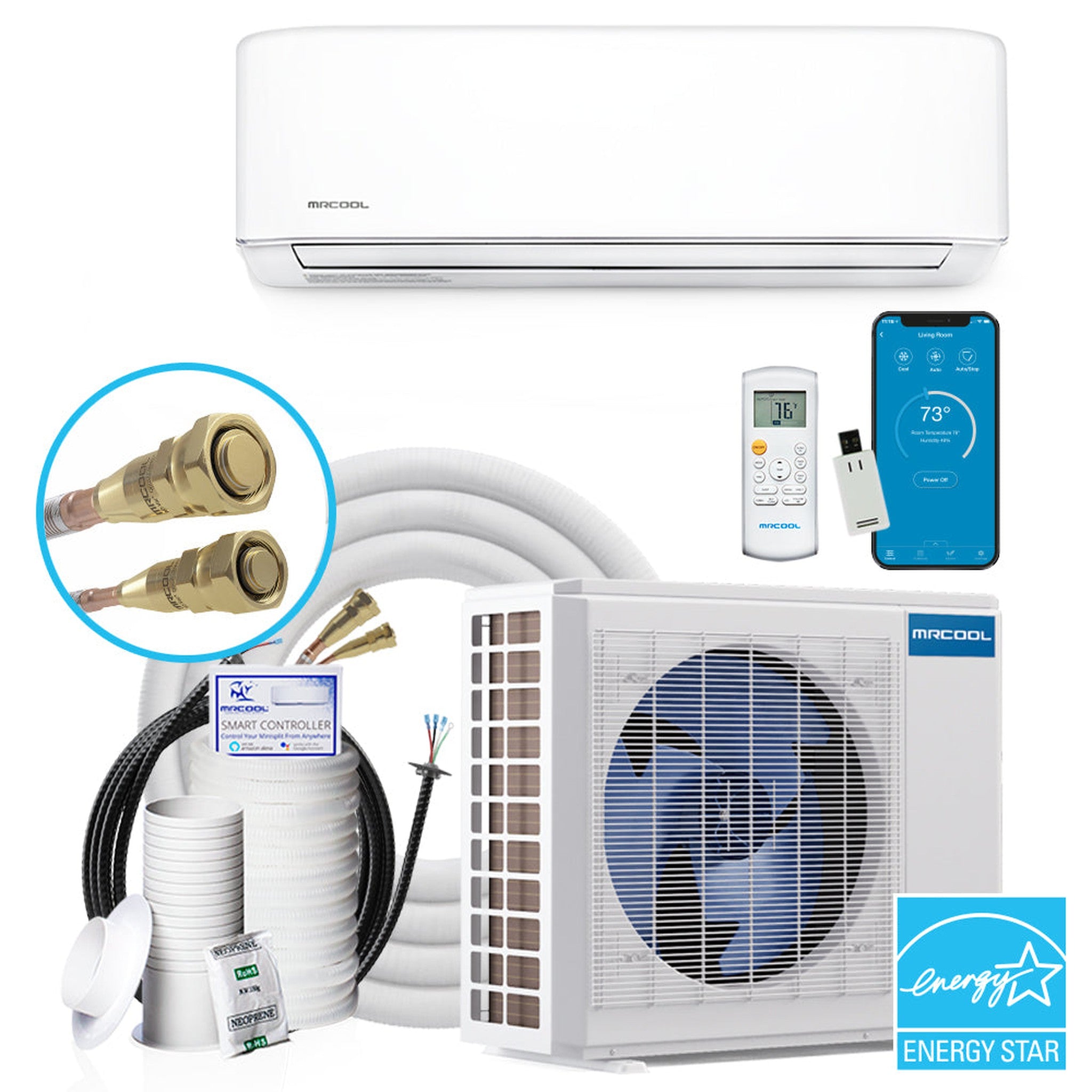

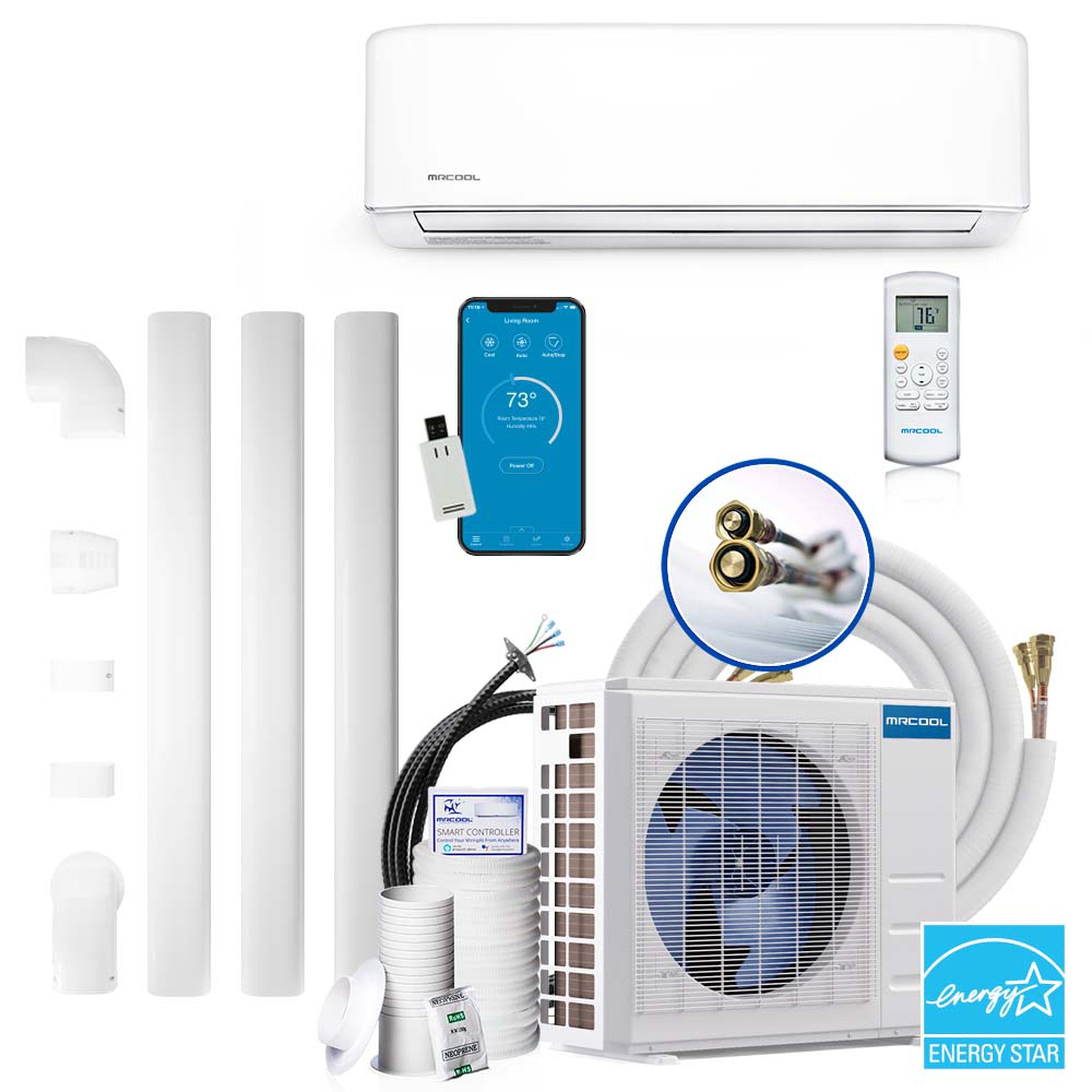

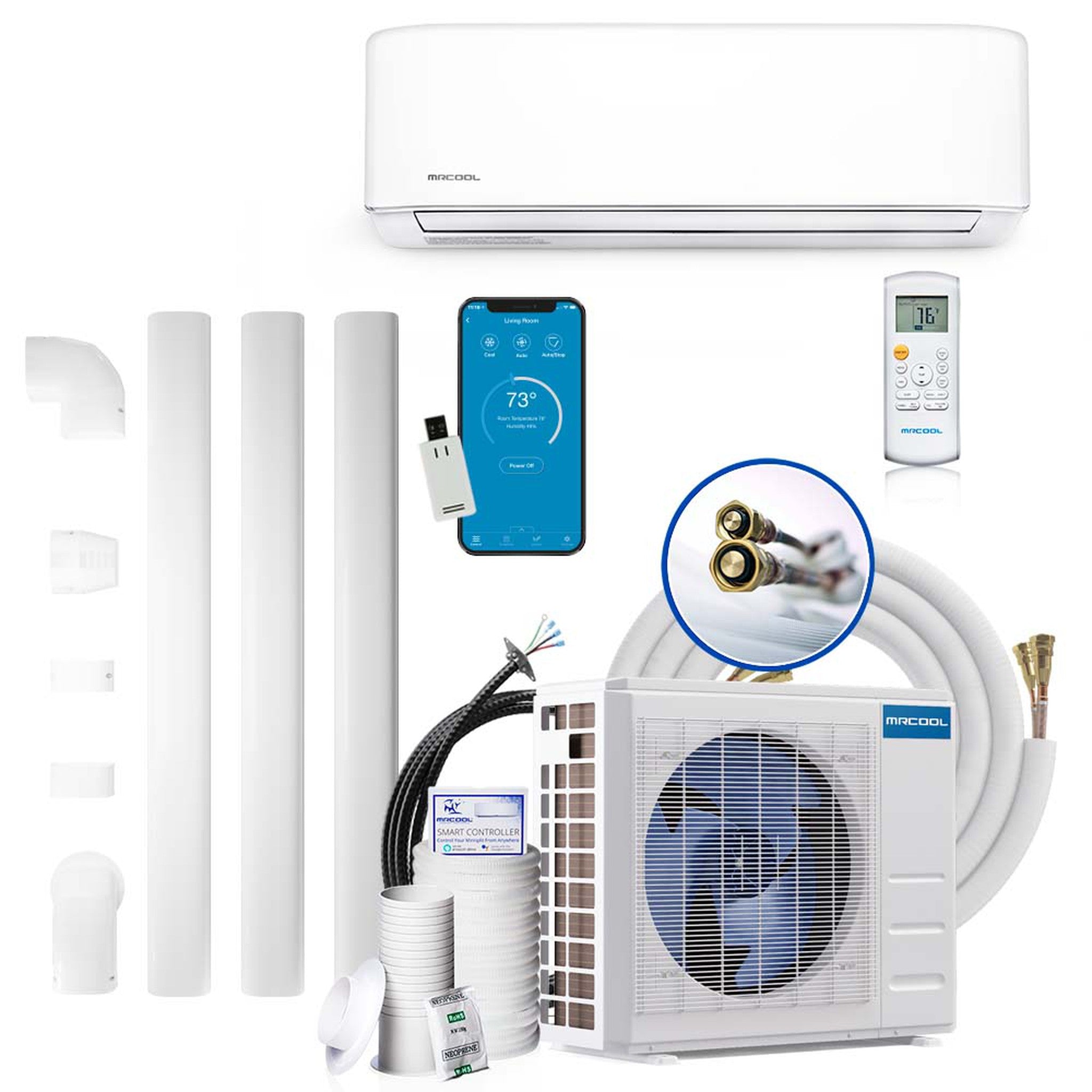

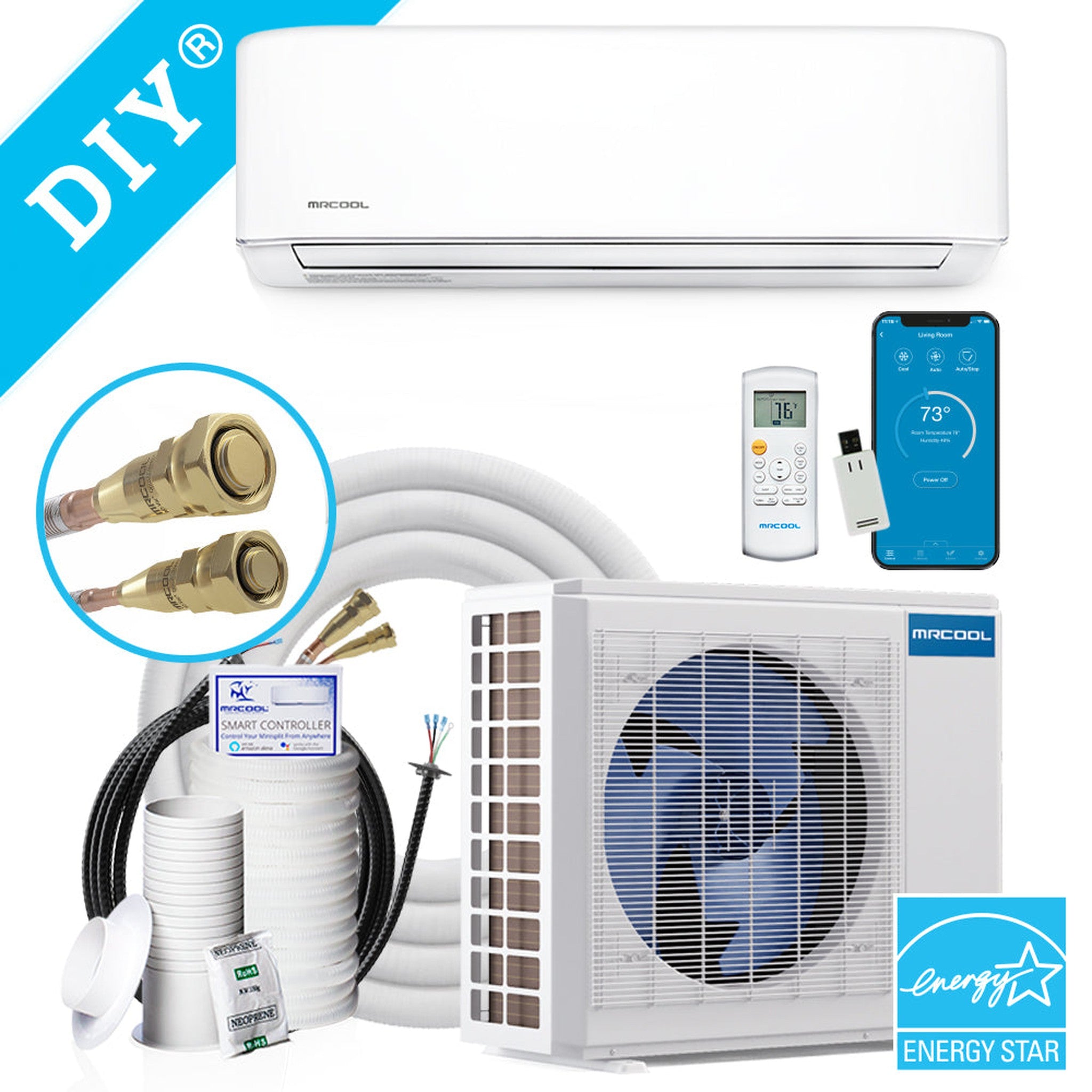

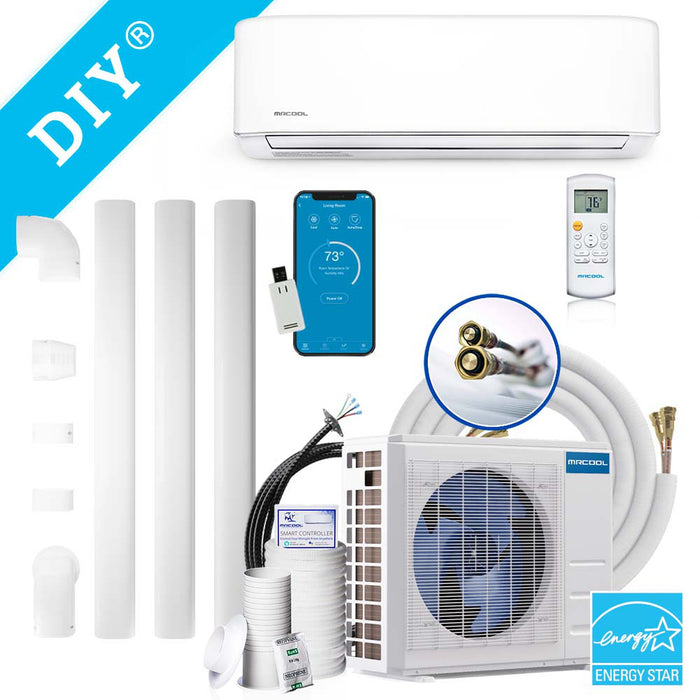

This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install.

The MrCool DIY system also includes many features that make it stand out among its competitors. The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified. This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control.

The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MrCool mini split is the only system on the market to offer a limited lifetime compressor warranty.



Features

  • Up to 22 SEER
  • Gold Fin condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long-term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

Condenser Dimension

21.85" H x 30.12" W x 65.70" W

Air Handler Dimension

7.44" D x 11.69" H x 31.57" W

SEER

22

EER

12.5

COP 47

3.36

HSPF

hspf4/hspf5 : 11.5/9

CFM

305.88/211.76/147.06

Tonnage

1

Cooling Capacity

12000 BTU

Heating Capacity

12000 BTU

Voltage

115 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

25 A

Min Circuit Ampacity

19 A

Color

White

Color Family

White

Rated Load

0.53 A

Max Coverage Area

Up to 500 sqft

Zone Capacity

1

Refrigerant Type

R-410A

Refrigerant Volume

38.10 oz

Decibel Rating

37/31/23.5

Decibel Rating Low

23.5 dBA

Decibel Rating High

37 dBA

Oscillation

4-W

Inverter

Yes

Min Ambient Cool

-13F - 122F

Min Ambient Heat

-13F - 75F

Line Set Length

25ft

Max Lineset Length

82.02 ft

Liquid Line Size

1/4 in

Suction Line Size

1/2 in

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

850/600

Blower Motor Rpm

1100/850/700

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

Wi-Fi Compatibility

Yes

App Compatibility

Yes

Works With iOS

Yes

Works With Android

Yes

Remote Control Included

Yes

UL Listed

Yes

Energy Star Certified

Yes

AHRI CERTIFIED

Yes

Cregistered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Base Parts Warranty

5-year Parts

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7-year Compressor

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU;PR;VI

Condenser Weight

65.70 lbs

Air Handler Weight

24.03 lbs
