Description

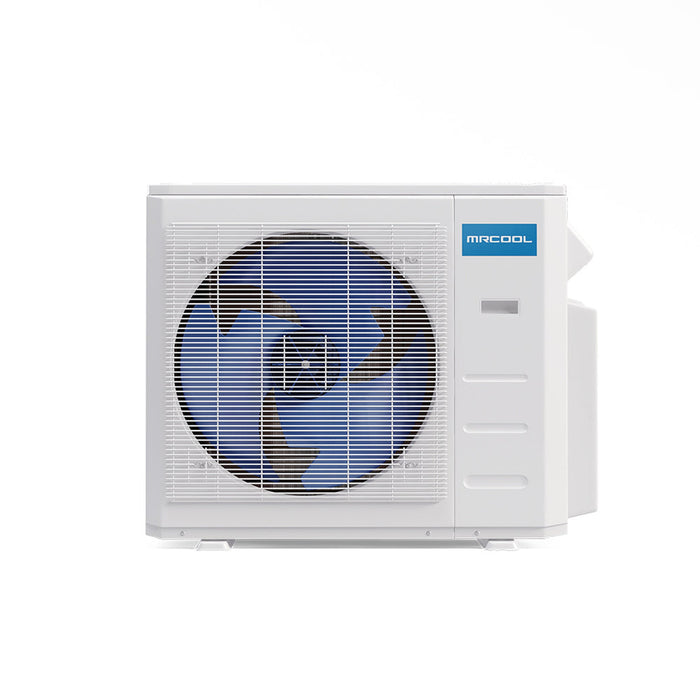

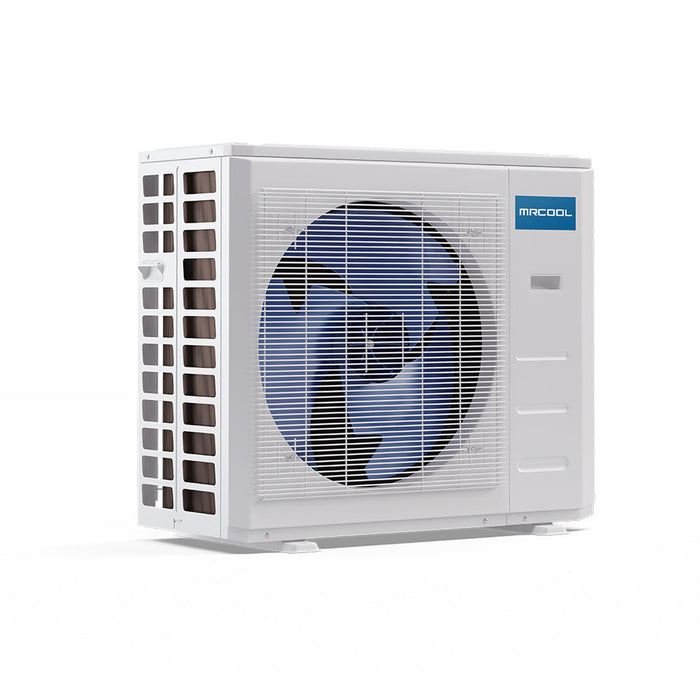

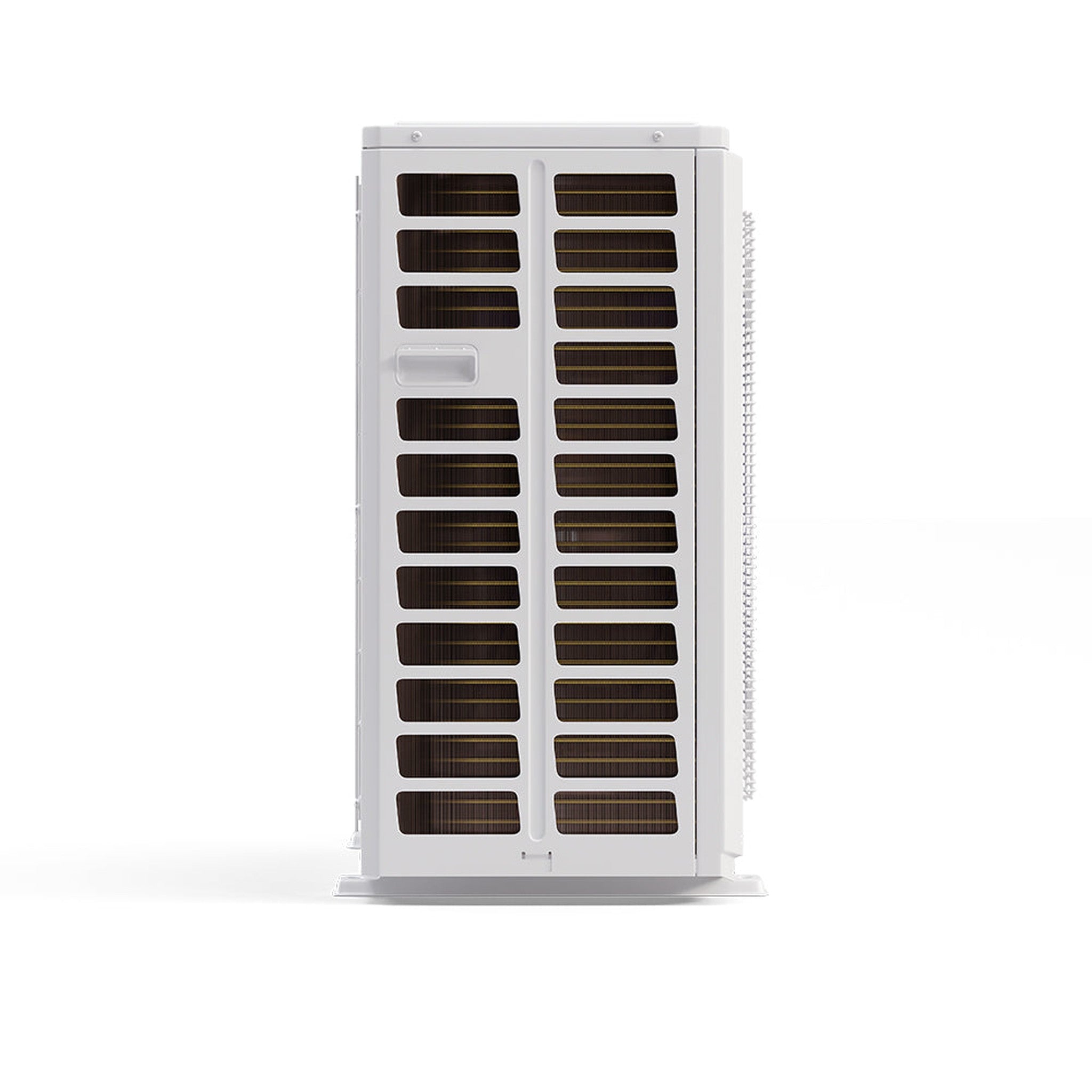

MrCOOL DIY Multi-zone 3-zone 27k Btu Condenser, 4th Gen Series
Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market.
When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser,
MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool's patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming.
Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home's heating and cooling.
Features
- Up to 22 SEER
- Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
Dimensions | 16.14" D x 31.89" H x 37.24" W |
SEER |
22 |
EER |
12 |
HSPF |
hspf4/hspf5 : 10.3/8.2 |
CFM |
2129.41 |
Cooling Capacity |
27000 BTU |
Heating Capacity |
27000 BTU |
Voltage |
208-230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
40 A |
Min Circuit Ampacity |
26 A |
Color |
White |
Color Family |
White |
Zone Capacity |
Up to 3 |
Refrigerant Type |
R-410A |
Refrigerant Volume |
91.71 oz |
Decibel Rating |
61 dBA |
Inverter |
Yes |
Min Ambient Cool |
5F ~ 122F |
Min Ambient Heat |
-13F ~ 75.2F |
Max Lineset Length |
147.64ft TOTAL |
Liquid Line Size |
1/4in |
Suction Line Size |
3/8in |
Compressor Motor Type |
Twin - Rotary |
Condenser Fan Motor Rpm |
1050/900/850 |
Wi-Fi Compatibility |
Yes |
App Compatibility |
Yes |
Works With iOS |
Yes |
Works With Android |
Yes |
Registered Warranty |
Limited Lifetime Compressor |
Base Warranty |
5-year Parts/7-year Compressor |
Base Parts Warranty |
5-year Parts |
Registered Compressor Warranty |
Limited Lifetime Compressor |
Base Compressor Warranty |
7-year Compressor |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
Net Weight |
139.99 lbs |
Gross Depth |
19.88 in |
Gross Height |
35.04 in |
Gross Width |
42.91 in |
Gross Weight |
157.19 lbs |
