Description

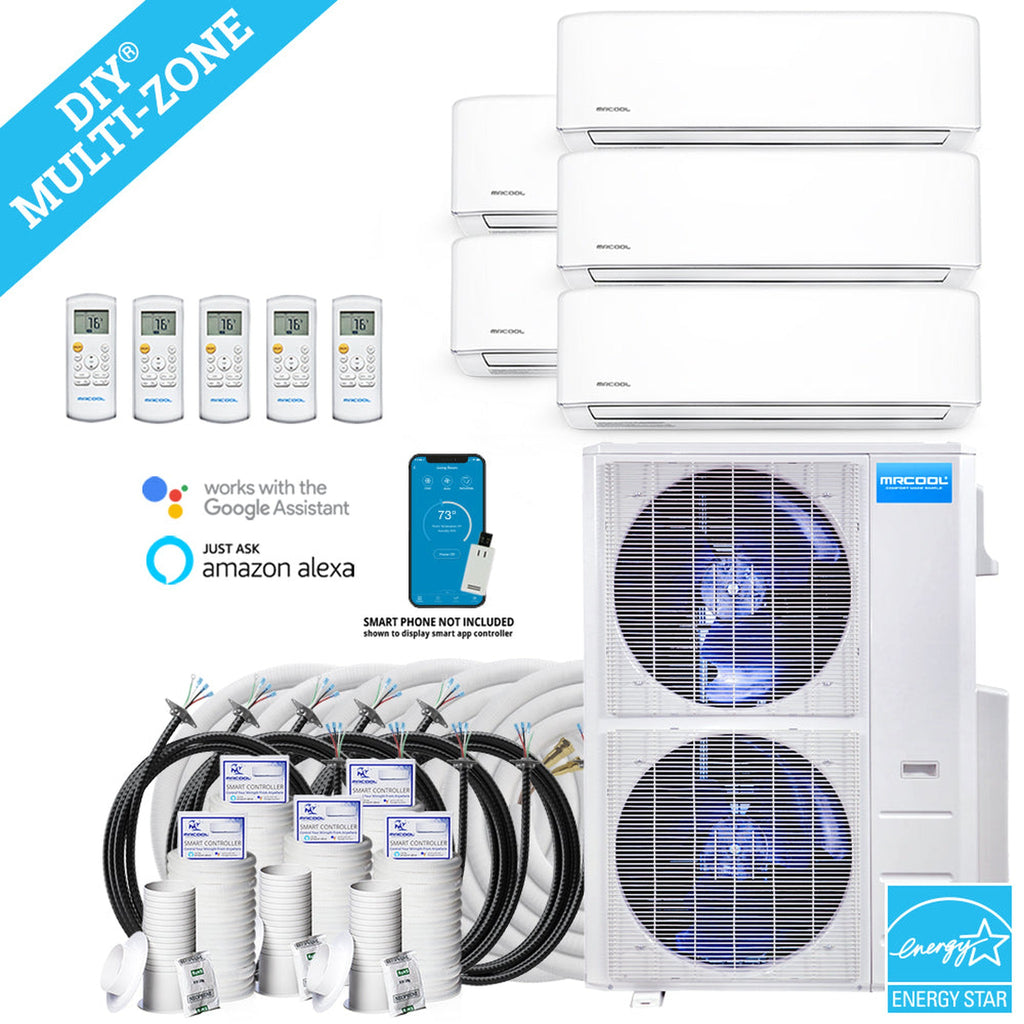

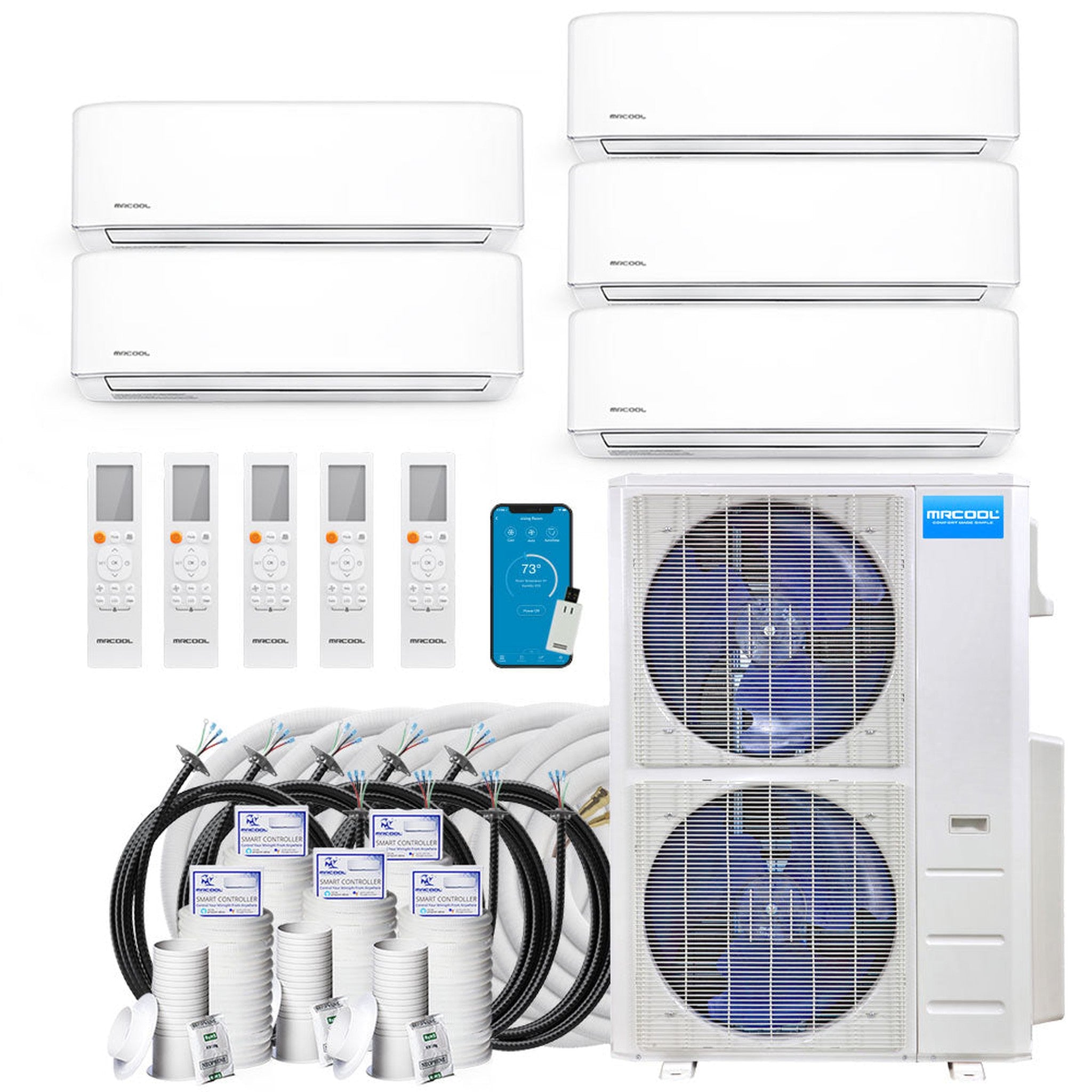

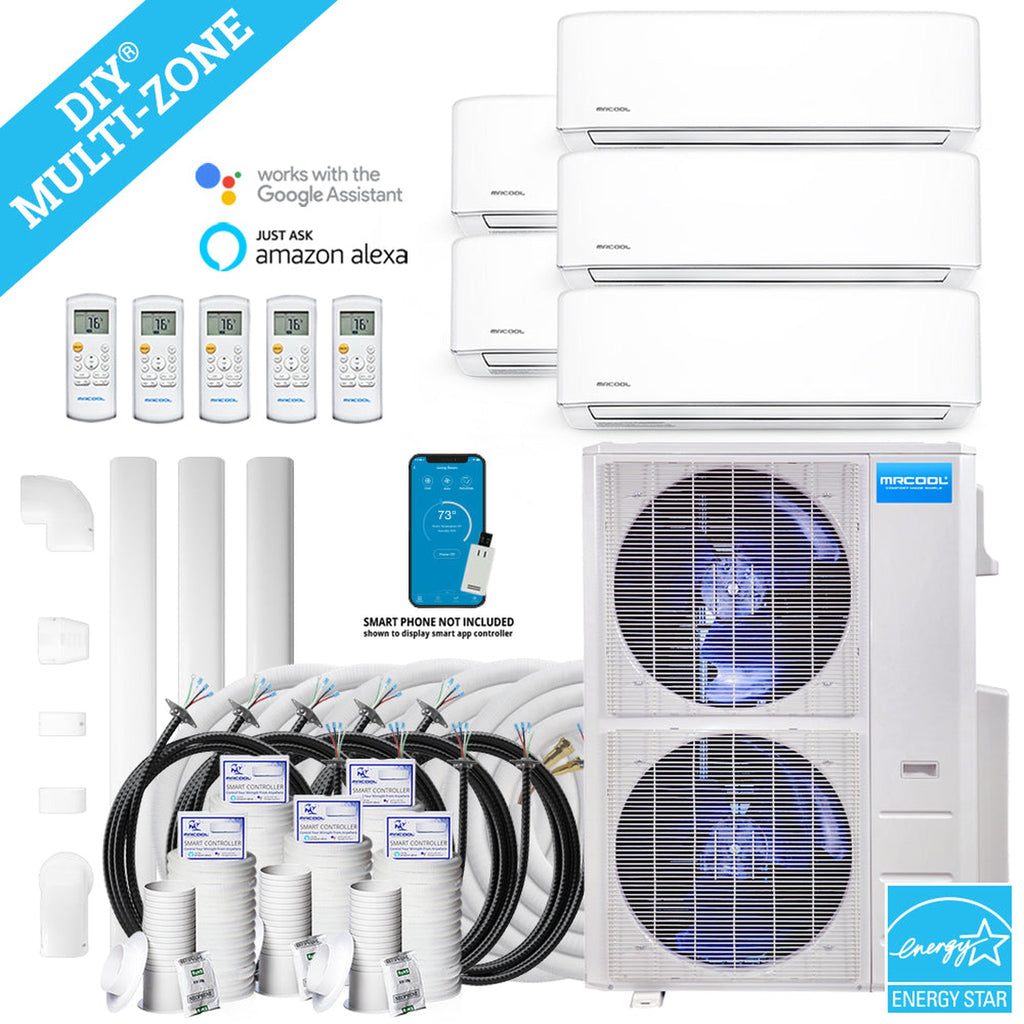

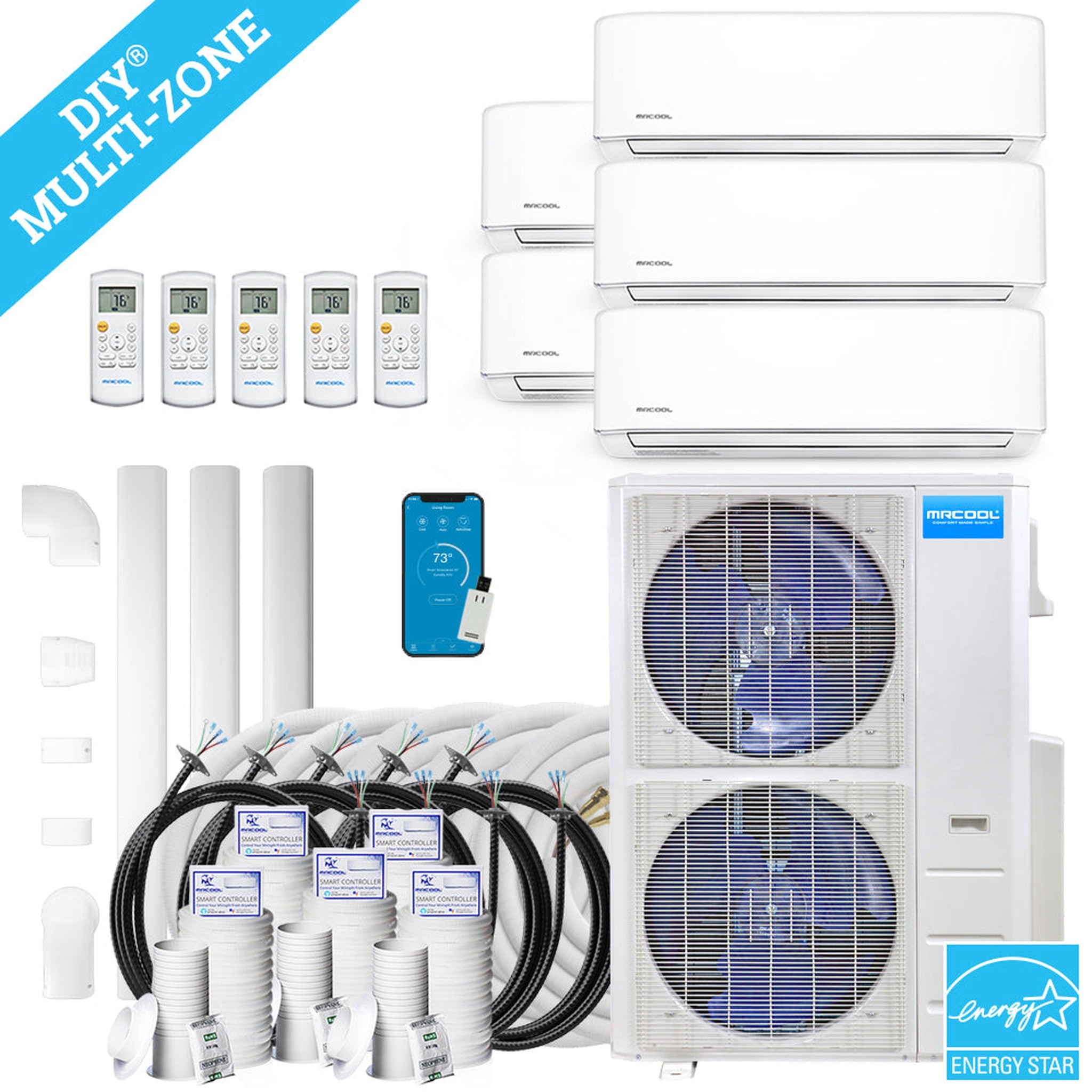

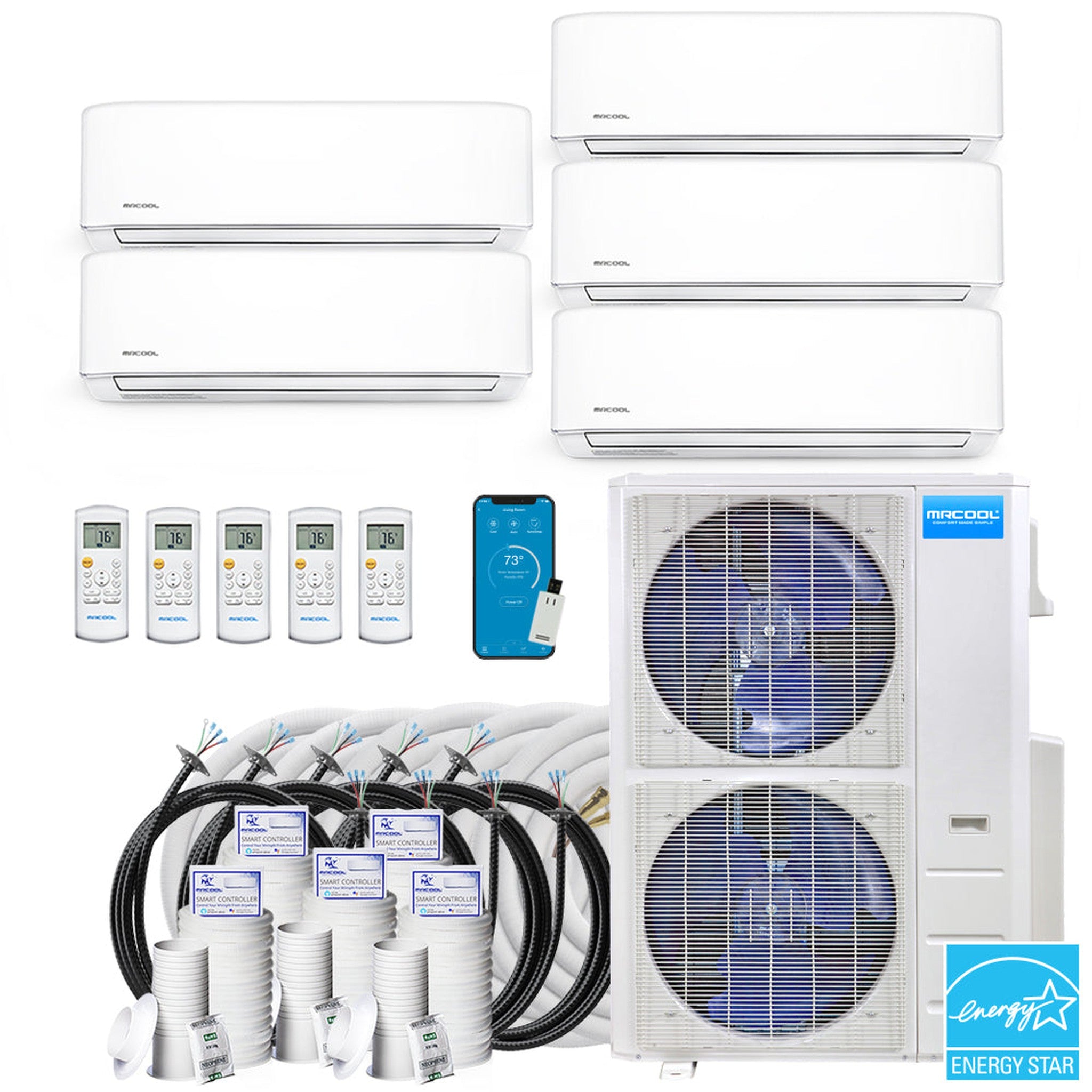

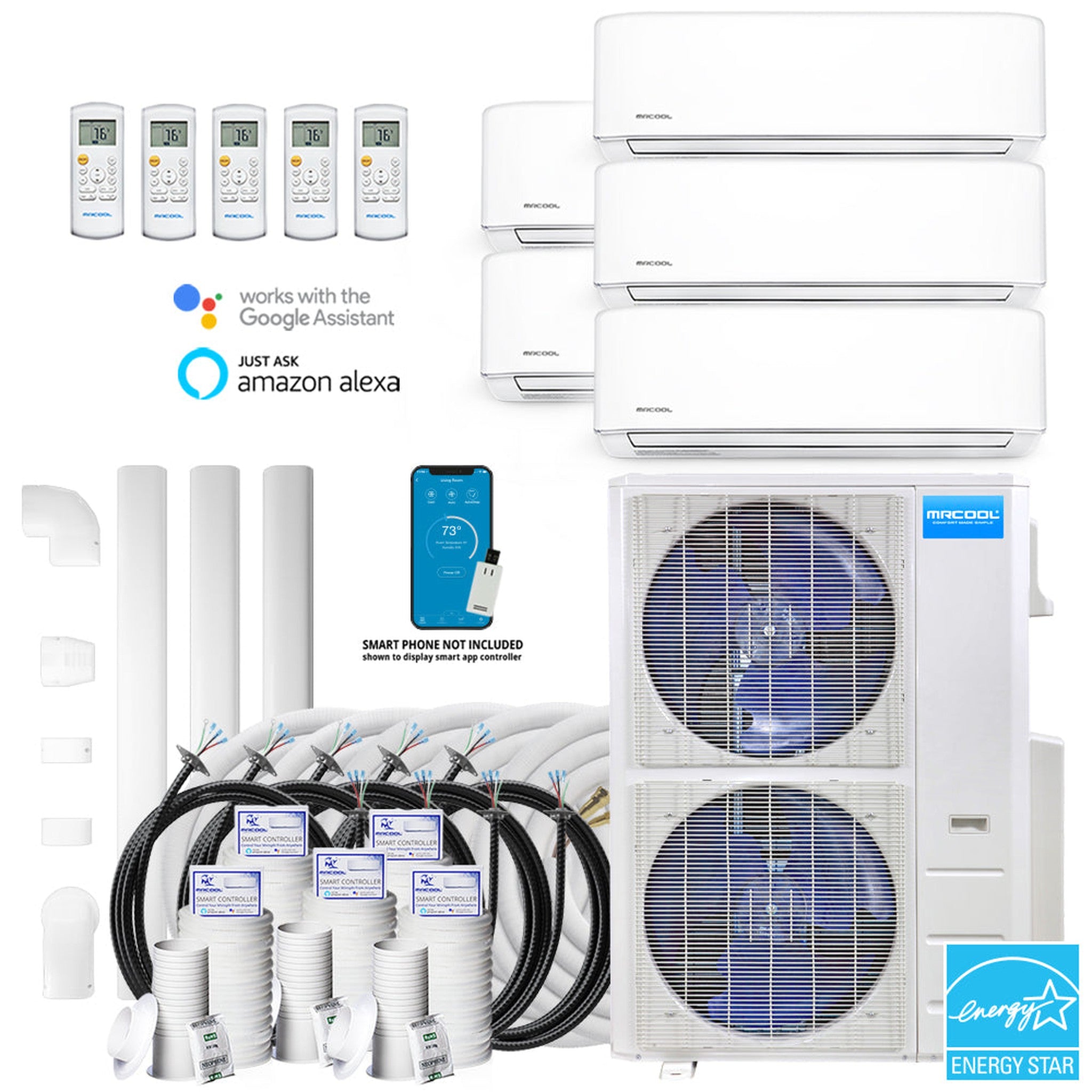

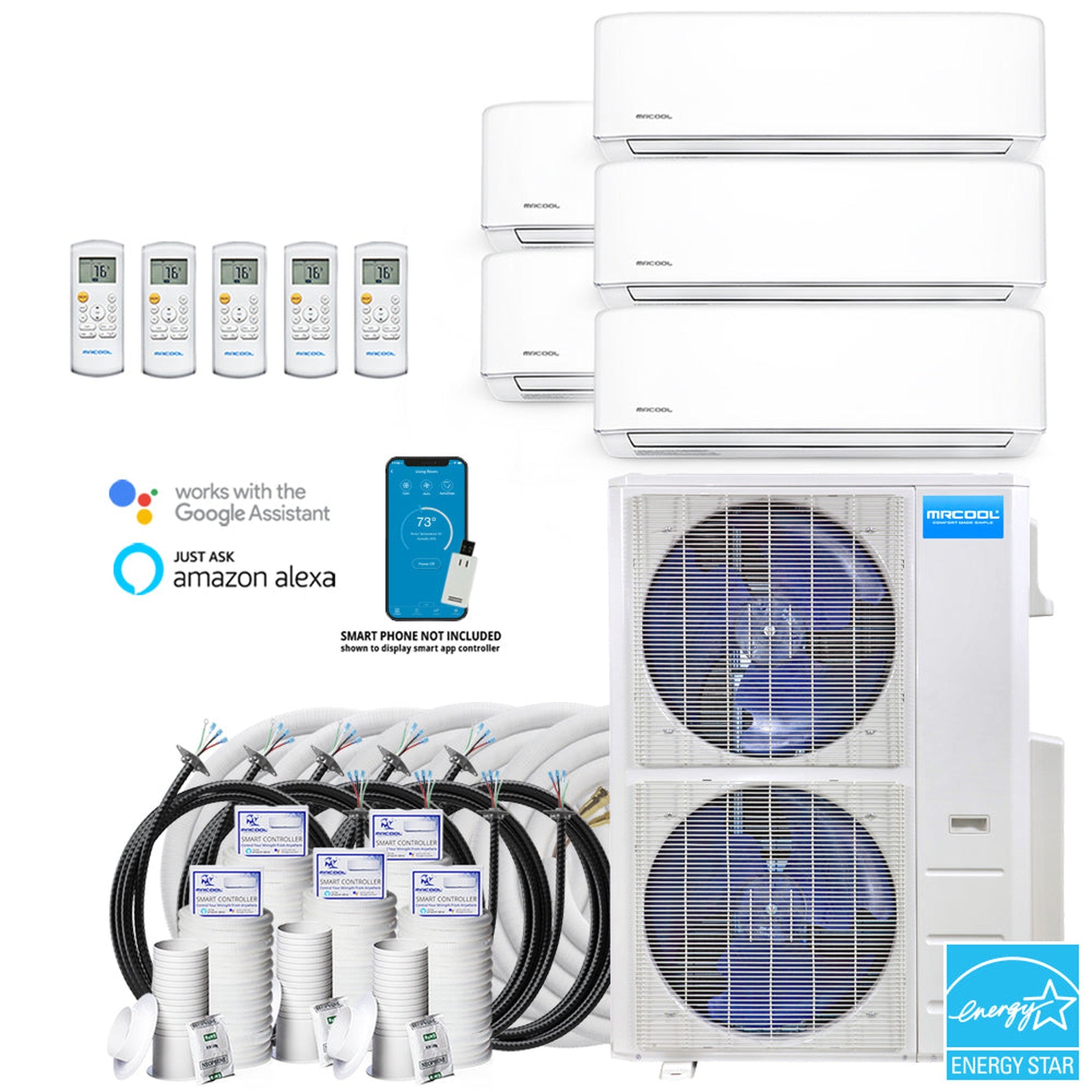

What's Included:
|
48K BTU 5-Zone Ductless Heat Pump Condenser |
| 9K BTU Ductless Wall Mounted Air Handler |
| 9K BTU Ductless Wall Mounted Air Handler |
| 9K BTU Ductless Wall Mounted Air Handler |
| 9K BTU Ductless Wall Mounted Air Handler |
| 12K BTU Ductless Wall Mounted Air Handler |
| 35ft 1/4 x 1/2 Lineset Install Kit |
| 35ft 1/4 x 1/2 Lineset Install Kit |
| 50FT 1/4" x 1/2" Lineset Install Kit |
| 50FT 1/4" x 1/2" Lineset Install Kit |
| 50FT 1/4" x 1/2" Lineset Install Kit |

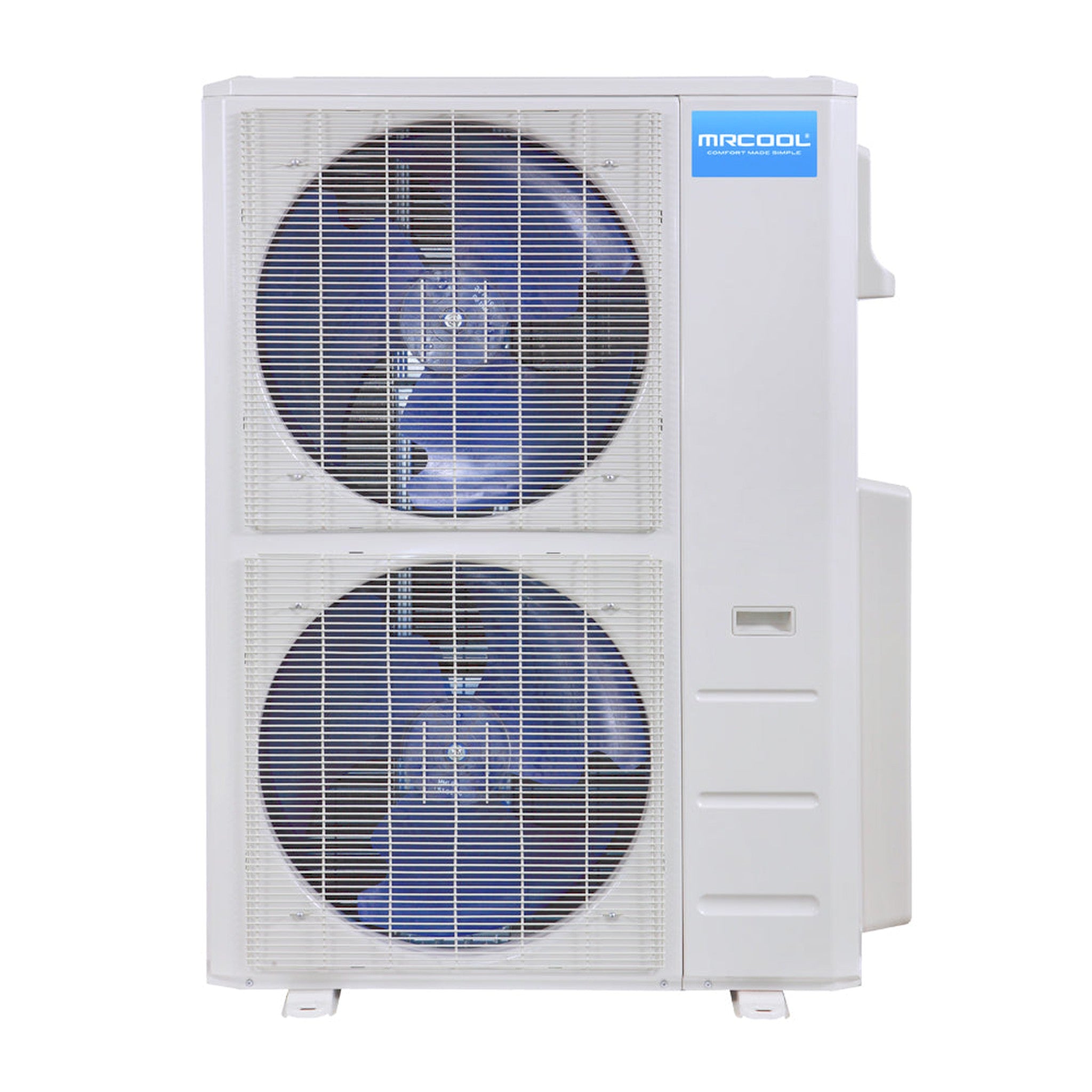

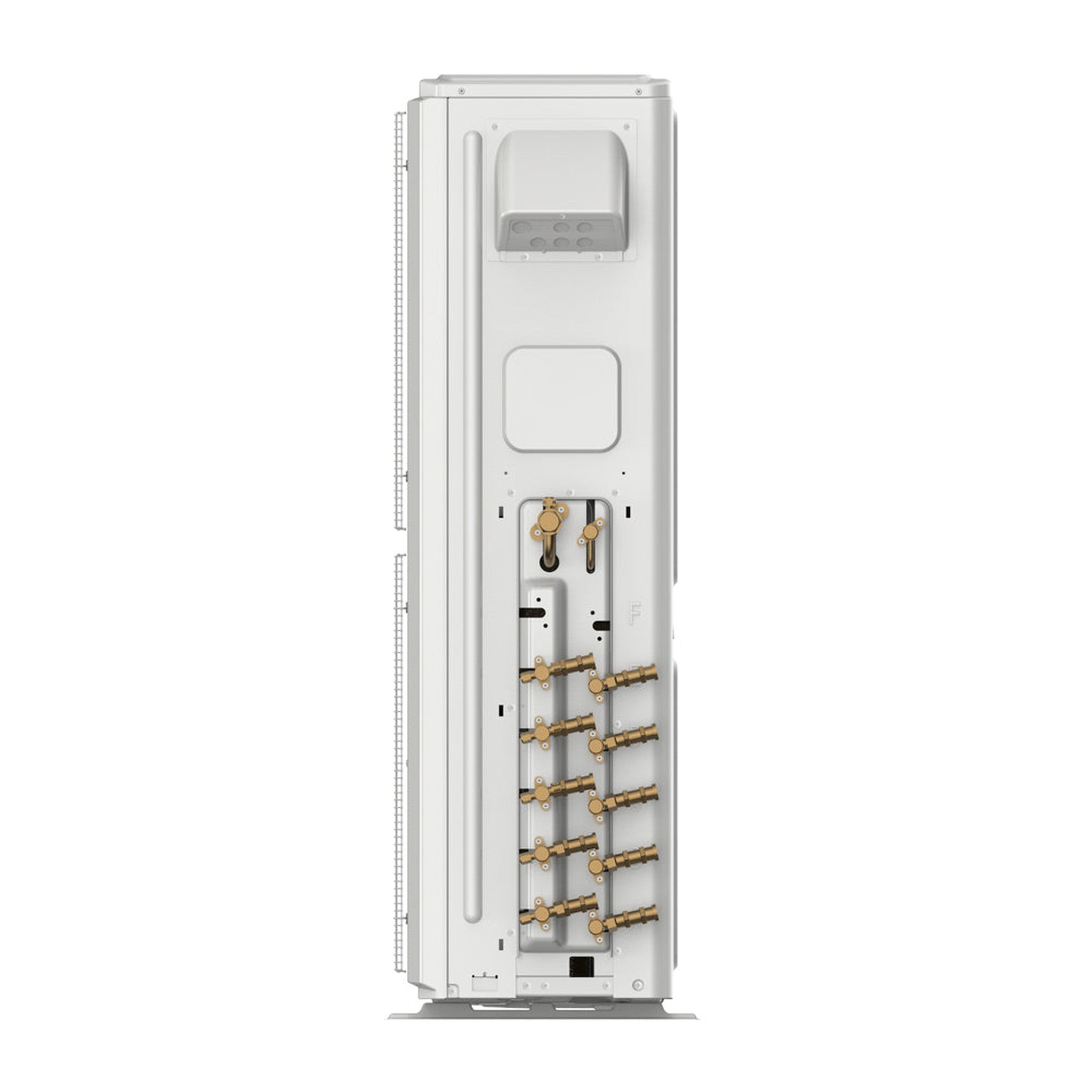

MrCool DIY 4th Gen Multi-Zone 5-Zone Condenser
Introducing the latest in home comfort solutions with the new 4th Generation MrCool DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating.
MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets.
These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.
Features
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
|
SEER |
20.5 |
|
EER |
11 |
|
HSPF |
hspf4/hspf5 : 11/8.5 |
|
CFM |
4500 |
|
COOLING CAPACITY |
48000 BTU |
|
HEATING CAPACITY |
48000 BTU |
|
VOLTAGE |
208-230 V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
60A |
|
MIN CIRCUIT AMPACITY |
40 A |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
Up to 5 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
162 oz |
|
DECIBEL RATING |
61.5 dBA |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
5F ~ 75.2F |
|
MAX LINESET LENGTH |
246.06 ft TOTAL |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
3/8in+1/2in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
900/850/800/750 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
16.34 in |
|
NET HEIGHT |
52.48 in |
|
NET WIDTH |
37.48 in |
|
NET WEIGHT |
222.89 lbs |
|
GROSS DEPTH |
19.49 in |
|
GROSS HEIGHT |
54.33 in |
|
GROSS WIDTH |
43.11 in |
|
GROSS WEIGHT |
254.41 lbs |
