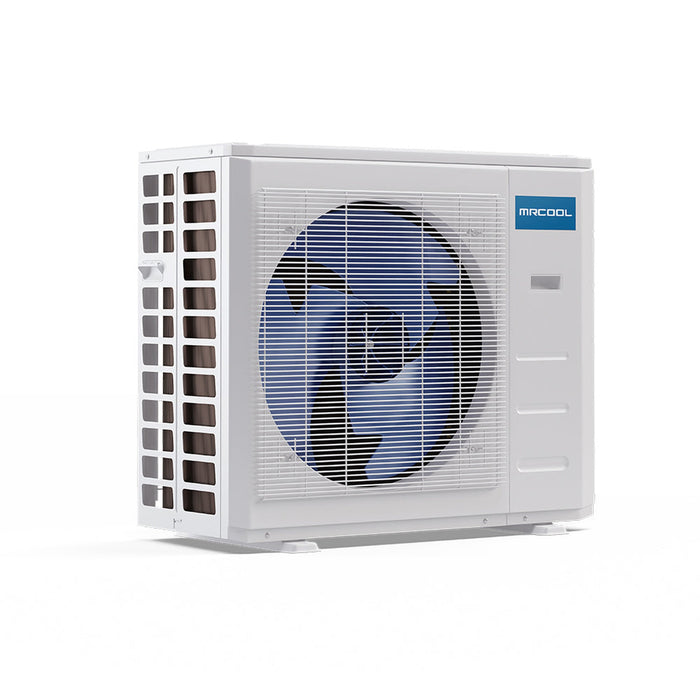

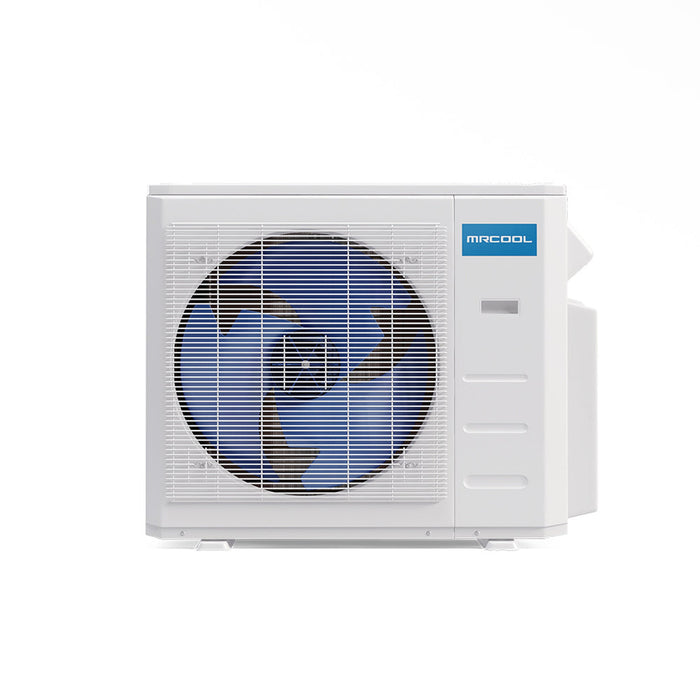

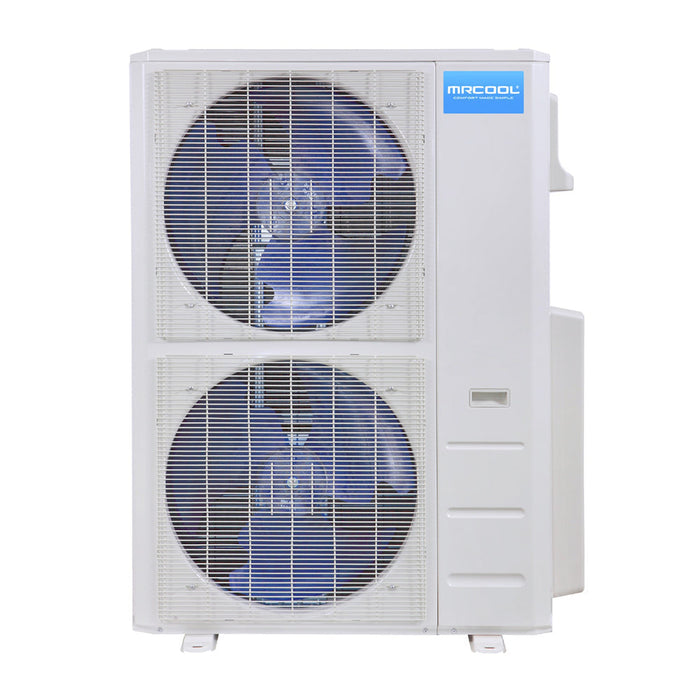

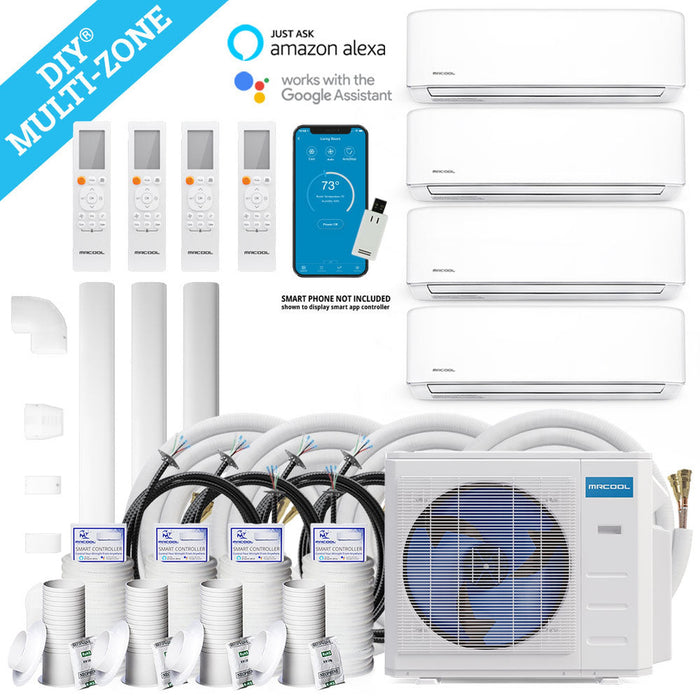

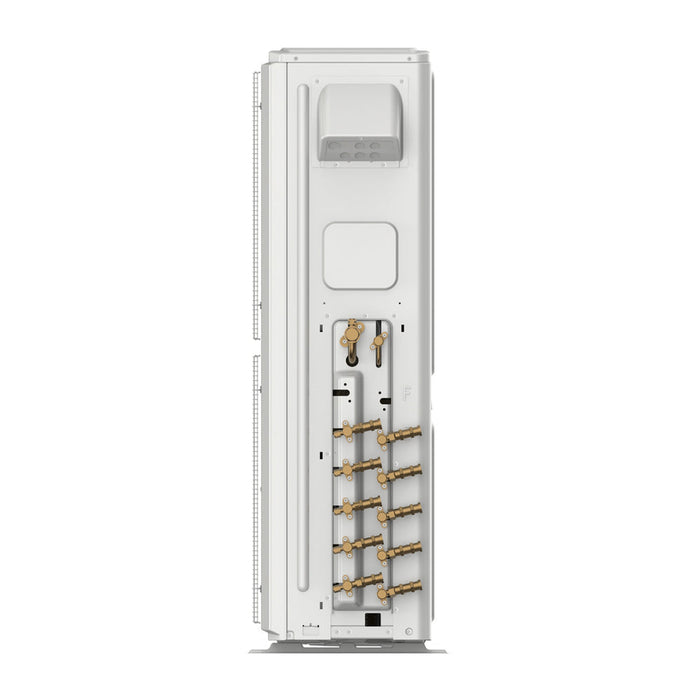

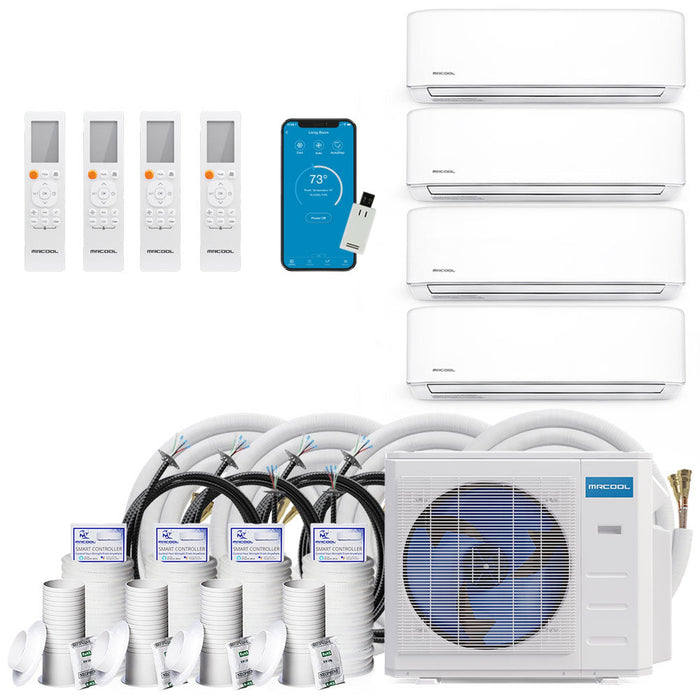

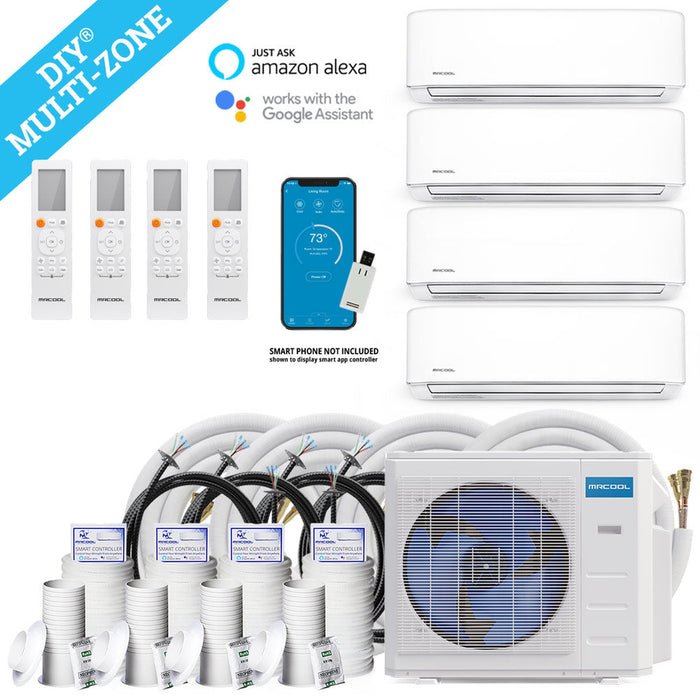

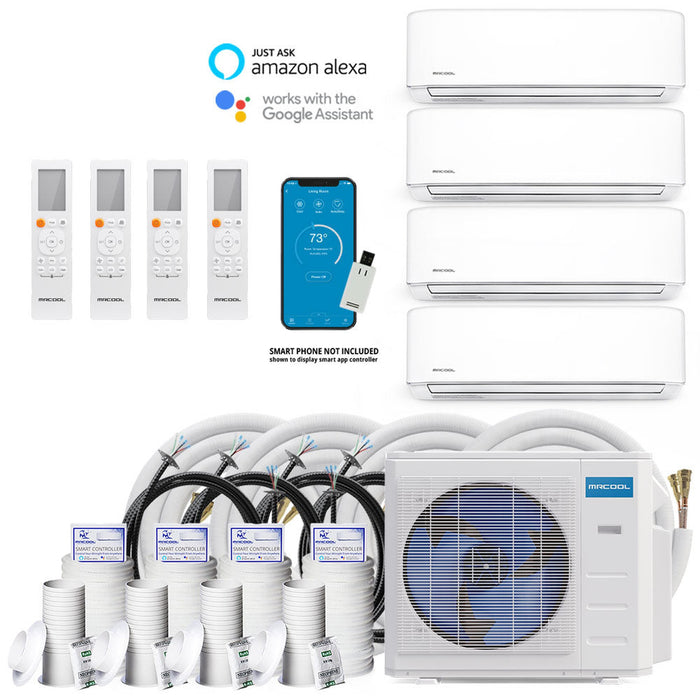

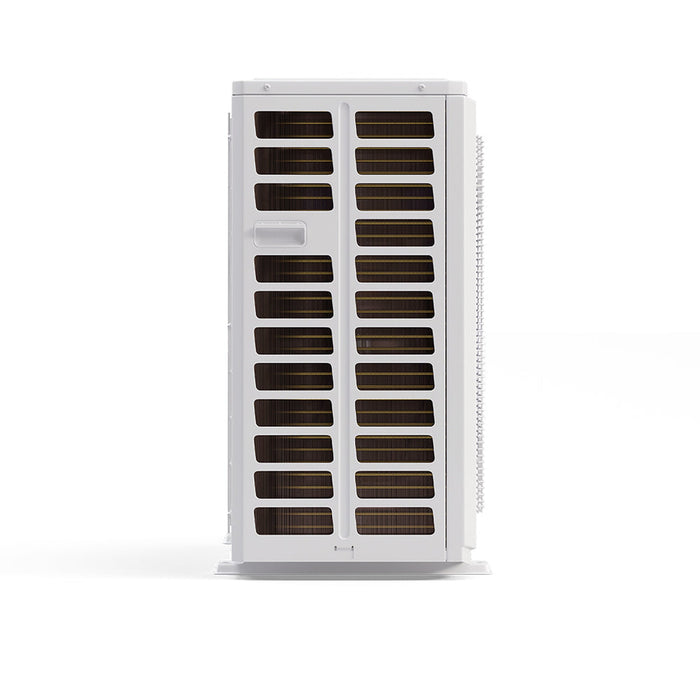

MRCOOL DIY 4th Gen 48K BTU 4-Zone Condenser with 12K+12K+12K+12K handlers, 1 x 16ft, 2 x 35ft, 2 x 50ft linesets and DIYCOUPLER-1412K75C Bundle





What's Included:

Features

• Up to 20.5 SEER
• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
• Energy Efficient DC Inverter
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

SEER	20.5
EER	11
HSPF	hspf4/hspf5 : 11/8.5
CFM	4500
COOLING CAPACITY	48000 BTU
HEATING CAPACITY	48000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	60A
MIN CIRCUIT AMPACITY	40 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 5
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	162 oz
DECIBEL RATING	61.5 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	5F ~ 75.2F
MAX LINESET LENGTH	246.06 ft TOTAL
LIQUID LINE SIZE	1/4in
SUCTION LINE SIZE	3/8in+1/2in
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	900/850/800/750
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.34 in
NET HEIGHT	52.48 in
NET WIDTH	37.48 in
NET WEIGHT	222.89 lbs
GROSS DEPTH	19.49 in
GROSS HEIGHT	54.33 in
GROSS WIDTH	43.11 in
GROSS WEIGHT	254.41 lbs
