MRCOOL DIY 4th Gen 48K BTU 3-Zone Condenser with 12K+12K+24K handlers and 3 x 25ft linesets Bundle

Save $519.00
No reviews

Price:
Sale price$5,608.00 Regular price$6,127.00

Description

4

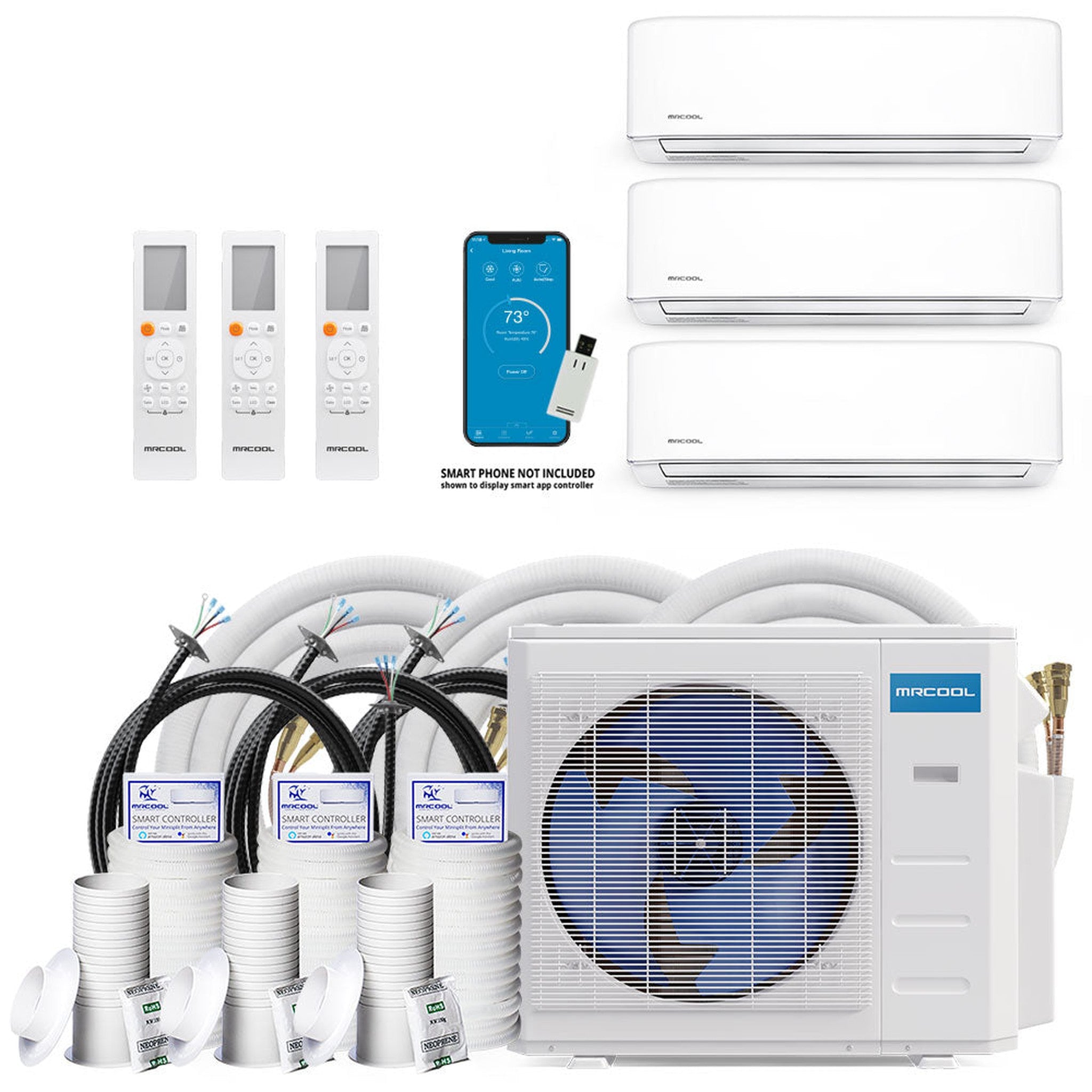

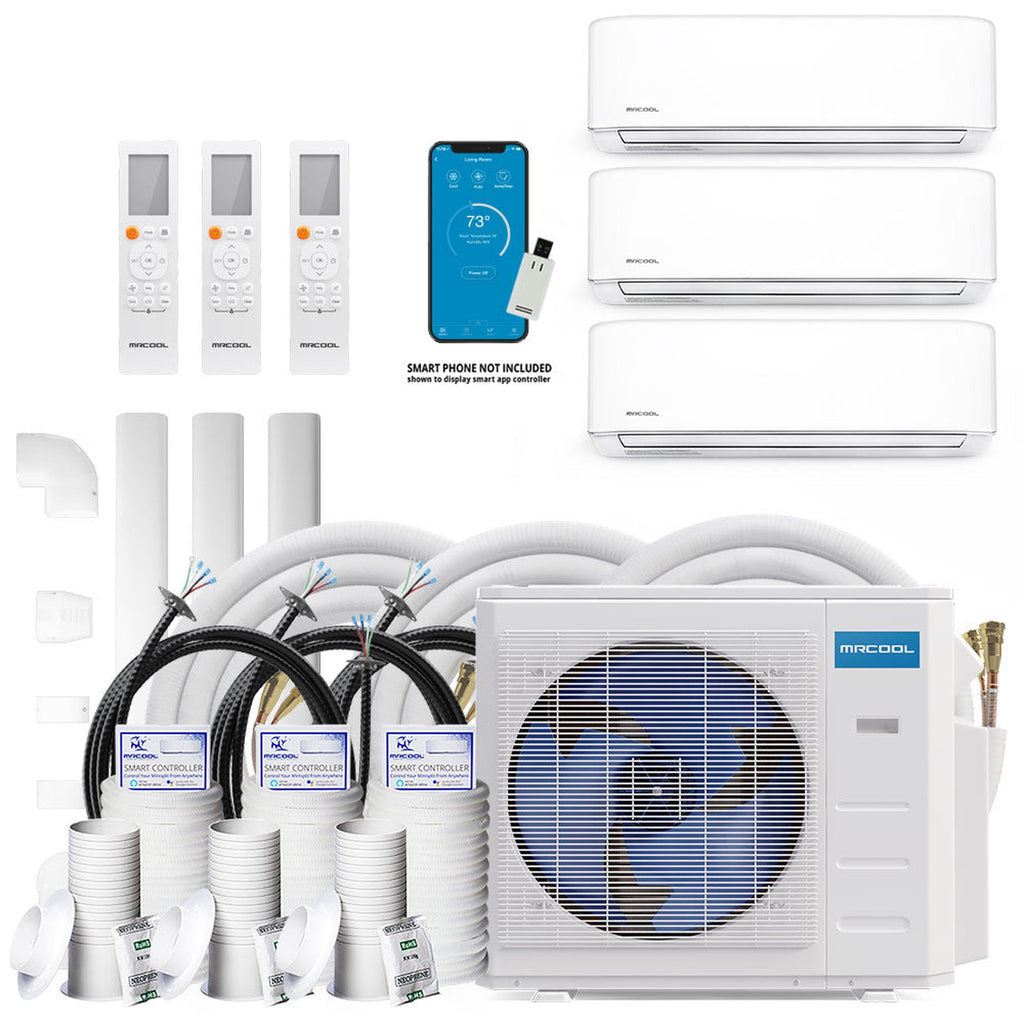

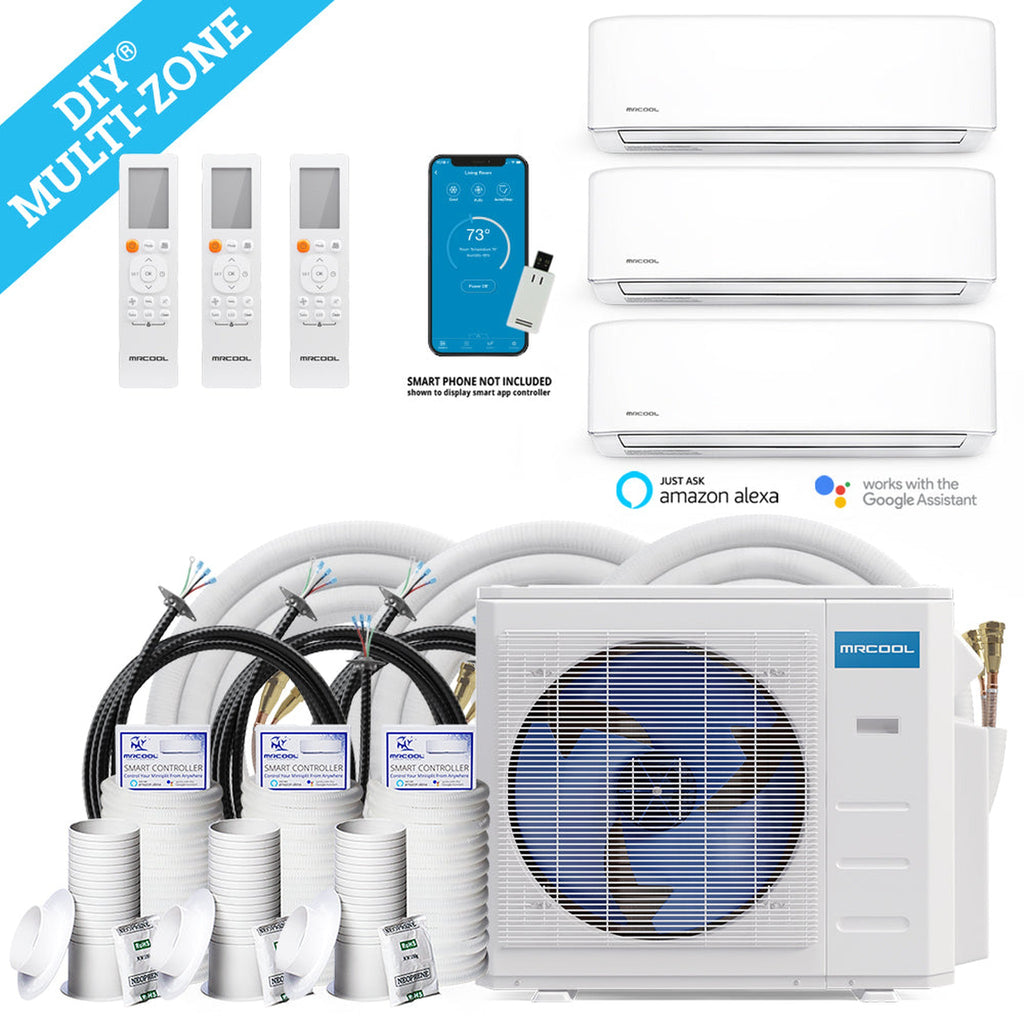

What's Included:


48K BTU 3-Zone Ductless Heat Pump Condenser
12K BTU Ductless Wall Mounted Air Handler
12K BTU Ductless Wall Mounted Air Handler
24K BTU Ductless Wall Mounted Air Handler
25ft 1/4 x 1/2 Lineset Install Kit
25ft 1/4 x 1/2 Lineset Install Kit
25ft 1/4 x 1/2 Lineset Install Kit

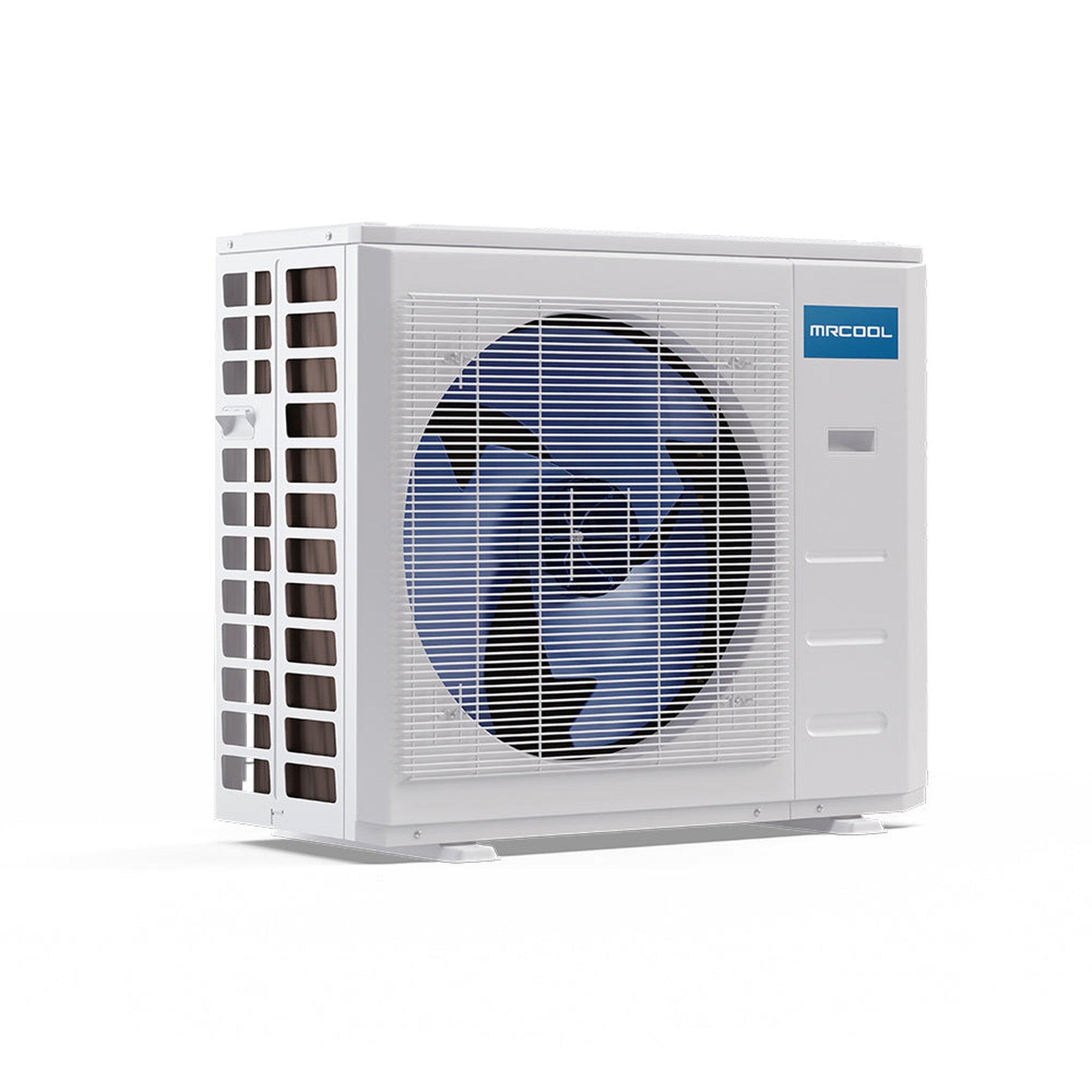

MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser

Introducing the latest in home comfort solutions with the new 4th Generation MrCool DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating.

MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Features

  • Up to 20.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

SEER

20.5

EER

11

HSPF

hspf4/hspf5 : 11/8.5

CFM

4500

COOLING CAPACITY

48000 BTU

HEATING CAPACITY

48000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

60A

MIN CIRCUIT AMPACITY

40 A

COLOR

White

COLOR FAMILY

White

ZONE CAPACITY

Up to 5

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

162 oz

DECIBEL RATING

61.5 dBA

INVERTER

Yes

MIN AMBIENT COOL

5F ~ 122F

MIN AMBIENT HEAT

5F ~ 75.2F

MAX LINESET LENGTH

246.06 ft TOTAL

LIQUID LINE SIZE

1/4in

SUCTION LINE SIZE

3/8in+1/2in

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

900/850/800/750

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH

16.34 in

NET HEIGHT

52.48 in

NET WIDTH

37.48 in

NET WEIGHT

222.89 lbs

GROSS DEPTH

19.49 in

GROSS HEIGHT

54.33 in

GROSS WIDTH

43.11 in

GROSS WEIGHT

254.41 lbs



Users Manual

Brochure
Install Manual
Owner Manual
Remote Manual
Technical Manual
Warranty Doc

Service Manual
