MRCOOL DIY 4th Gen 48K BTU 5-Zone Condenser with 9K+9K+9K+9K+9K handlers and 5 x 16ft linesets Bundle

by MRCOOL
SKU DIYM548HPW00C00
Save $601.00 Save $601.00
Original price $6,650.00
Original price $6,650.00 - Original price $6,650.00
Original price $6,650.00
Current price $6,049.00
$6,049.00 - $6,049.00
Current price $6,049.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

MRCOOL DIY 4th Gen 48K BTU 5-Zone Condenser with 9K+9K+9K+9K+9K handlers and 5 x 16ft linesets Bundle

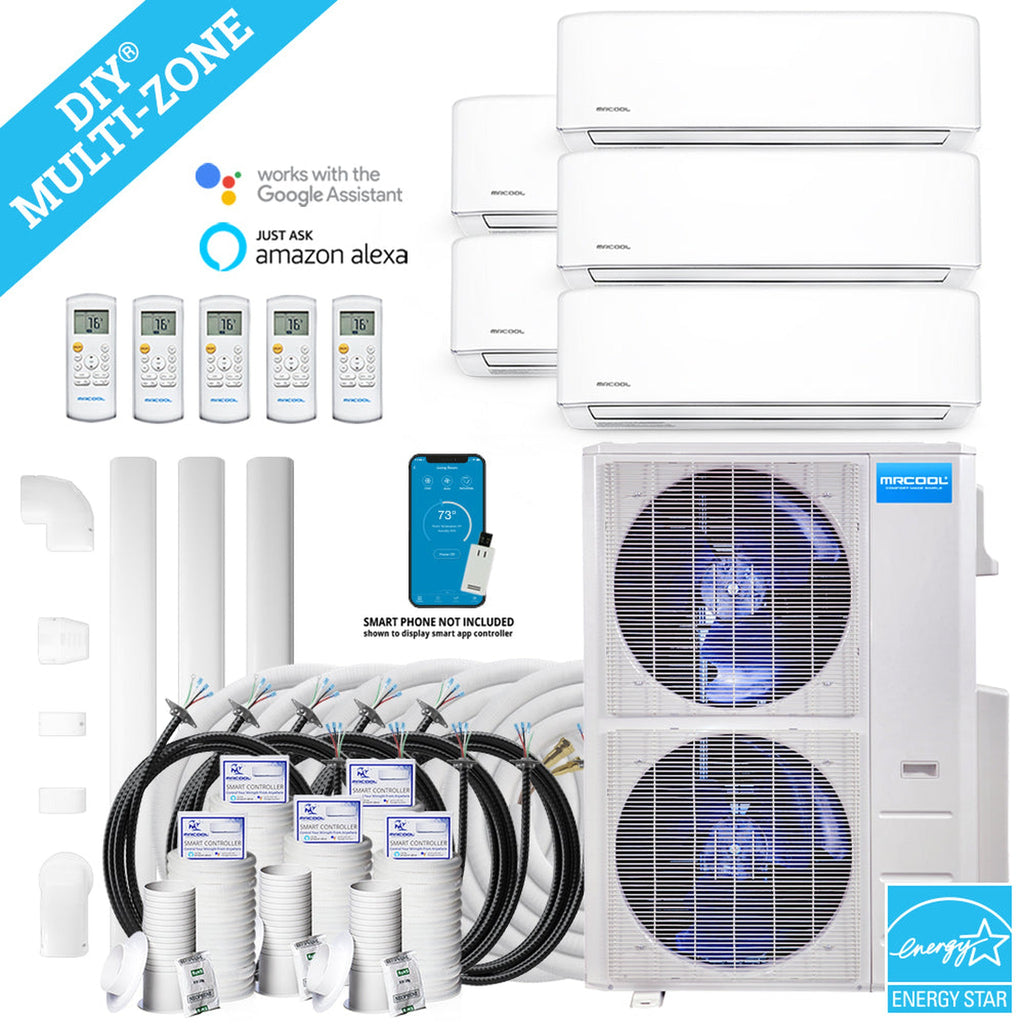

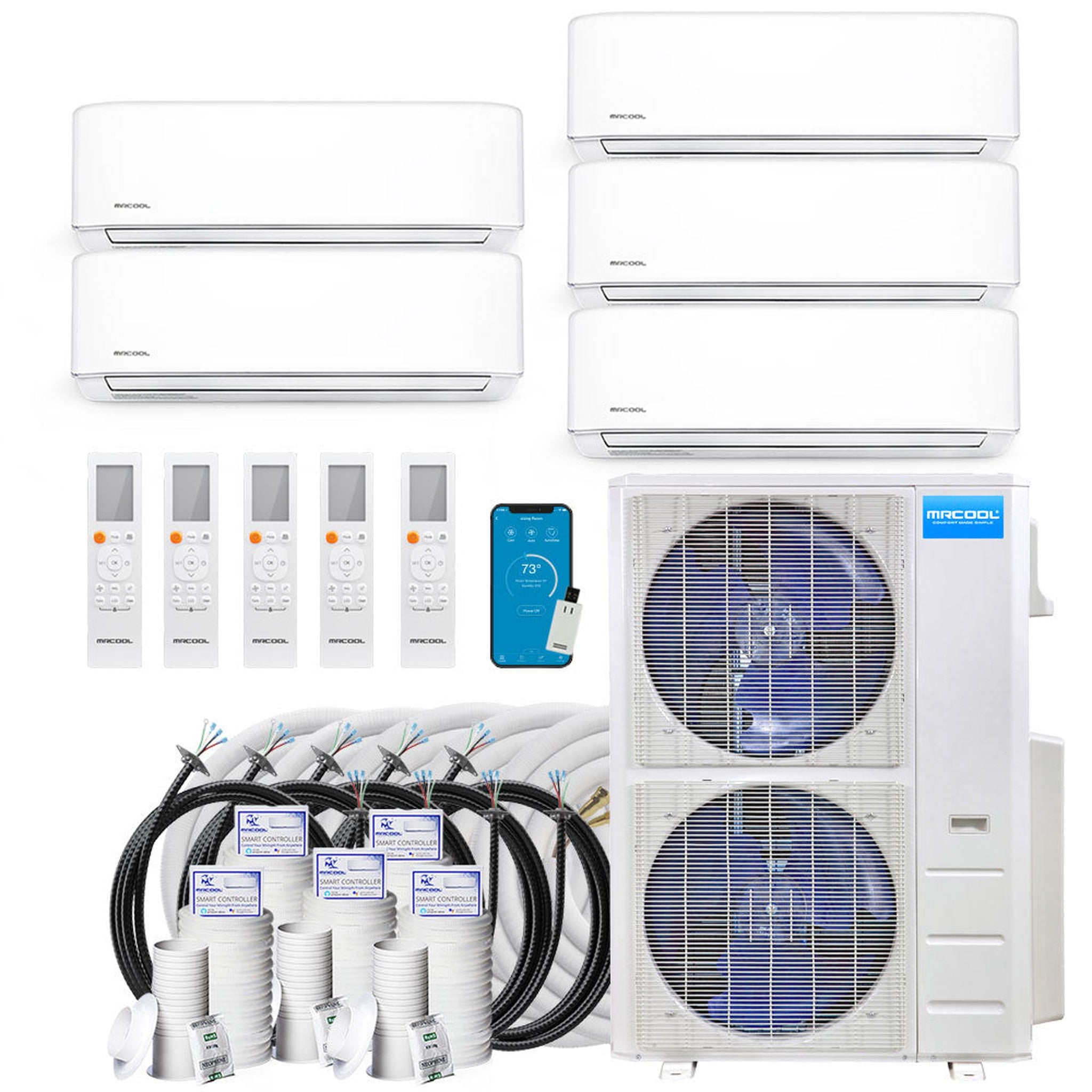

MRCOOL DIY 4th Gen Mini Split Bundle

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to five rooms. The easy installation, Do-It-Yourself

Bundle Includes:

  1. MRCOOL DIY 4th Gen Multi-Zone 5-Zone 48K BTU Condenser Up to 20.5 SEER

  2. MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant

  3. Line Sets - length & quantity varies based on selection:

  • MRCOOL 16 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K & 18K Indoor
  • MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

 Features

  • Power - 48K BTUs
  • Zones - Cool and heat up to 5 rooms in your home
  • SEER - SEER efficiency rating of up to 20.5
  • Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
  • Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
  • Environmentally Friendly - R-410A environmentally friendly refrigerant
  • Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

    MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 5

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate


      MRCOOL Line Sets

      • The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
      • Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
      • Length Options - Select which combination of lengths you require for your installation needs.
      • Need more length? Use a coupler to connect two lines together
        • Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
        • Connect up to 66 ft. or 77 ft. in total length

       Specifications

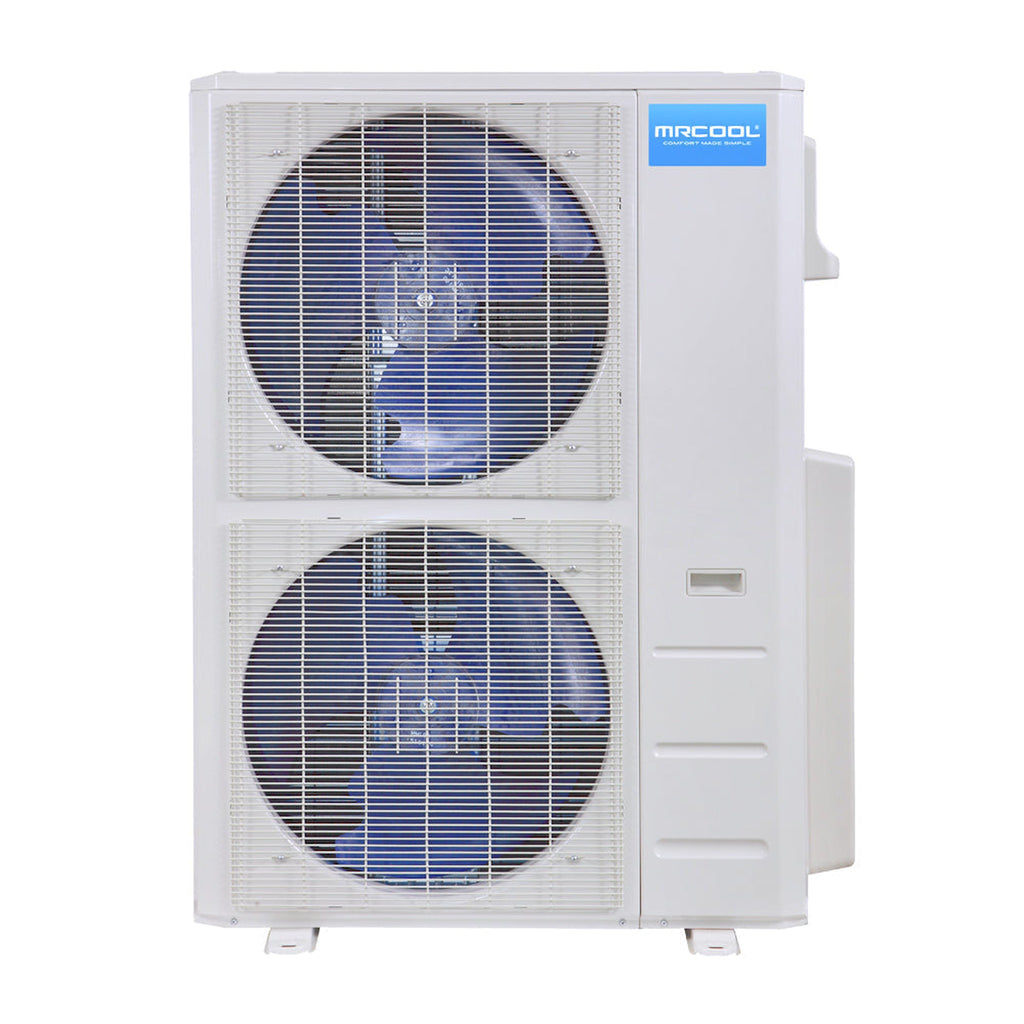

      Condenser

      Dimensions

      16.34" D x 52.48" H x 37.48" W

      Voltage

      208-230 V

      SEER

      20.5

      Cooling Capacity

      48K BTU

      Heating Capacity

      48K BTU

      Min-Max Ambient Cool

      5F ~ 122F

      Min-Max Ambient Heat

      5F ~ 75.2F

      Refrigerant Type

      R-410A

      Max Line Set Length

      246.06 ft TOTAL



      9K Air Handler

      Product Dimensions

      7.44" D x 11.69" H x 31.57" W

      Voltage

      208V-240V

      Cooling Capacity

      9K BTU

      Heating Capacity

      9K BTU

      Modes

      • Auto - auto selects from Cool, Heat or Fan-Only
      • Dry (Dehumidifies)
      • Cool
      • Heat
      • Fan Only
      • Quiet
      • Sleep


      Line Sets

      Length

      16 ft., 25 ft., 35 ft., or 50 ft.

      Liquid Line Size

      1/4"

      Suction Line Size

      1/2"

      Couplers

      • Connect 50 ft. line set to 16 ft. or 25 ft. line set
      • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
      • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C

      Restricted States

      GU;PR;VI



      Proposition 65 Warning

      Yes



      Users Manual

      Brochure
      Install Manual
      Owner Manual
      Remote Manual
      Technical Manual
      Warranty Doc

      Service Manual
