Name: MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+24K handlers and 3 x 16ft linesets Bundle
Brand: MRCOOL
SKU: DIYM336HPW03C00
Price: 4456.00 USD
Availability: InStock

MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+24K handlers and 3 x 16ft linesets Bundle

Roll over image to zoom in Click on image to zoom

MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+24K handlers and 3 x 16ft linesets Bundle DIYM336HPW03C00

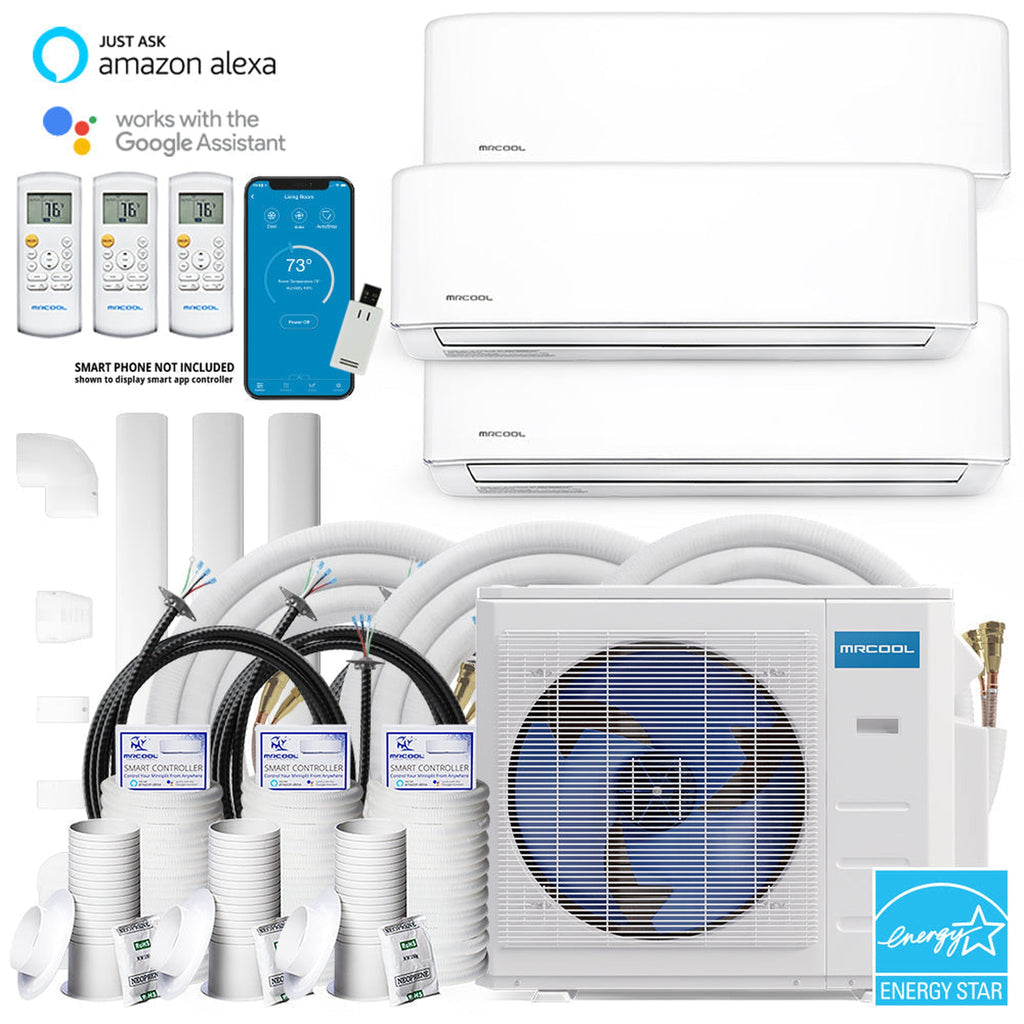

MRCOOL DIY 4th Gen Mini Split Bundle

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to three rooms. The easy installation, Do-It-Yourself

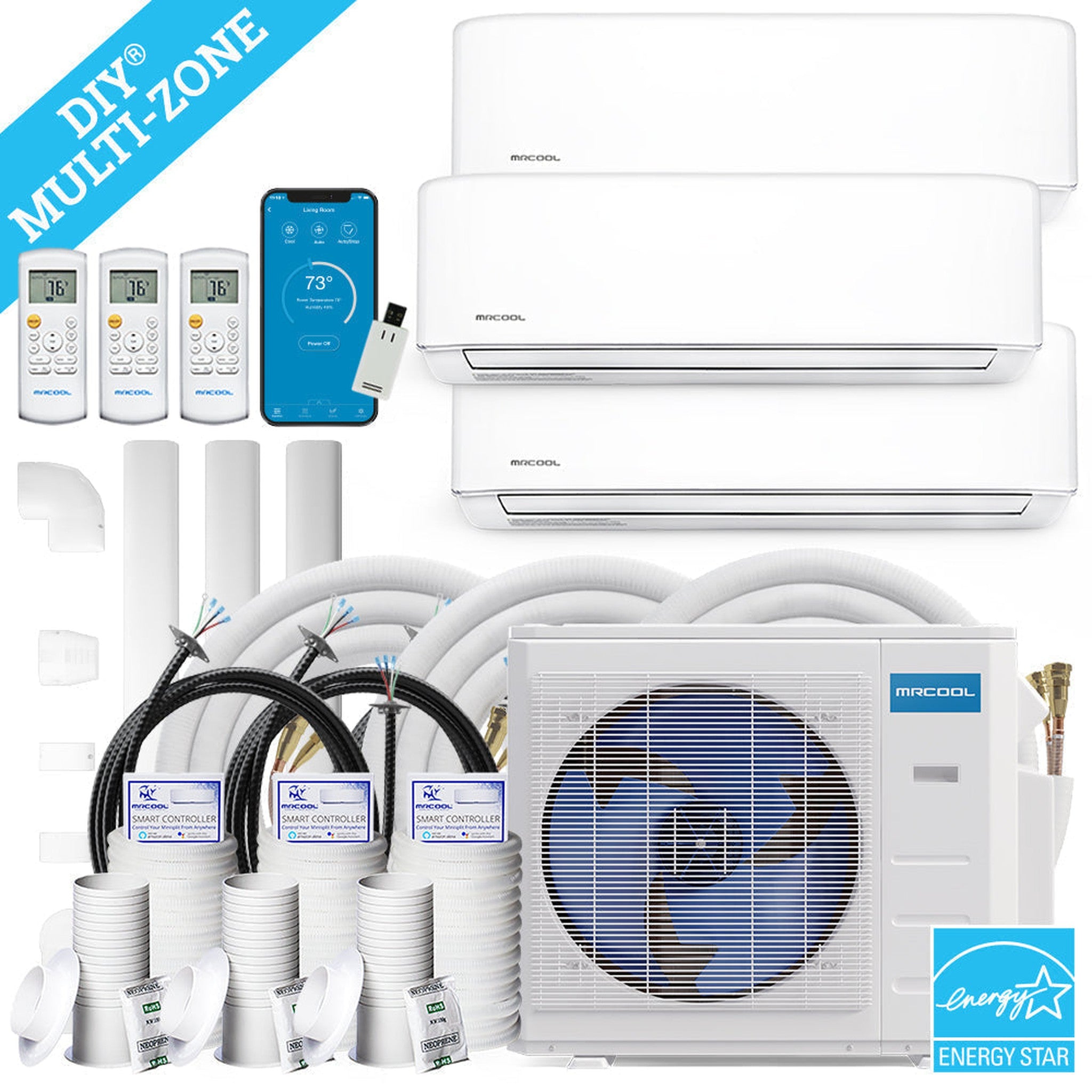

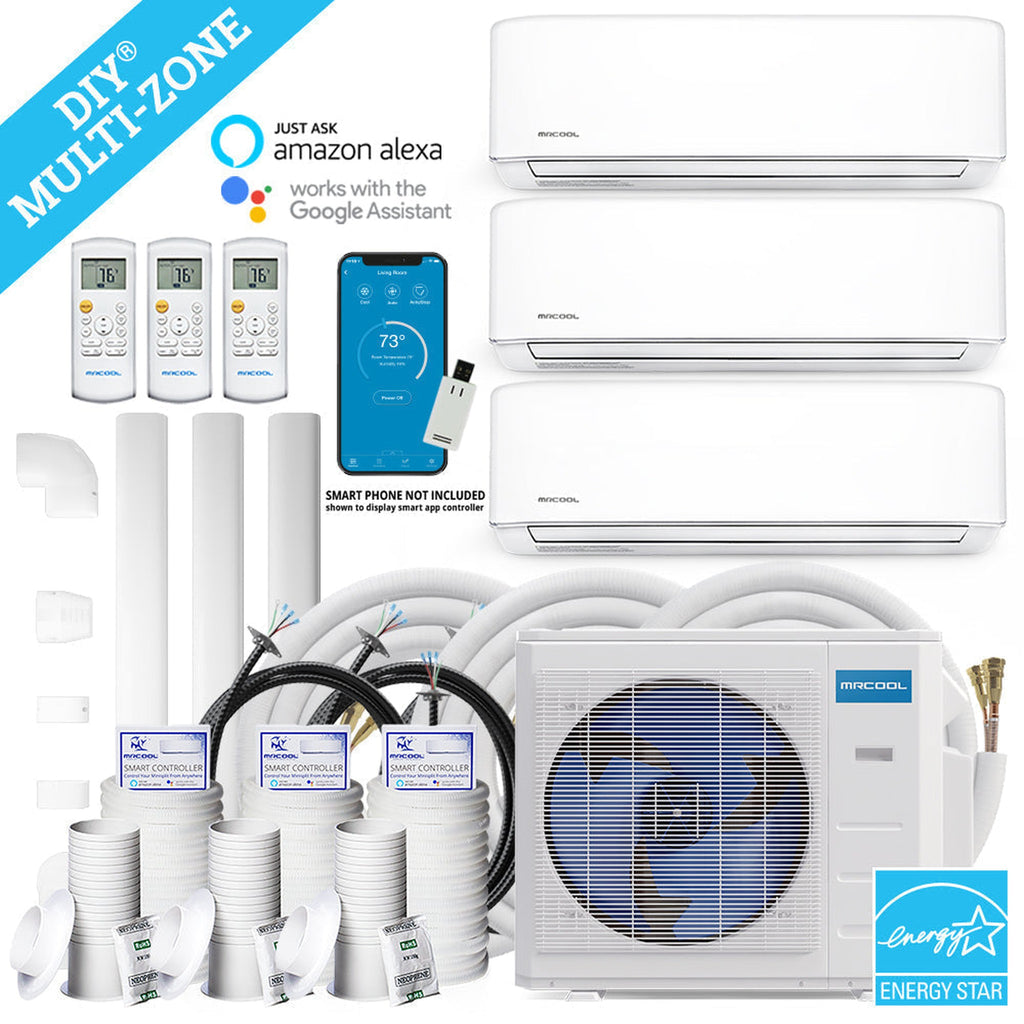

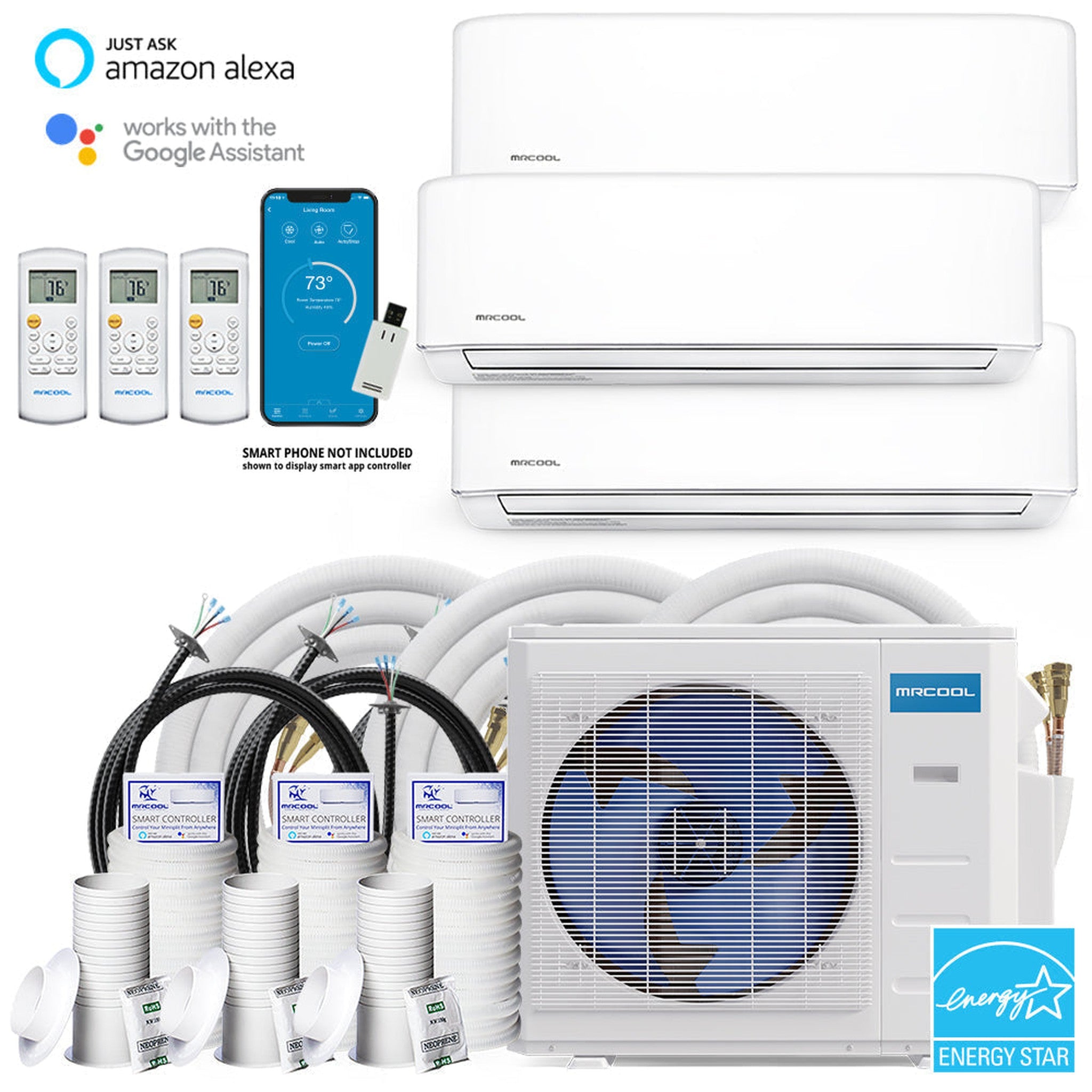

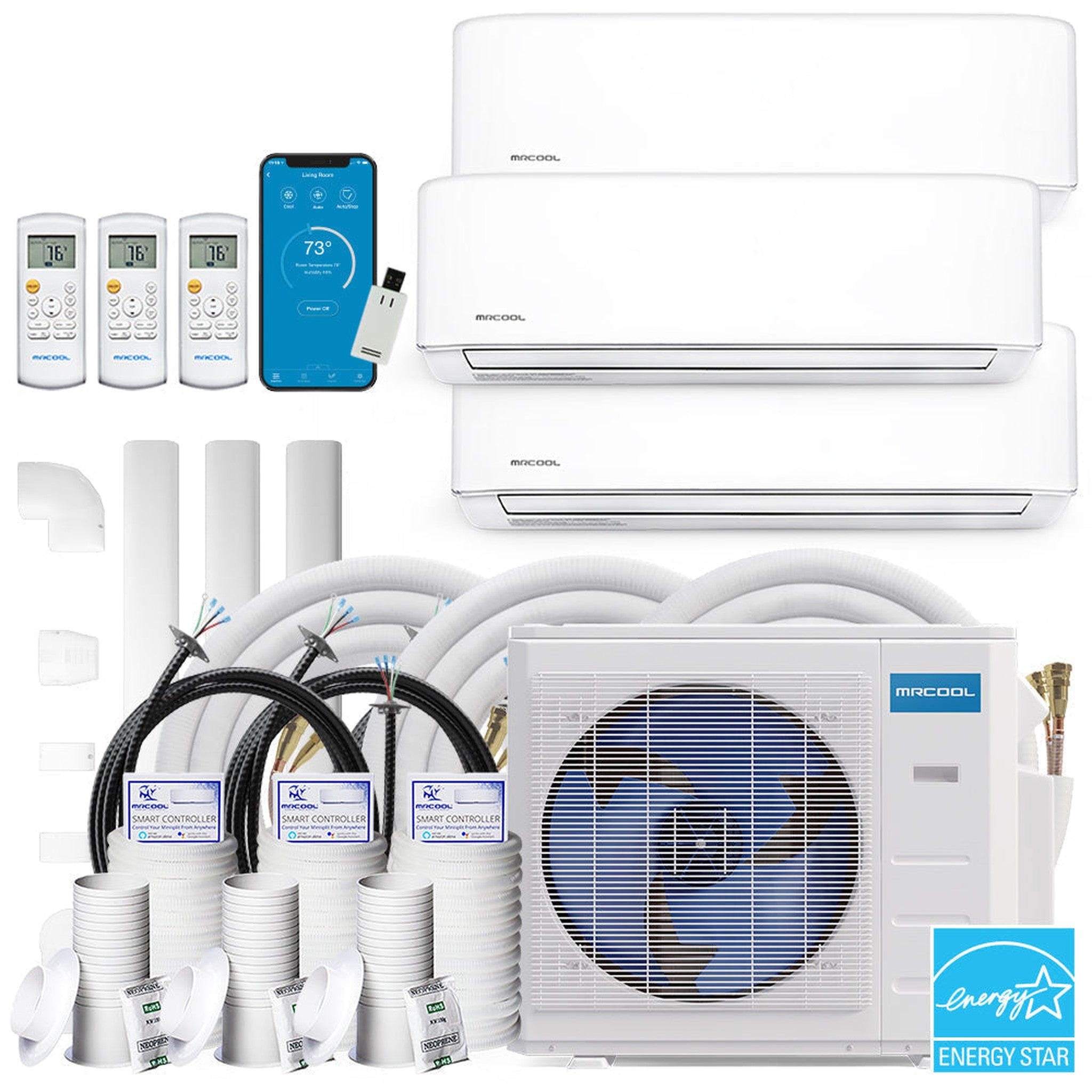

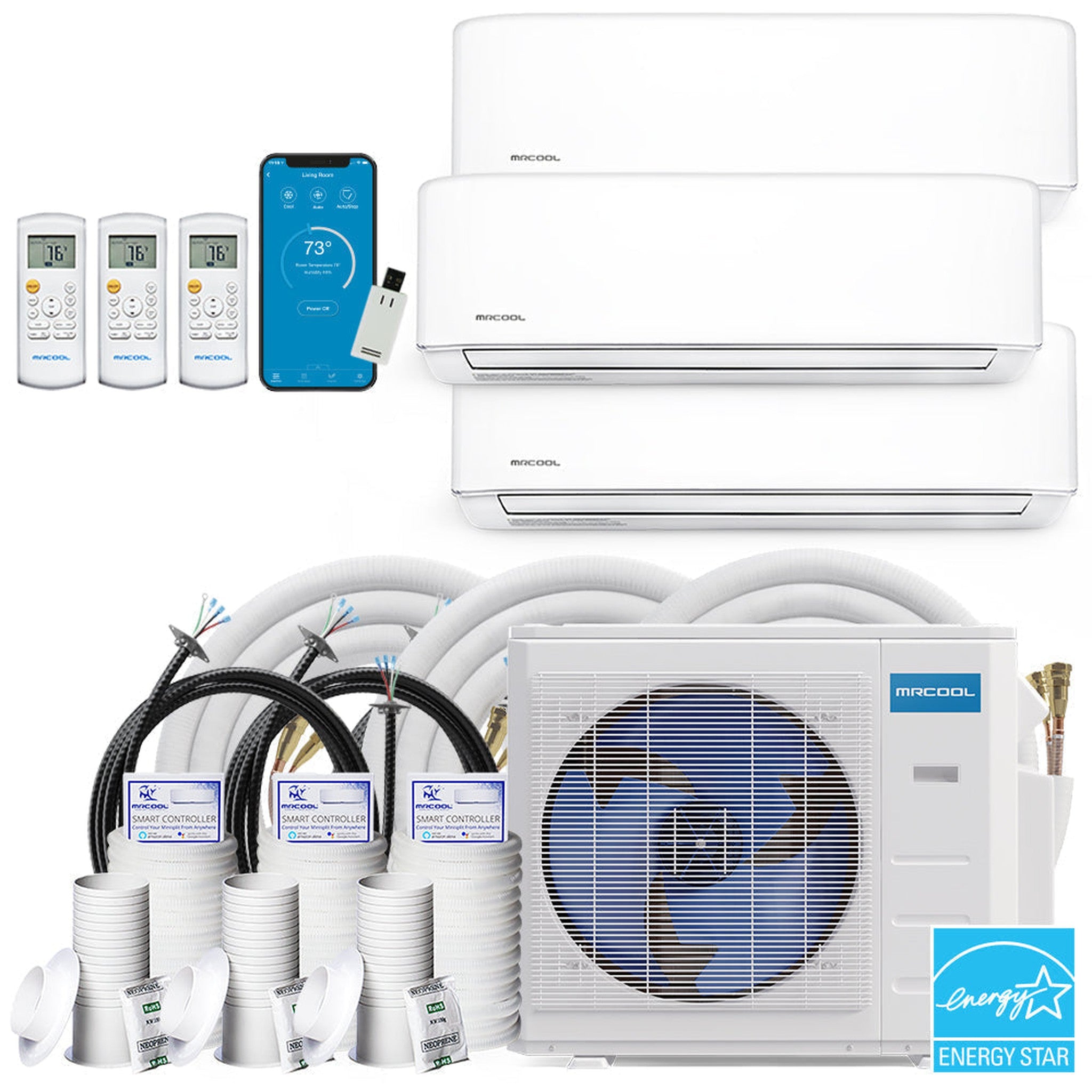

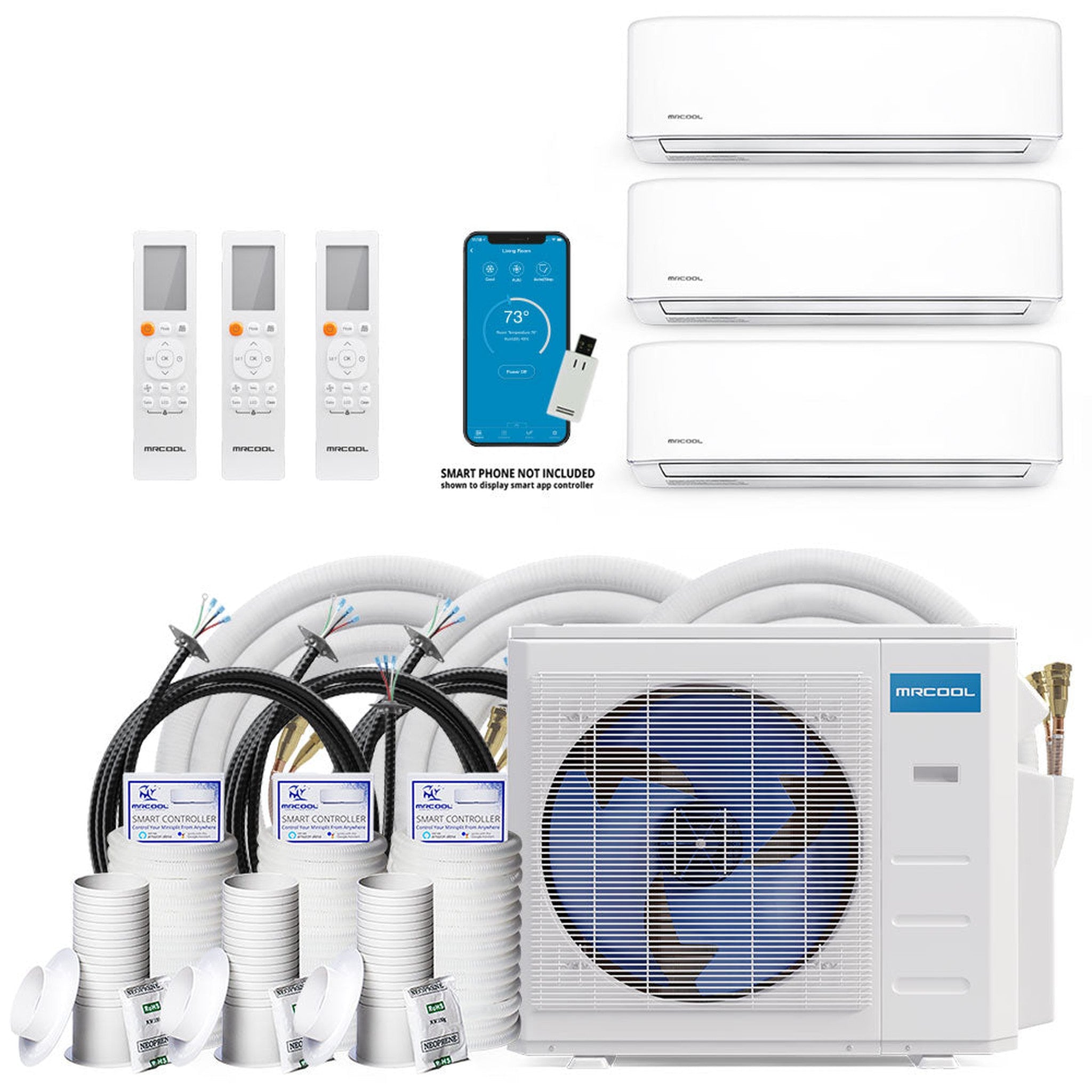

Bundle Includes:

MRCOOL DIY 4th Gen Multi-Zone 4-Zone 36K BTU Condenser Up to 21.5 SEER
MRCOOL DIY 4th Generation 24K BTU Heat Pump Wall Mount Air Handler with 25ft DIY Pro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant
MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant
Line Sets - length & quantity varies based on selection:

MRCOOL 16 Ft. 3/8" x 5/8" Line Set for DIY 24K, & 36K Indoor
MRCOOL 16 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K & 18K Indoor
MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
MRCOOL DIY 4th Generation 66 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
MRCOOL DIY 4th Generation 75 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

Features

Power - 36K BTUs
Zones - Cool and heat up to four rooms in your home
SEER - SEER efficiency rating of up to 21.5
Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
Environmentally Friendly - R-410A environmentally friendly refrigerant
Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

MRCOOL Wall Mount Air Handler - 24K BTU - Quantity 1

Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 2

Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

MRCOOL Line Sets

The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
Length Options - Select which combination of lengths you require for your installation needs.
Need more length? Use a coupler to connect two lines together

Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
Connect up to 66 ft. or 77 ft. in total length

Specifications

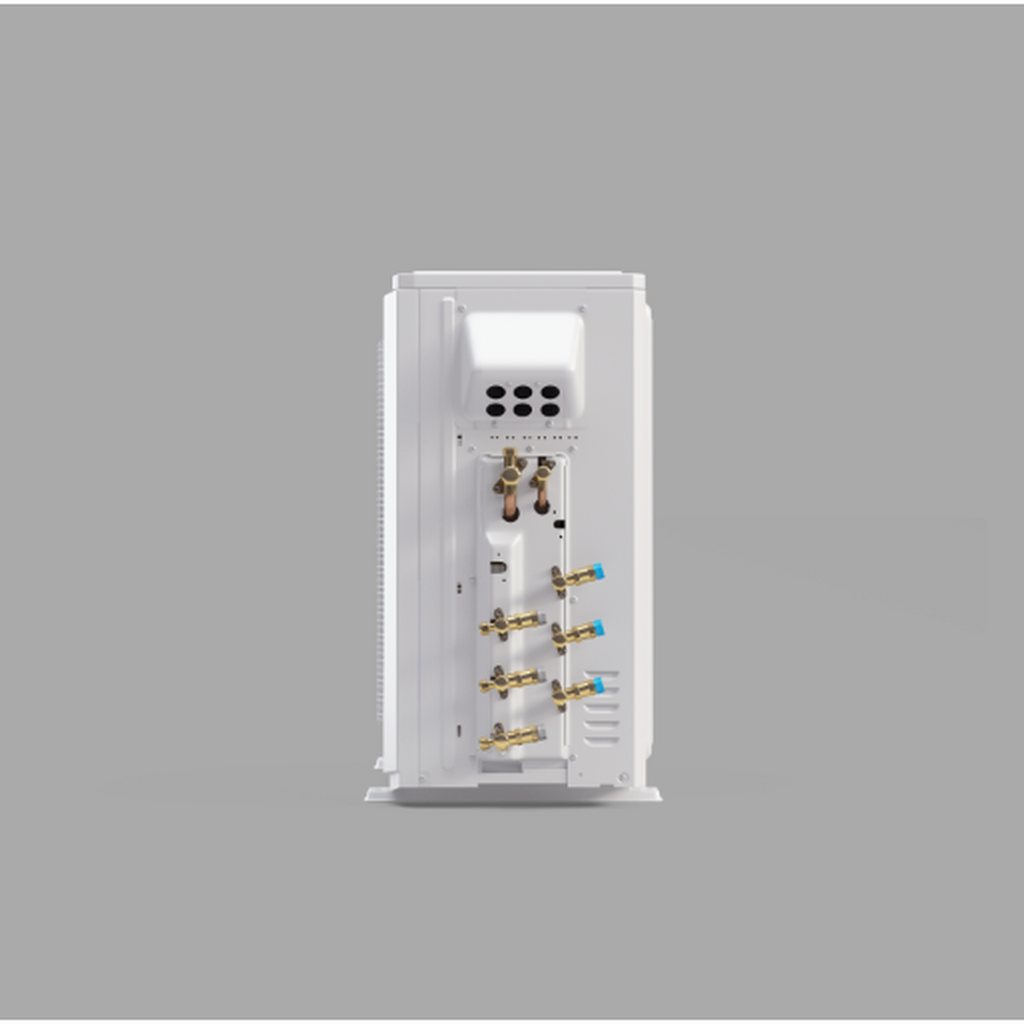

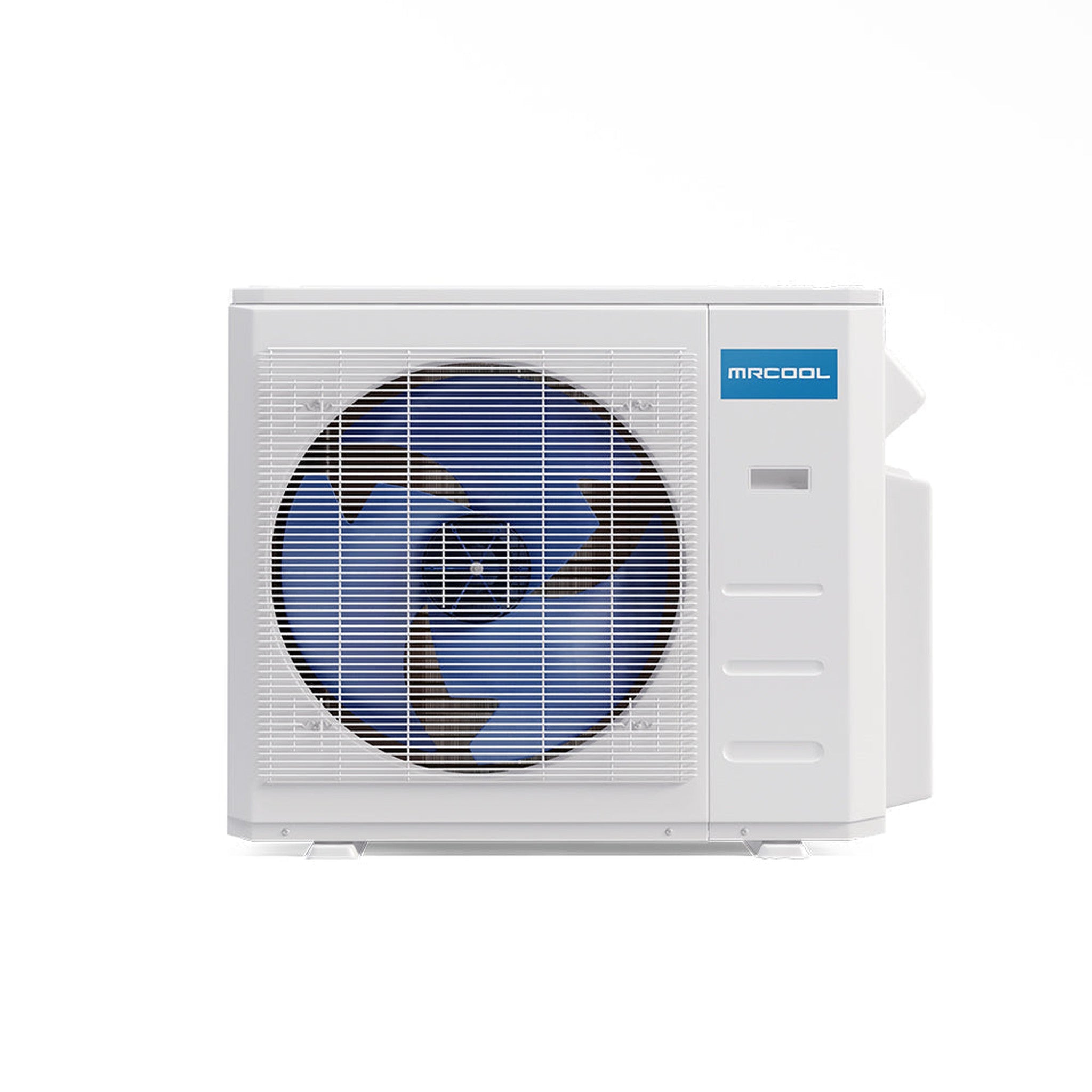

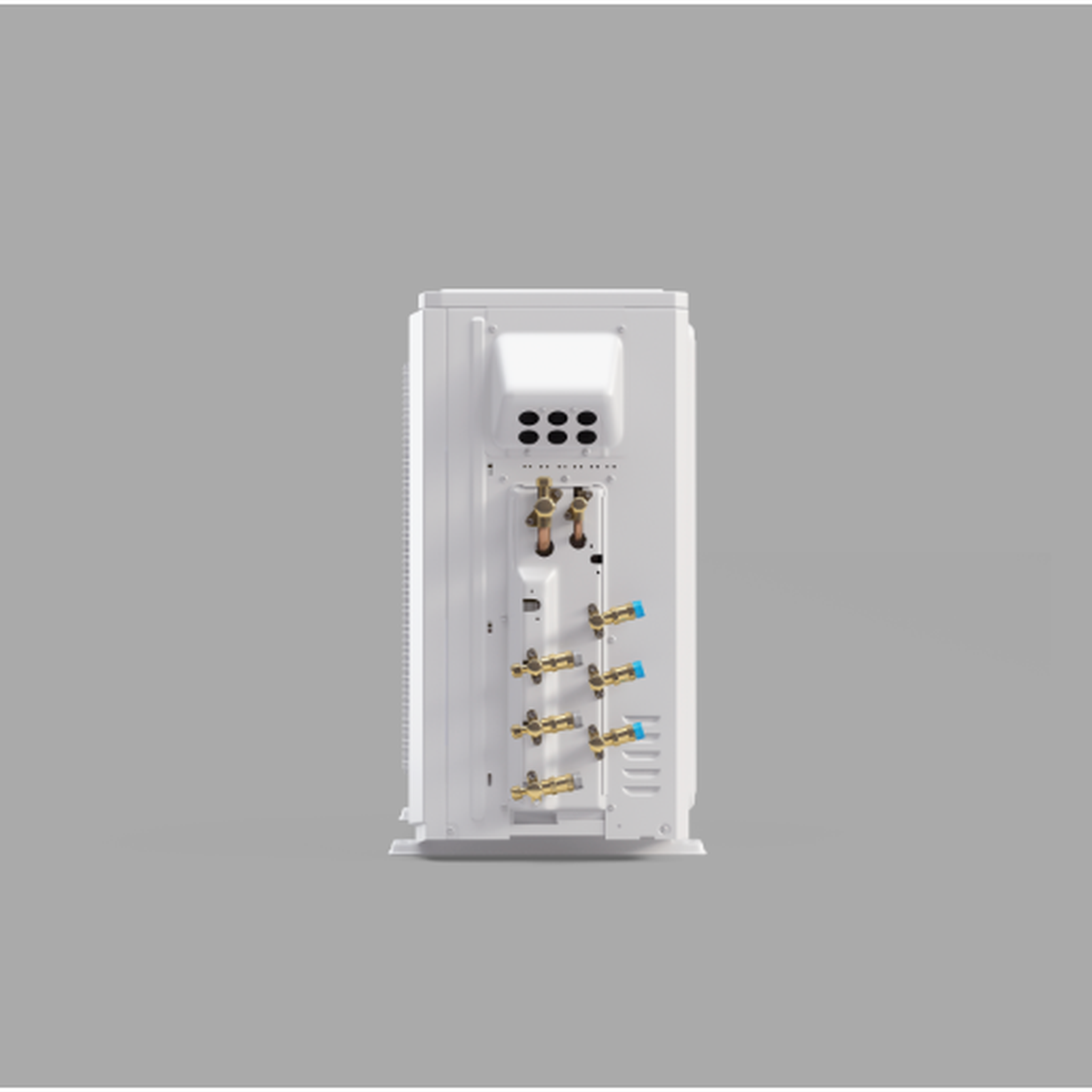

Condenser
Dimensions	16.14" D x 31.89" H x 37.24" W
Voltage	208-230 V
SEER	21.5
Cooling Capacity	36K BTU
Heating Capacity	36K BTU
Min-Max Ambient Cool	5F ~ 122F
Min-Max Ambient Heat	-13F ~ 75.2F
Refrigerant Type	R-410A
Max Line Set Length	196.85 ft TOTAL

24K Air Handler
Product Dimensions	8.90" D x 13.19" H x 42.52" W
Voltage	208-230 V
Cooling Capacity	23K BTU
Heating Capacity	25K BTU
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry (Dehumidifies) Cool Heat Fan Only Quiet Sleep

9K Air Handler
Product Dimensions	7.44" D x 11.69" H x 31.57" W
Voltage	208V-240V
Cooling Capacity	9K BTU
Heating Capacity	9K BTU
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry (Dehumidifies) Cool Heat Fan Only Quiet Sleep

Line Sets
Length	16 ft., 25 ft., 35 ft., or 50 ft.
Liquid Line Size	1/4"
Suction Line Size	1/2"
Couplers	Connect 50 ft. line set to 16 ft. or 25 ft. line set For 24K or 36K Air Handler: DIYCOUPLER-3858K75C For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
Restricted States	GU;PR;VI
Proposition 65 Warning	Yes

Line Sets
Length	16 ft., 25 ft., 35 ft., or 50 ft.
Liquid Line Size	3/8"
Suction Line Size	5/8"
Couplers	Connect 50 ft. line set to 16 ft. or 25 ft. line set For 24K or 36K Air Handler: DIYCOUPLER-3858K75C For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
Restricted States	GU;PR;VI
