Description

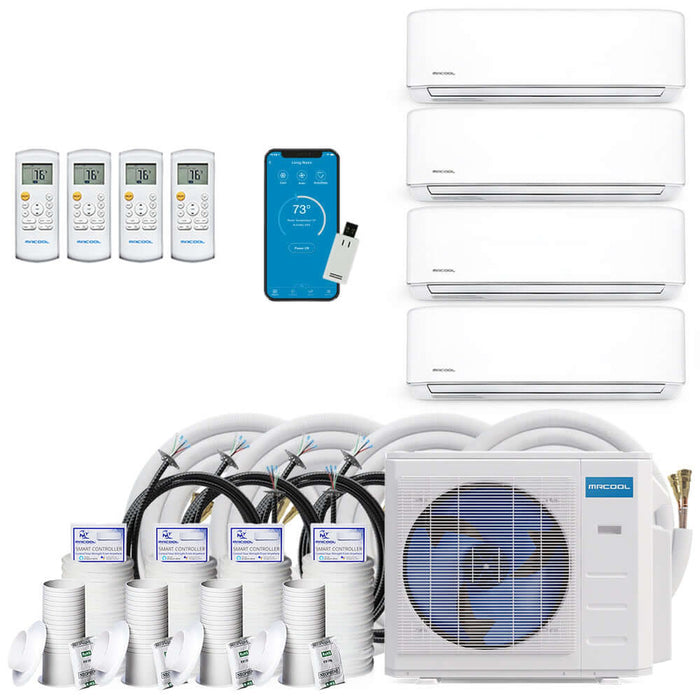

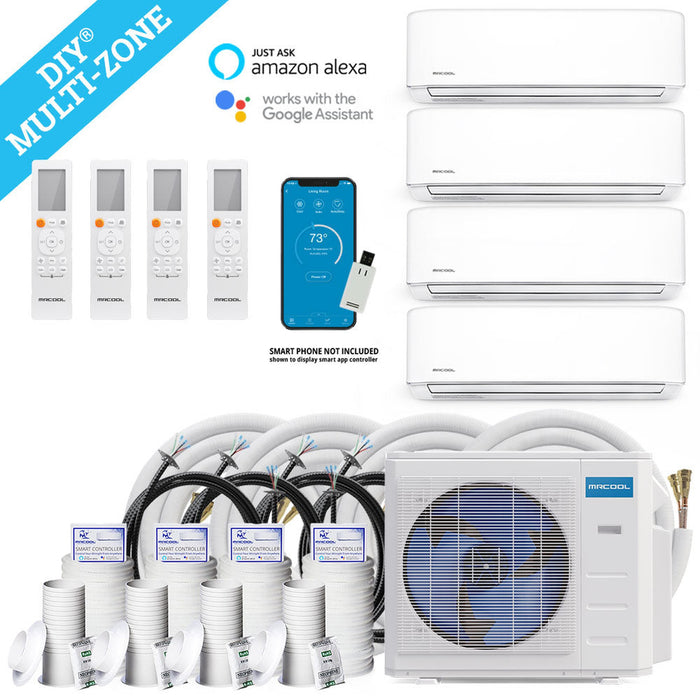

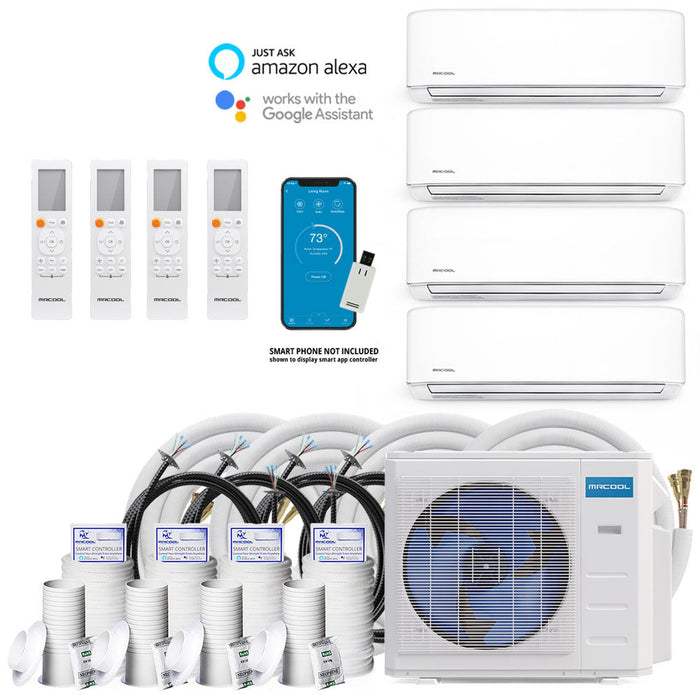

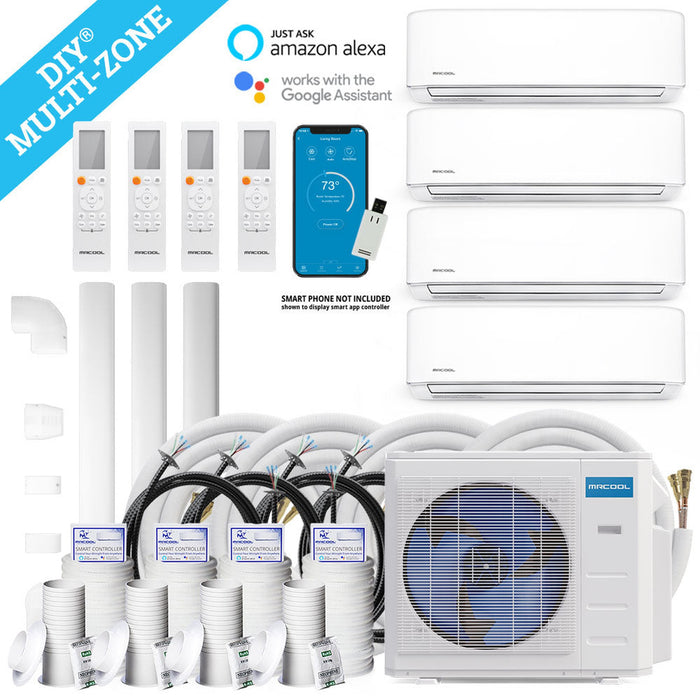

What's Included:
48K BTU 4-Zone Ductless Heat Pump Condenser |
|
9K BTU Ductless Wall Mounted Air Handler | |
12K BTU Ductless Wall Mounted Air Handler | |
|
|
|
|
16ft 1/4 x 1/2 Lineset Install Kit | |
16ft 1/4 x 1/2 Lineset Install Kit | |
25ft 1/4 x 1/2 Lineset Install Kit |
|
25ft 1/4 x 1/2 Lineset Install Kit |
|
25ft 1/4 x 1/2 Lineset Install Kit | |
50ft 1/4 x 1/2 Lineset Install Kit | |
DIYCOUPLER-1412K75C |

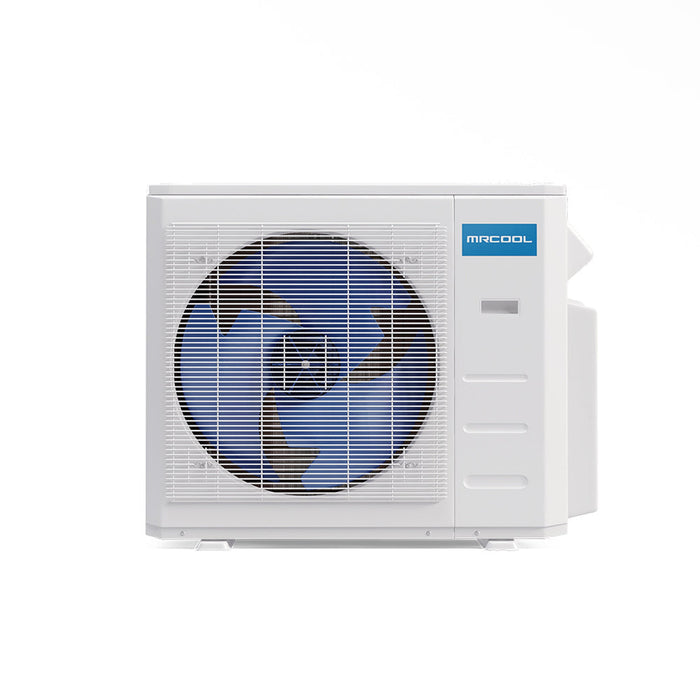

MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser
The 4th Generation MrCool DIY 48K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion.
MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets.

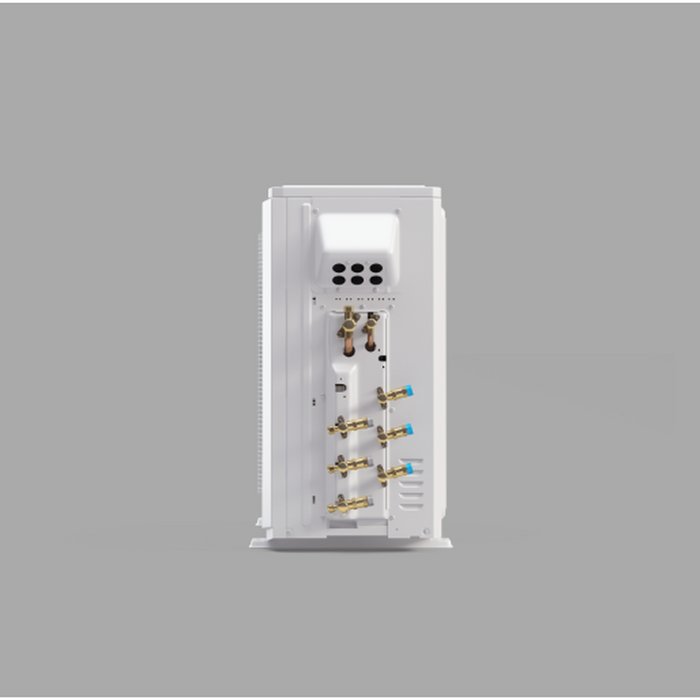

These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
Features
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
SEER |
21.5 |
EER |
10.5 |
HSPF |
hspf4/hspf5 : 11/8.5 |
CFM |
2147.06 |
COOLING CAPACITY |
36000 BTU |
HEATING CAPACITY |
36000 BTU |
VOLTAGE |
208-230 V |
PHASE |
1 |
CYCLE |
60 Hz |
MAX FUSE BREAKER |
45 A |
MIN CIRCUIT AMPACITY |
27 A |
COLOR |
White |
COLOR FAMILY |
White |
ZONE CAPACITY |
Up to 4 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME |
134.04 oz |
DECIBEL RATING |
65 dBA |
INVERTER |
Yes |
MIN AMBIENT COOL |
5F ~ 122F |
MIN AMBIENT HEAT |
-13F ~ 75.2F |
MAX LINESET LENGTH |
196.85 ft TOTAL |
LIQUID LINE SIZE |
1/4in |
SUCTION LINE SIZE |
3/8in+1/2in |
COMPRESSOR MOTOR TYPE |
Rotary |
CONDENSER FAN MOTOR RPM |
1000/900/750 |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
NET DEPTH |
16.14 in |
NET HEIGHT |
31.89 in |
NET WIDTH |
37.24 in |
NET WEIGHT |
170.42 lbs |
GROSS DEPTH |
19.88 in |
GROSS HEIGHT |
35.04 in |
GROSS WIDTH |
42.91 in |
GROSS WEIGHT |
187.83 lbs |
