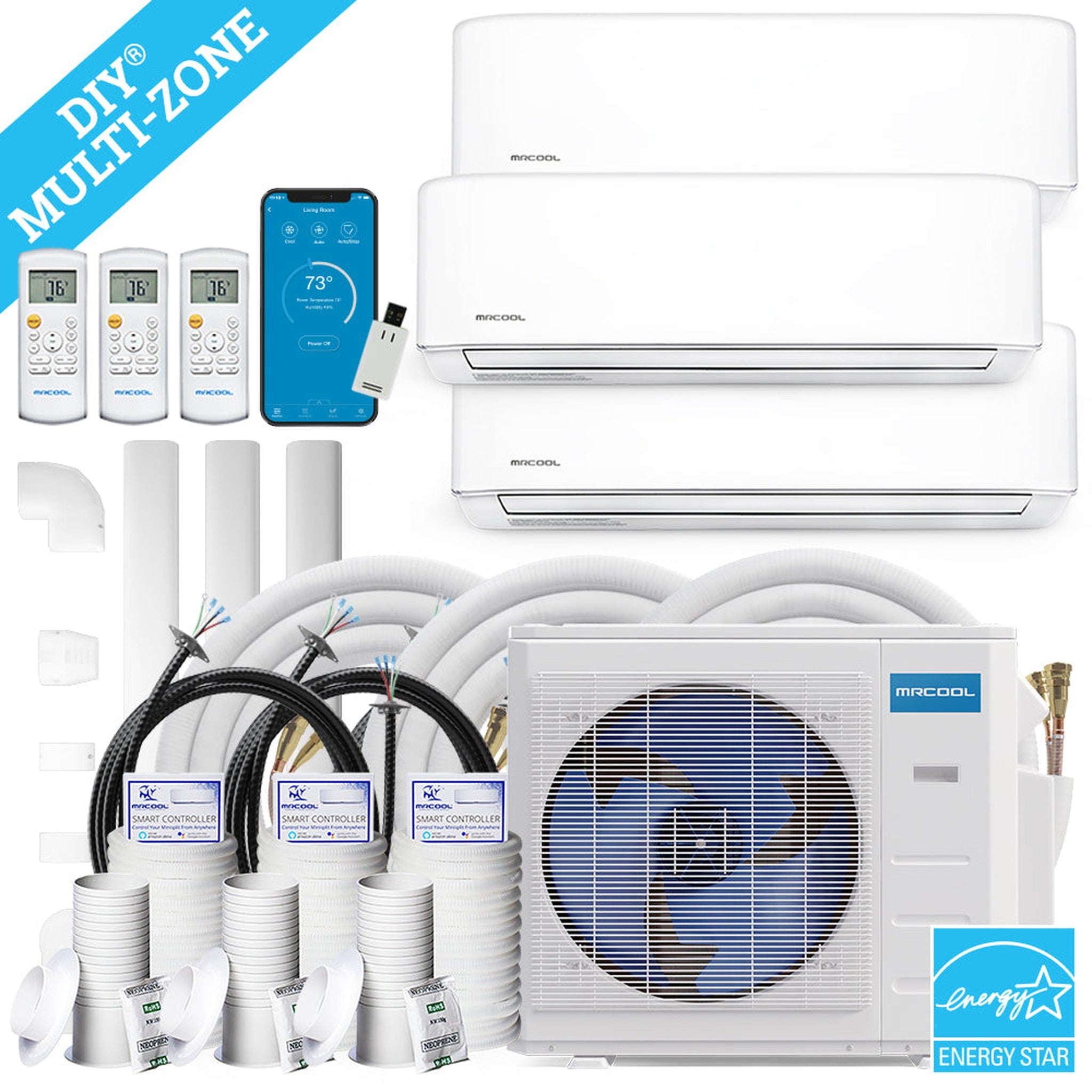

MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+18K handlers, 3 x 25ft linesets Bundle

Save $477.00
No reviews

Price:
Sale price$4,414.00 Regular price$4,891.00

Description

MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+18K handlers, 3 x 25ft linesets Bundle DIYM336HPW02C28

MRCOOL DIY 4th Gen Mini Split Bundle

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to three rooms. The easy installation, Do-It-Yourself

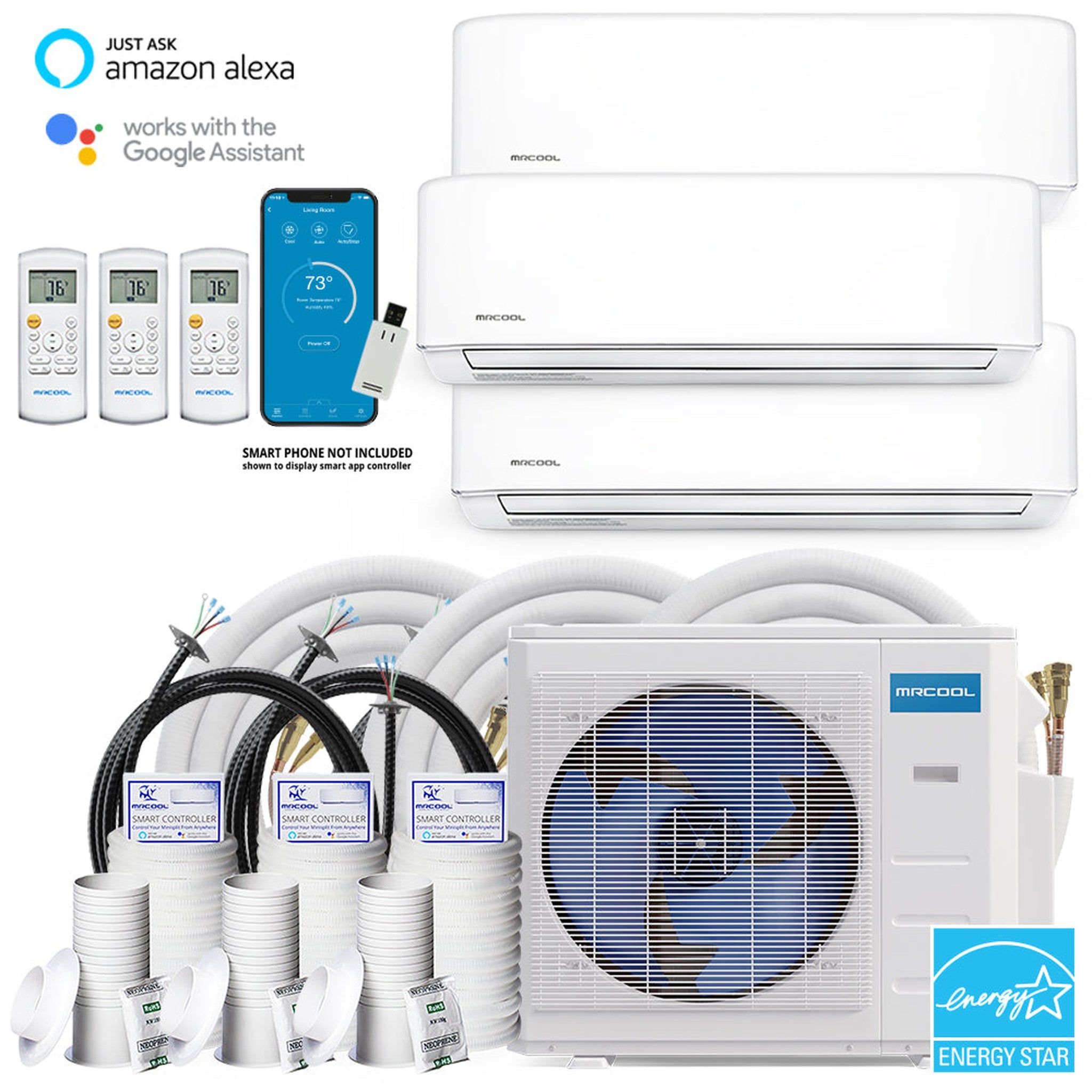

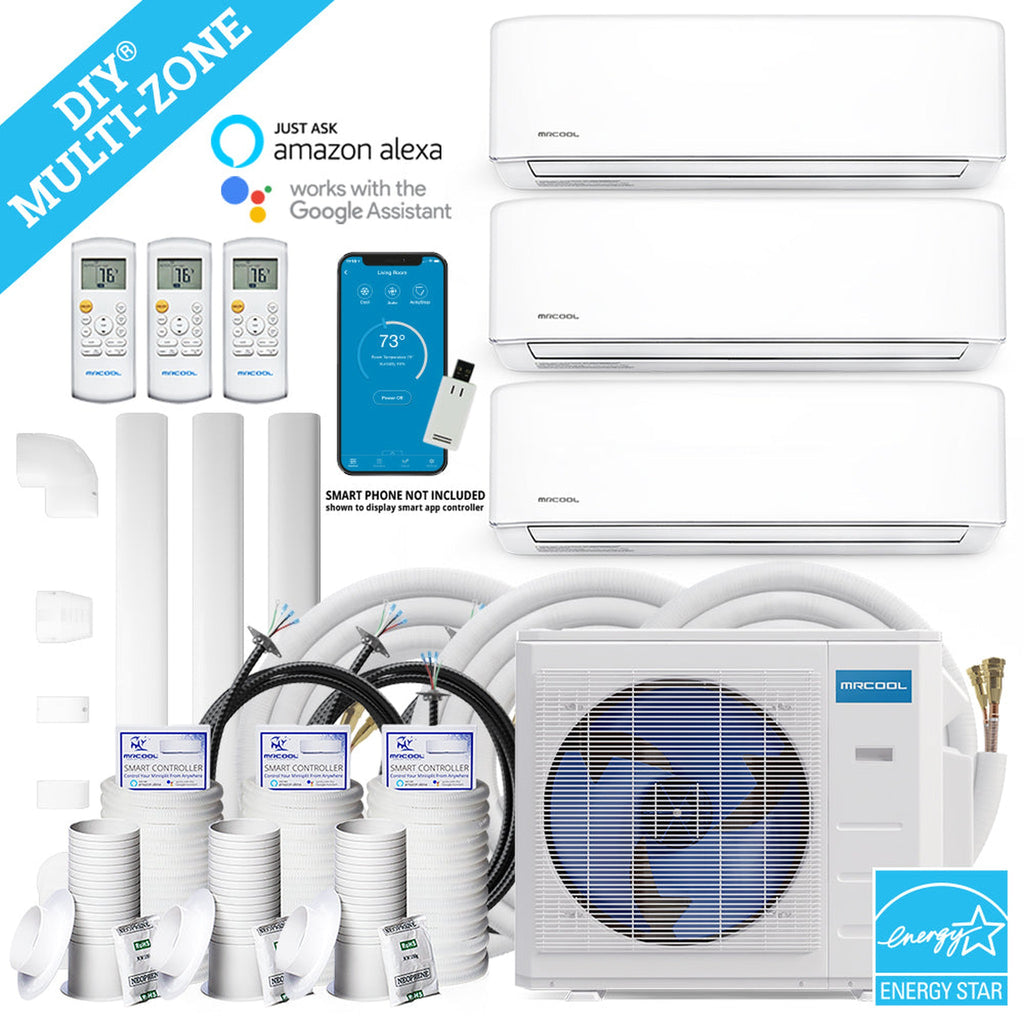

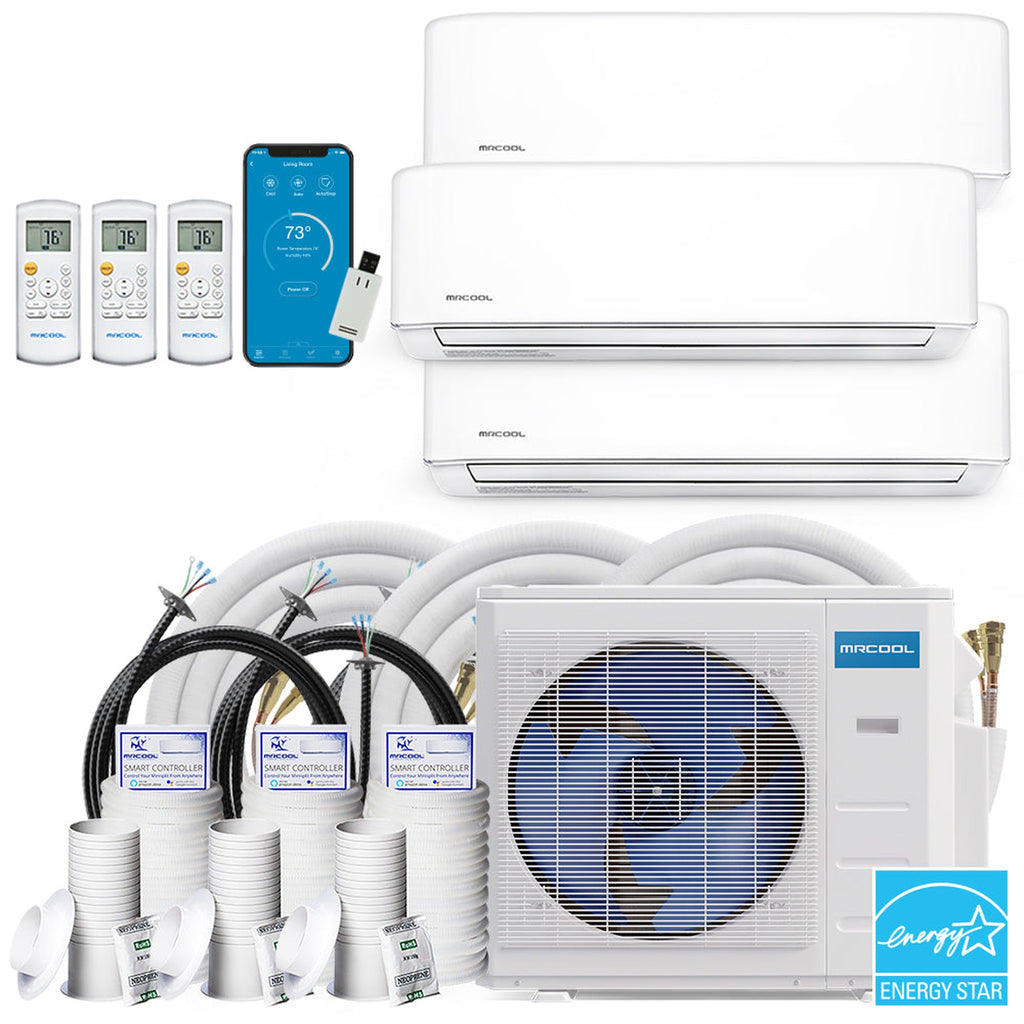

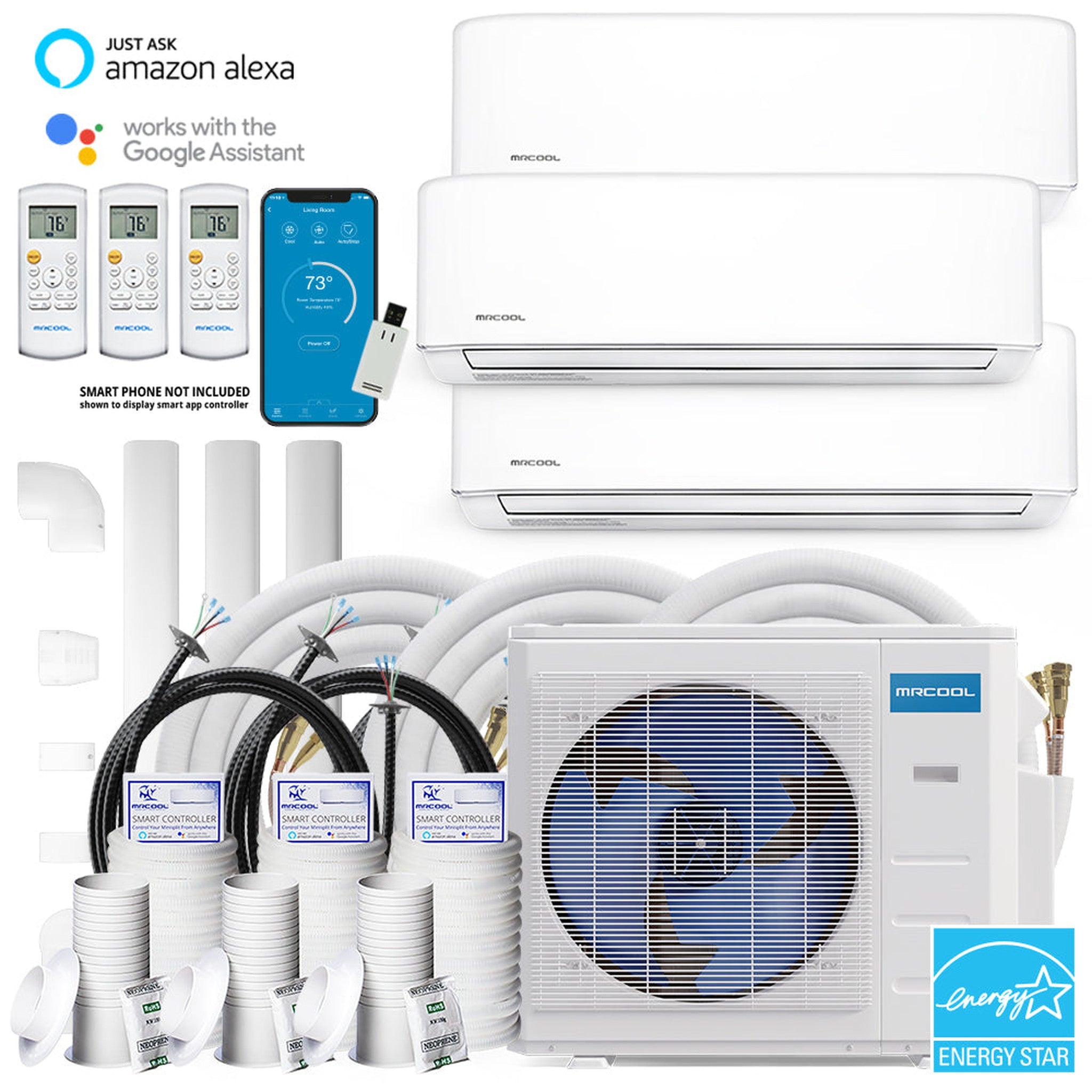

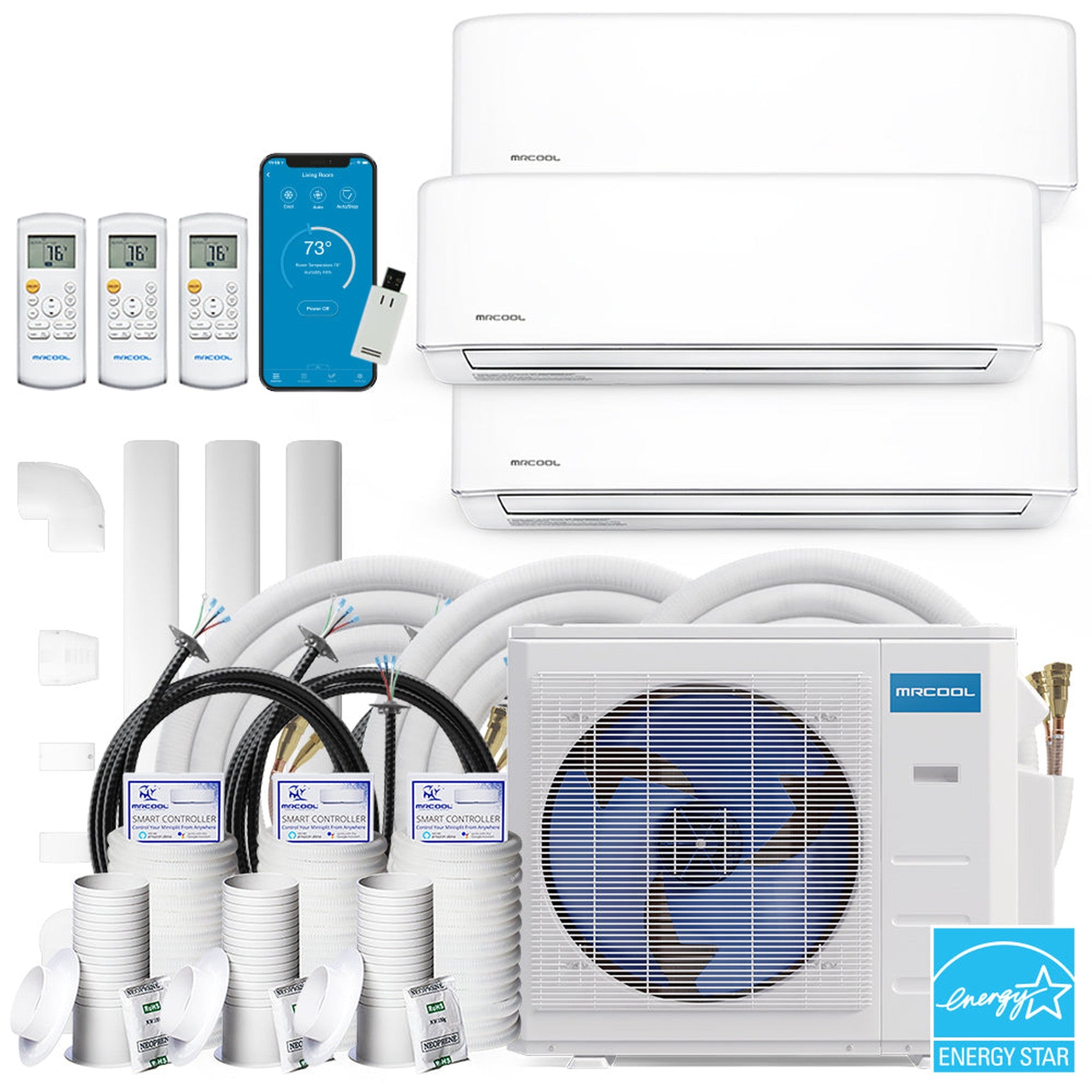

Bundle Includes:

  1. MRCOOL DIY 4th Gen Multi-Zone 4-Zone 36K BTU Condenser Up to 21.5 SEER

  2. MRCOOL DIY 4th Generation 18K BTU Heat Pump Wall Mount Air Handler with 25ft DIY Pro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant

  3. MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant

  4. Line Sets - length & quantity varies based on selection:

  • MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 66 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 75 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

Features



  • Power - 36K BTUs
  • Zones - Cool and heat up to four rooms in your home
  • SEER - SEER efficiency rating of up to 21.5
  • Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
  • Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
  • Environmentally Friendly - R-410A environmentally friendly refrigerant
  • Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

    MRCOOL Wall Mount Air Handler - 18K BTU - Quantity 1

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

    MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 2

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

      MRCOOL Line Sets

      • The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
      • Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
      • Length Options - Select which combination of lengths you require for your installation needs.
      • Need more length? Use a coupler to connect two lines together
        • Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
        • Connect up to 66 ft. or 77 ft. in total length

      Specifications

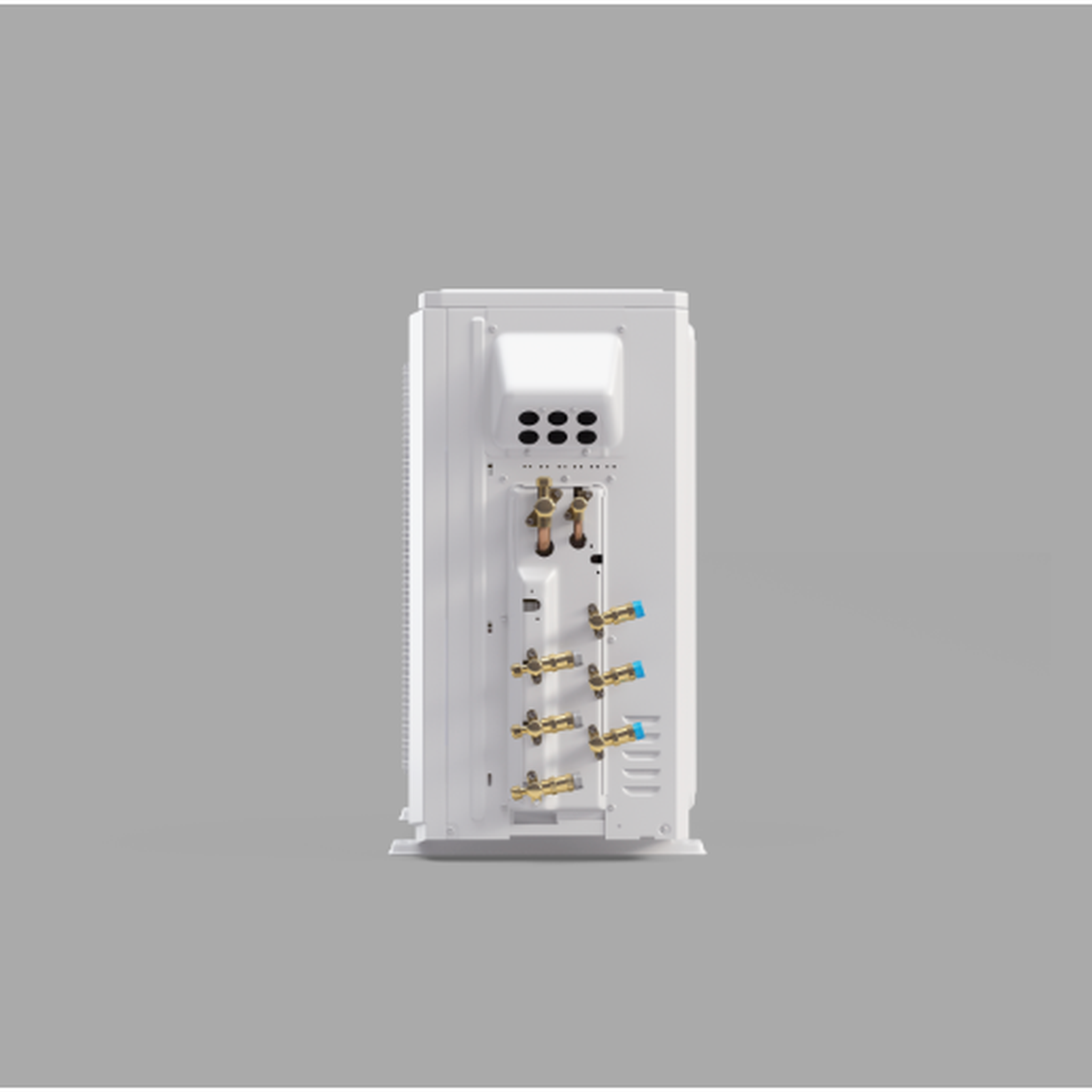

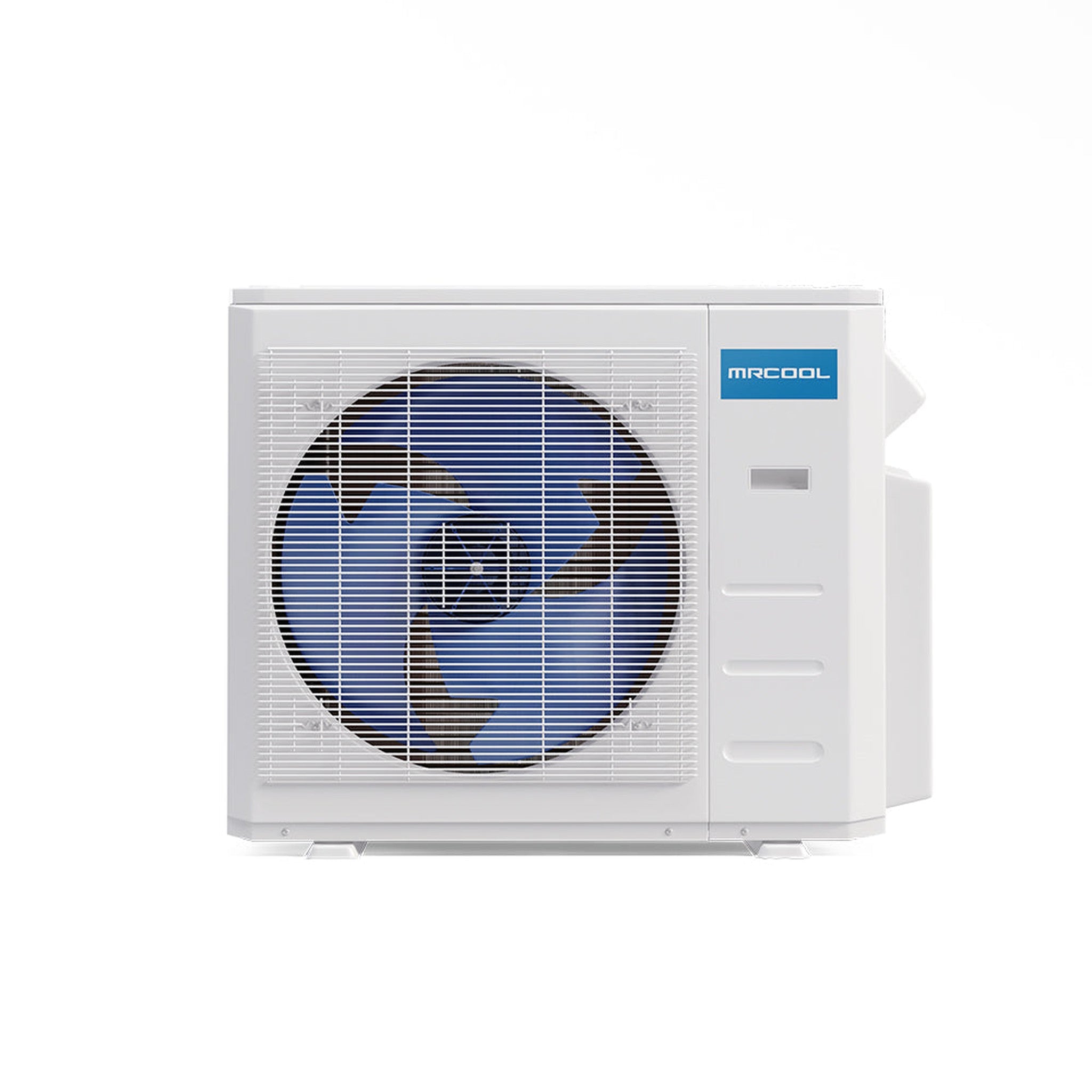

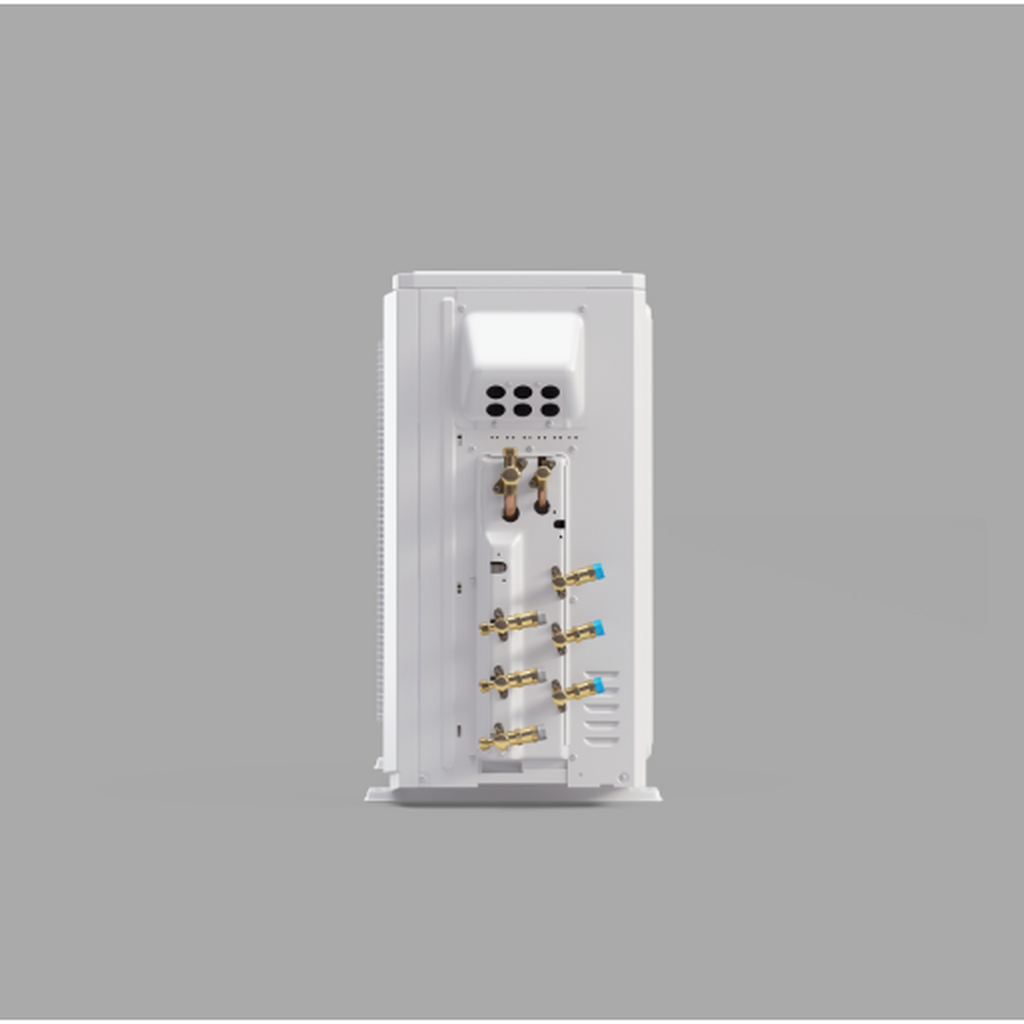

      Condenser

      Dimensions

      16.14" D x 31.89" H x 37.24" W

      Voltage

      208-230 V

      SEER

      21.5

      Cooling Capacity

      36K BTU

      Heating Capacity

      36K BTU

      Min-Max Ambient Cool

      5F ~ 122F

      Min-Max Ambient Heat

      -13F ~ 75.2F

      Refrigerant Type

      R-410A

      Max Line Set Length

      196.85 ft TOTAL



      18K Air Handler

      Product Dimensions

      8.90" D x 13.19" H x 42.52" W

      Voltage

      208-230 V

      Cooling Capacity

      18K BTU

      Heating Capacity

      18K BTU

      Modes

      • Auto - auto selects from Cool, Heat or Fan-Only
      • Dry (Dehumidifies)
      • Cool
      • Heat
      • Fan Only
      • Quiet
      • Sleep



      9K Air Handler

      Product Dimensions

      7.44" D x 11.69" H x 31.57" W

      Voltage

      208V-240V

      Cooling Capacity

      9K BTU

      Heating Capacity

      9K BTU

      Modes

      • Auto - auto selects from Cool, Heat or Fan-Only
      • Dry (Dehumidifies)
      • Cool
      • Heat
      • Fan Only
      • Quiet
      • Sleep


      Line Sets

      Length

      16 ft., 25 ft., 35 ft., or 50 ft.

      Liquid Line Size

      1/4"

      Suction Line Size

      1/2"

      Couplers

      • Connect 50 ft. line set to 16 ft. or 25 ft. line set
      • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
      • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C

      Restricted States

      GU;PR;VI



      Proposition 65 Warning

      Yes



      Line Sets

      Length

      16 ft., 25 ft., 35 ft., or 50 ft.

      Liquid Line Size

      3/8"

      Suction Line Size

      5/8"

      Couplers

      • Connect 50 ft. line set to 16 ft. or 25 ft. line set
      • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
      • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C

      Restricted States

      GU;PR;VI
