MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+18K handlers, 16ft, 25ft, and 35ft linesets Bundle

Save $300.00
No reviews

Price:
Sale price$4,591.00 Regular price$4,891.00

Description

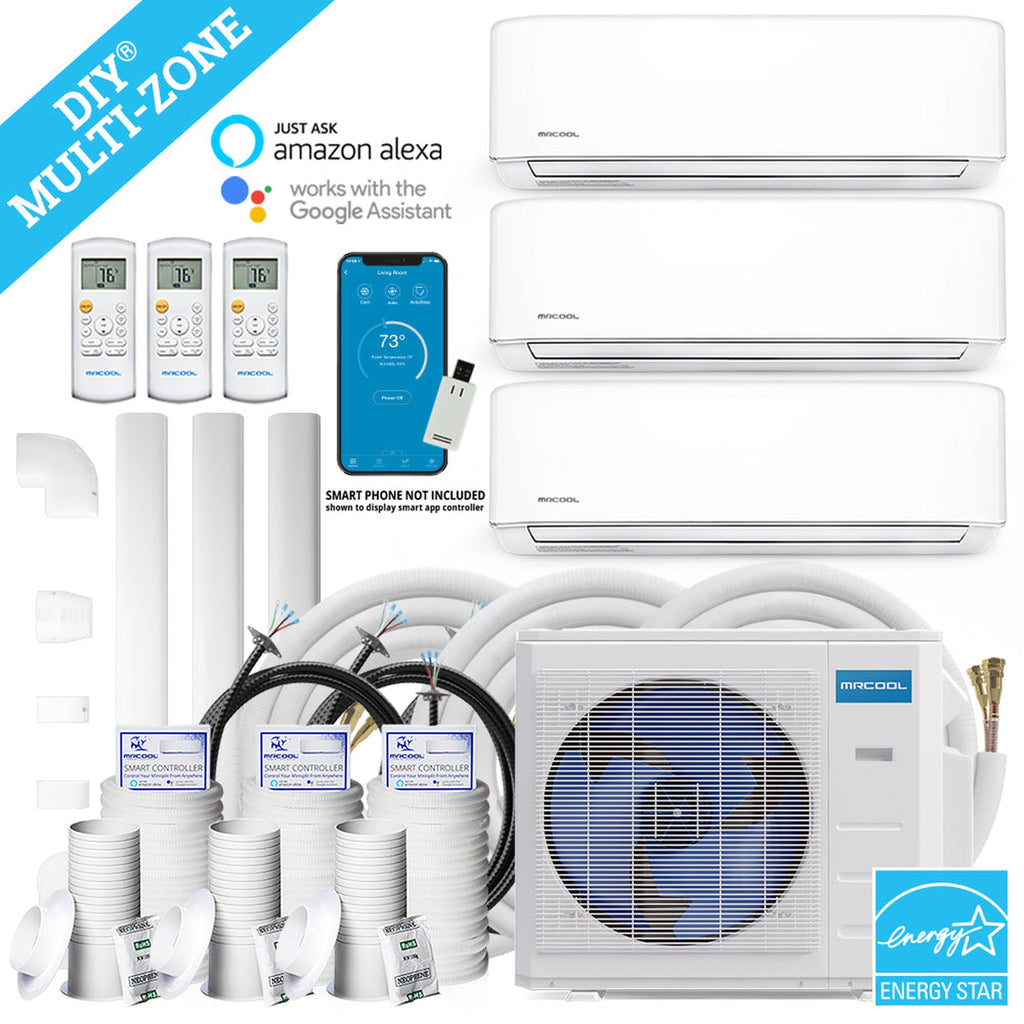

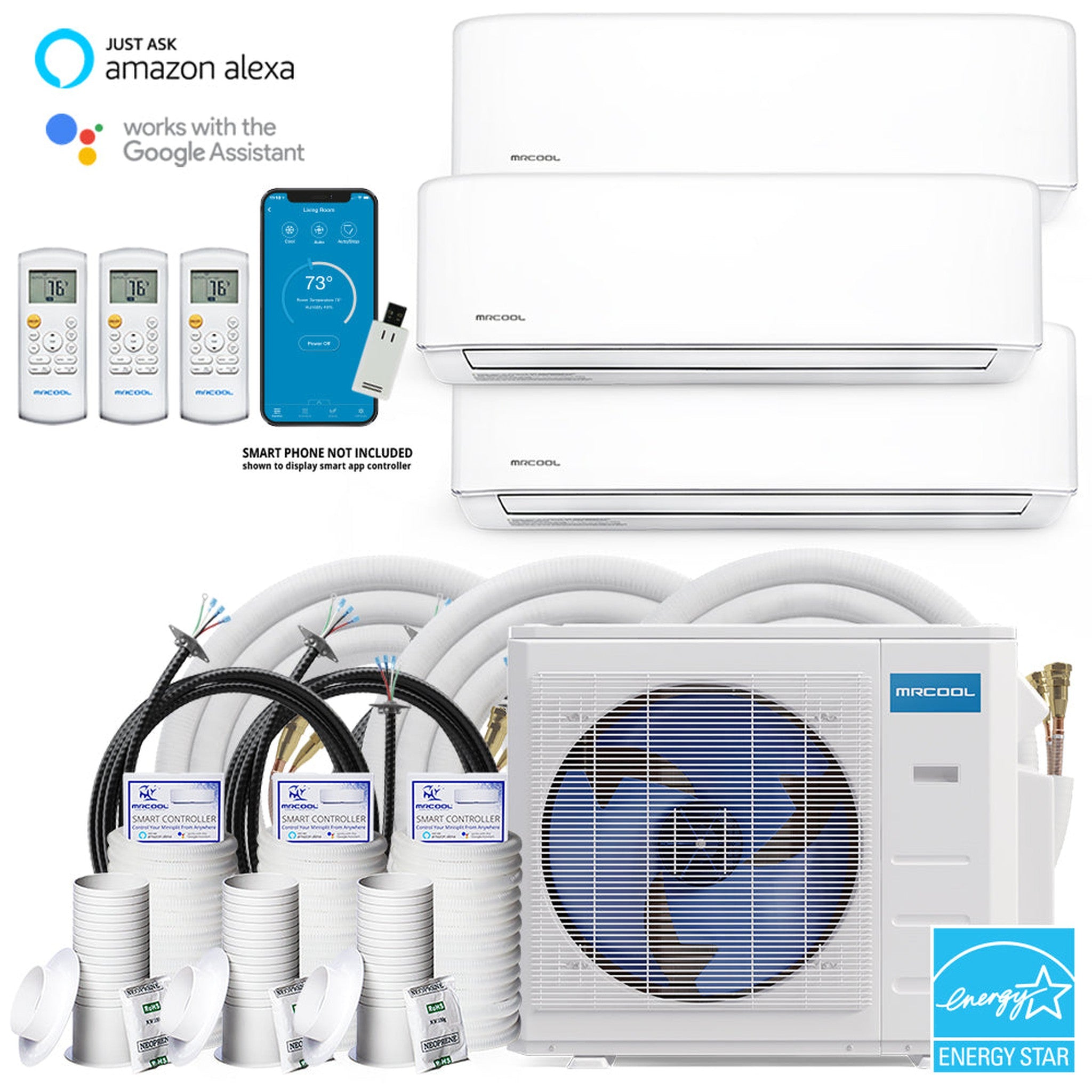

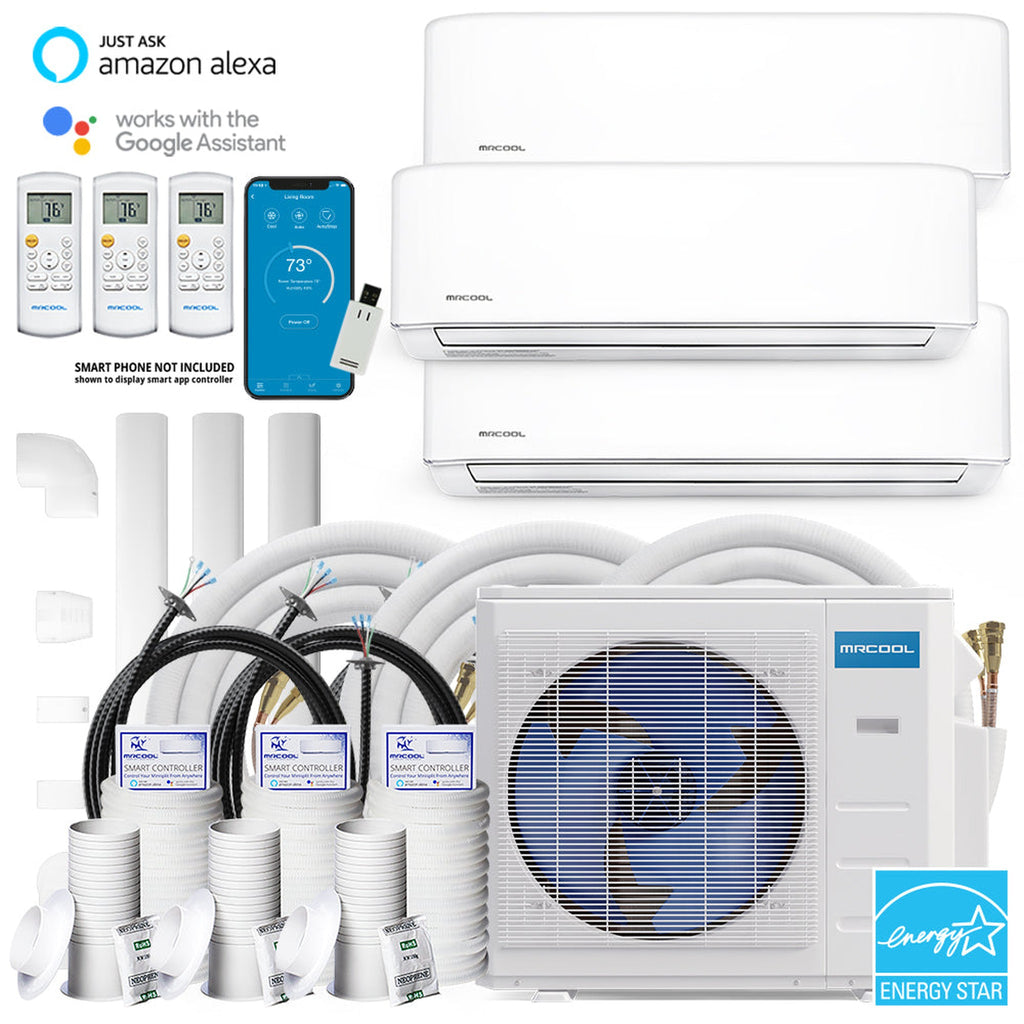

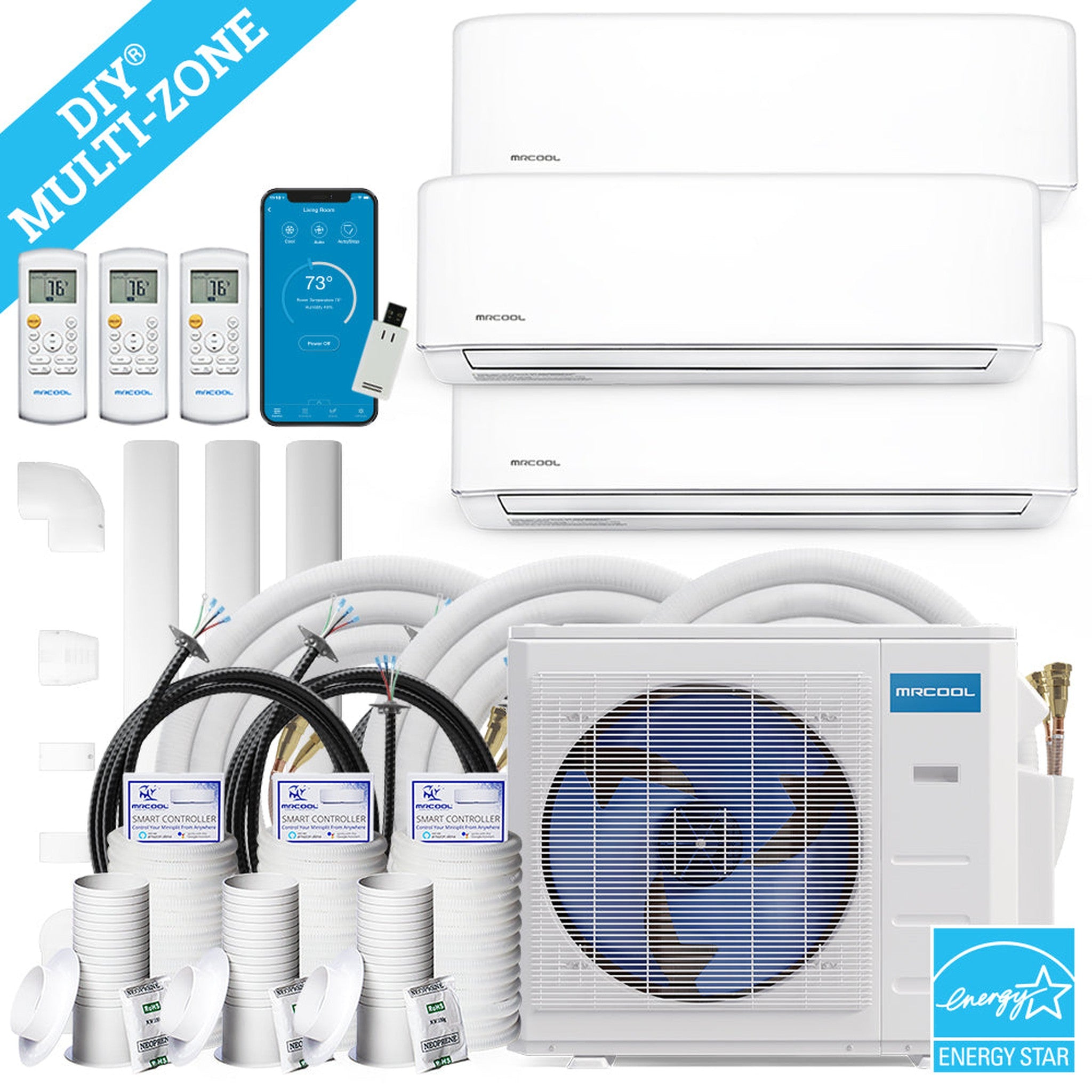

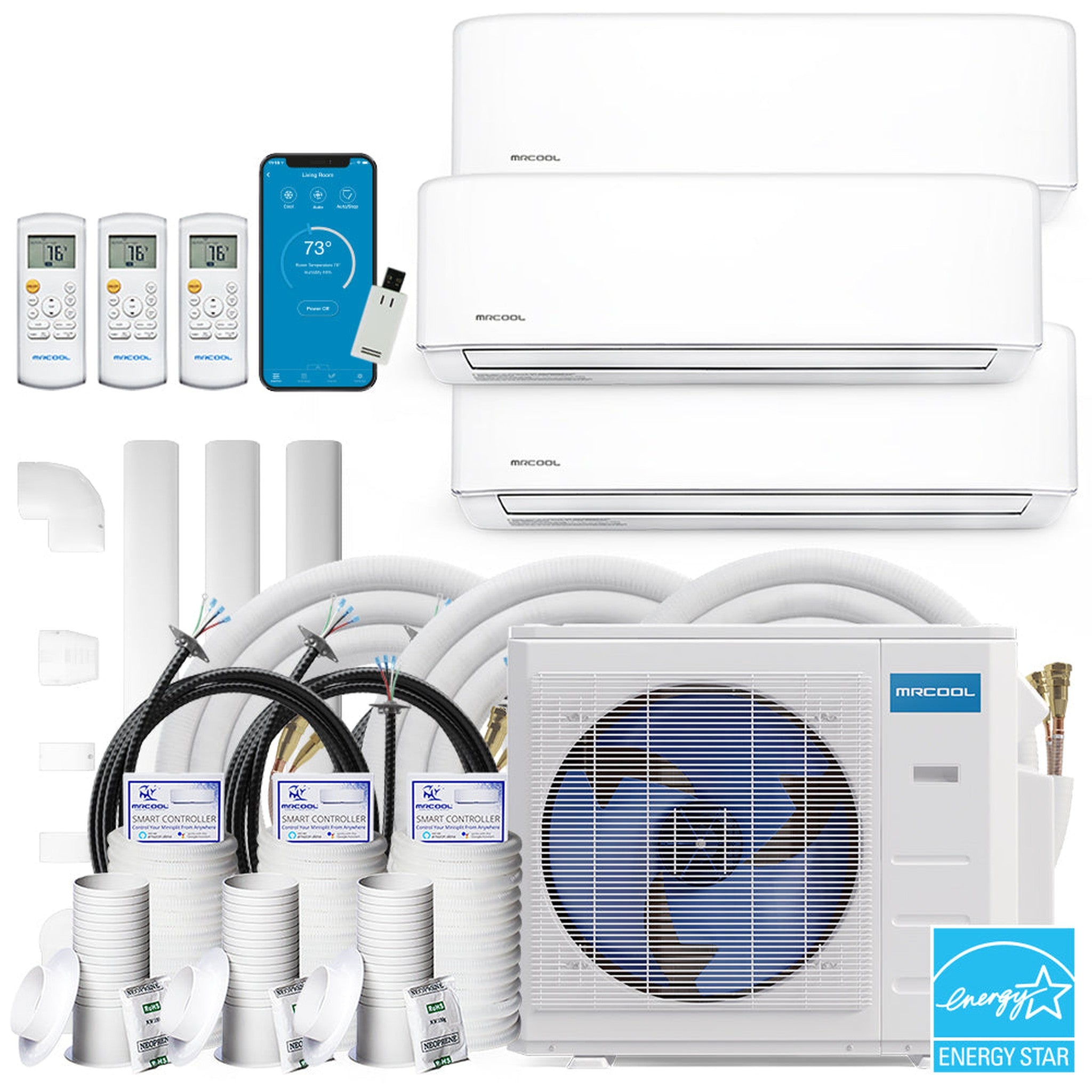

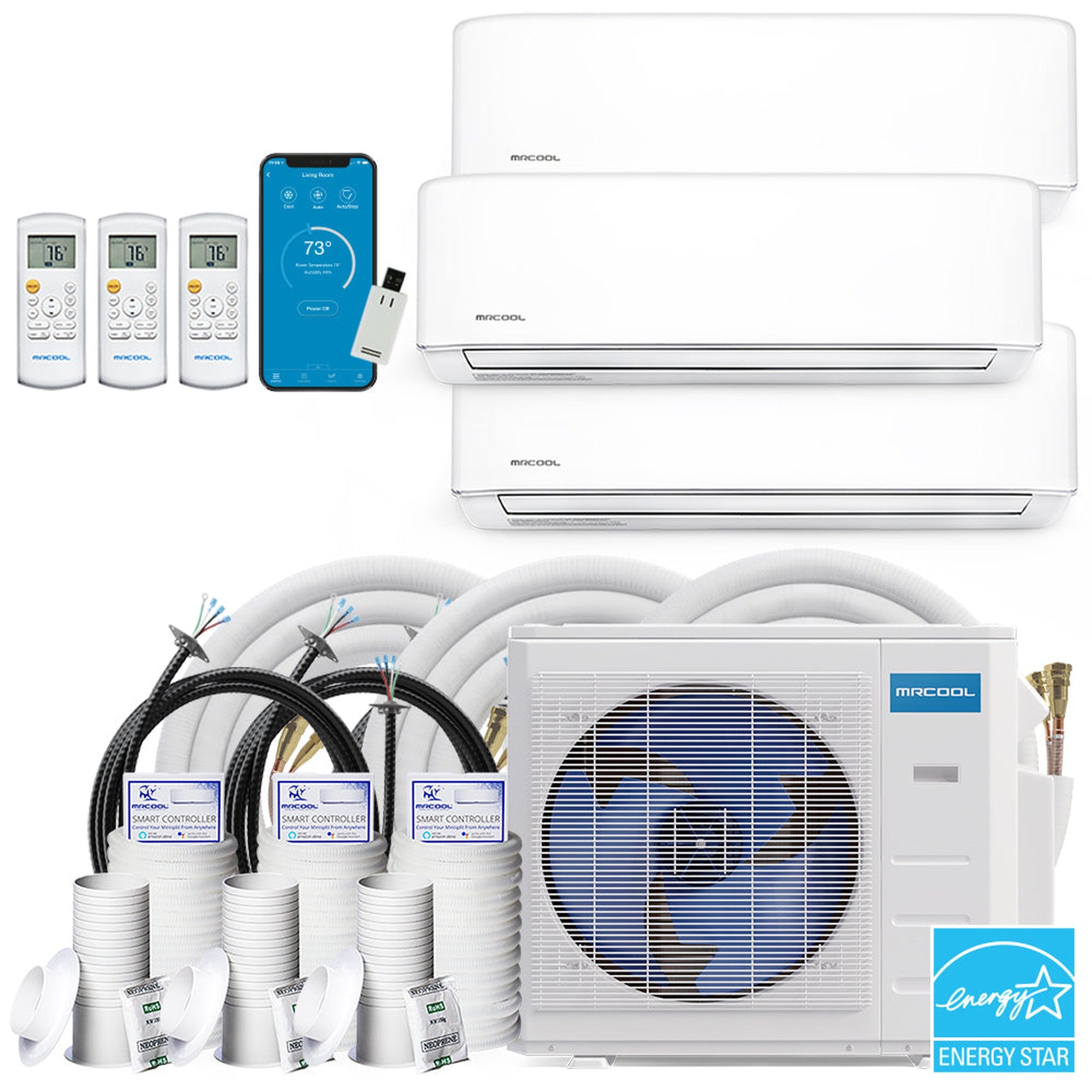

What's Included:

36K BTU 3-Zone Ductless Heat Pump Condenser
9K BTU Ductless Wall Mounted Air Handler
9K BTU Ductless Wall Mounted Air Handler
18K BTU Ductless Wall Mounted Air Handler
16ft 1/4 x 1/2 Lineset Install Kit
35ft 1/4 x 1/2 Lineset Install Kit
25ft 1/4 x 1/2 Lineset Install Kit


MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser

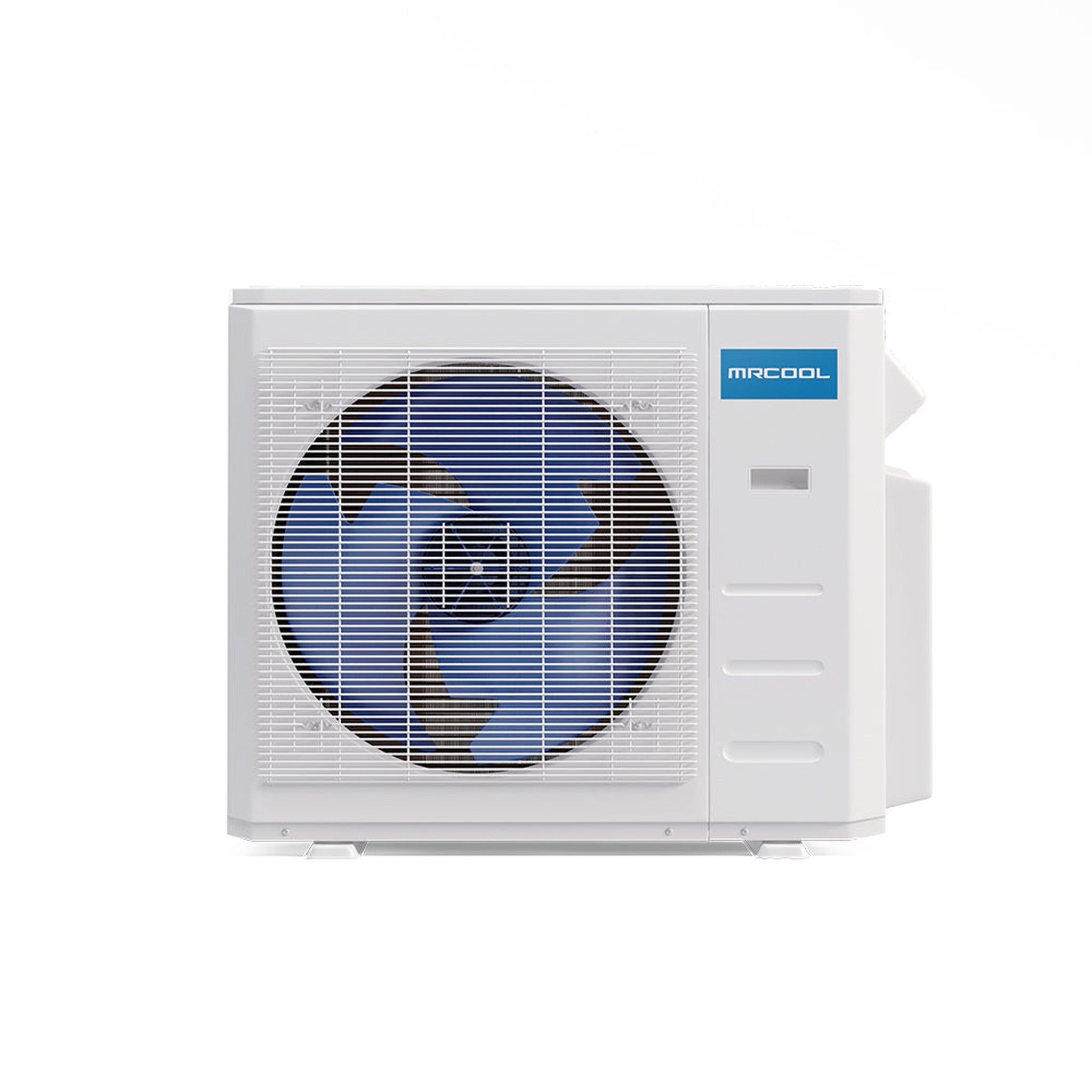

The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion.

MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets.

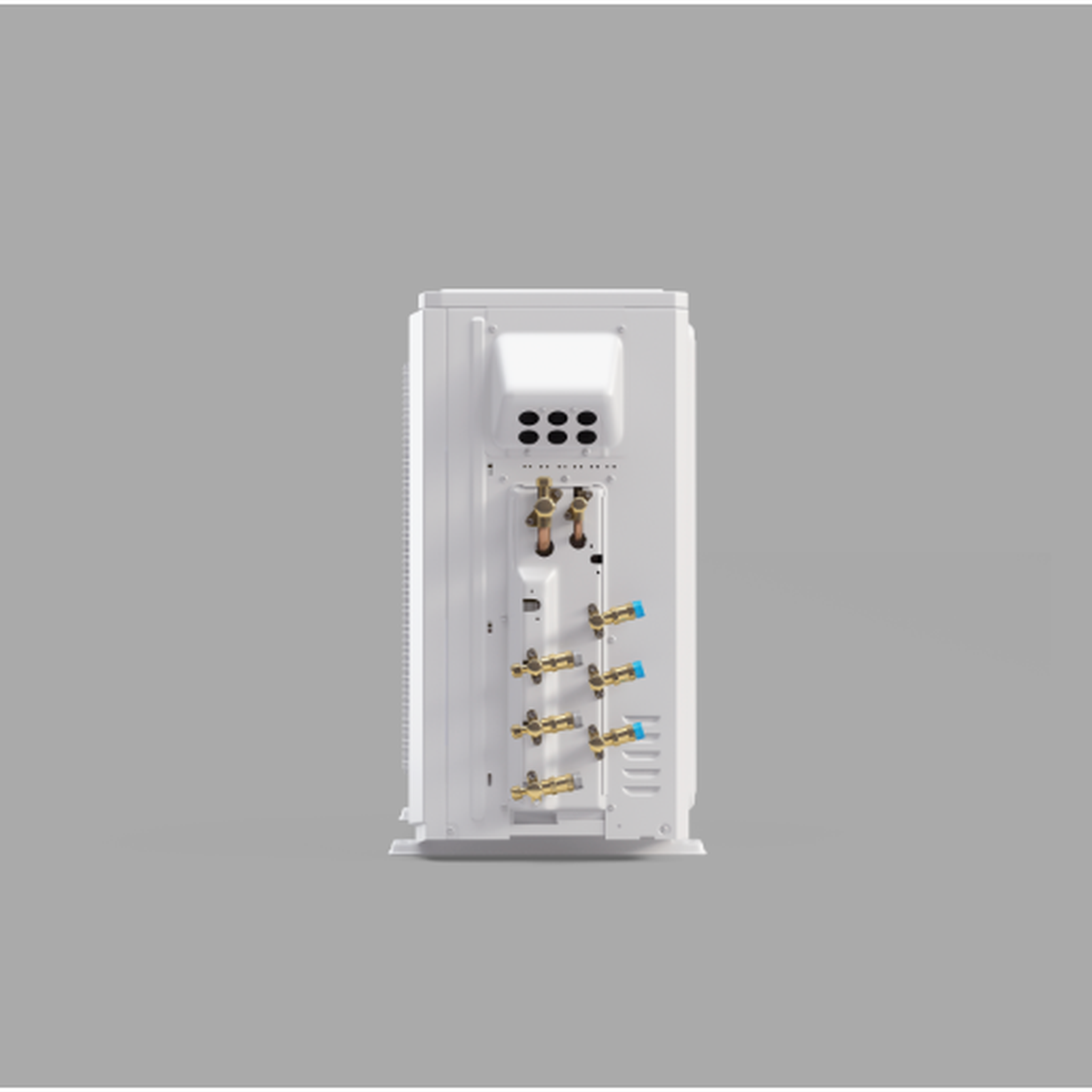

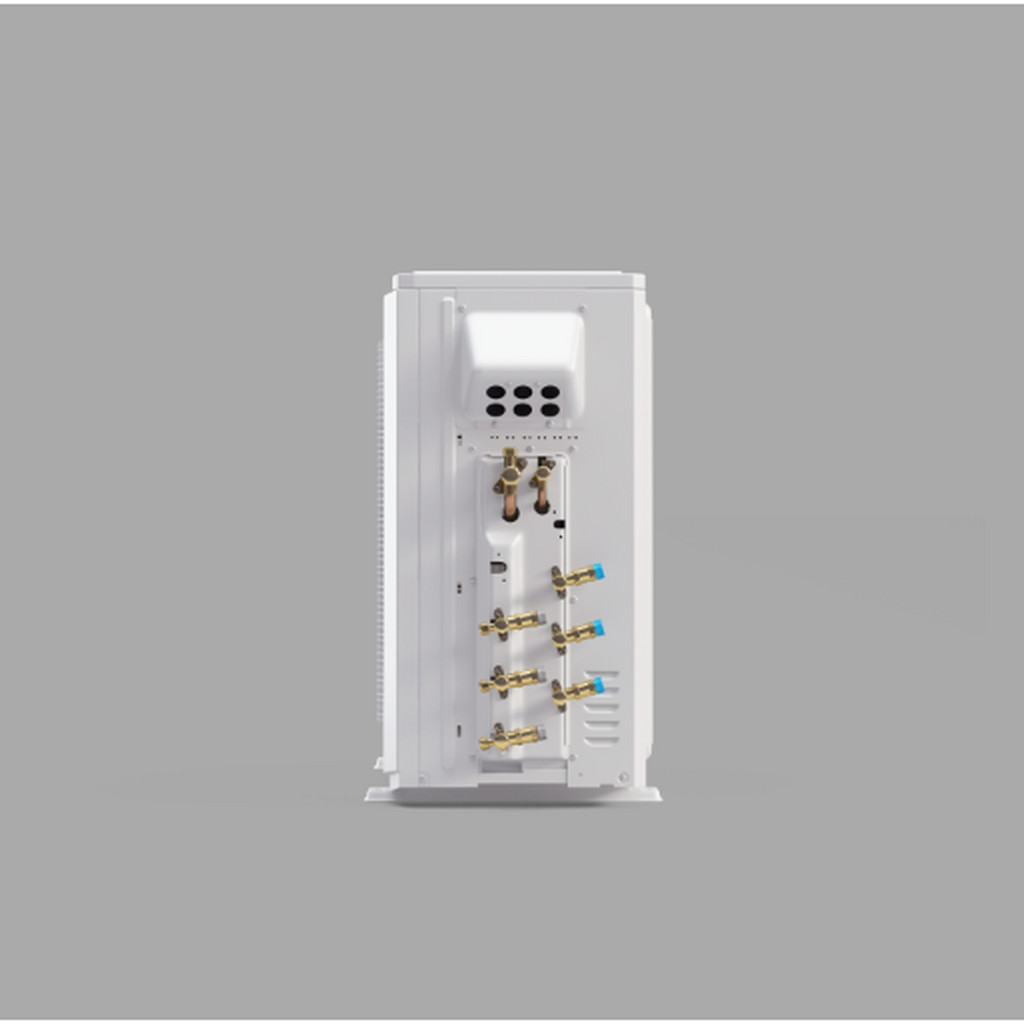

These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

Features

  • Up to 21.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications


SEER

21.5

EER

10.5

HSPF

hspf4/hspf5 : 11/8.5

CFM

2147.06

COOLING CAPACITY

36000 BTU

HEATING CAPACITY

36000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

45 A

MIN CIRCUIT AMPACITY

27 A

COLOR

White

COLOR FAMILY

White

ZONE CAPACITY

Up to 4

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

134.04 oz

DECIBEL RATING

65 dBA

INVERTER

Yes

MIN AMBIENT COOL

5F ~ 122F

MIN AMBIENT HEAT

-13F ~ 75.2F

MAX LINESET LENGTH

196.85 ft TOTAL

LIQUID LINE SIZE

1/4in

SUCTION LINE SIZE

3/8in+1/2in

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

1000/900/750

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH

16.14 in

NET HEIGHT

31.89 in

NET WIDTH

37.24 in

NET WEIGHT

170.42 lbs

GROSS DEPTH

19.88 in

GROSS HEIGHT

35.04 in

GROSS WIDTH

42.91 in

GROSS WEIGHT

187.83 lbs



Users Manual

Brochure
Install Manual
Owner Manual
Remote Manual
Technical Manual
Warranty Doc

Service Manual
