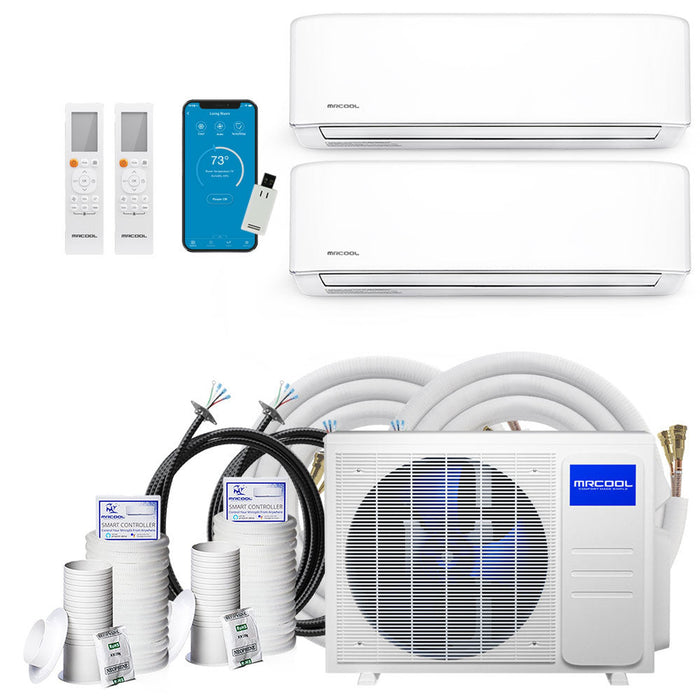

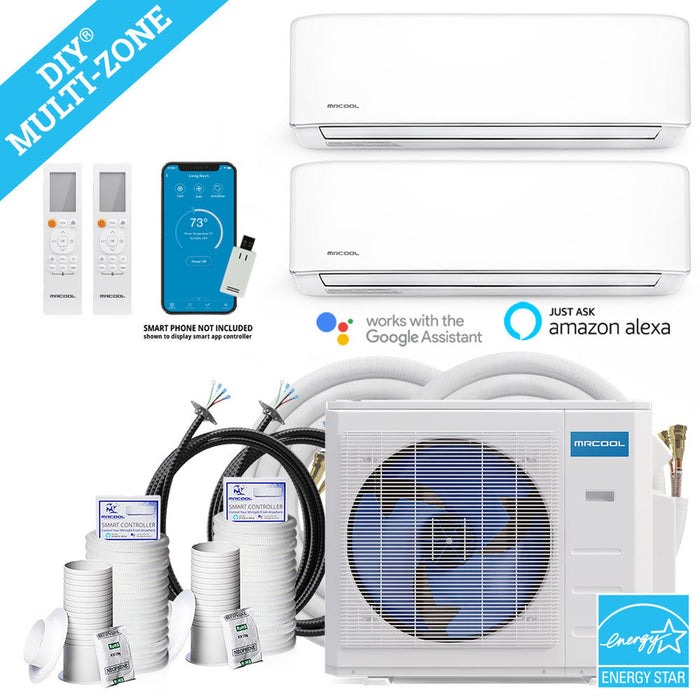

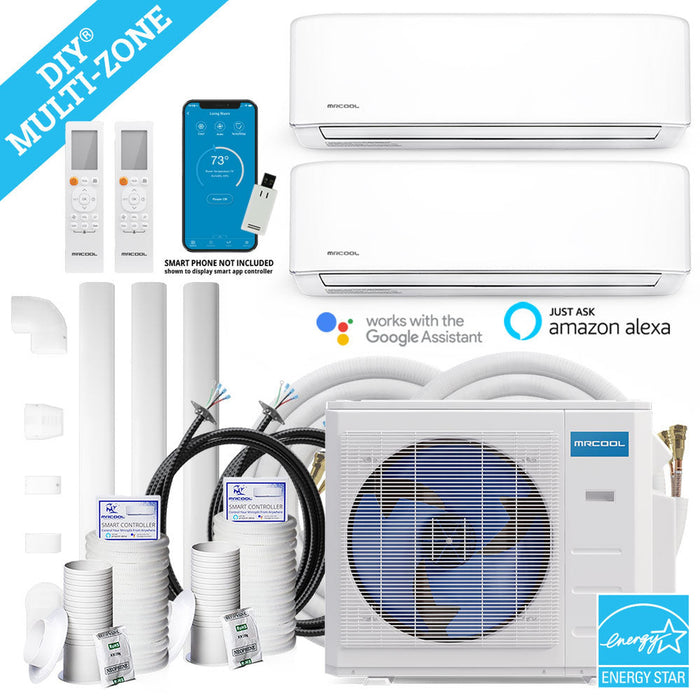

MRCOOL DIY 4th Gen 36K BTU 2-Zone Condenser with 12K+18K handlers and 2 x 16ft linesets Bundle

Save $300.00
No reviews

Price:
Sale price$3,815.00 Regular price$4,115.00

Description

Features

  • Power - 36K BTUs
  • Zones - Cool and heat up to four rooms in your home
  • SEER - SEER efficiency rating of up to 21.5
  • Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
  • Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
  • Environmentally Friendly - R-410A environmentally friendly refrigerant
  • Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

    MRCOOL Wall Mount Air Handler - 18K BTU - Quantity 1

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

    MRCOOL Wall Mount Air Handler - 12K BTU - Quantity 1

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

      MRCOOL Line Sets

      • The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
      • Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
      • Length Options - Select which combination of lengths you require for your installation needs.
      • Need more length? Use a coupler to connect two lines together

      Specifications

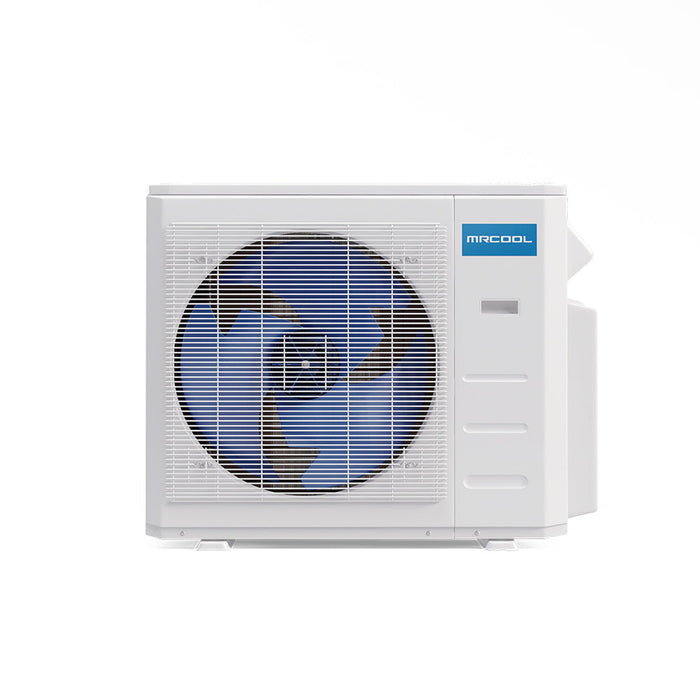

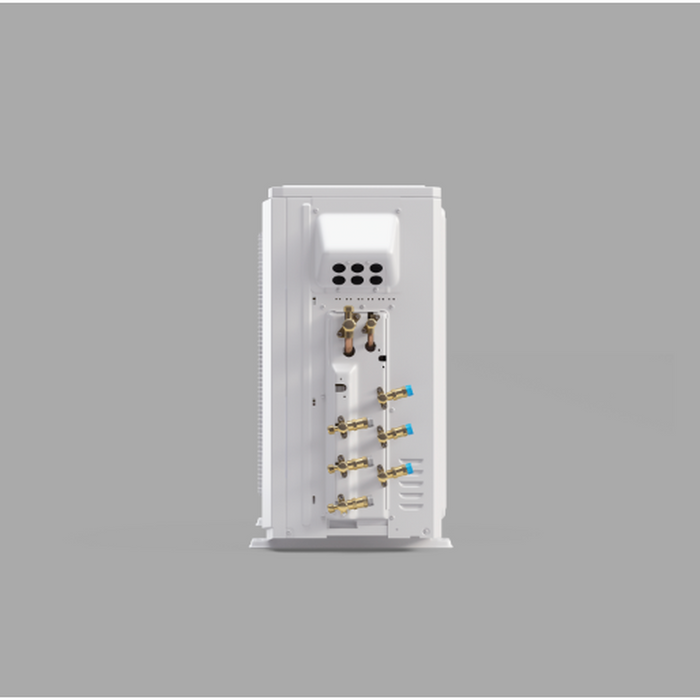

      Condenser

      Dimensions

      16.14" D x 31.89" H x 37.24" W

      Voltage

      208-230 V

      SEER

      21.5

      Cooling Capacity

      36K BTU

      Heating Capacity

      36K BTU

      Min-Max Ambient Cool

      5F ~ 122F

      Min-Max Ambient Heat

      -13F ~ 75.2F

      Refrigerant Type

      R-410A

      Max Line Set Length

      196.85 ft TOTAL



      18K Air Handler

      Product Dimensions

      8.90" D x 13.19" H x 42.52" W

      Voltage

      208-230 V

      Cooling Capacity

      18K BTU

      Heating Capacity

      18K BTU

      Modes

      • Auto - auto selects from Cool, Heat or Fan-Only
      • Dry (Dehumidifies)
      • Cool
      • Heat
      • Fan Only
      • Quiet
      • Sleep



      12K Air Handler

      Product Dimensions

      7.44" D x 11.69" H x 31.57" W

      Voltage

      208-230 V

      Cooling Capacity

      12K BTU

      Heating Capacity

      12K BTU

      Modes

      • Auto - auto selects from Cool, Heat or Fan-Only
      • Dry (Dehumidifies)
      • Cool
      • Heat
      • Fan Only
      • Quiet
      • Sleep



      Line Sets

      Length

      16 ft., 25 ft., 35 ft., or 50 ft.

      Liquid Line Size

      1/4"

      Suction Line Size

      1/2"

      Couplers

      • Connect 50 ft. line set to 16 ft. or 25 ft. line set
      • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
      • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C

      Restricted States

      GU;PR;VI



      Proposition 65 Warning

      Yes
