Description

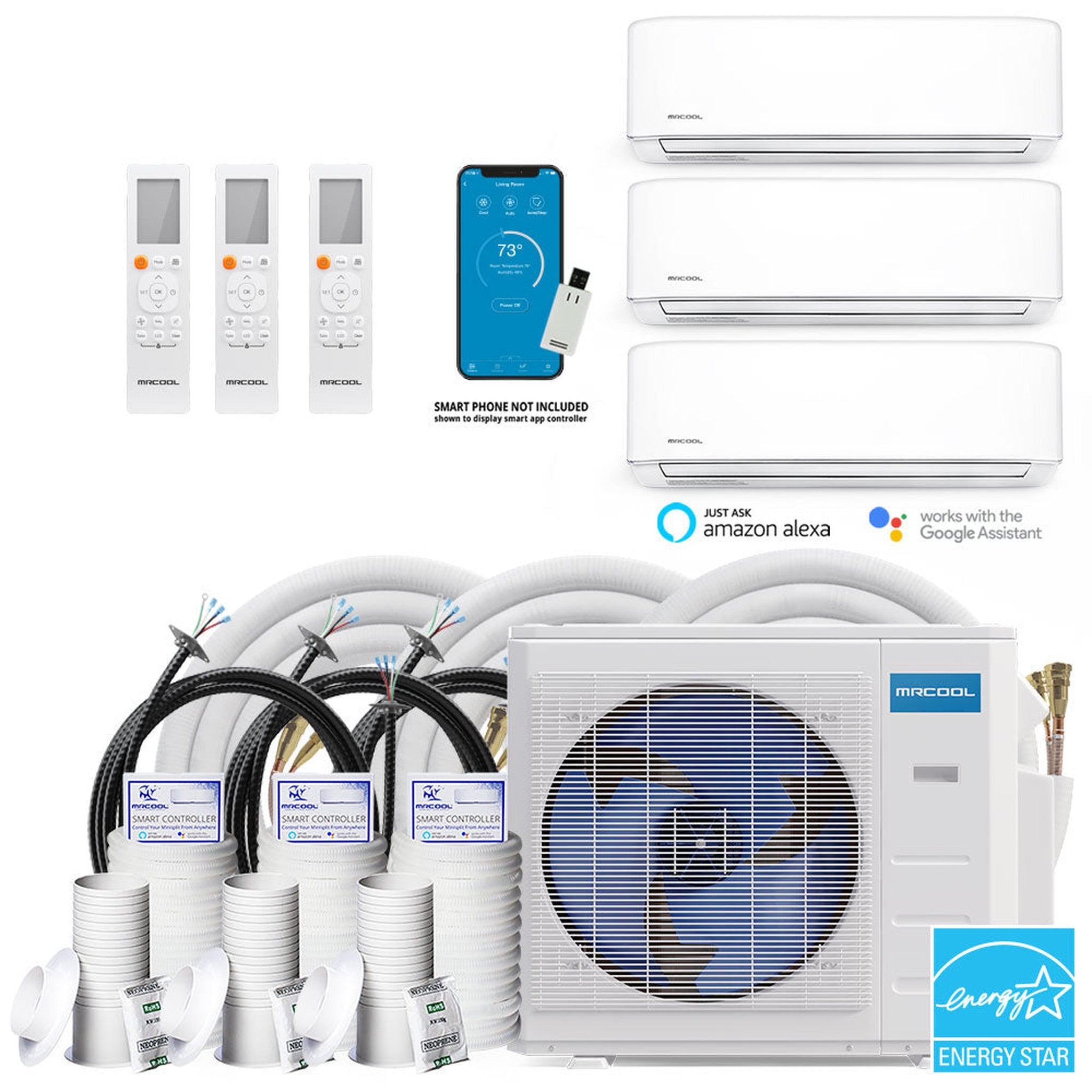

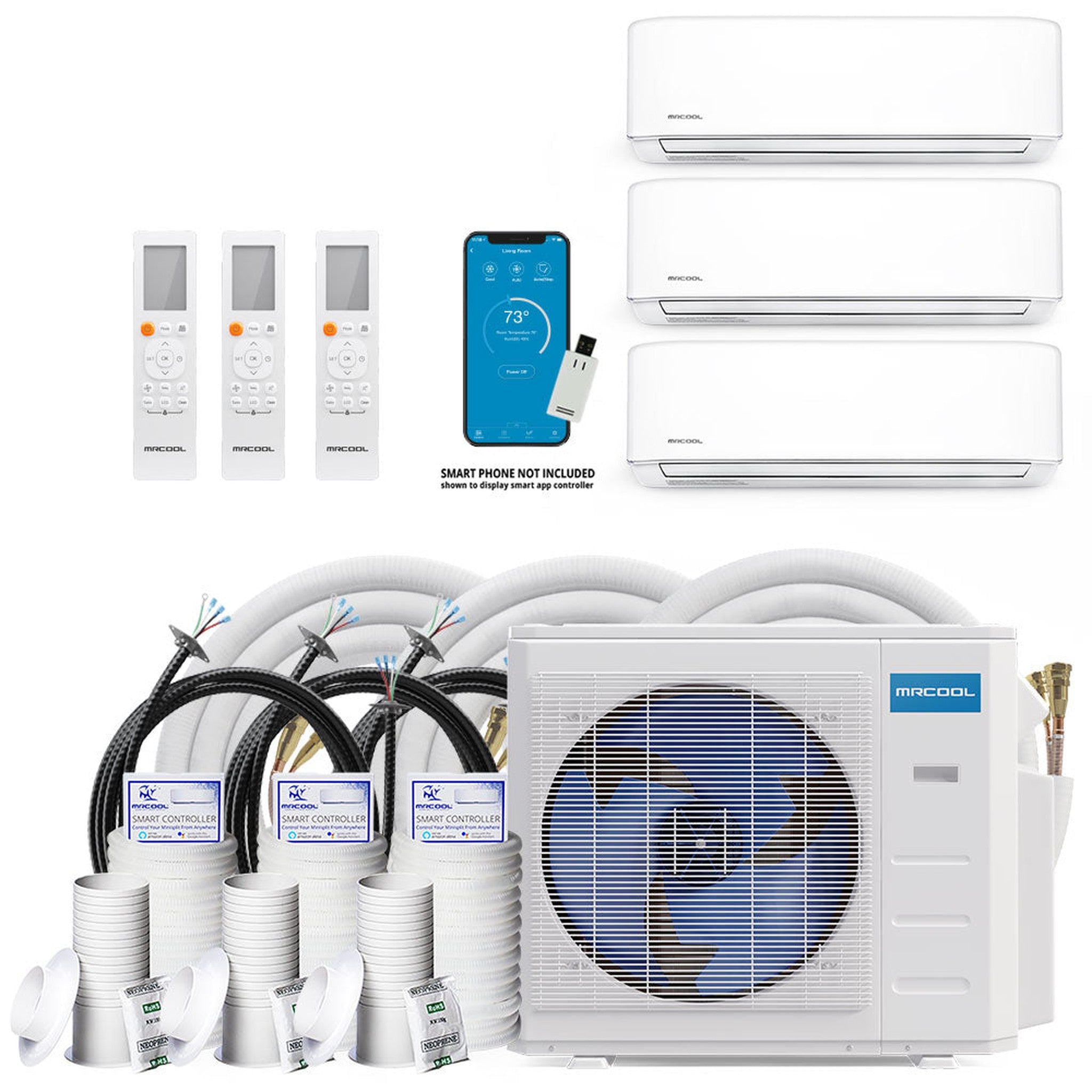

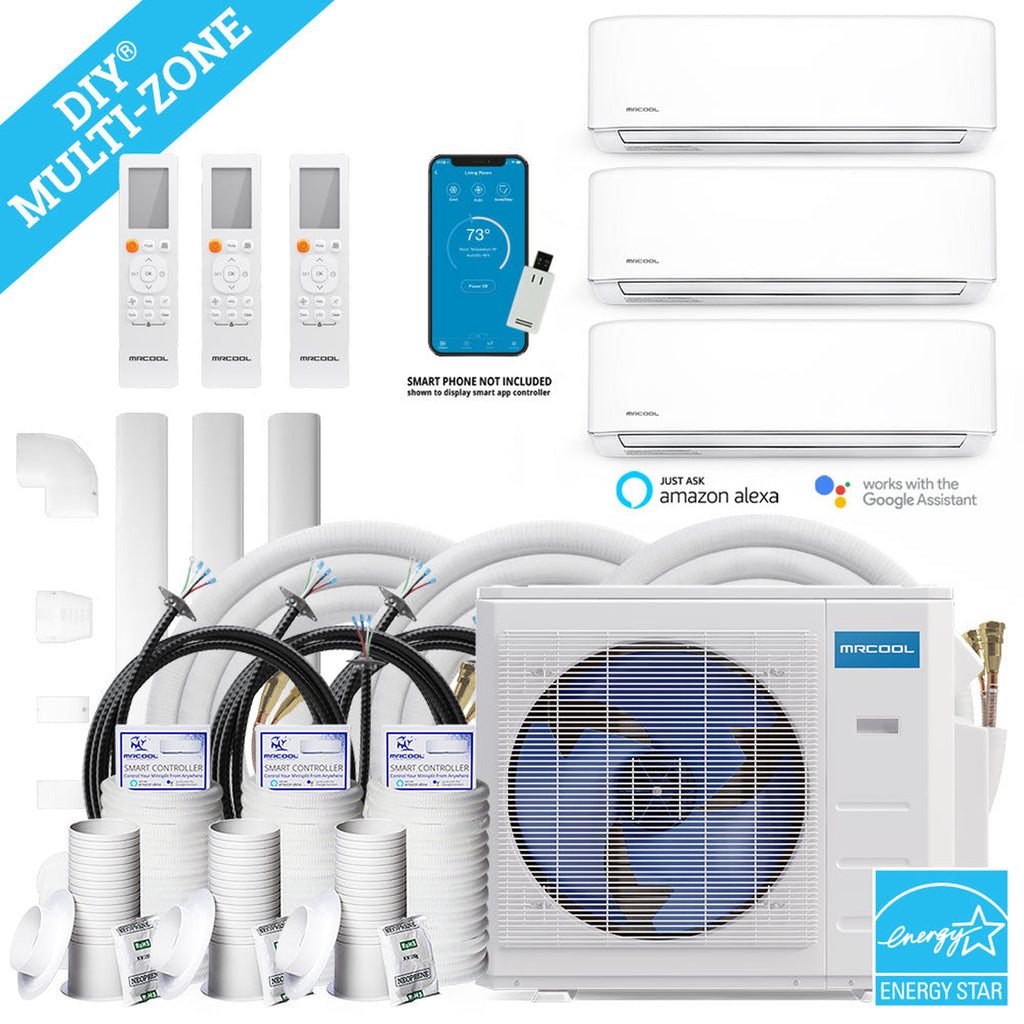

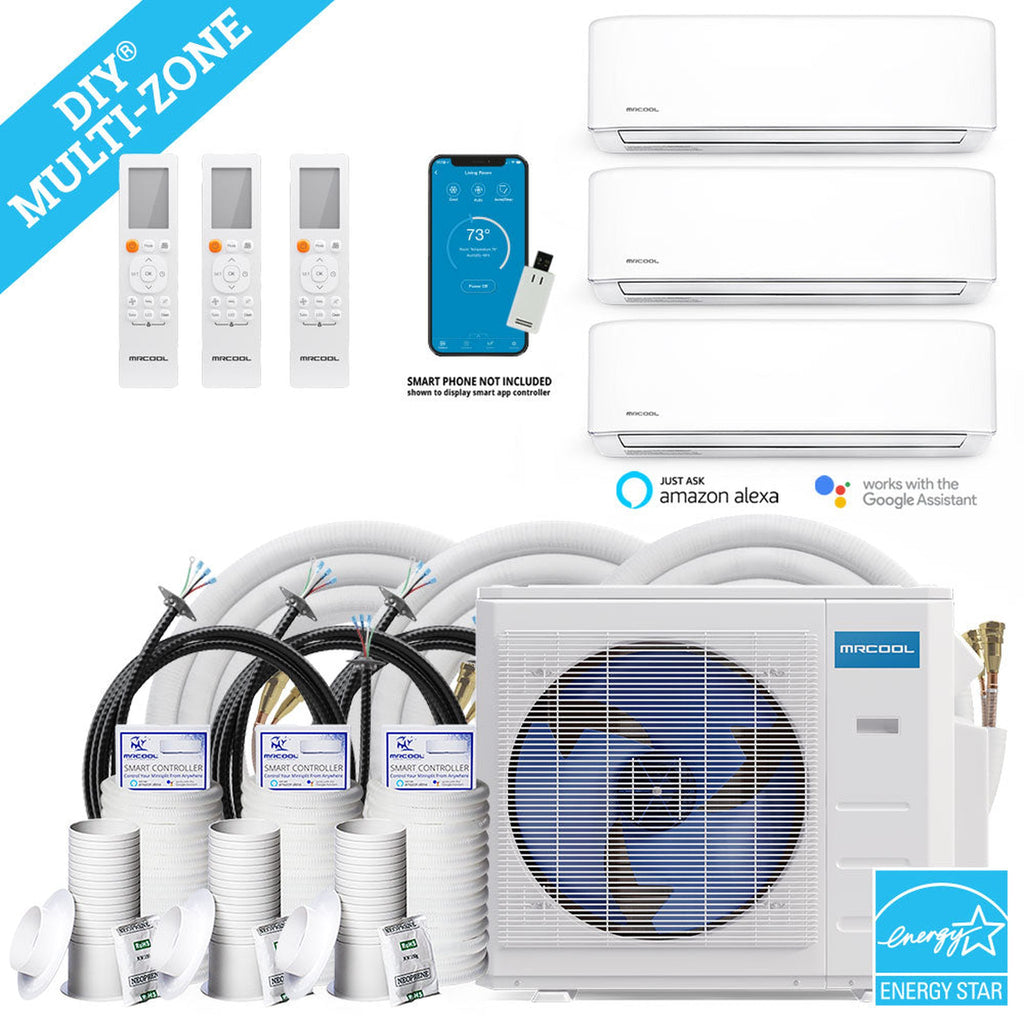

What's Included:
| 27K BTU 3-Zone Ductless Heat Pump Condenser |
| 9K BTU Ductless Wall Mounted Air Handler |
| 9K BTU Ductless Wall Mounted Air Handler |
| 9K BTU Ductless Wall Mounted Air Handler |
| 12K BTU Ductless Wall Mounted Air Handler |
| 35ft 1/4 x 1/2 Lineset Install Kit |
| 35ft 1/4 x 1/2 Lineset Install Kit |
| 50ft 1/4 x 1/2 Lineset Install Kit |

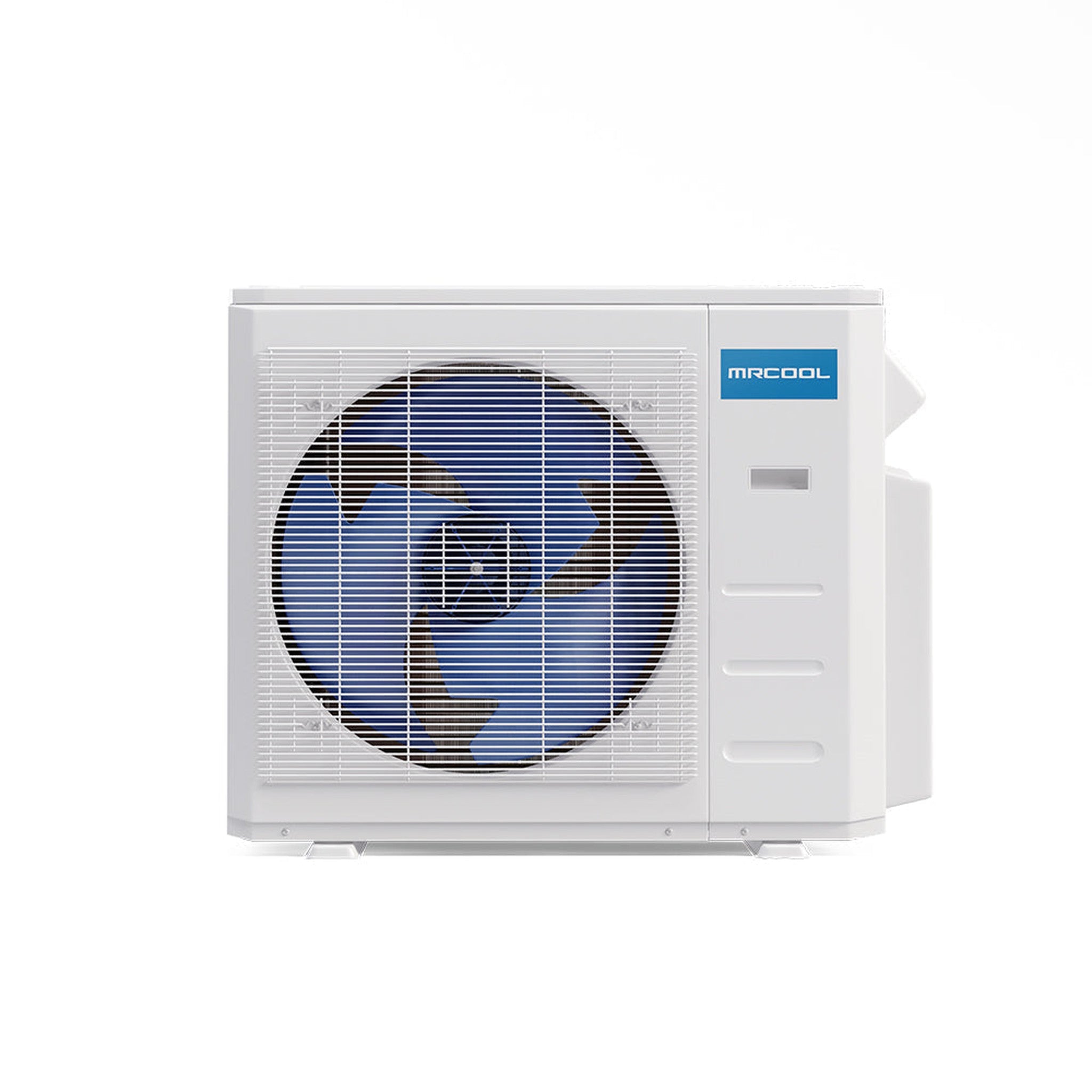

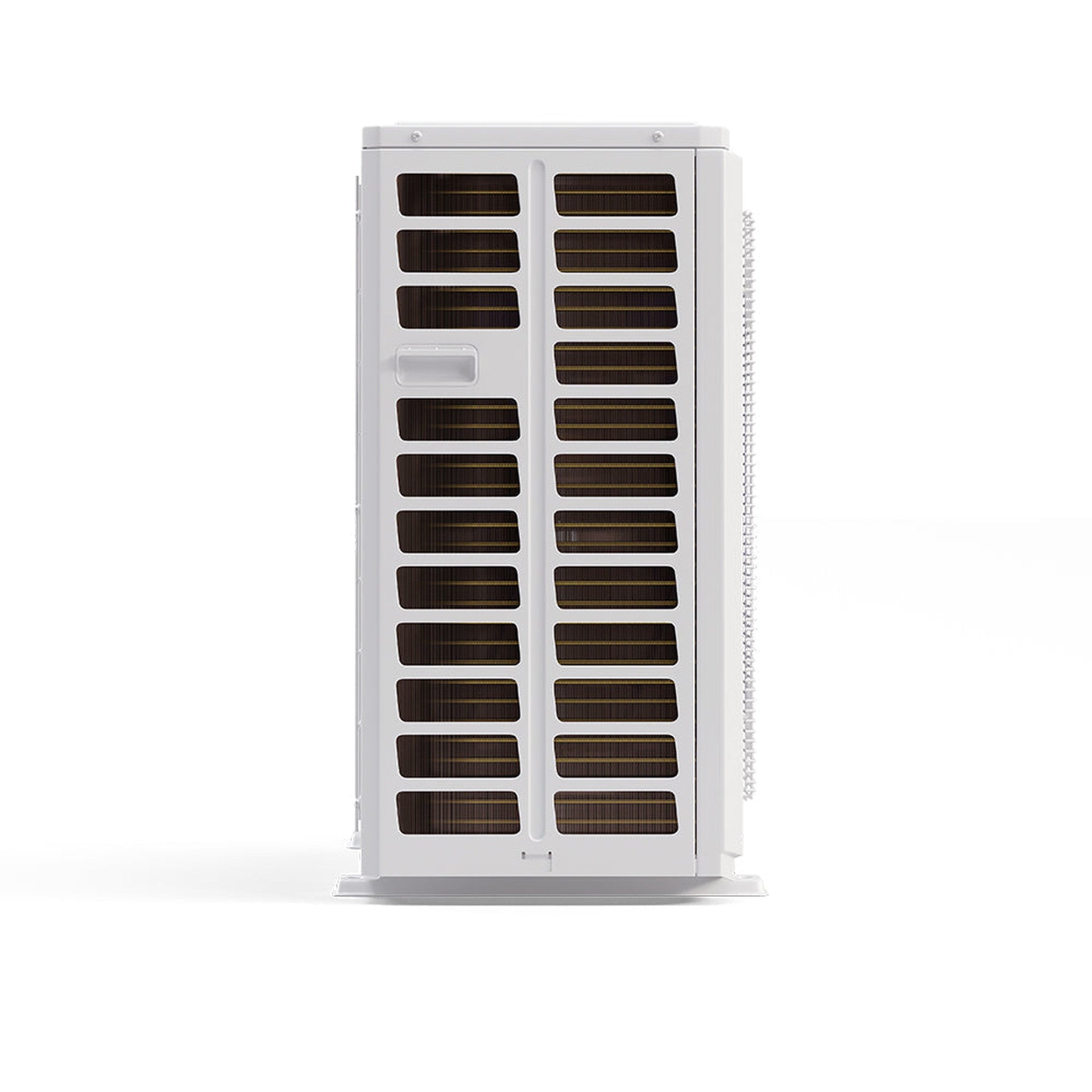

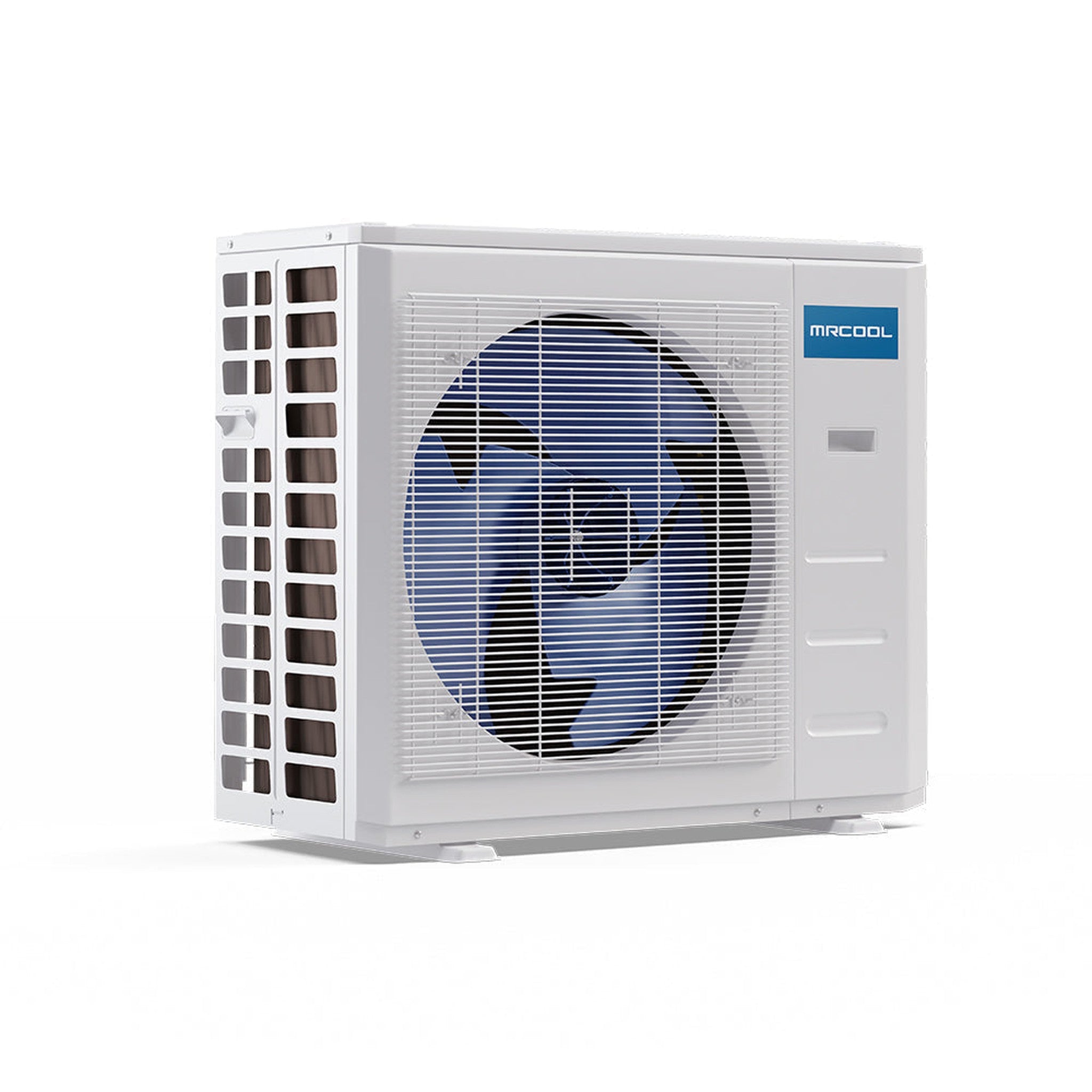

MrCool DIY 4th Gen Multi-Zone 3-Zone Condenser
Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty.
The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool’s patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home’s heating and cooling.
Features
- Up to 22 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
|
SEER |
22 |
|
EER |
12 |
|
HSPF |
hspf4/hspf5 : 10.3/8.2 |
|
CFM |
2129.41 |
|
COOLING CAPACITY |
27000 BTU |
|
HEATING CAPACITY |
27000 BTU |
|
VOLTAGE |
208-230 V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
40 A |
|
MIN CIRCUIT AMPACITY |
26 A |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
Up to 3 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
91.71 oz |
|
DECIBEL RATING |
61 dBA |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
-13F ~ 75.2F |
|
MAX LINESET LENGTH |
147.64ft TOTAL |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
3/8in |
|
COMPRESSOR MOTOR TYPE |
Twin - Rotary |
|
CONDENSER FAN MOTOR RPM |
1050/900/850 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
16.14 in |
|
NET HEIGHT |
31.89 in |
|
NET WIDTH |
37.24 in |
|
NET WEIGHT |
139.99 lbs |
|
GROSS DEPTH |
19.88 in |
|
GROSS HEIGHT |
35.04 in |
|
GROSS WIDTH |
42.91 in |
|
GROSS WEIGHT |
157.19 lbs |
Users Manual
| Brochure |
| Install Manual |
| Owner Manual |
| Remote Manual |
| Technical Manual |
| Warranty Doc |
Covered by the Best Warranty in the Industry! |
 |
