Description
MRCOOL DIY 4th Gen Mini Split Bundle
The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to two rooms. The easy installation, Do-It-Yourself

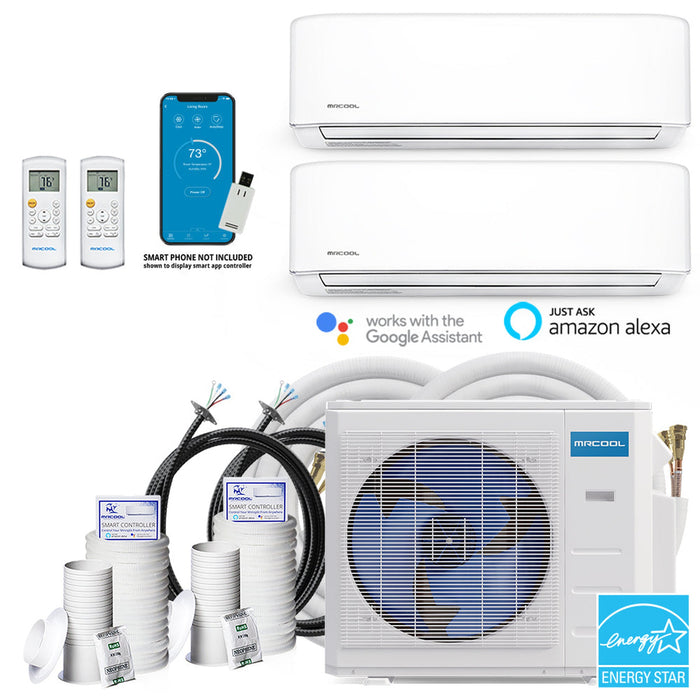

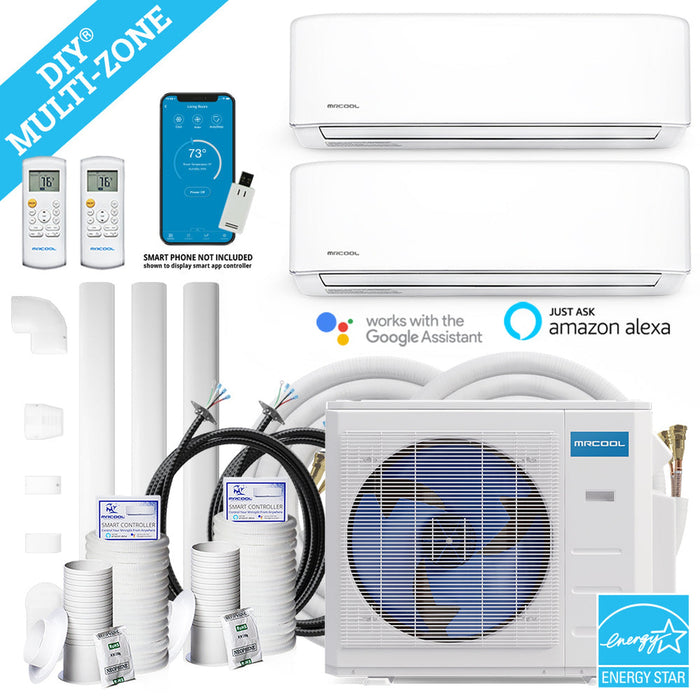

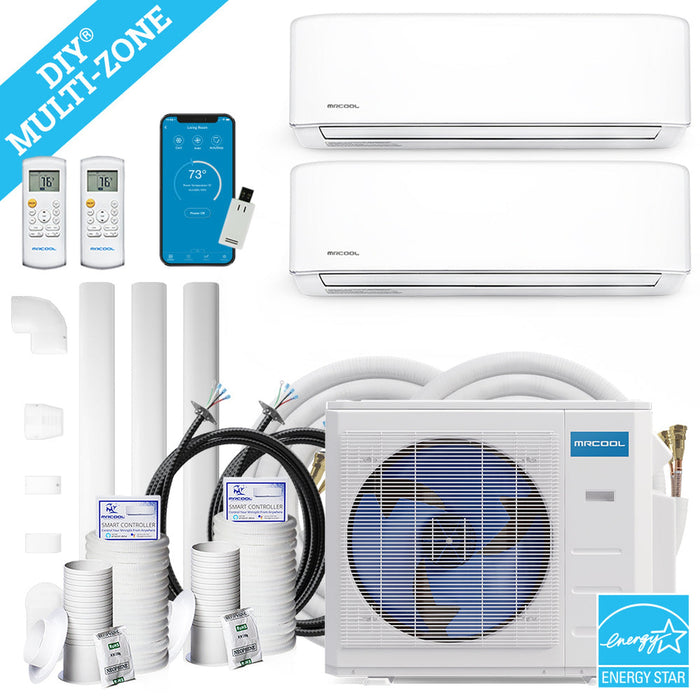

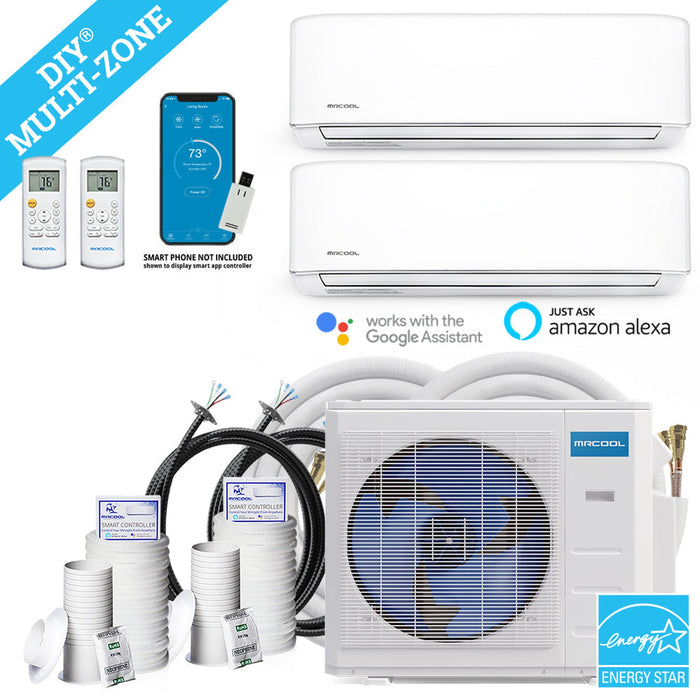

Bundle Includes:

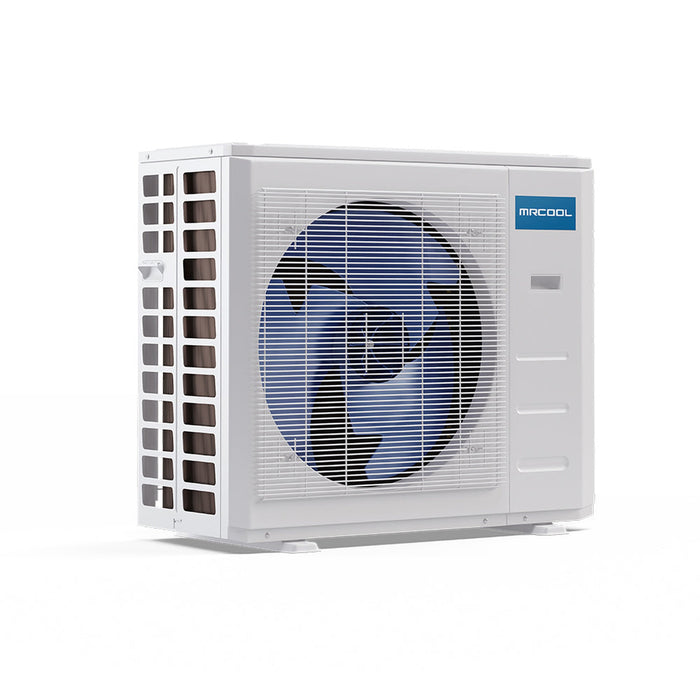

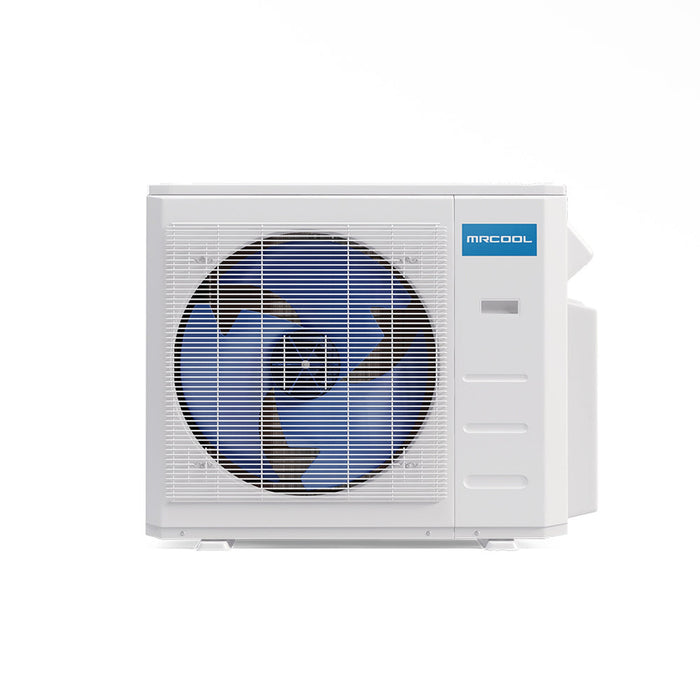

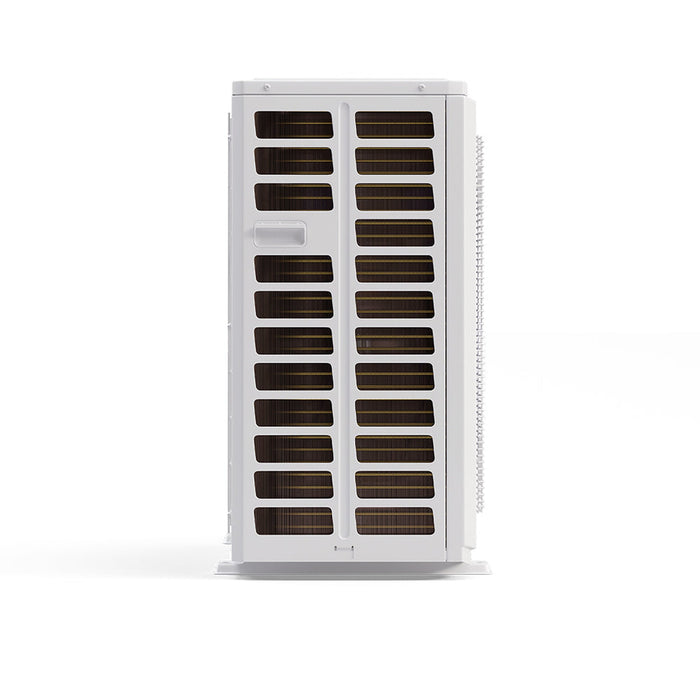

- MRCOOL DIY 4th Gen Multi-Zone 3-Zone 27K BTU Condenser Up to 22 SEER
- MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - Works with Alexa & Google Assistant
- MRCOOL DIY 4th Generation 18K BTU Heat Pump Wall Mount Air Handler with 25ft DIY Pro Cable and Enhanced WiFi - Works with Alexa & Google Assistant
- Line Sets - length & quantity varies based on selection:
- MRCOOL 16 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K & 18K Indoor
- MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
- MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
- MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
- MRCOOL DIY 4th Generation 66 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
- MRCOOL DIY 4th Generation 75 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
Features
- Power - 27K BTUs
- Zones - Cool and heat up to three rooms in your home
- SEER -SEER efficiency rating of up to 22
- Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
- Easy DIY Installation- Easy to install and no technician required. Includes everything to easily Do-It-Yourself
- Environmentally Friendly- R-410A environmentally friendly refrigerant
- Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 1
- Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Smartphone Control- Control with your Apple or Android smartphone through the use of the Smart HVAC app
- Easy DIY Installation -With its light and compact design, it can be installed easily on most interior walls with the included mounting plate
MRCOOL Wall Mount Air Handler - 18K BTU - Quantity 1
- Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Smartphone Control- Control with your Apple or Android smartphone through the use of the Smart HVAC app
- Easy DIY Installation -With its light and compact design, it can be installed easily on most interior walls with the included mounting plate
MRCOOL Line Sets
- The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
- Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
- Length Options- Select which combination of lengths you require for your installation needs.
-
Need more length?Use a coupler to connect two lines together
- Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
- Connect up to 66 ft. or 77 ft. in total length
- Coupler for 9K, 12K or 18K Air Handler
- Coupler for 24K or 36K Air Handler
Specifications
Condenser |
|
|
Dimensions |
16.14" D x 31.89" H x 37.24" W |
|
Voltage |
208-230 V |
|
SEER |
22 |
|
Cooling Capacity |
27K BTU |
|
Heating Capacity |
27K BTU |
|
Min-Max Ambient Cool |
5F ~ 122F |
|
Min-Max Ambient Heat |
-13F ~ 75.2F |
|
Refrigerant Type |
R-410A |
|
Max Line Set Length |
147.64ft TOTAL |
9K Air Handler |
|
|
Product Dimensions |
7.44" D x 11.69" H x 31.57" W |
|
Voltage |
208V-240V |
|
Cooling Capacity |
9K BTU |
|
Heating Capacity |
9K BTU |
|
Modes |
· Auto - auto selects from Cool, Heat or Fan-Only · Dry (Dehumidifies) · Cool · Heat · Fan Only · Quiet · Sleep |
18K Air Handler |
|
|
Product Dimensions |
8.90" D x 13.19" H x 42.52" W |
|
Voltage |
208-230 V |
|
Cooling Capacity |
18K BTU |
|
Heating Capacity |
18K BTU |
|
Modes |
· Auto - auto selects from Cool, Heat or Fan-Only · Dry (Dehumidifies) · Cool · Heat · Fan Only · Quiet · Sleep |
Line Sets |
|
|
Length |
16 ft., 25 ft., 35 ft., or 50 ft. |
|
Liquid Line Size |
1/4" |
|
Suction Line Size |
1/2" |
|
Couplers |
· Connect 50 ft. line set to 16 ft. or 25 ft. line set · For 24K or 36K Air Handler: DIYCOUPLER-3858K75C · For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C |
|
Restricted States |
GU;PR;VI |
|
Proposition 65 Warning |
Yes |
