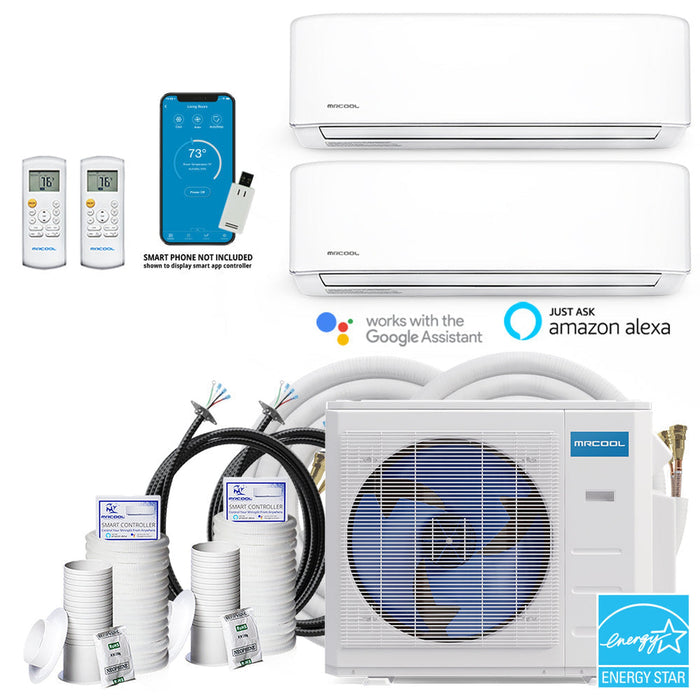

MRCOOL DIY 4th Gen 27K BTU 2-Zone Condenser with 9K+12K handlers, and 2 x 35ft linesets Bundle DIYM227HPW00C13
MRCOOL DIY 4th Gen Mini Split Bundle

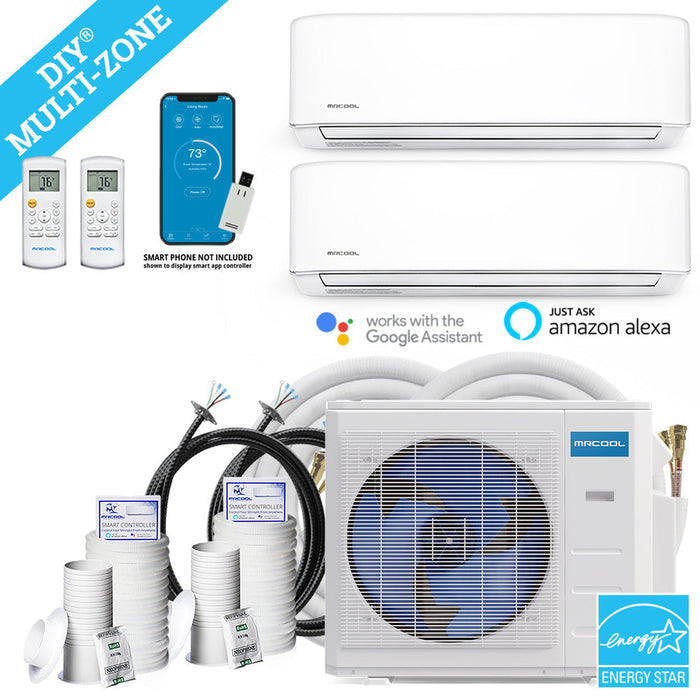

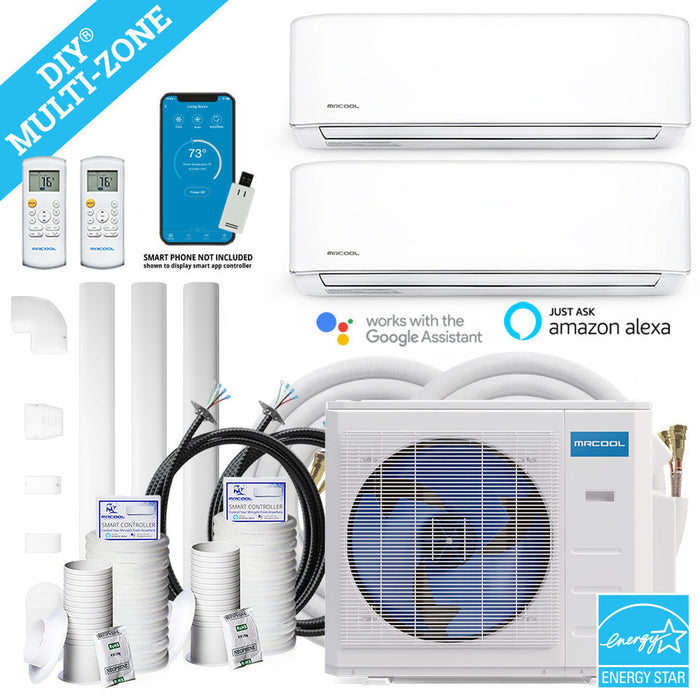

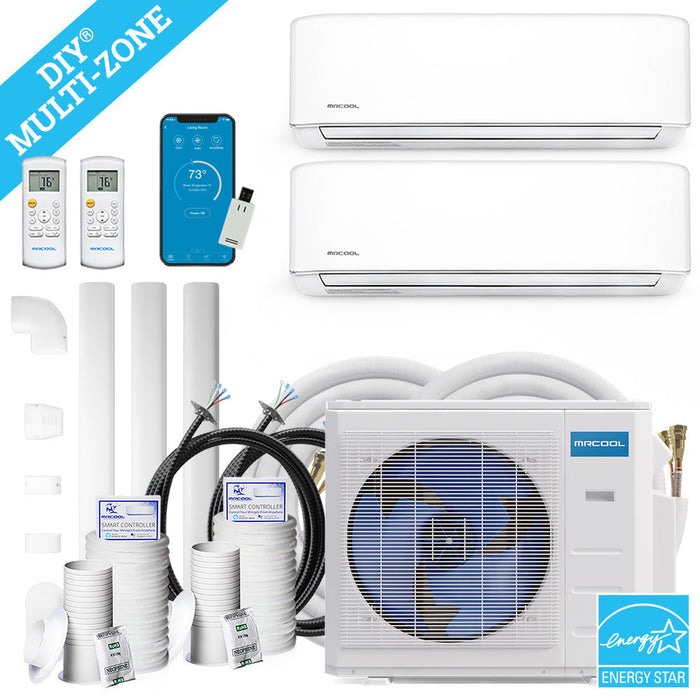

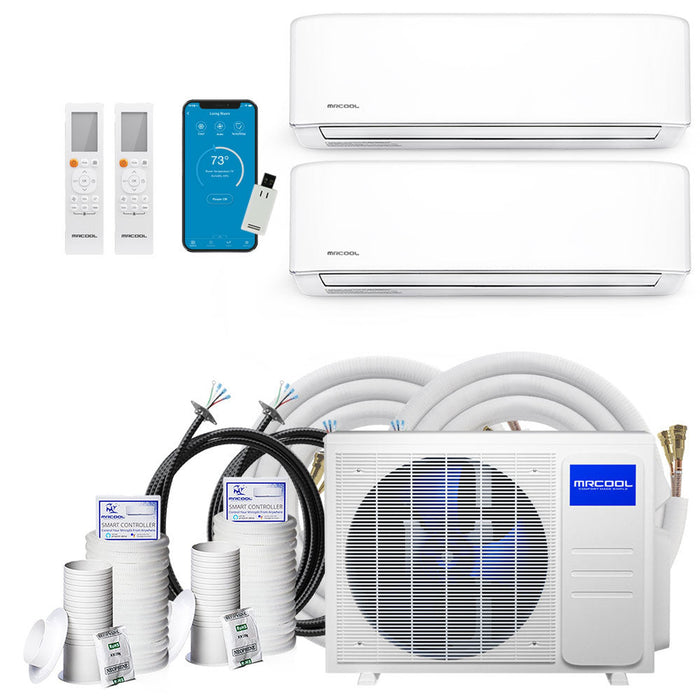

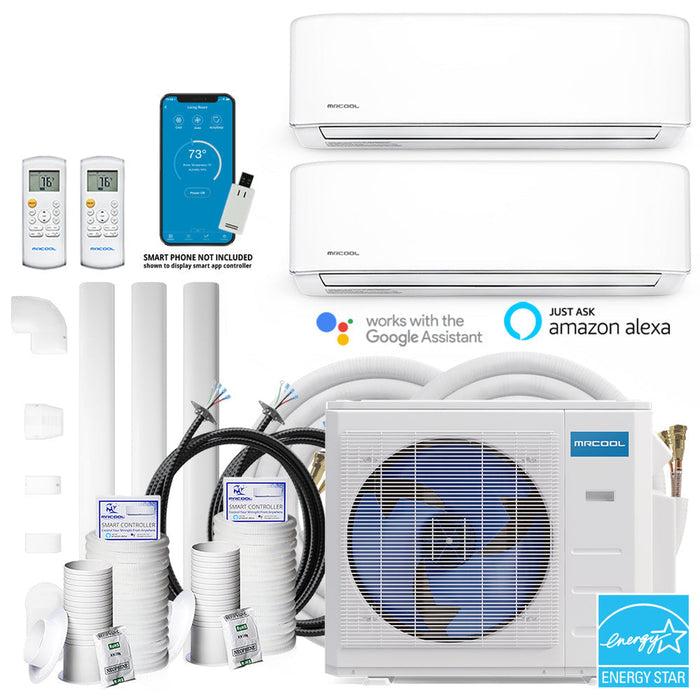

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to two rooms. The easy installation, Do-It-Yourself
Bundle Includes:
-
MRCOOL DIY 4th Gen Multi-Zone 3-Zone 27K BTU Condenser Up to 22 SEER
-
MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - Works with Alexa & Google Assistant
-
MRCOOL DIY 4th Generation 12K BTU Heat Pump Wall Mount Air Handler with Enhanced WiFi - Works with Alexa & Google Assistant
-
Line Sets - length & quantity varies based on selection:
-
MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
-
MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
-
MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
-
MRCOOL DIY 4th Generation 66 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
-
MRCOOL DIY 4th Generation 75 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
Features
MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 1
MRCOOL Wall Mount Air Handler - 12K BTU - Quantity 1
MRCOOL Line Sets
- The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
-
Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
-
Length Options - Select which combination of lengths you require for your installation needs.
-
Need more length? Use a coupler to connect two lines together
- Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
- Connect up to 66 ft. or 77 ft. in total length
Specifications

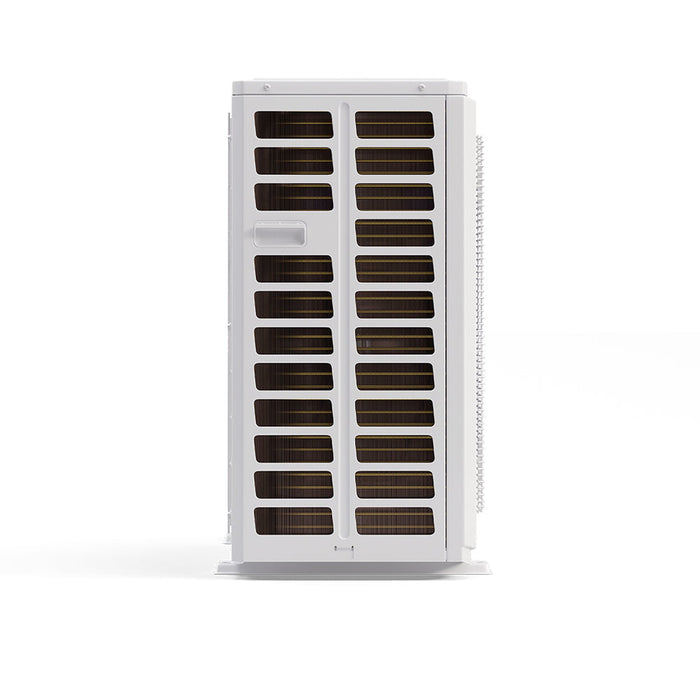

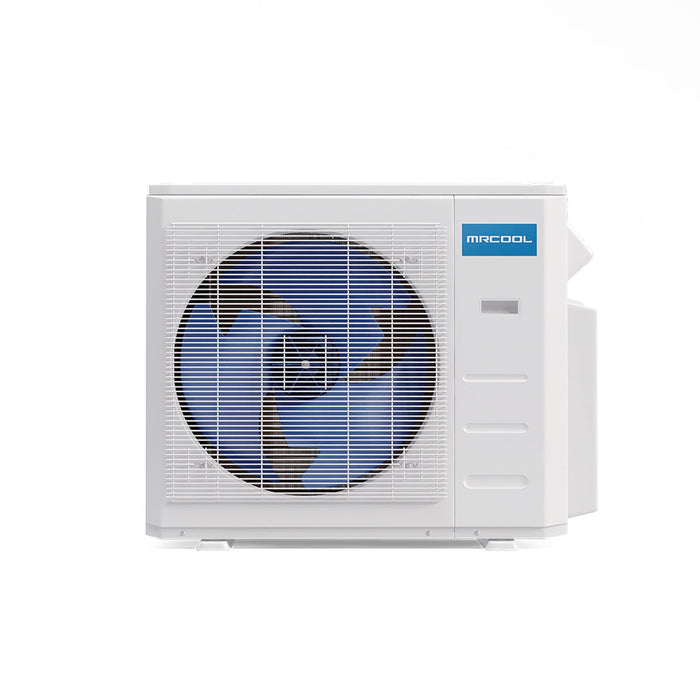

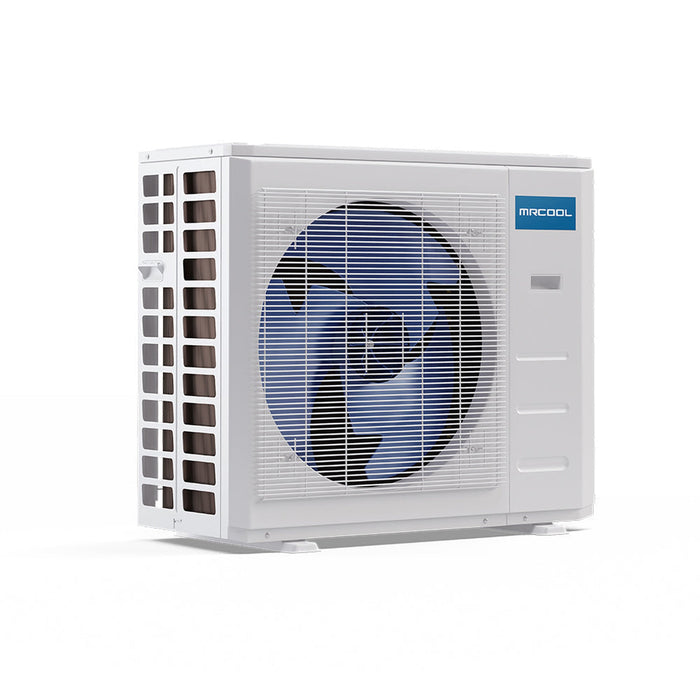

Condenser
|
|
Dimensions
|
16.14" D x 31.89" H x 37.24" W
|
Voltage
|
208-230 V
|
SEER
|
22
|
Cooling Capacity
|
27K BTU
|
Heating Capacity
|
27K BTU
|
Min-Max Ambient Cool
|
5F ~ 122F
|
Min-Max Ambient Heat
|
-13F ~ 75.2F
|
Refrigerant Type
|
R-410A
|
Max Line Set Length
|
147.64ft TOTAL
|
9K Air Handler
|
|
Product Dimensions
|
7.44" D x 11.69" H x 31.57" W
|
Voltage
|
208V-240V
|
Cooling Capacity
|
9K BTU
|
Heating Capacity
|
9K BTU
|
Modes
|
- Auto - auto selects from Cool, Heat or Fan-Only
- Dry (Dehumidifies)
- Cool
- Heat
- Fan Only
- Quiet
- Sleep
|
12K Air Handler
|
|
Product Dimensions
|
7.44" D x 11.69" H x 31.57" W
|
Voltage
|
208-230 V
|
Cooling Capacity
|
12K BTU
|
Heating Capacity
|
12K BTU
|
Modes
|
- Auto - auto selects from Cool, Heat or Fan-Only
- Dry (Dehumidifies)
- Cool
- Heat
- Fan Only
- Quiet
- Sleep
|
Line Sets
|
|
Length
|
16 ft., 25 ft., 35 ft., or 50 ft.
|
Liquid Line Size
|
1/4"
|
Suction Line Size
|
1/2"
|
Couplers
|
- Connect 50 ft. line set to 16 ft. or 25 ft. line set
- For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
- For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
|
Restricted States
|
GU;PR;VI
|
Proposition 65 Warning
|
Yes
|
