MRCOOL DIY 4th Gen 27K BTU 2-Zone Condenser with 12K+18K handlers, and 16ft and 25ft linesets Bundle

Save $414.00
No reviews

Price:
Sale price$3,536.00 Regular price$3,950.00

Description

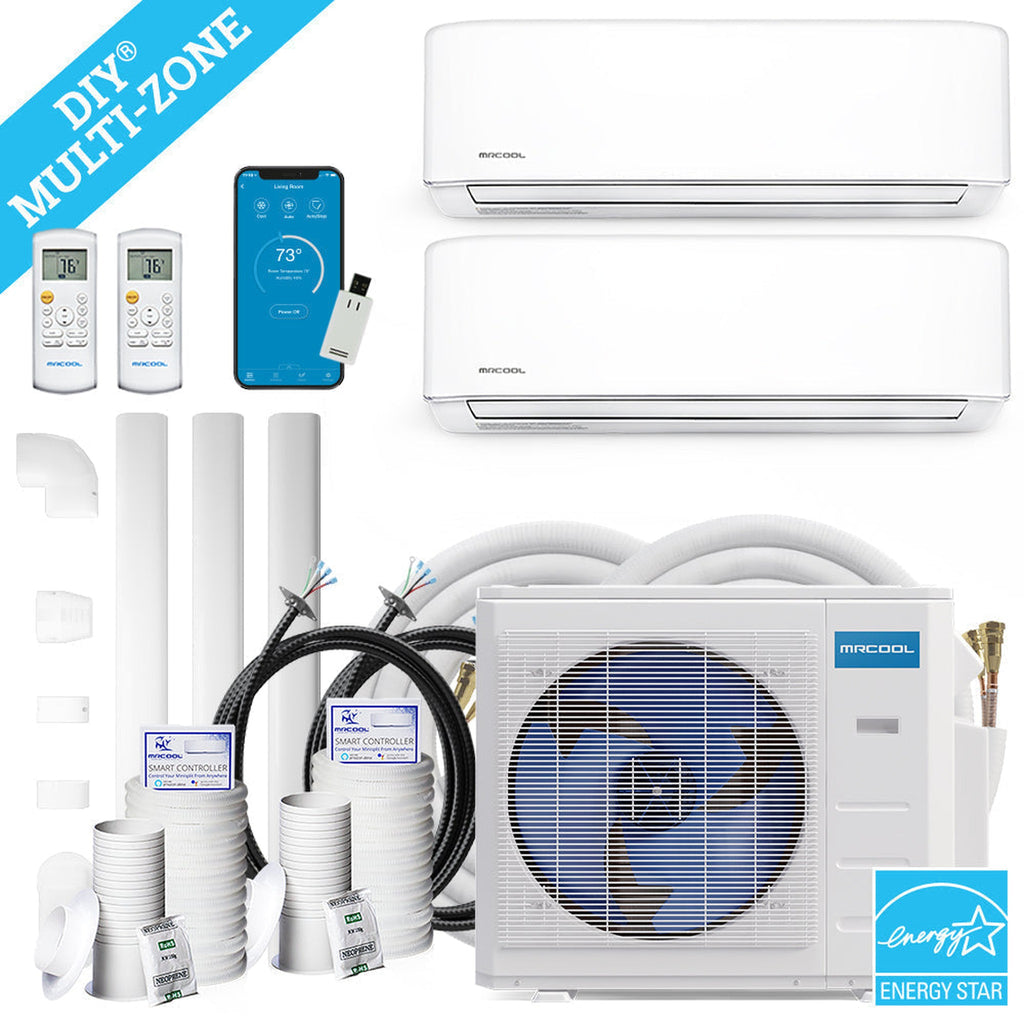

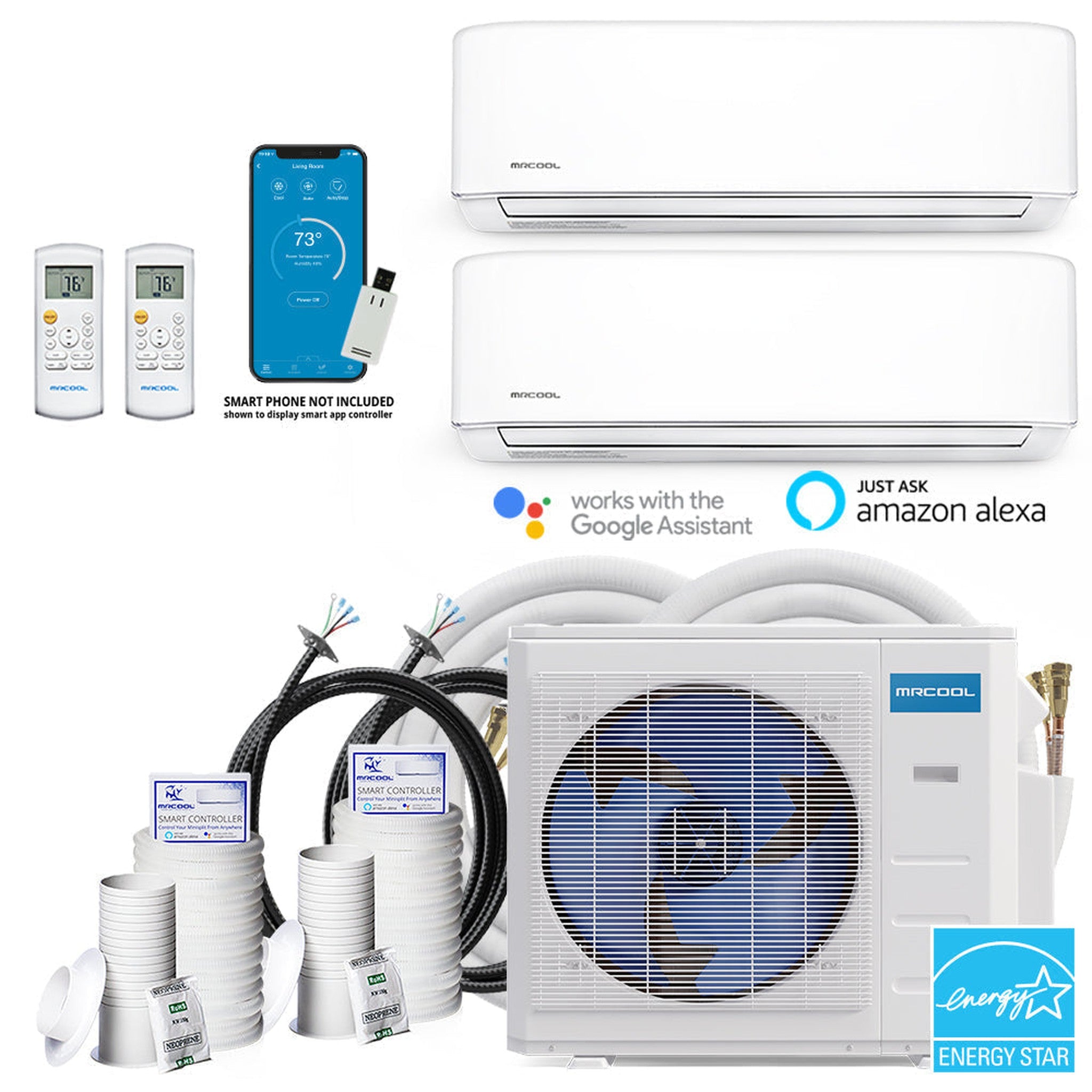

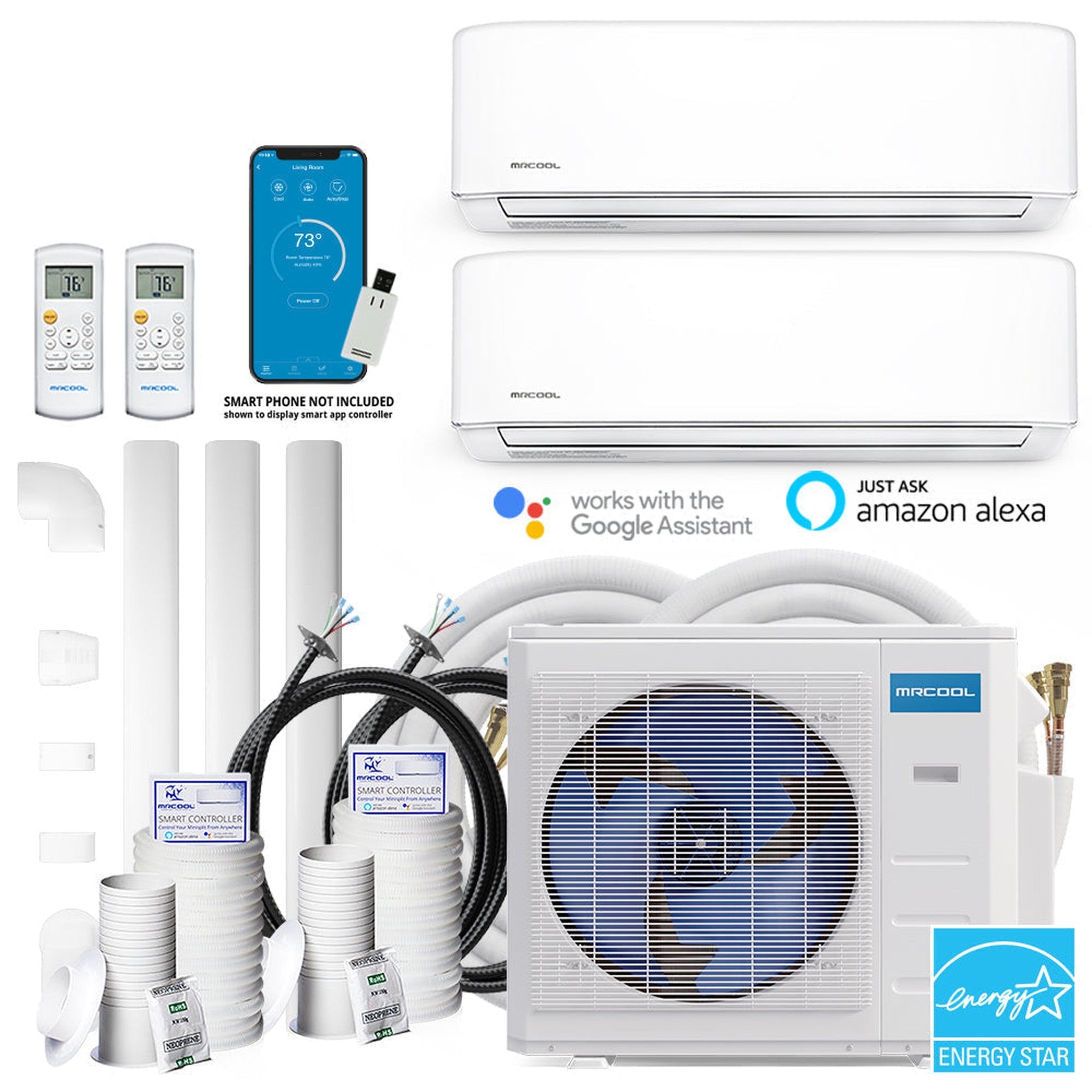

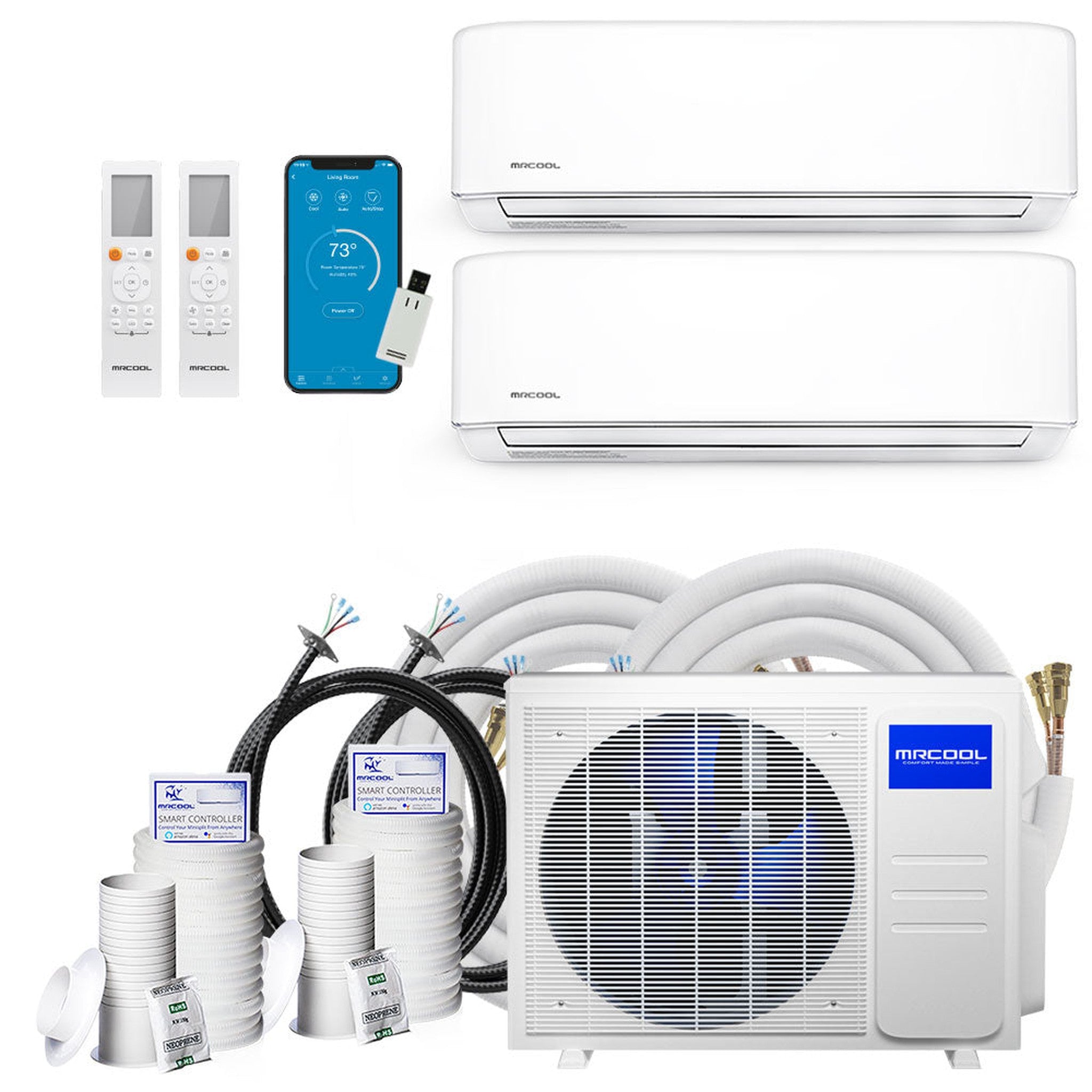

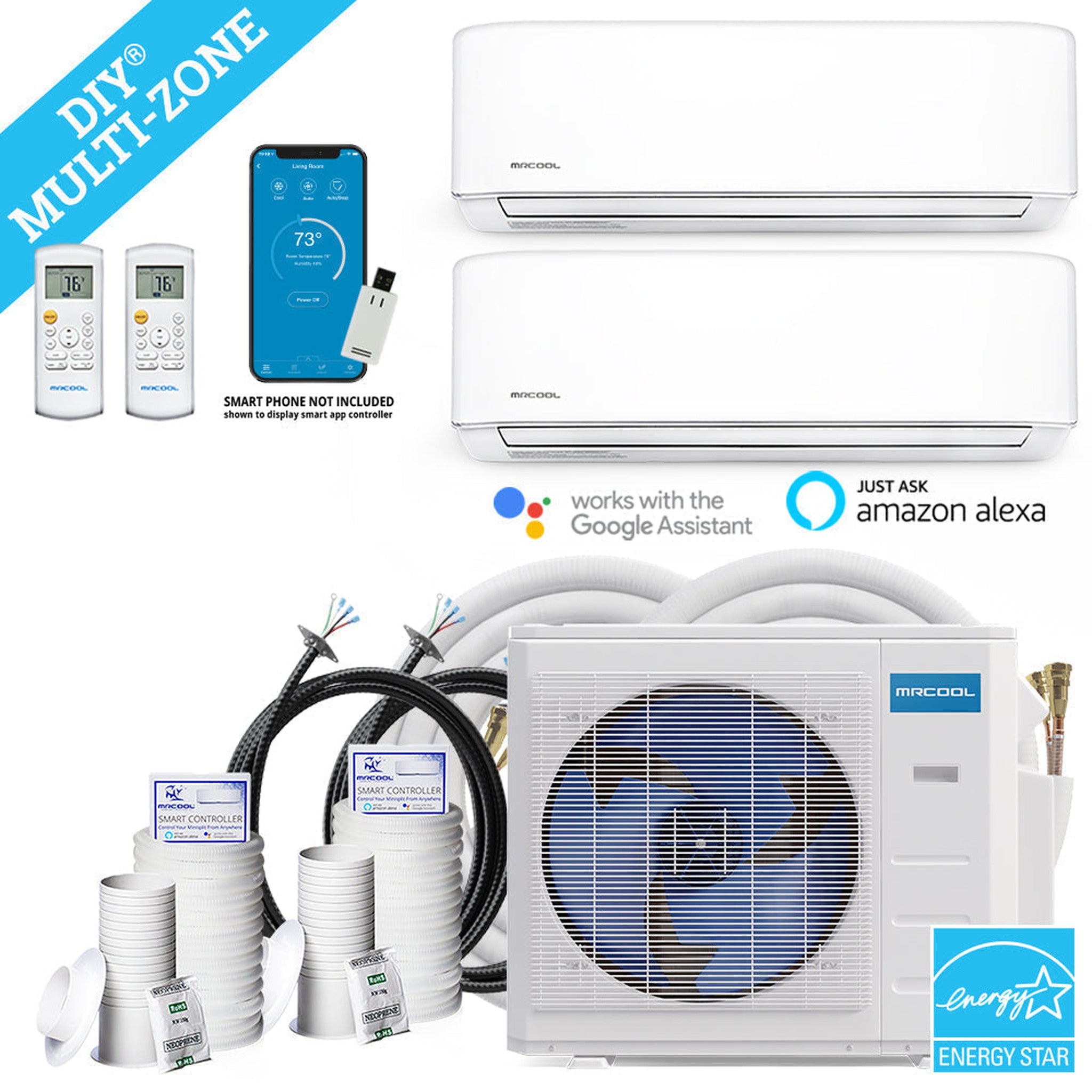

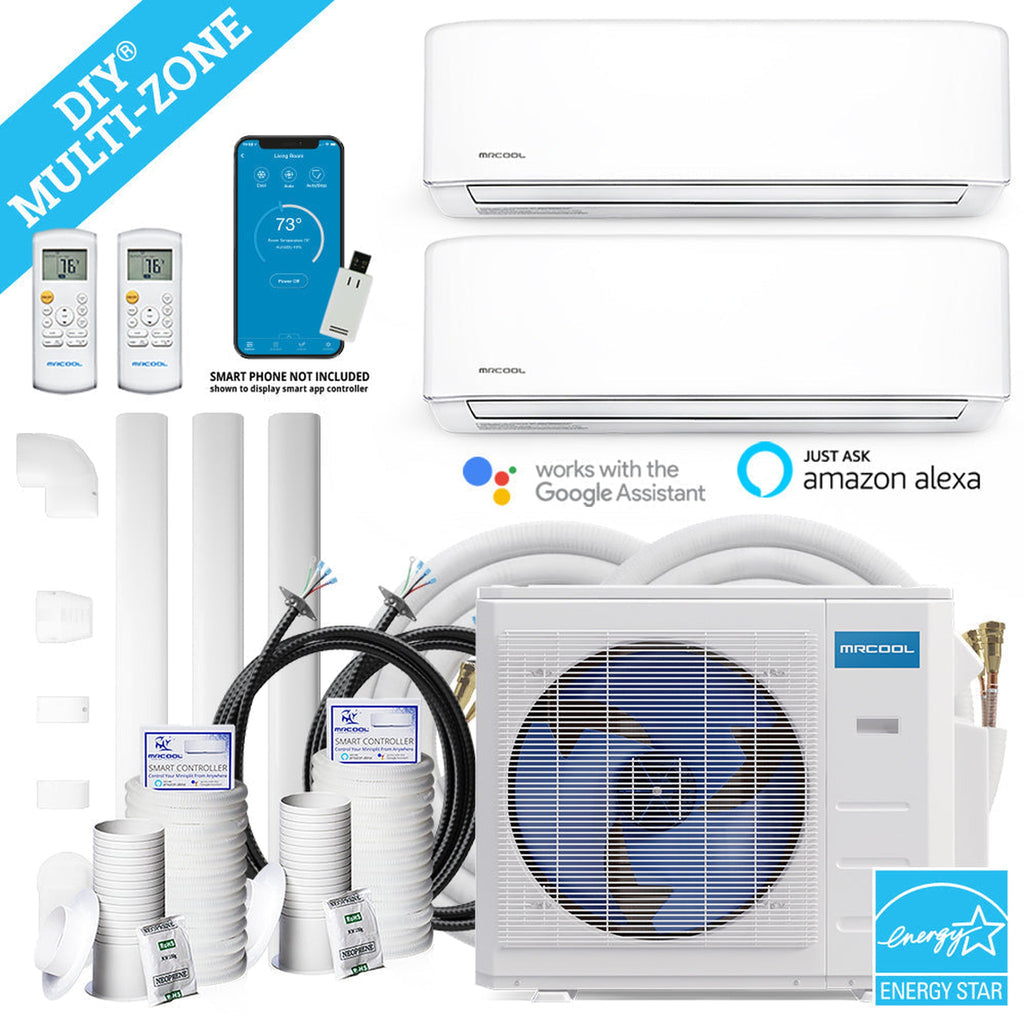

What's Included:

27K BTU 3-Zone Ductless Heat Pump Condenser
12K BTU Ductless Wall Mounted Air Handler
18K BTU Ductless Wall Mounted Air Handler
176ft 1/4 x 1/2 Lineset Install Kit
25ft 1/4 x 1/2 Lineset Install Kit

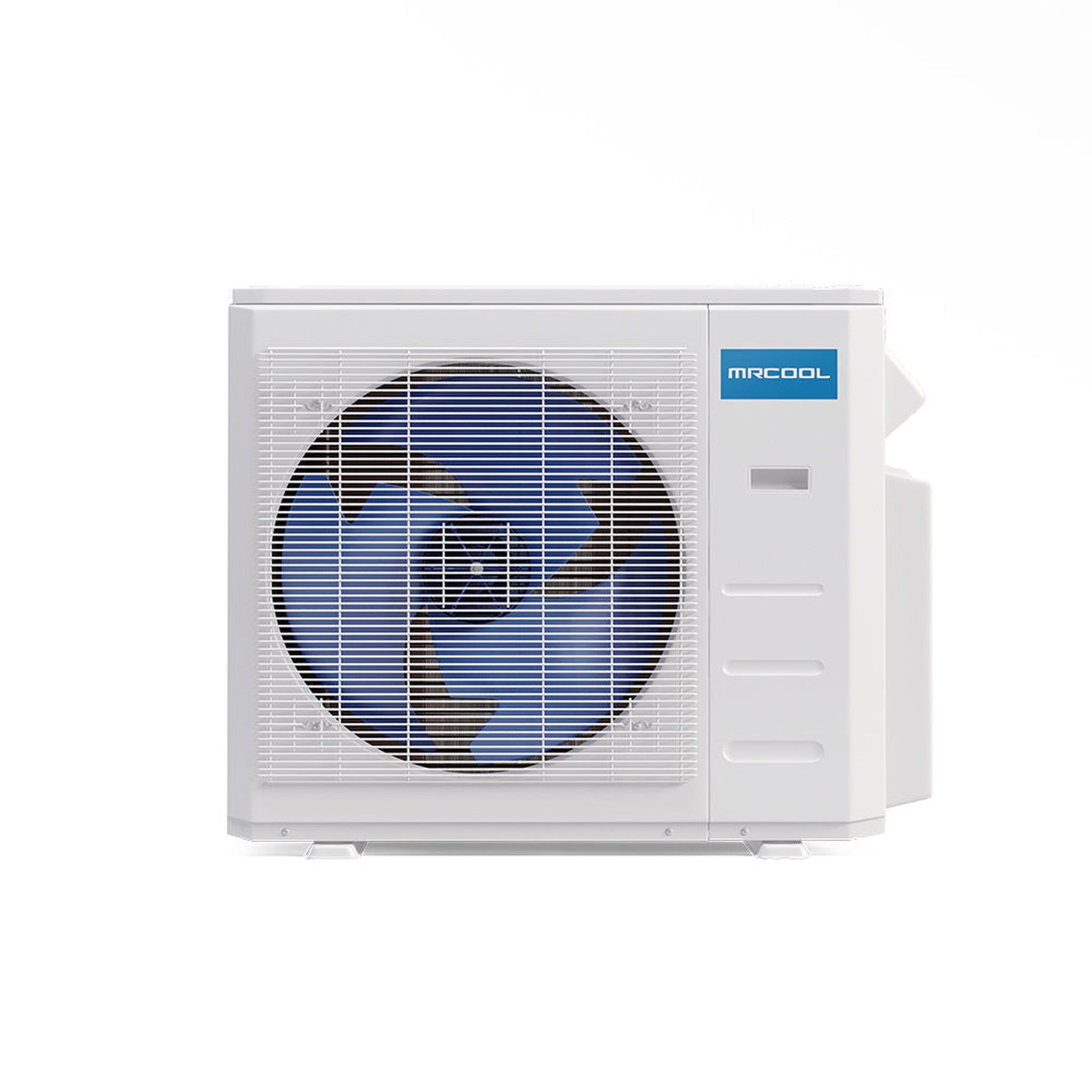

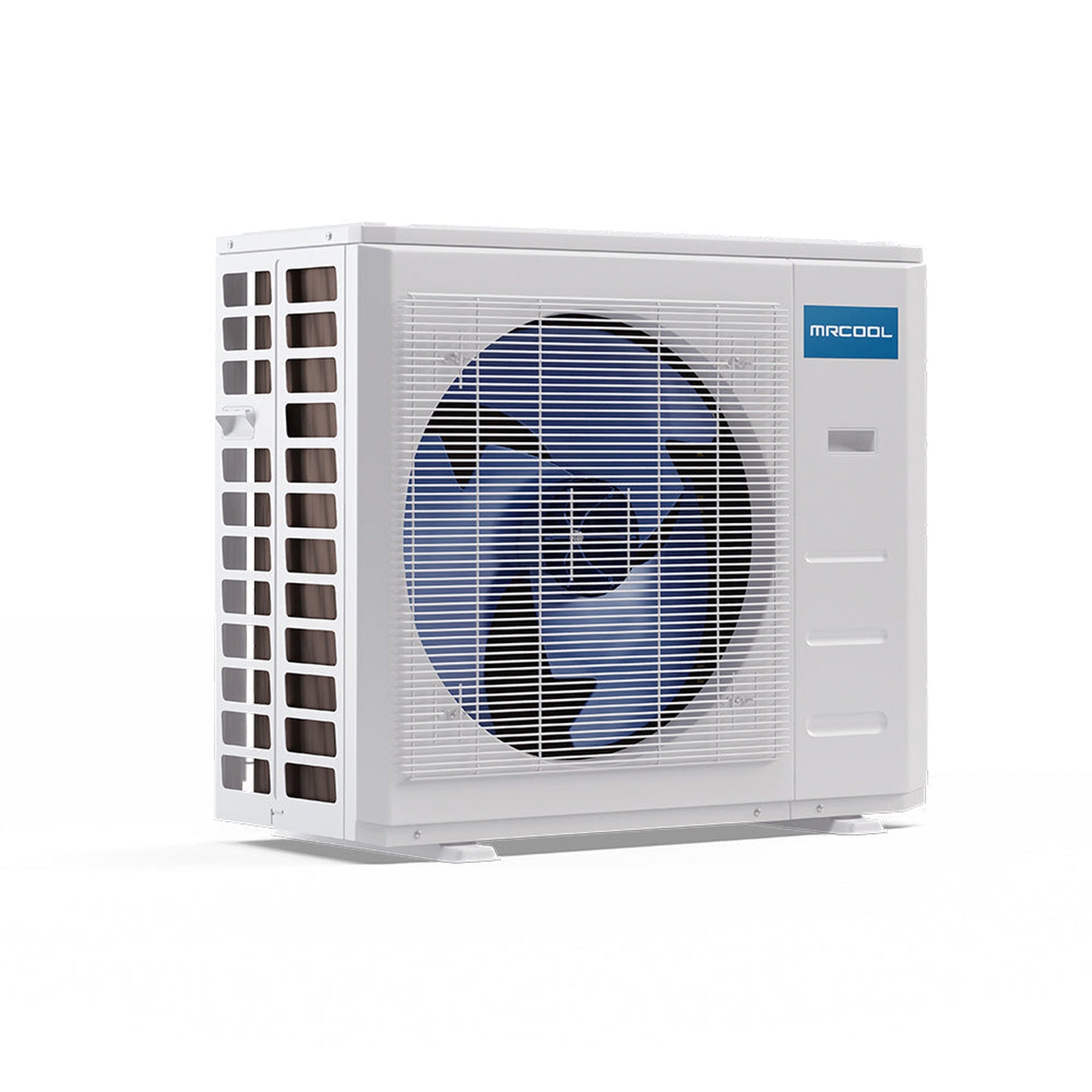

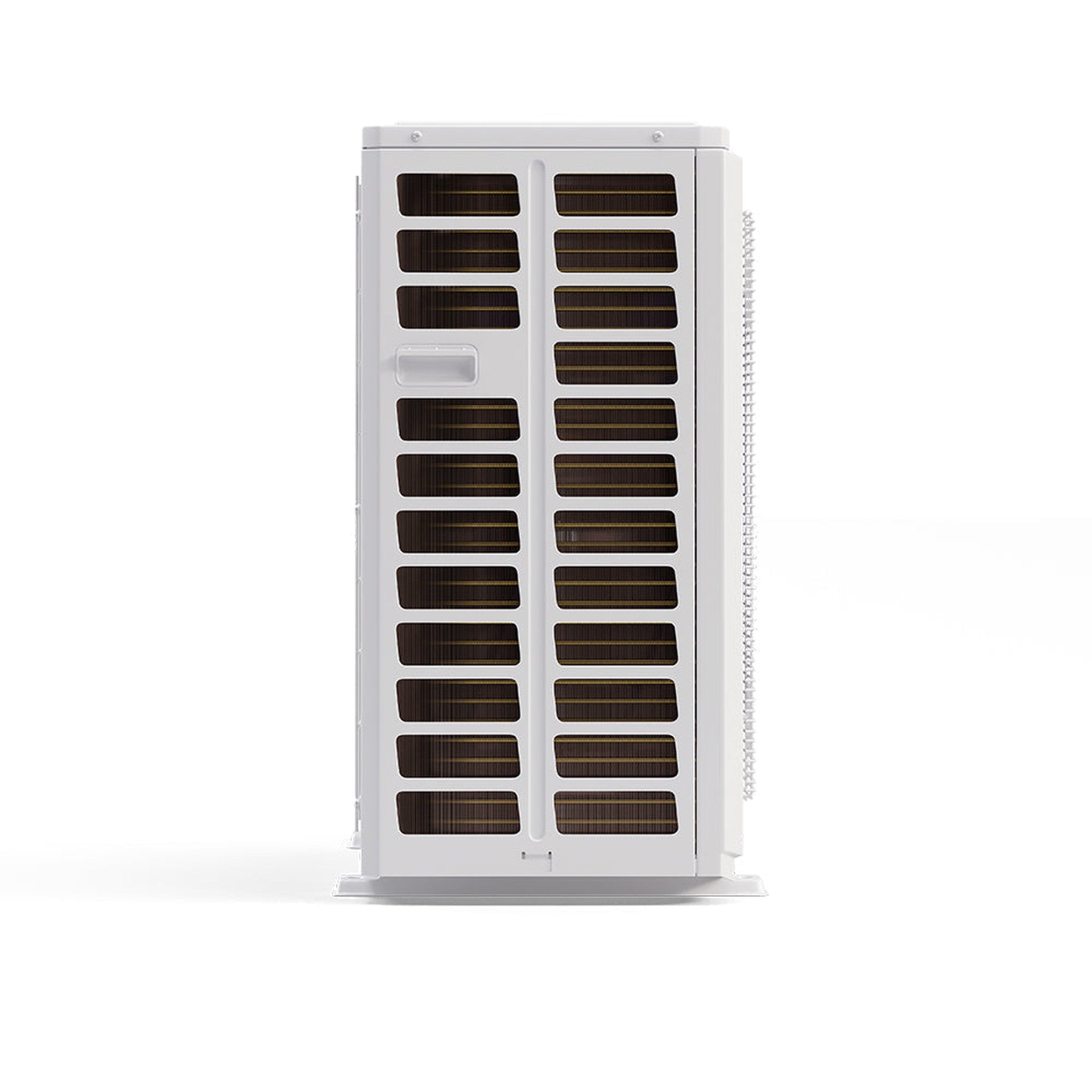

MrCool DIY 4th Gen Multi-Zone 3-Zone Condenser

Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F.

With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool’s patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician.

It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home’s heating and cooling.

  • Up to 22 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

SEER

22

EER

12

HSPF

hspf4/hspf5 : 10.3/8.2

CFM

2129.41

COOLING CAPACITY

27000 BTU

HEATING CAPACITY

27000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

40 A

MIN CIRCUIT AMPACITY

26 A

COLOR

White

COLOR FAMILY

White

ZONE CAPACITY

Up to 3

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

91.71 oz

DECIBEL RATING

61 dBA

INVERTER

Yes

MIN AMBIENT COOL

5F ~ 122F

MIN AMBIENT HEAT

-13F ~ 75.2F

MAX LINESET LENGTH

147.64ft TOTAL

LIQUID LINE SIZE

1/4in

SUCTION LINE SIZE

3/8in

COMPRESSOR MOTOR TYPE

Twin - Rotary

CONDENSER FAN MOTOR RPM

1050/900/850

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH

16.14 in

NET HEIGHT

31.89 in

NET WIDTH

37.24 in

NET WEIGHT

139.99 lbs

GROSS DEPTH

19.88 in

GROSS HEIGHT

35.04 in

GROSS WIDTH

42.91 in

GROSS WEIGHT

157.19 lbs



Users Manual

Brochure
Install Manual
Owner Manual
Remote Manual
Technical Manual
Warranty Doc

Service Manual

Covered by the Best Warranty in the Industry!
