Save $452.00
MRCOOL
No reviews
Price:
$2,822.00 $3,274.00

Description

MRCOOL DIY 4th Gen 18K BTU 2-Zone Condenser with 9K+9K handlers, and and 2 x 25ft linesets Bundle DIYM218HPW00C07

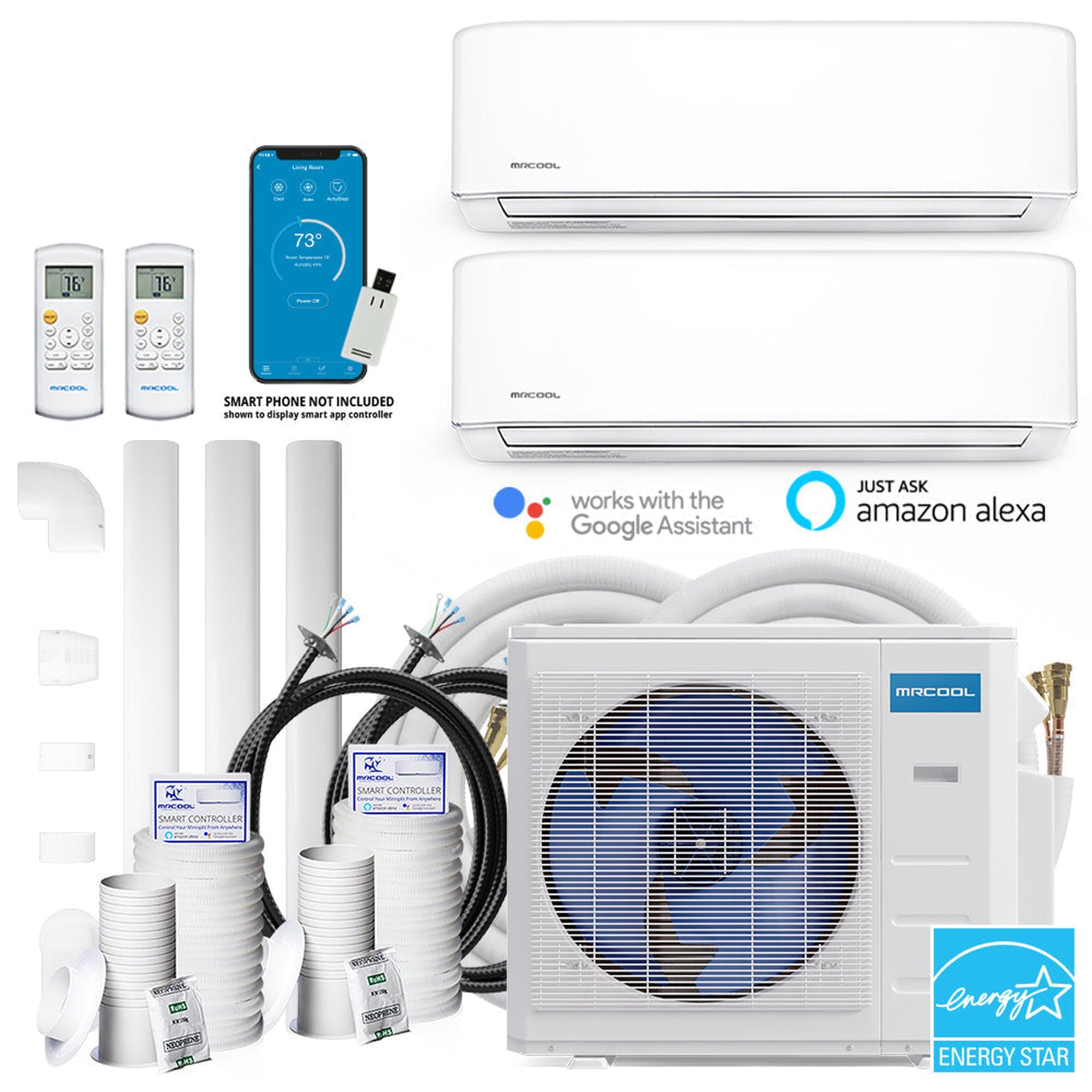

MRCOOL DIY 4th Gen Mini Split Bundle

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to two rooms. The easy installation, Do-It-Yourself

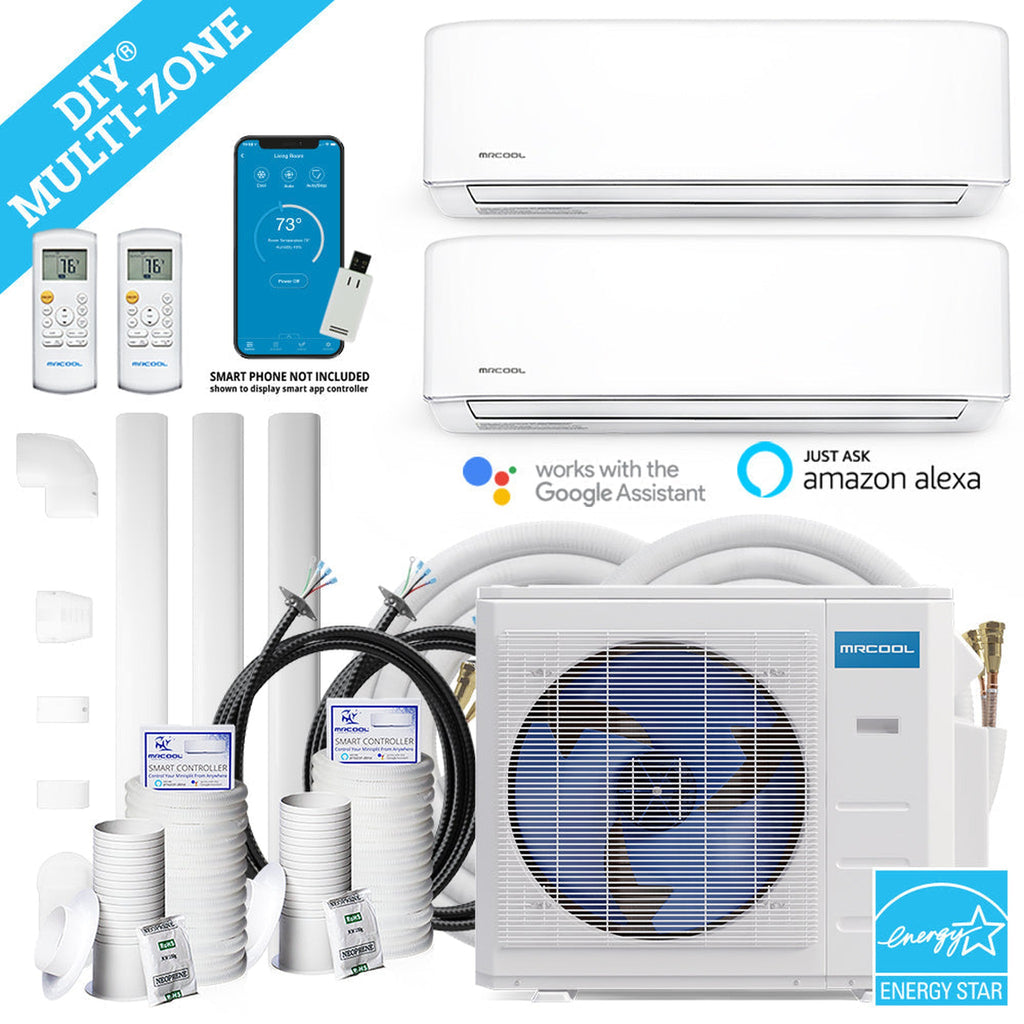

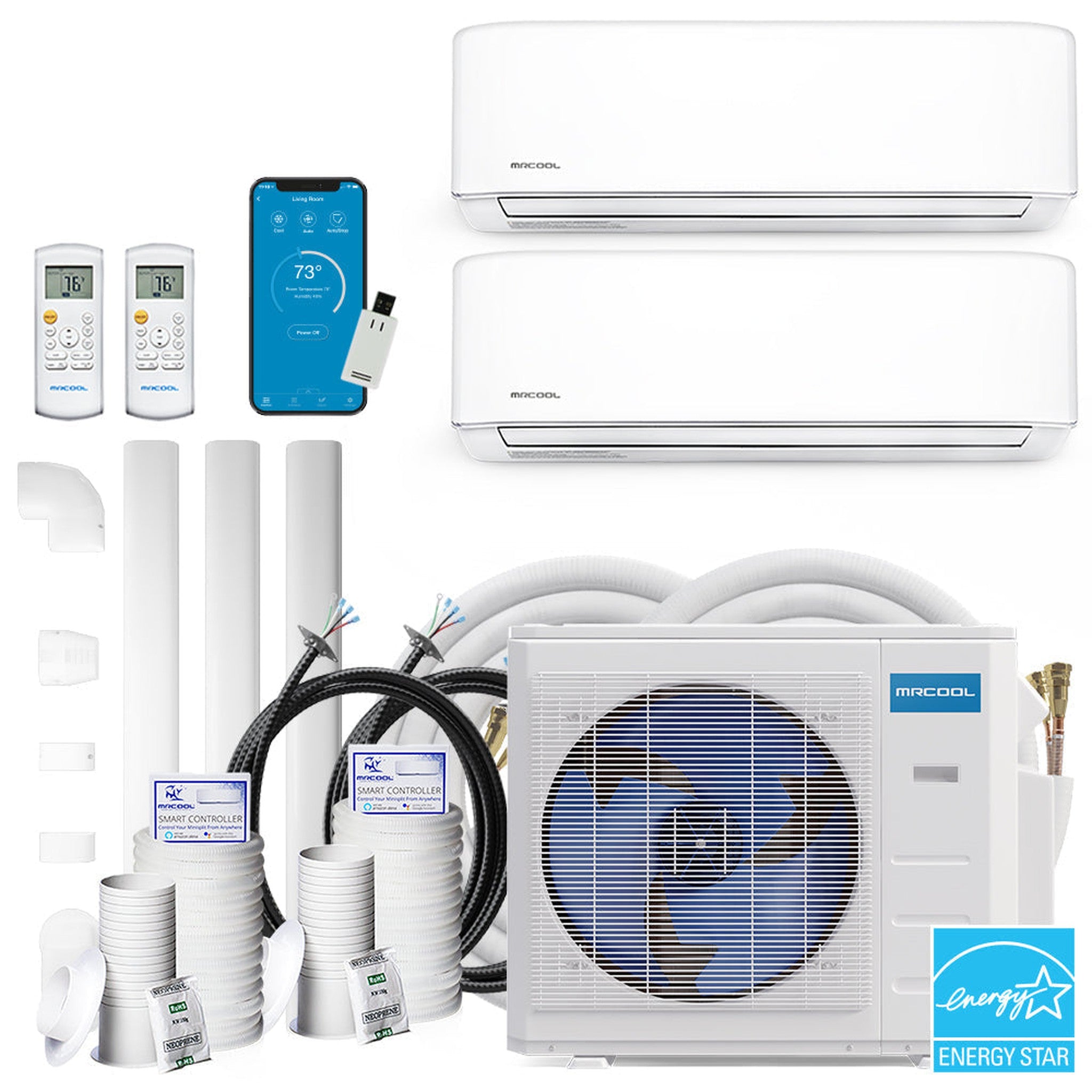

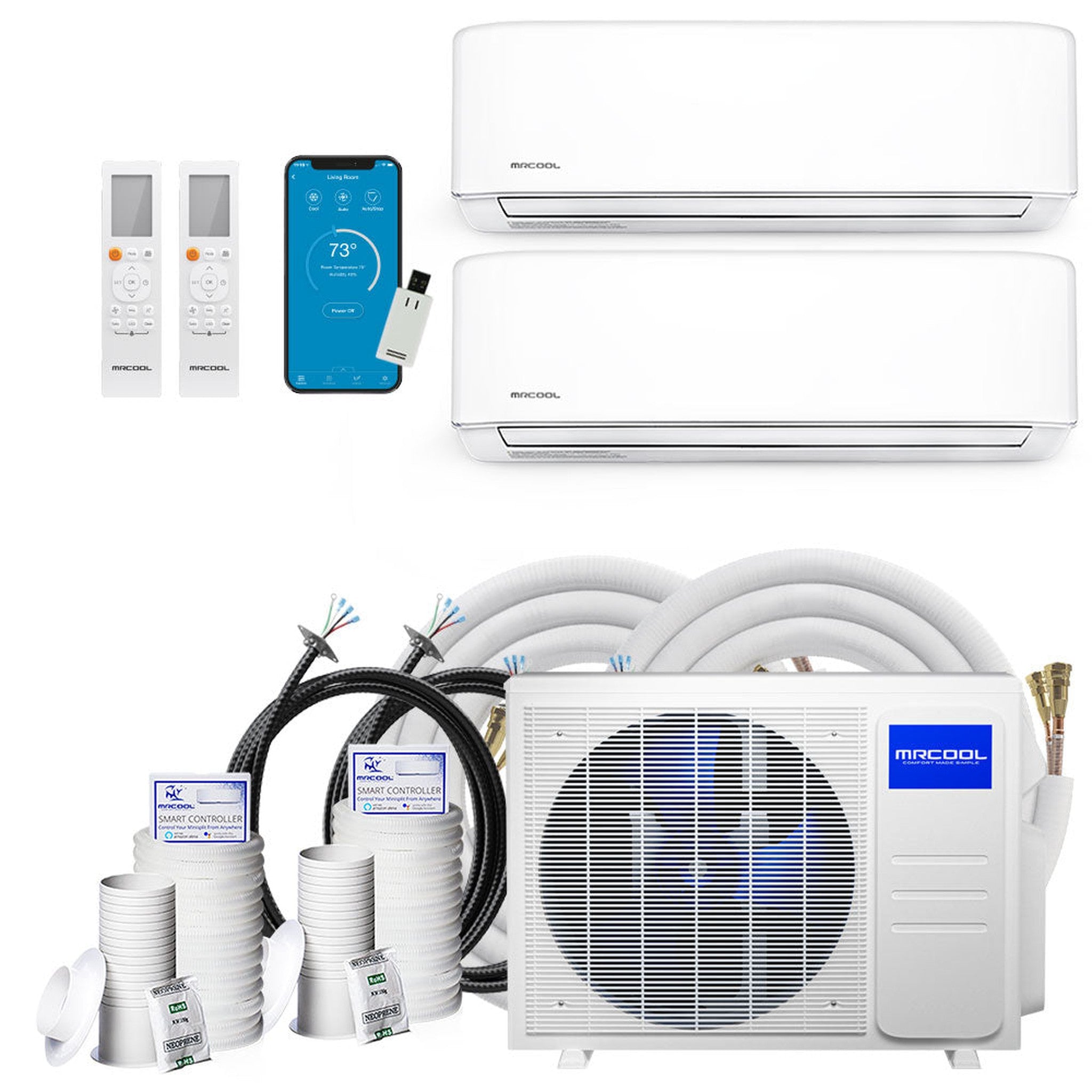

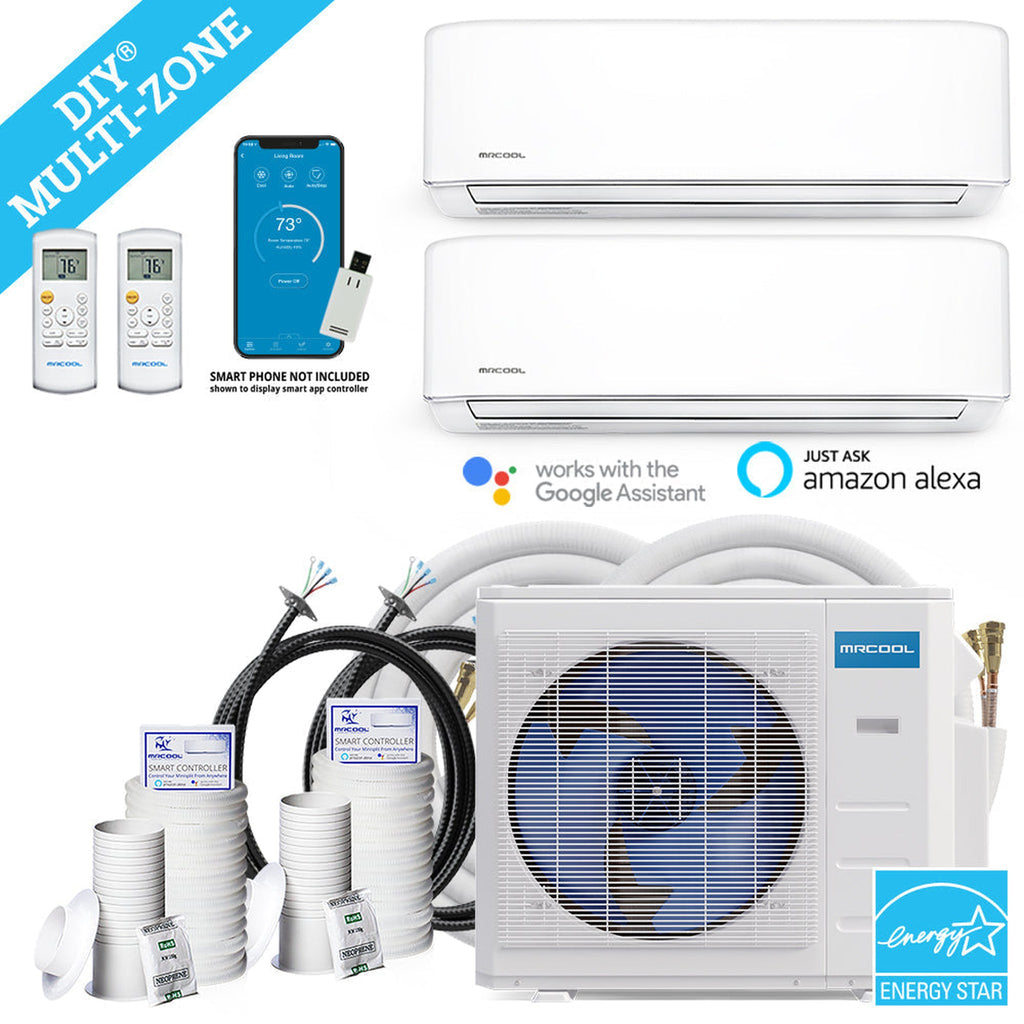

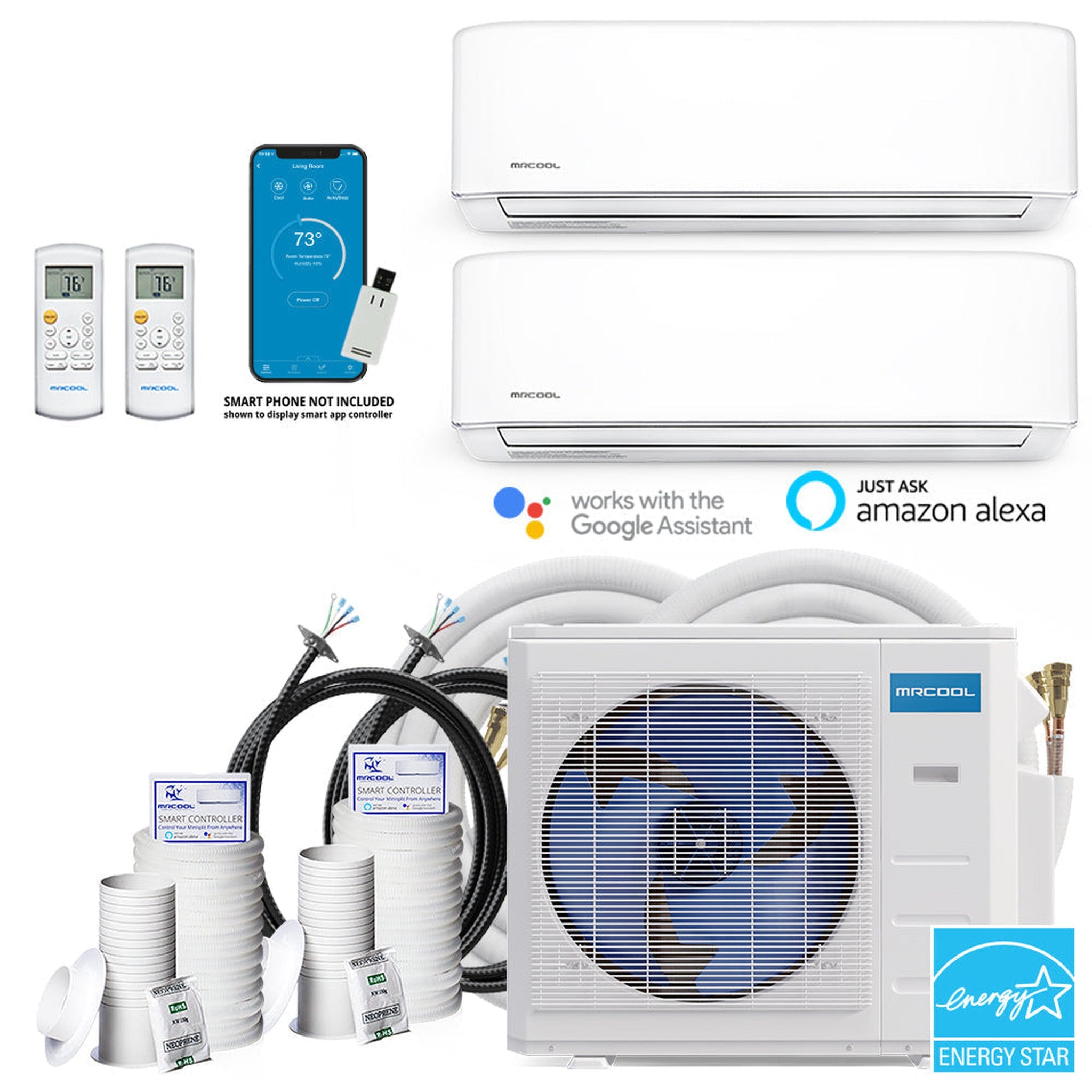

Bundle Includes

  1. MRCOOL DIY 4th Gen Multi-Zone 2-Zone 18K BTU Condenser Up to 21 SEER

  2. MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - Works with Alexa & Google Assistant

  3. Line Sets - length & quantity varies based on selection:

  • MRCOOL 25 Ft. 1/4" x 1/2" Lineset for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Lineset for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Lineset for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 66 Ft. 1/4" x 1/2" Lineset for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 75 Ft. 1/4" x 1/2" Lineset for DIY 9K, 12K, & 18K Indoor

Features

  • Power - 18K BTUs
  • Zones - Cool and heat up to two rooms in your home
  • SEER - SEER efficiency rating of up to 21
  • Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
  • Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
  • Environmentally Friendly - R-410A environmentally friendly refrigerant
  • Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

    MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 2

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

      MRCOOL Line Sets

      • The MRCOOL copper lineset is required to connect the Condenser to each Air Handler.
      • Environmentally Friendly - Linesets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
      • Length Options - Select which combination of lengths you require for your installation needs.
      • Need more length? Use a coupler to connect two lines together
        • Couplers connect 16 ft. or 25 ft. lines to one 50 ft. lineset
        • Connect up to 66 ft. or 77 ft. in total length

      Specifications

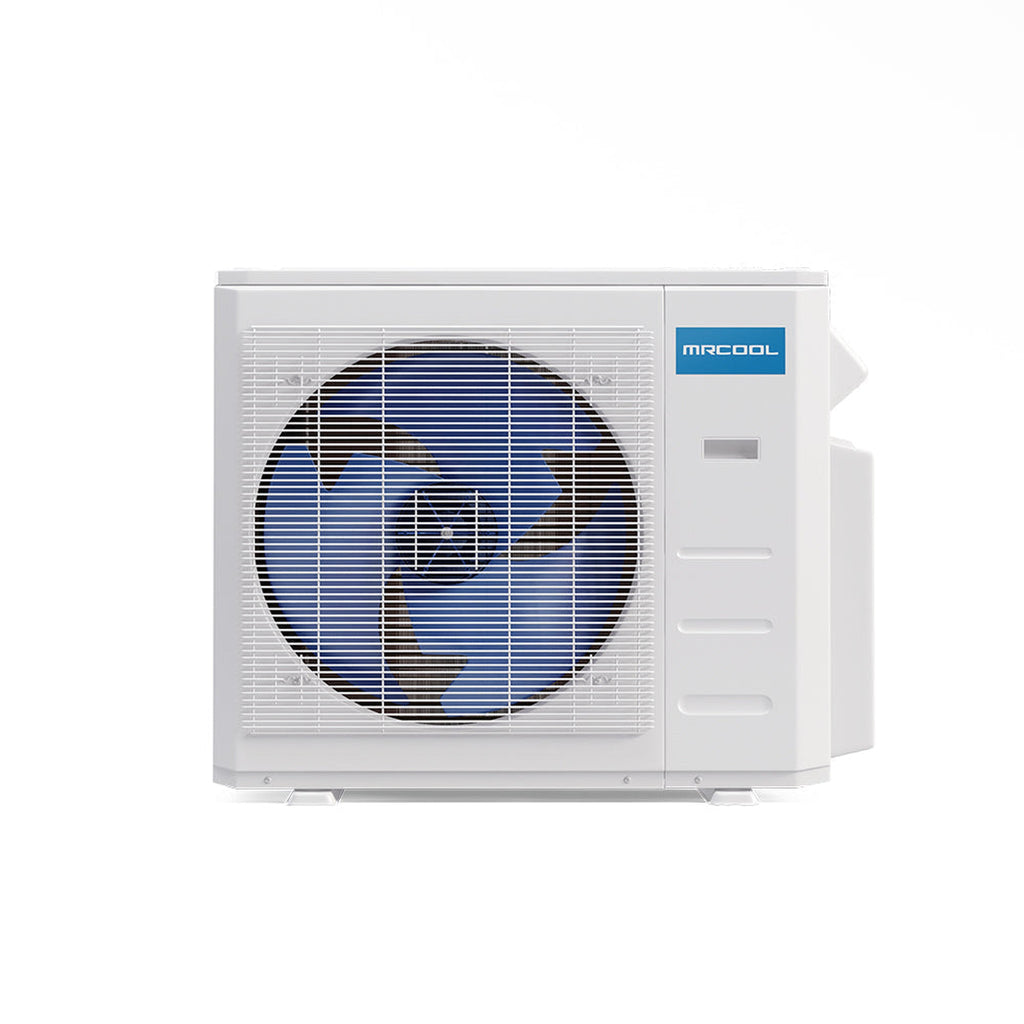

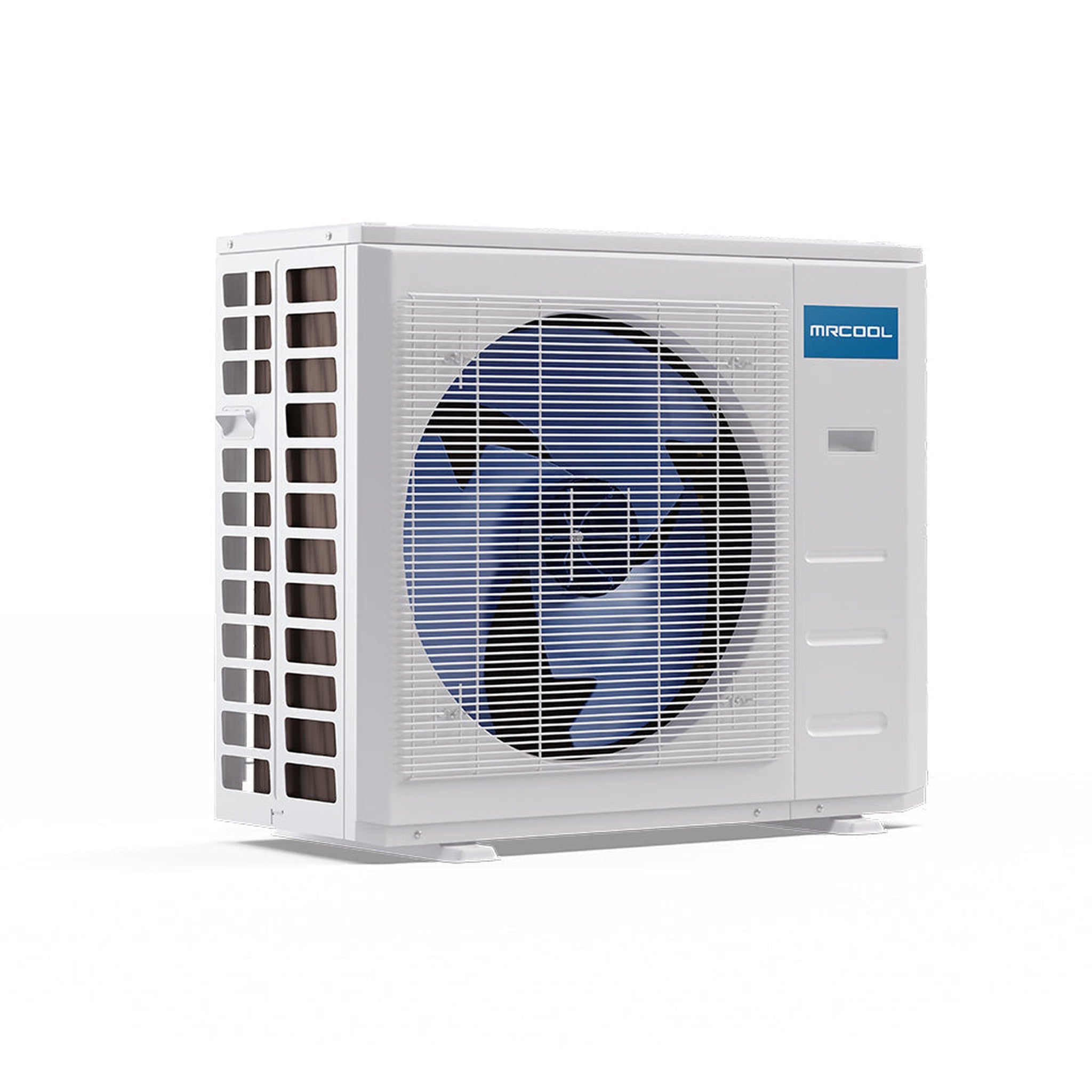

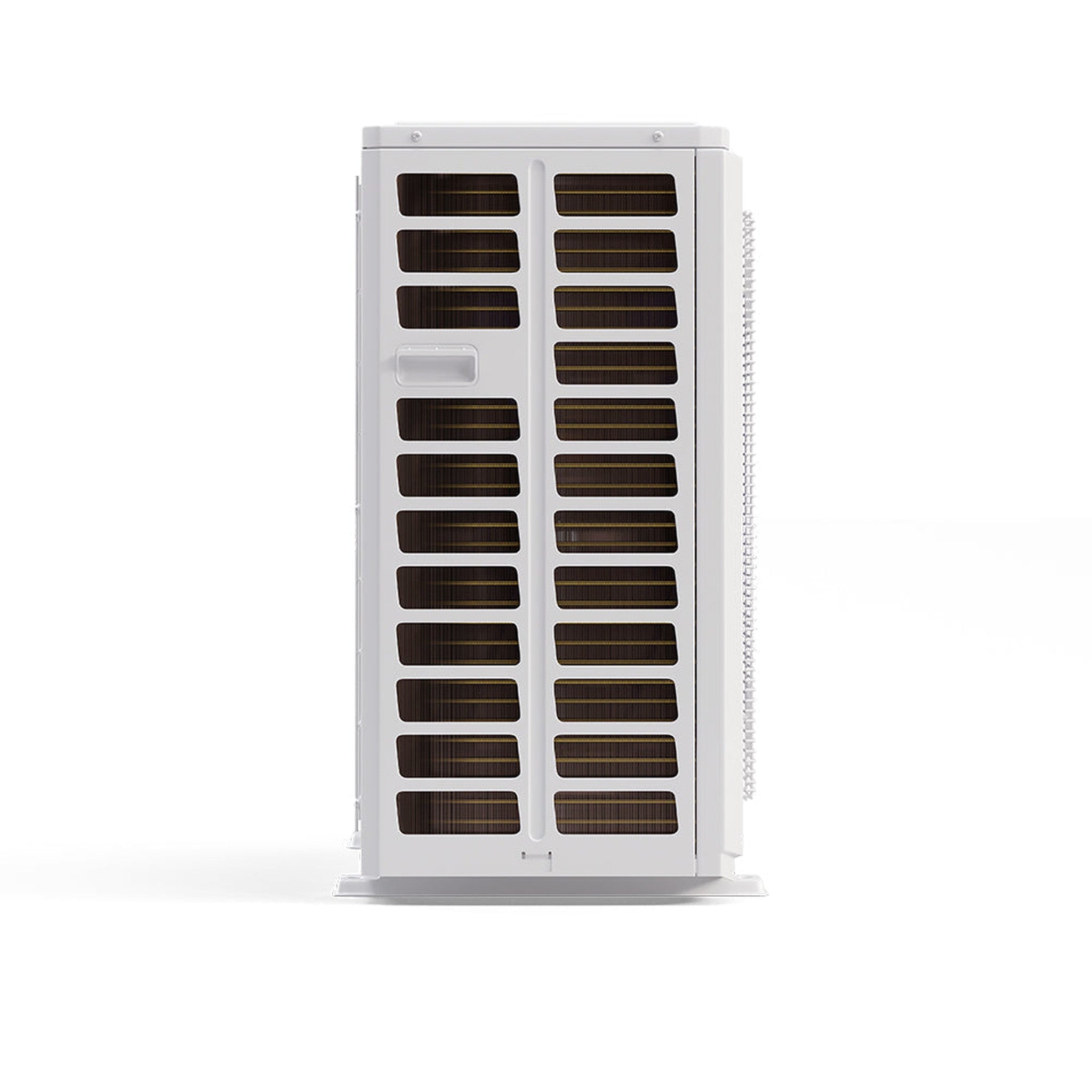

      Condenser

      Dimensions

      13.46" D x 26.5" H x 35.04" W

      Voltage

      208-230 V

      SEER

      21

      Cooling Capacity

      18K BTU

      Heating Capacity

      19K BTU

      Min-Max Ambient Cool

      5F ~ 122F

      Min-Max Ambient Heat

      -13F ~ 75.2F

      Refrigerant Type

      R-410A

      Max Lineset Length

      98.42 ft TOTAL


      9K Air Handler

      Product Dimensions

      7.44" D x 11.69" H x 31.57" W

      Voltage

      208V-240V

      Cooling Capacity

      9K BTU

      Heating Capacity

      9K BTU

      Modes
      • Auto - auto selects from Cool, Heat or Fan-Only
      • Dry (Dehumidifies)
      • Cool
      • Heat
      • Fan Only
      • Quiet
      • Sleep


      Linesets
      Length 16 ft., 25 ft., 35 ft., or 50 ft.
      Liquid Line Size 1/4"
      Suction Line Size 1/2"
      Couplers
      • Connect 50 ft. lineset to 16 ft. or 25 ft. lineset
      • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
      • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
      Restricted States GU;PR;VI



      Proposition 65 Warning

      		 Yes
