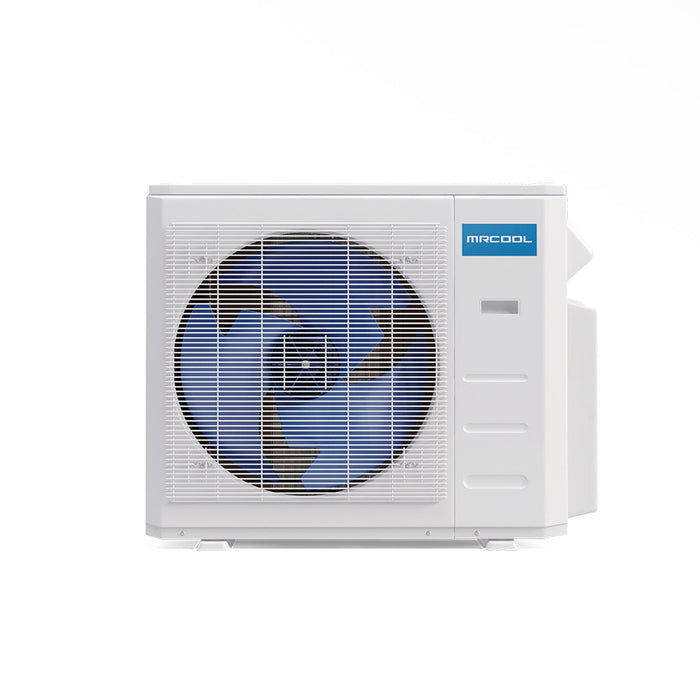

MRCOOL DIY 36,000 BTU 3 Ton 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser - 230V/60Hz

by MRCOOL
SKU DIY-MULTI4-36HP230
Original price $1,954.00 - Original price $1,954.00
Original price $1,954.00
$1,954.00
$1,954.00 - $1,954.00
Current price $1,954.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

MRCOOL DIY 36,000 BTU 3 Ton 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser - 230V/60Hz DIY-MULTI4-36HP230

"MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser"

Β

The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.

This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F.

It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool's patented Pre-Charged Quick Connect Line Sets.

These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

Β

Features

  • Up to 21.5 SEER
  • Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

Dimensions

16.14" D x 31.89" H x 37.24" WΒ

SEER

21.5

EER

10.5

HSPF

hspf4/hspf5 : 11/8.5

CFM

2147.06

Cooling Capacity

36000 BTU

Heating Capacity

36000 BTU

Β Voltage

208-230 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

45 A

Min Circuit Ampacity

27 A

Color

White

Color Family

White

Zone Capacity

Up to 4

Refrigerant Type

R-410A

Refrigerant Volume

134.04 oz

Decibel Rating

65 dBA

Inverter

Yes

Min Ambient Cool

5F ~ 122F

Min Ambient Heat

-13F ~ 75.2F

Max Lineset Length

196.85 ft TOTAL

Liquid Line Size

1/4in

Suction Line Size

3/8in+1/2in

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

1000/900/750

Wi-Fi Compatibility

Yes

App Compatibility

Yes

Works With iOS

Yes

Works With Android

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Base Parts Warranty

5-year Parts

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7-year Compressor

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Net Weight

170.42 lbs

Gross Depth

19.88 in

Gross Height

35.04 in

Gross Width

42.91 in

Gross Weight

187.83 lbs

Β
