MRCOOL Central Ducted 24K BTU, 19.2 SEER, Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set

by MRCOOL
SKU CENTRAL-24-HP-230-25
Save $784.15 Save $784.15
Original price $3,999.95
Original price $3,999.95 - Original price $3,999.95
Original price $3,999.95
Current price $3,215.80
$3,215.80 - $3,215.80
Current price $3,215.80

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

MRCOOL Central Ducted 24K BTU, 19.2 SEER, Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set (CENTRAL-24-HP-230-25)

MRCOOL 24K BTU 19.2 SEER Ducted Air Handler and Condenser - 25 foot MRCOOL Pre-Charged Line Set

Nothing feels better than ultimate comfort all the time, so why not invest in the affordable MRCOOL 24k BTU up to 19.2 SEER Central Ducted DC Inverter Heat Pump System? With this system, youโ€™ll enjoy a simpler installation and absolute climate control throughout around 1,000 square feet of your home.

Installing this system is easy, because it comes with a 25 foot pre-charged MRCOOL line set, which essentially just needs to be plugged into the air handler and the condenser. Time is money, and youโ€™ll be saving both because of the line set in this system.

This air handler is multi-position, meaning it can support upflow, downflow, horizontal left and horizontal right airflow needs. The variable condenser in this system is so efficient, youโ€™ll find yourself saving money in no time. Identify error codes on the thermostat or on the handlerโ€™s panel. In case something goes wrong, youโ€™ll be completely covered by a 10 year parts and service warranty. For comfort exactly how you want it, get this MRCOOL 24k BTU 19.2 SEER Central Ducted DC Inverter Heat Pump System.

FEATURES

  • Includes features such as timer mode, auto cool mode, fan only mode, and more

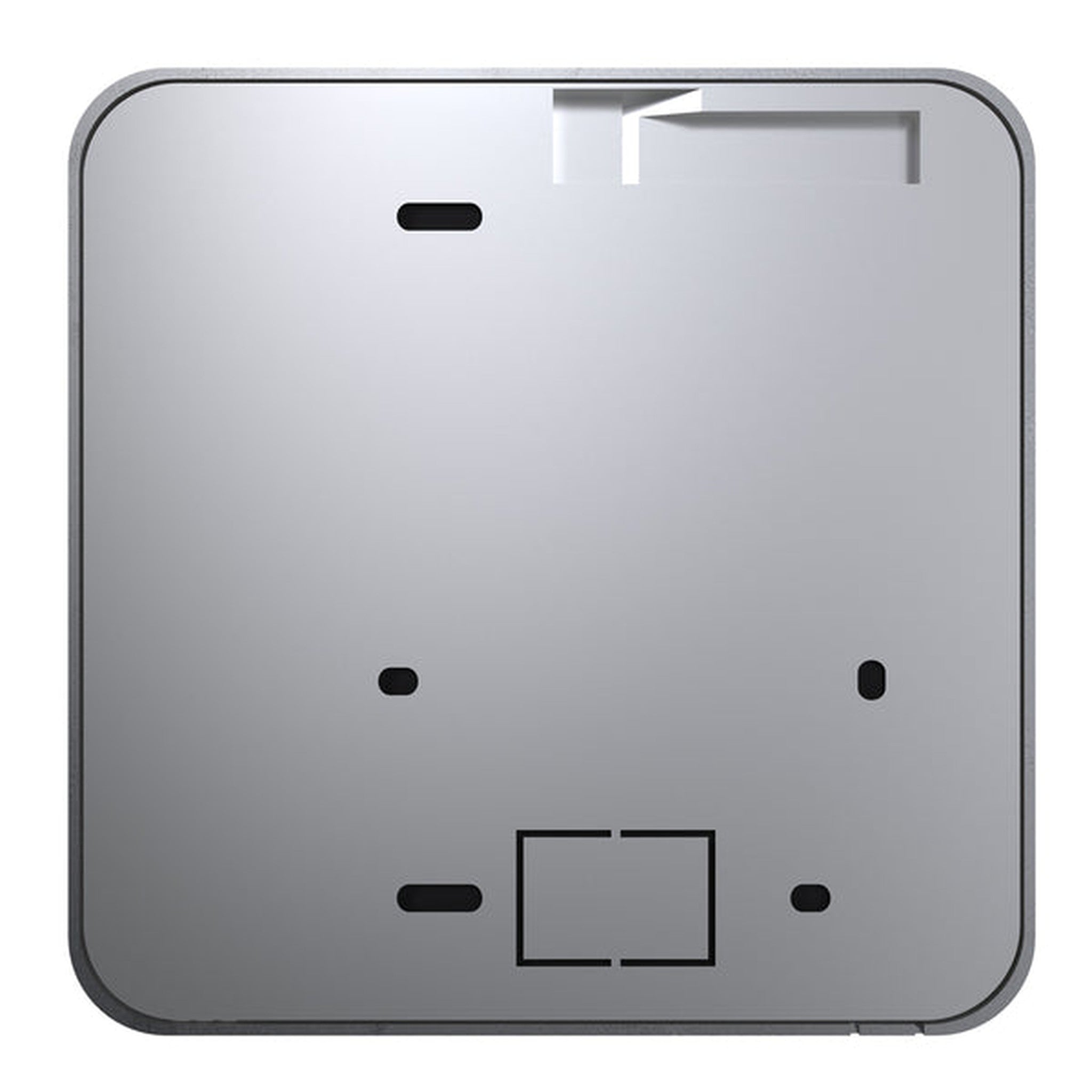

  • Wired thermostat included (.78 in x 4.72 in x 4.72in)
  • Multi position installation
  • Optional heating kit available
  • R-410A environmentally friendly refrigerant
  • 10 year parts and labor warranty*

Specifications

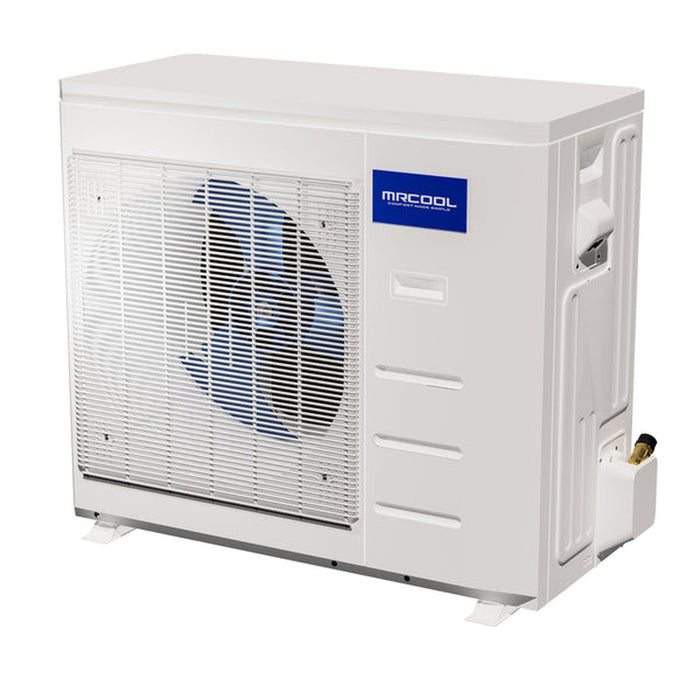

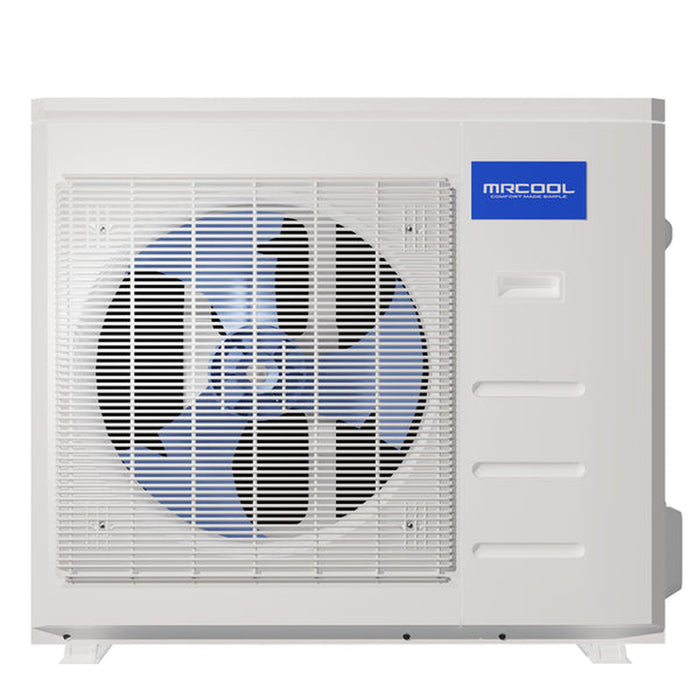

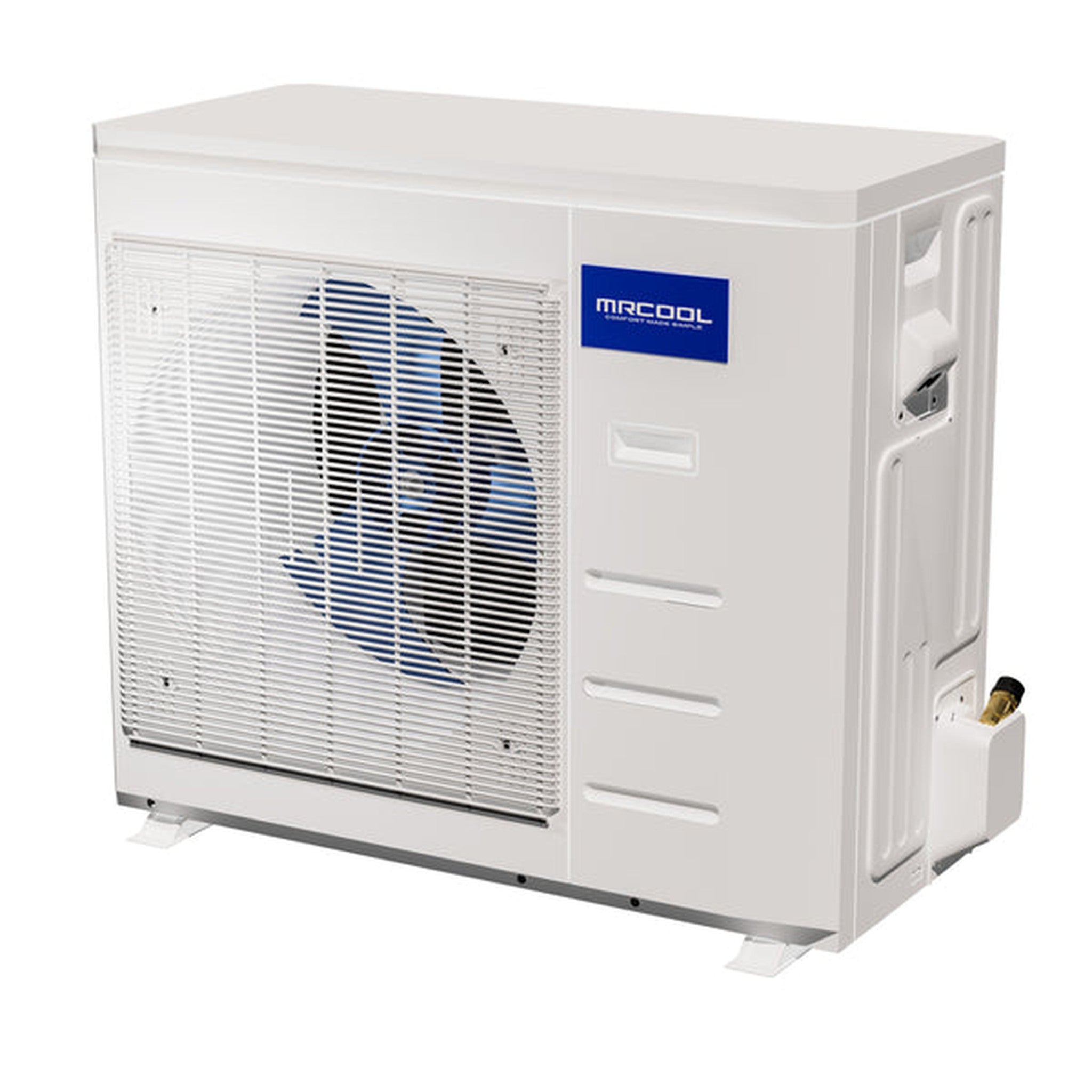

CONDENSER DIMENSIONSย

16.14 in D xย 31.89 in H xย 37.24 in Wย

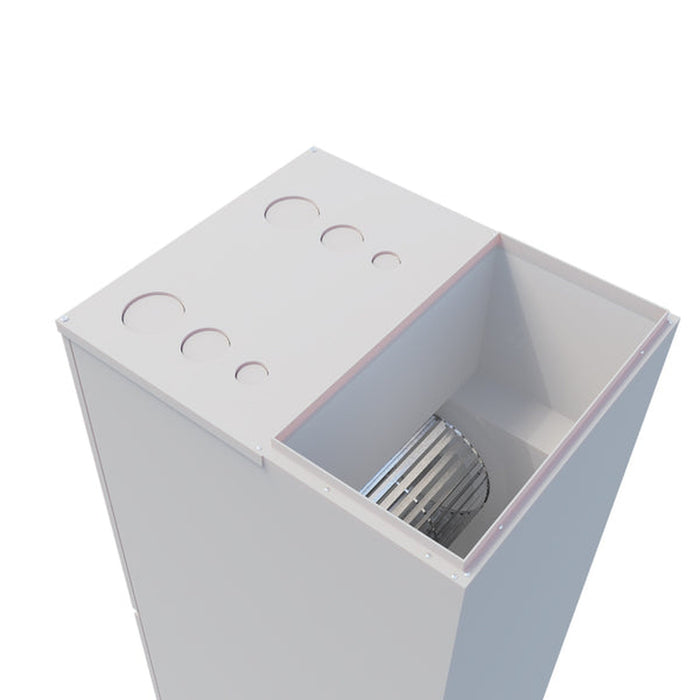

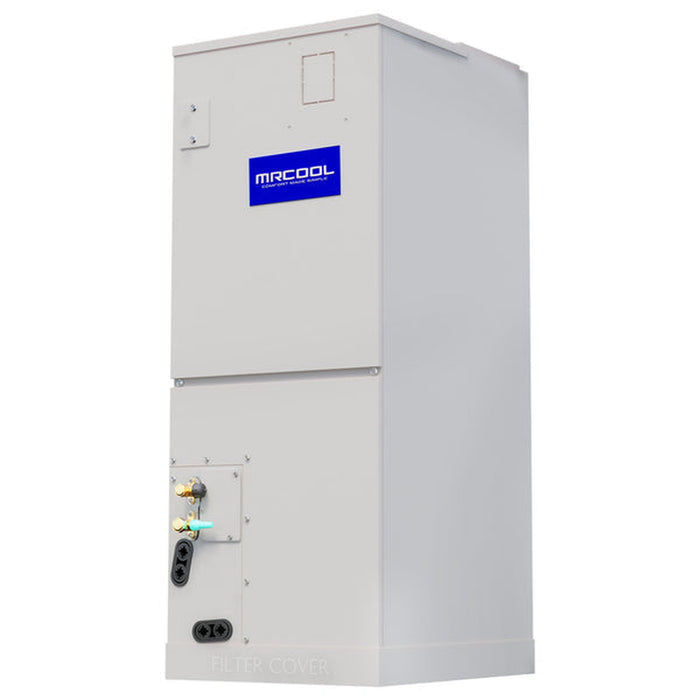

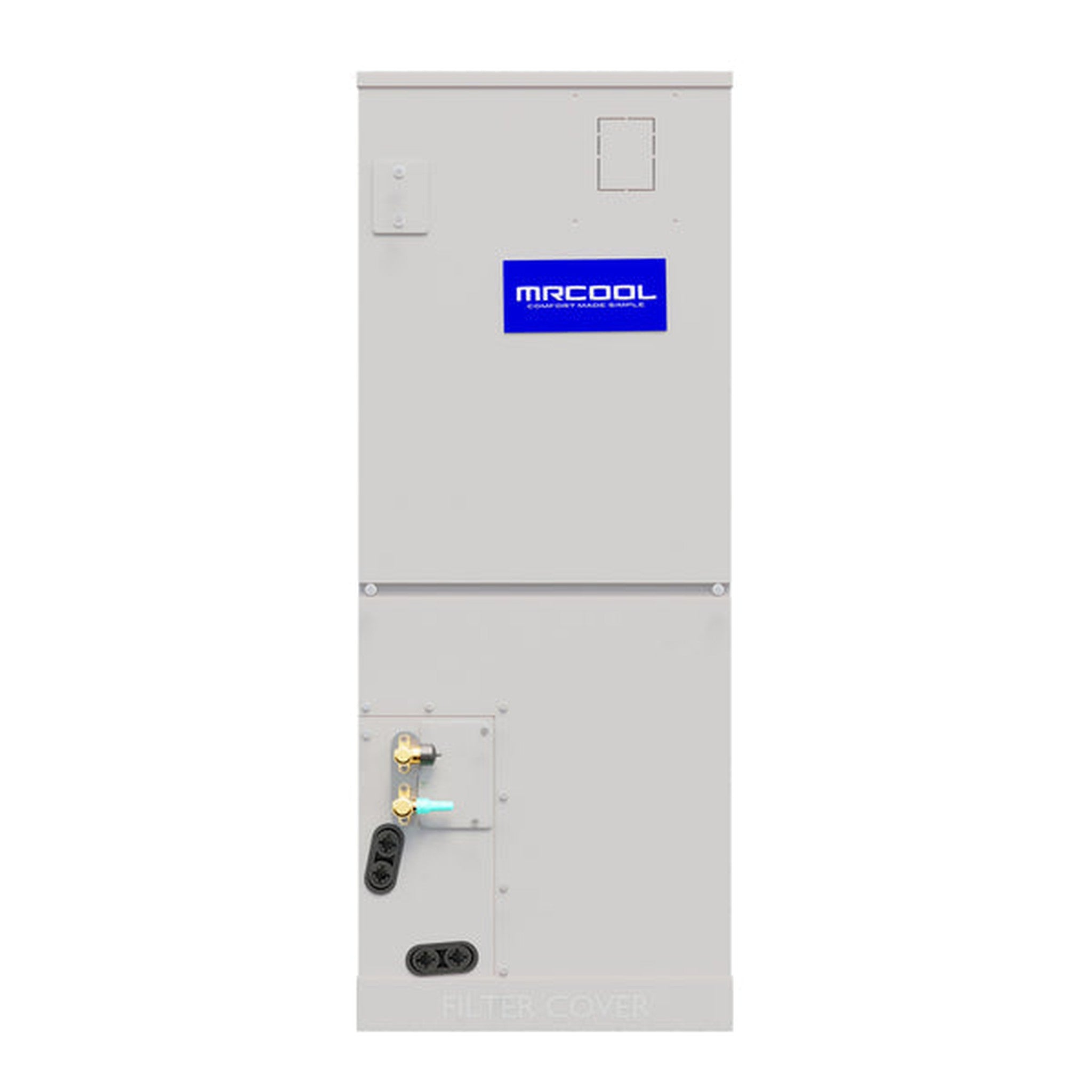

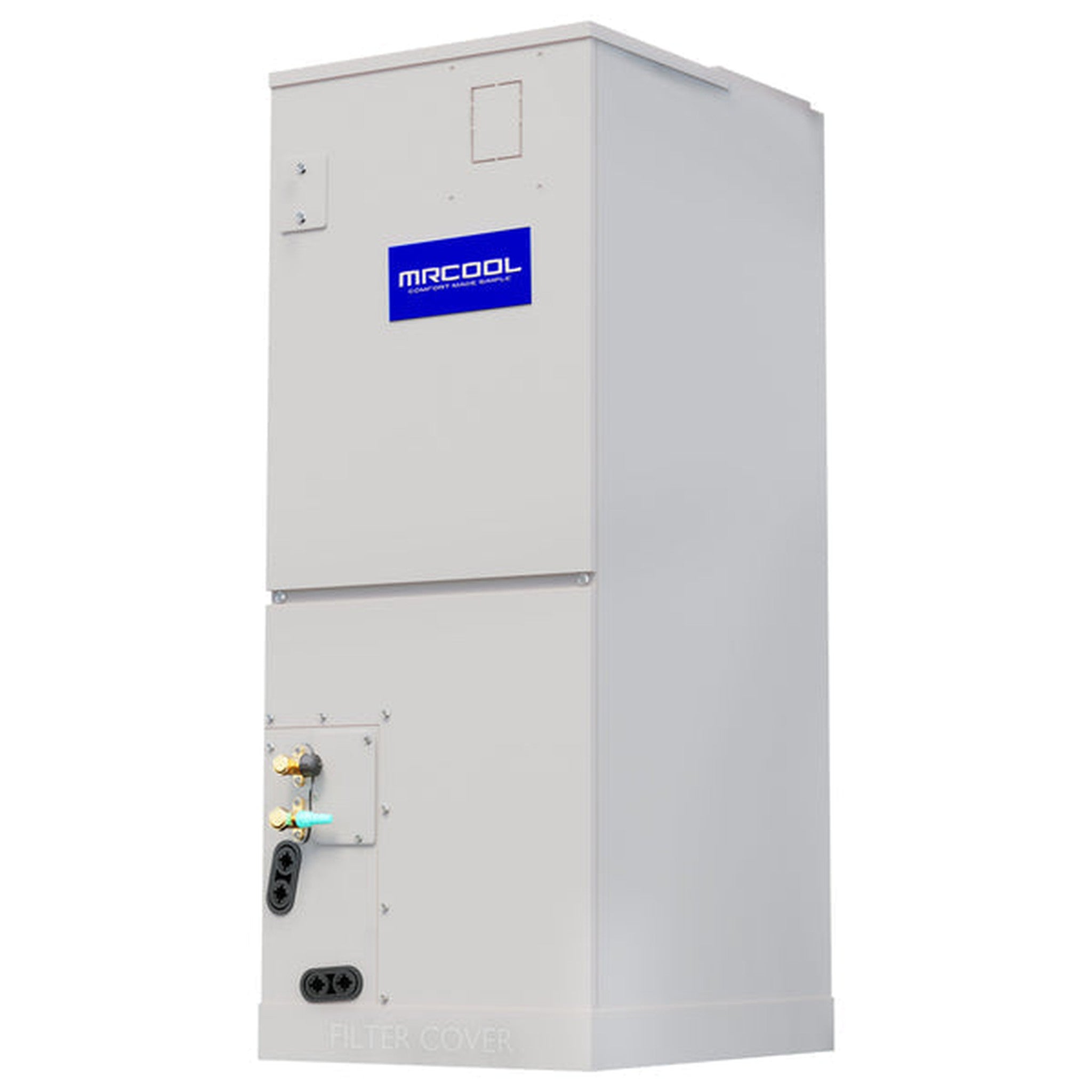

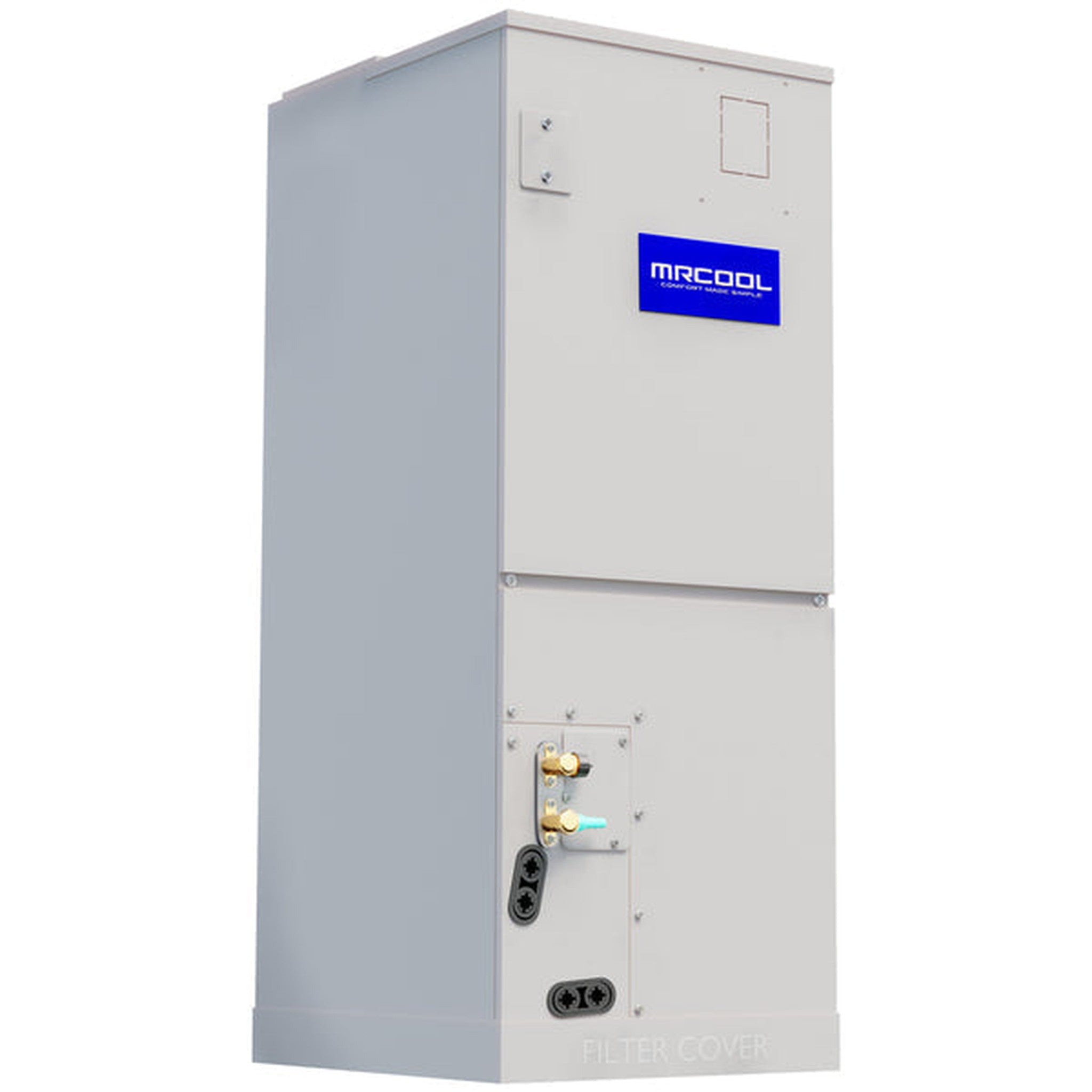

Air Handler Dimensions

17.52 in D x 45 in H xย 21.02 in Wย

SEER

19.2

EER

12.5

HSPF

hspf4/hspf5: 10/8.5

CFM

752.94/682.35/611.76

Cooling Capacity

24000

Heating Capacity

24000

Voltage

208/230 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

35

ย Min Circuit Ampacity

22

Color

Gray

Rated Load

0.6

Zone Capacity

1

Refrigerant Type

R410A

Refrigerant Volume

81.13 oz

Decibel Rating

43.0/41.5/38.0

Decibel Rating Low

38

Decibel Rating High

43

Air Flow Direction

Multi-position

Min Ambient Cool

-13F~122F

Min Ambient Heat

-13~75.2F

Lineset Included

yes

Line Set Length

25ft

Liquid Line Size

3/8in

Suction Line Size

5/8 in

Compressor Motor Type

Twin-Rotary

Condenser Fan Motor Rpm

850/750/700

Filter Type

Replaceable

Auxiliary Heater Included

no

Auxiliary Heater Available

yes

Auxiliary Heater Sizes

5kw, 8kw,10kw, 15kw

Adjustable Thermostat

yes

Fan Only Option

yes

Sleep Mode

yes

Auto Cool

yes

App Compatibility

no

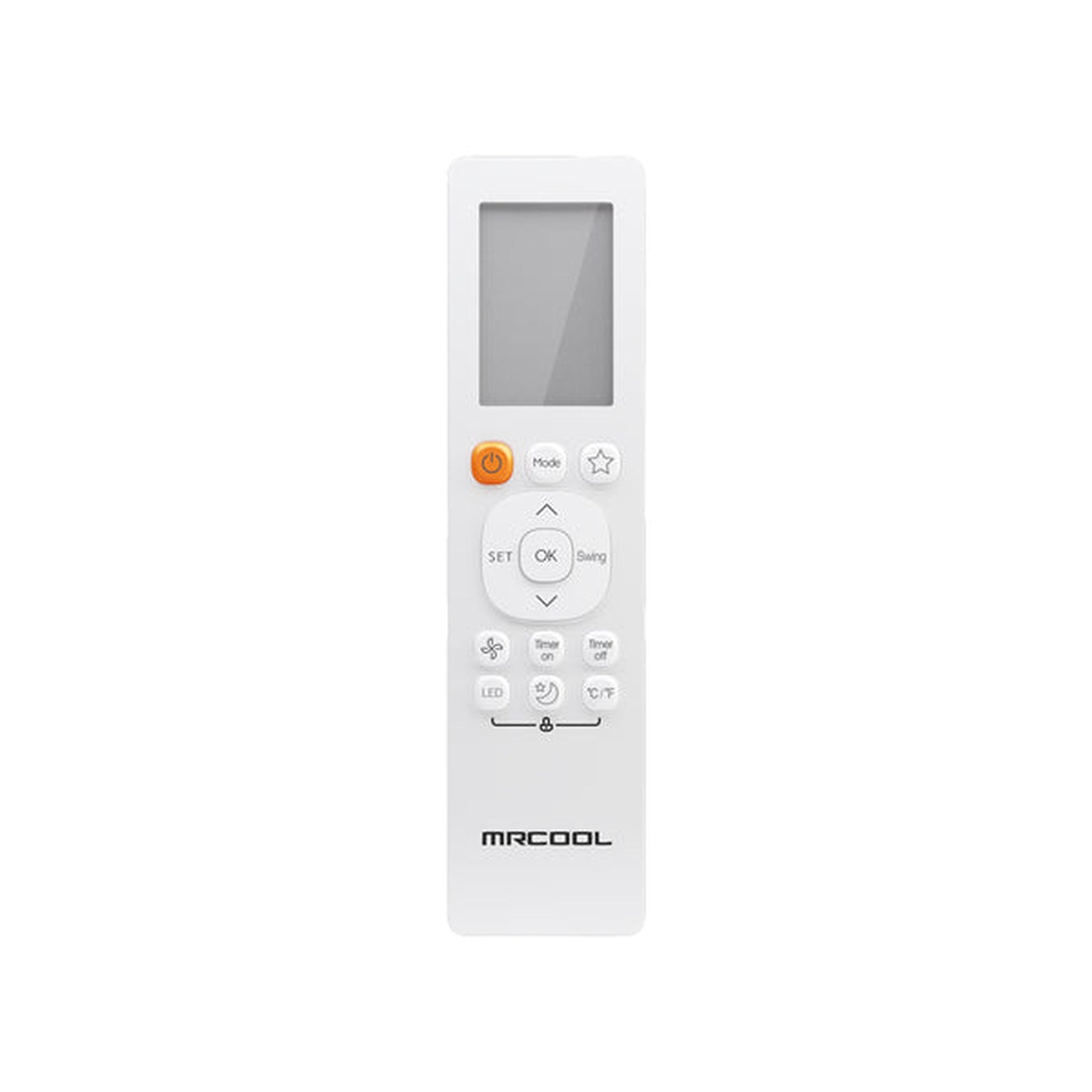

Remote Control Included

yes

AHRI Certified

yes

Base Warranty

10 years parts and labor

Condenser Weight

125.22 lbs

Air Handler Weight

106.48 lbs
