Description

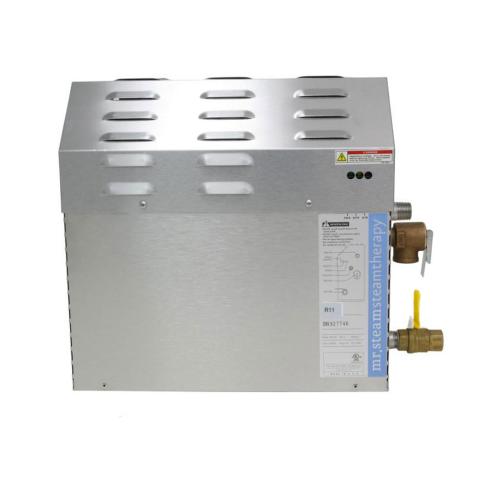

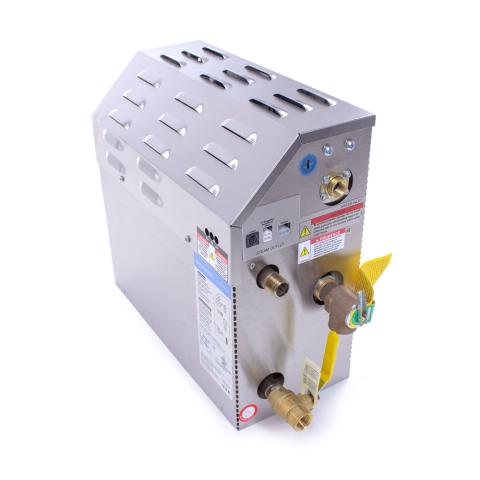

Mr Steam MS-E Steam Shower Generator Series
The MS-E steam shower generator features intelligent SteamBath technology for years of efficient, clean, quiet, and reliable operation. Its advanced microprocessor operating platform makes it the perfect choice for residential steam bathing applications.
The MS-E is durably constructed of surgical-quality stainless steel throughout and features industrial-grade heating elements. The steam unit is equipped with advanced water solenoid technology, durable electronic components, LED color indicators for self-diagnostics, a full-port drain valve, and a variety of other features.
MS E-Series steam generators are engineered to provide the most consistent and reliable bathing experiences. The MS-E steam shower unit generates a constant steam by introducing just the right amount of water through a proprietary dispersal chamber.
The generator uses less than two gallons of water during a typical 20-minute bathing session, making it both eco-conscious and economical. The unit is perfect for any home steam shower kit.
The compact size of the MS-E generator, about the size of a suitcase, allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. Typical installation locations include closets, vanities, cabinets, and other similar locations.
The optional Express Steam feature is equipped with a built-in thermostat that maintains water temperature so that you may start steaming quickly.
The Mr. Steam MS-E 5kW steam generator is available in 208V and 240V single-phase (1PH) configurations.
MS generators are compatible with all Mr. Steam controls and with the SteamLinx mobile application. Select the available control with features that best suit your bathing preferences.
We recommend a Mr. Steam Auto Drain System with your MS-E. The Auto Drain system automatically cleans the tank after each bathing session to help prevent harmful mineral build-up and to prolong the life of and ensure the best performance from the unit.
The MS-E steam bath generator carries a limited lifetime warranty and is fully serviceable. Mr. Steam MS-E generators are US and Canadian UL listed and CE and NOM certified for your safety.
Features
- 60 minute automatic cutoff, low voltage board, designed for easy access safe service
- Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
- Easily install spa therapy accessories or components such as AromaTherapy, ChromaTherapy, Steamlinx, and more
- Exclusive micro processor operating system is the brains of our intelligent steam generator
- Free from defects in materials and craftsmanship for its lifetime. Mr.Steam will repair or replace (at its option) a Generator which fails to conform to this warranty
- Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
- LED indicators to help you troubleshoot any connection and maintenance challenges
- Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
- Reliable, industrial grade, and the industries largest copper heating element heats fast and is easy to remove and service
- US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety
- Country of origin: United States
Specifications
5kW
Model | MS 90E |
---|---|
Minimum Adjusted Cubic Feet | 1 |
Maximum Adjusted Cubic Feet | 71 |
Shipping Weight (Lbs.) | 30 lbs |
Kilowatt Rating (KW) | 5kW |
Electrical Specifications | (refer to Electrical chart) |
Water Supply Connection | 3/8" NPT |
Generator Steam Line Connection | 1/2" NPT |
Steam Head Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 1" |

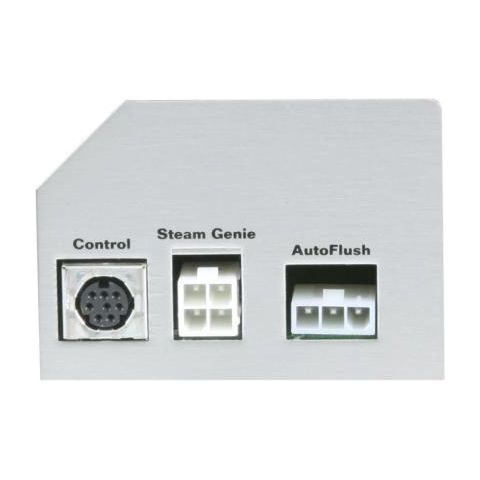

Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 14-1/2" |
Depth | 6-3/4" |
Height | 14-3/4" |
6kW
Model | MS 150E |
---|---|
Minimum Adjusted Cubic Feet | 72 |
Maximum Adjusted Cubic Feet | 107 |
Shipping Weight (Lbs.) | 30 lbs |
Kilowatt Rating (KW) | 6kW |
Electrical Specifications | (refer to Electrical chart) |
Water Supply Connection | 3/8" NPT |
Generator Steam Line Connection | 1/2" NPT |
Steam Head Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 1" |
Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 14-1/2" |
Depth | 6-3/4" |
Height | 14-3/4" |
7.5kW
Model | MS 225E |
---|---|
Minimum Adjusted Cubic Feet | 108 |
Maximum Adjusted Cubic Feet | 161 |
Shipping Weight | 30 lbs |
Kilowatt Rating | 7.5 KW |
Electrical Specifications | Electrical Chart |
Water Supply Connection | 3/8" NPT |
Generator Steam Line Connection | 1/2" NPT |
Steam Head Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve | 15 PSIG |
Control "Rough In" Cut Out | 1" |
Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 14-1/2" |
Depth | 6-3/4" |
Height | 14-3/4" |
9kW
Model | MS 400E |
---|---|
Minimum Adjusted Cubic Feet | 162 |
Maximum Adjusted Cubic Feet | 257 |
Shipping Weight (Lbs.) | 30 lbs |
Kilowatt Rating (KW) | 9kW |
Electrical Specifications | (refer to Electrical chart) |
Water Supply Connection | 3/8" NPT |
Generator Steam Line Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 1" |
Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 14-1/2" |
Depth | 6-3/4" |
Height | 14-3/4" |
10kW
Model | MS SUPER-1E |
---|---|
Minimum Adjusted Cubic Feet | 258 |
Maximum Adjusted Cubic Feet | 339 |
Shipping Weight (Lbs.) | 40 lbs |
Kilowatt Rating (KW) | 10.0 KW |
Electrical Specifications | (refer to Electrical chart) |
Water Supply Connection | 3/8" NPT |
Steam Head Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 1" |
Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 17" |
Depth | 7-7/8" |
Height | 18-1/2" |
12kW
Model | MS SUPER-2E |
---|---|
Minimum Adjusted Cubic Feet | 340 |
Maximum Adjusted Cubic Feet | 411 |
Shipping Weight (Lbs.) | 40 lbs |
Kilowatt Rating (KW) | 12.0 KW |
Electrical Specifications | (refer to Electrical chart) |
Water Supply Connection | 3/8" NPT |
Generator Steam Line Connection | 1/2" NPT |
Steam Head Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 1" |
Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 17" |
Depth | 7-7/8" |
Height | 18-1/2" |
15kW
Model | MS SUPER-3E |
---|---|
Minimum Adjusted Cubic Feet | 412 |
Maximum Adjusted Cubic Feet | 482 |
Shipping Weight | 40 lbs |
Kilowatt Rating | 15.0 KW |
Electrical Specifications | (refer to Electrical chart) |
Water Supply Connection | 3/8" NPT |
Generator Steam Line Connection | 1/2" NPT |
Steam Head Connection | 1/2" NPT |
Drain Connection | 1/2" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve | 15 PSIG |
Control "Rough In" Cut Out | 1" |
Generator Control Connection | 8-Pin Mini-DIN Connector |
Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
Width | 17" |
Depth | 7-7/8" |
Height | 18-1/2" |
Mr Steam MS-E Steam Series FAQs
1. What models are available in the Mr. Steam MS-E Series?
The MS-E Series includes several models to accommodate different steam room sizes:
- MS225E: 7.5 kW generator for steam rooms up to 161 adjusted cubic feet (ACF).
- MS400E: 9 kW generator for steam rooms up to 257 ACF.
- MS600E: 12 kW generator for steam rooms up to 400 ACF.
- MS900E: 15 kW generator for steam rooms up to 600 ACF.
These models are designed to meet the specific needs of various residential steam rooms.
2. What are the key features of the MS-E Series generators?
The MS-E Series generators offer several notable features:
- Stainless Steel Construction: Crafted from recyclable stainless steel for durability and longevity.
- Quiet Operation: Engineered to operate quietly, enhancing the relaxation experience.
- Energy Efficiency: Designed to be ultra-efficient, reducing energy consumption.
- Advanced Controls: Compatible with various control options, including the iTempo and iTempoPlus, allowing for precise temperature and time settings.
-
Easy Installation: Can be installed in various locations, such as closets, attics, basements, or cabinets, providing flexibility in placement.
3. How do I determine the appropriate size generator for my steam room?
Selecting the right generator size is crucial for optimal performance. Mr. Steam provides a Virtual Spa System, a step-by-step guide to help you size a generator, select controls, steam heads, and additional options.
4. What is the warranty coverage for the MS-E Series generators?
Mr. Steam offers a comprehensive warranty for the MS-E Series:
- Lifetime Warranty: On the generator's stainless steel tank.
- 5-Year Warranty: On all other components.
This warranty reflects Mr. Steam's commitment to quality and customer satisfaction
5. Can the MS-E Series generators be installed above the shower?
Yes, the generators can be installed above the shower. However, ensure that the installation area is heated to prevent water lines from freezing. The generator can also be located in a service room, equipment room, or boiler room in a high-rise, under a vanity, in the wall, or almost anywhere else.
6. Are the MS-E Series generators suitable for commercial use?
The MS-E Series generators are designed for residential use only. Commercial or other nonresidential applications void the warranty and may adversely affect product performance and safety.
