HUUM UKU Local Sauna Controller

Save $399.00
No reviews

HUUM Local Controller Color: Black
Price:
Sale price$791.00 Regular price$1,190.00

Description

HUUM UKU Local Controller

UKU Local sauna controller makes sauna heating easy and comfortable. UKU comes with several safety and extra features for a pleasant sauna experience. It can be used with different manufacturers’ heaters.

HUUM UKU Local: Key Features

  • Stylish and sleek color control display panel
  • Digital On/Off, Time, Temperature Control, and Delay
  • For heaters up to 18kW (over 9kW requires extension box)
  • Settable temperature range of 122-230F
  • Delayed start-up to 48hrs in advance
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • INSTALLATION & OPERATION MANUAL



*Only available with a purchase of HUUM Sauna Heaters. Not sold individually.*



Specifications

HUUM UKU Local: Specifications

  • Temperatures: 40-110 ºC
  • For heaters up to: 18 kW
  • Heating period: 3h; 6h; 12h; 18h
  • Watts: 9,000
  • Volts: 240
  • Amps: 40.0
  • Phase: 1PH
  • Adjustable Temperature Control: 18 h
  • Rock Capacity: 132 LBS.
  • Installation Type: Wall-Mount
  • Weight: 3.35 kg
  • Height: 102 mm
  • Width: 254 mm
  • Depth: 179 mm
  • Supply voltage: 400 V 3N; 230 V 1N


HUUM UKU LOCAL: SET INCLUDES

  • Control console (105 x 55 x 22 mm)
  • Control console cable (3 m; 4 x 0,34 mm²)
  • Main module (142 x 90 x 58 mm)
  • Temperature sensor
  • Door sensor
  • Temperature/door sensor cable (5 + 5m; 2 x 0,22 mm²)


HUUM Sauna Controller Inclusion

Choosing a remote control

HUUM UKU Local

If you are not interested in heating your sauna from the phone, UKU Local may be the right choice.


Pick a color: Package Contents

  • Control display panel, 4.13" x 2.17" x 0.87"
  • Main Local control module, 5.59" x 3.54" x 2.28"
  • Temperature sensor
  • Door sensor
  • Control display panel cable, 9.84', 12AWG
  • Temperature sensor cable, 16.4', 14AWG
  • Door sensor cable, 16.4', 14AWG
  • Installation and operation manual
  • 5-Year limited warranty

IMPORTANT:

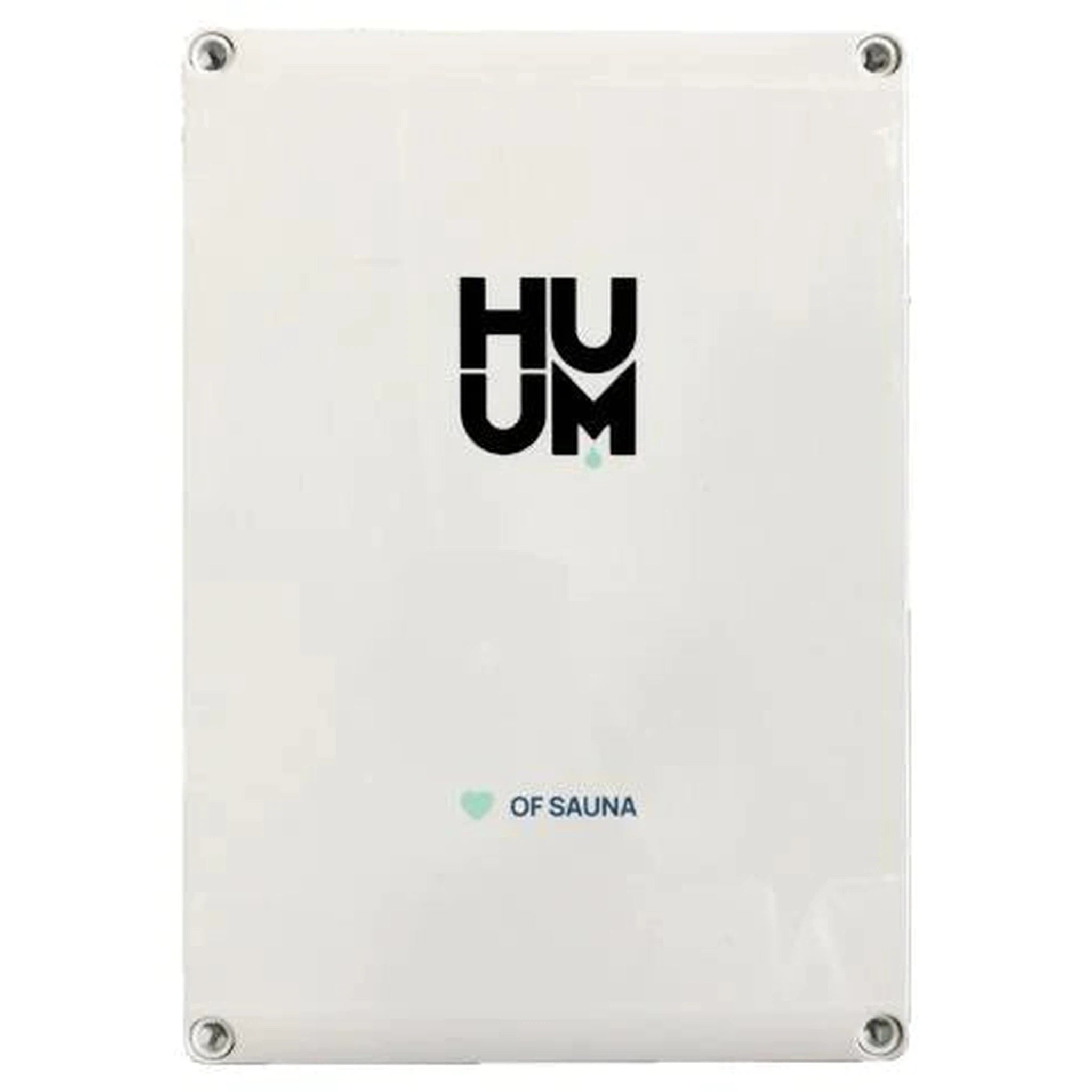

  • The main module can control up to 9kW heaters, for full range electrical heaters extension box is needed.
  • Extension box is for heaters over 9kW
  • Extension box should be purchased with the heater.
  • For use with UKU controls (use with sauna heaters over 9kW requires UKU extension box - sold separately).

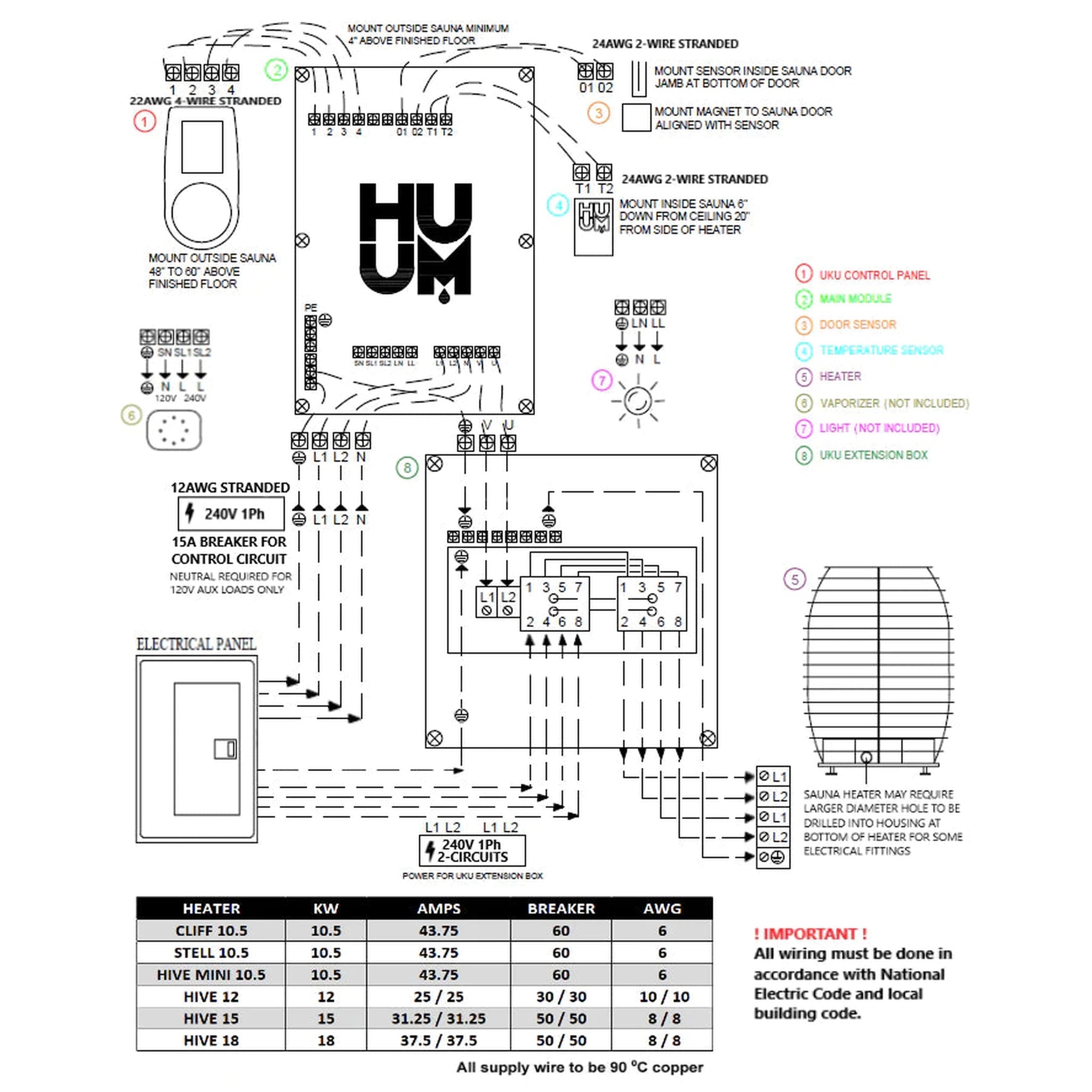

  • Please refer to the diagram included in the photo section for installation.



HUUM UKU Wi-Fi Sauna Controller



Connects with others

UKU sauna controller can be used with different manufacturers' heaters.

HUUM UKU Local Sauna Controller


Local Sauna FAQs





What is the difference between UKU Local, UKU Wi-FI, and UKU GSM controllers?

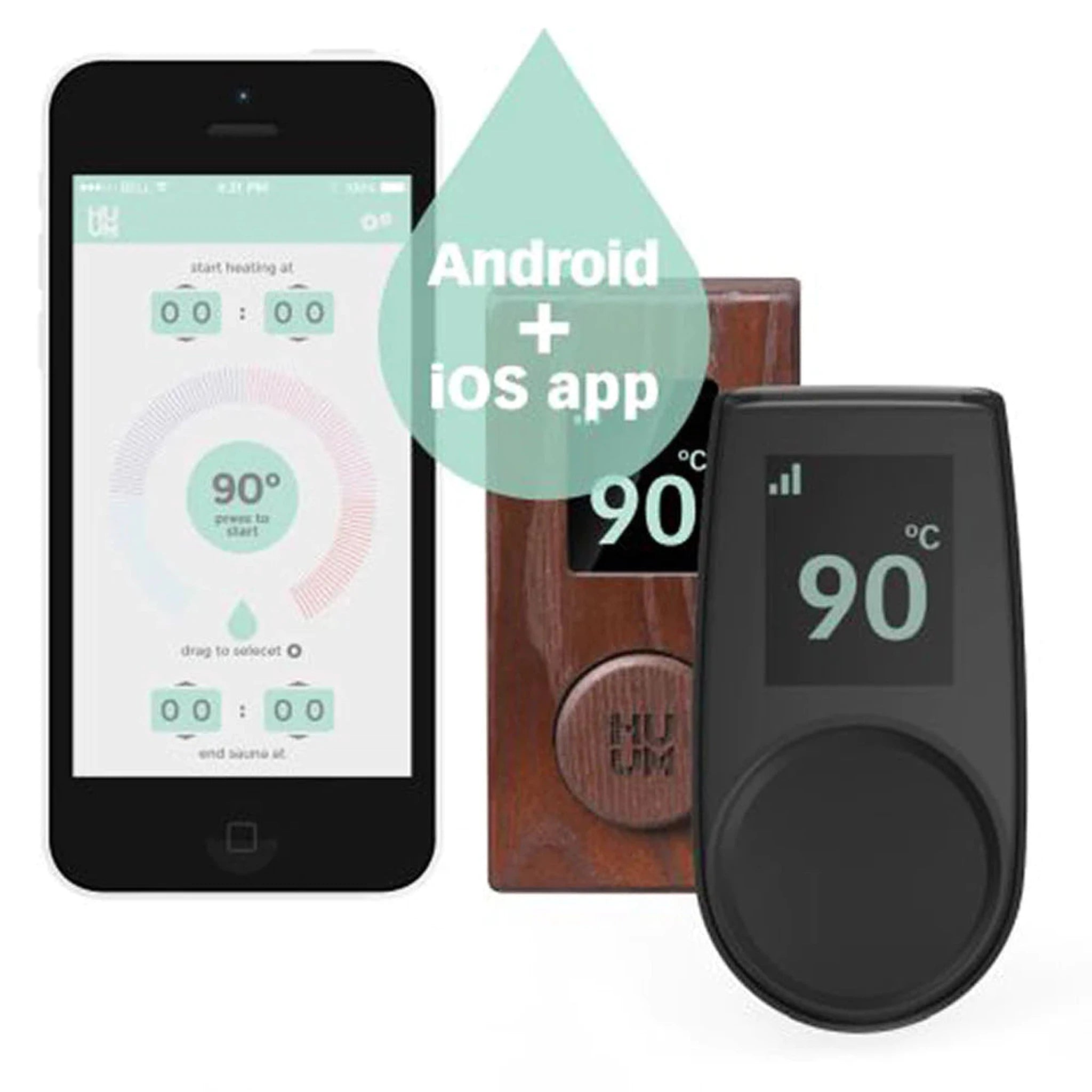

The only difference between UKU Local, UKU Wi-Fi, and UKU GSM controllers is that the HUUM mobile app is used to manage the sauna. You can only operate your sauna from the wall control panel with UKU Local, but you can also heat it from the HUUM mobile app with UKU Wi-Fi and UKU GSM. For that, the UKU Wi-Fi controller requires a Wi-Fi connection, while the UKU GSM uses a SIM card and mobile data.



Which controllers can be used with HUUM heaters?

HUUM heaters work with different manufacturers’ controllers, provided that they are certified and have a temperature control function. The output of the heater has to match the output range determined by the manufacturer of the controller.



Can the heater be used without a controller?

No. Temperature control is required for HUUM heaters. There is no on/off switch for the heaters.



Can I use a HUUM controller with another manufacturer’s heater?

Yes, if the heater includes a temperature control feature and can be controlled from a distance. It's a lot more difficult if you're using a mechanical heater, and we don't advocate it.



Do HUUM controllers work with combi heaters?

Yes. For instructions on how to connect the controller to your combi heater and how to install it, see the controller manual.



What is included in the set?

The UKU controller comes with everything you'll need to put it together and use it:

  • main module (142 x 90 x 58 mm)
  • temperature sensor
  • door sensor
  • temperature/door sensor cable (5 + 5m; 2 x 0,22 mm²)
  • control console (105 x 55 x 22 mm)
  • control console cable (3 m; 4 x 0,34 mm² )

Where should the controller be installed?

The control panel must be located at the user's eye level, adjacent to the door, or in accordance with the manufacturer's instructions, outside the steam room.

The main module should be placed in a dry and accessible location. The main module should not be installed in the sauna room. It is entirely at your own risk if you do so.

It is critical to ensure that the main module of the UKU Wi-Fi or UKU GSM controller can establish an internet connection at the chosen location before installing it.

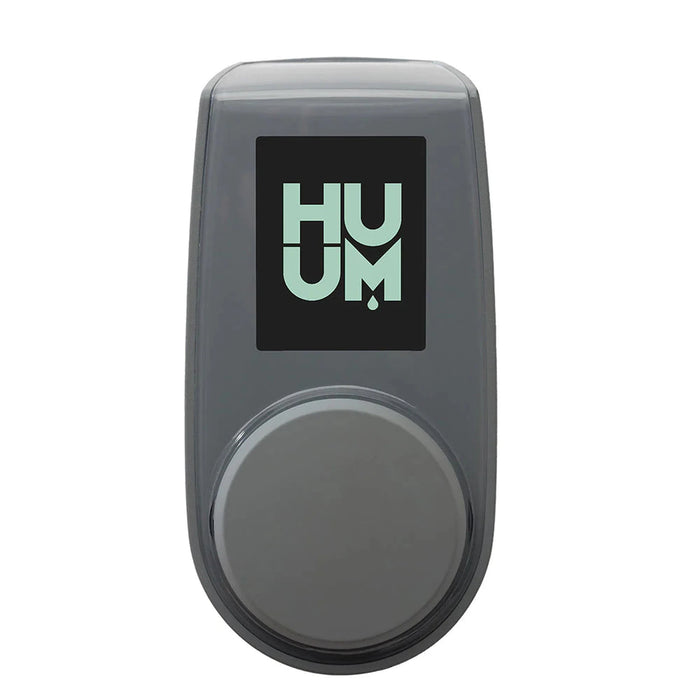

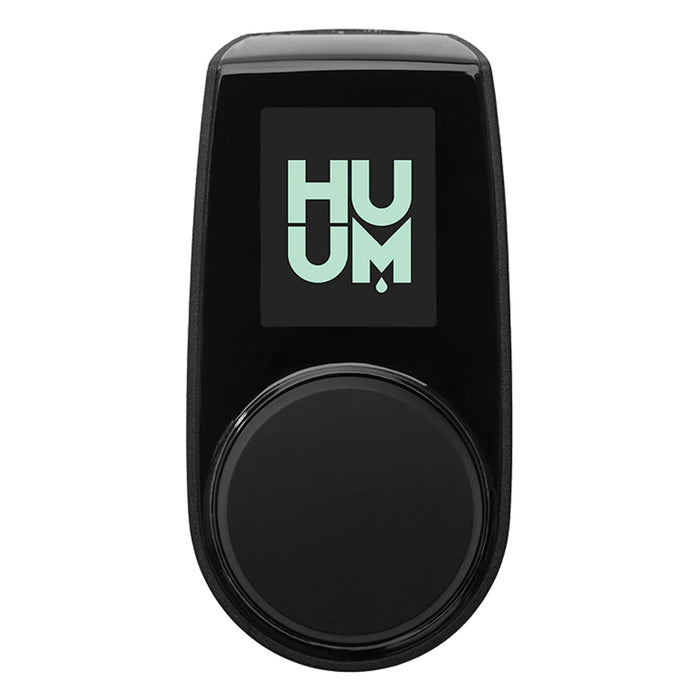

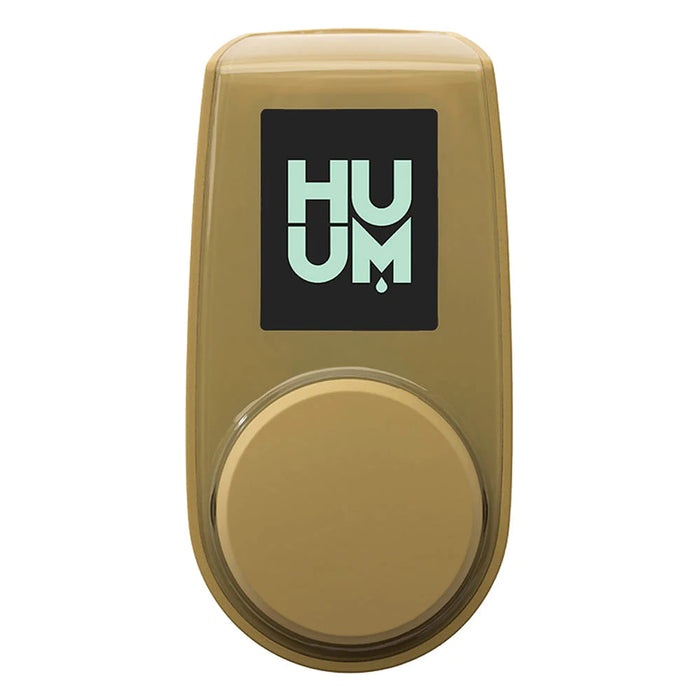

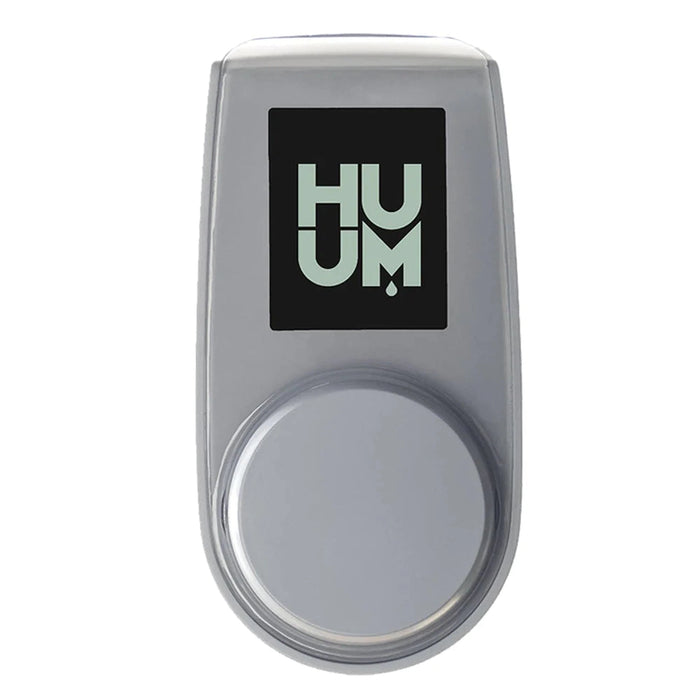

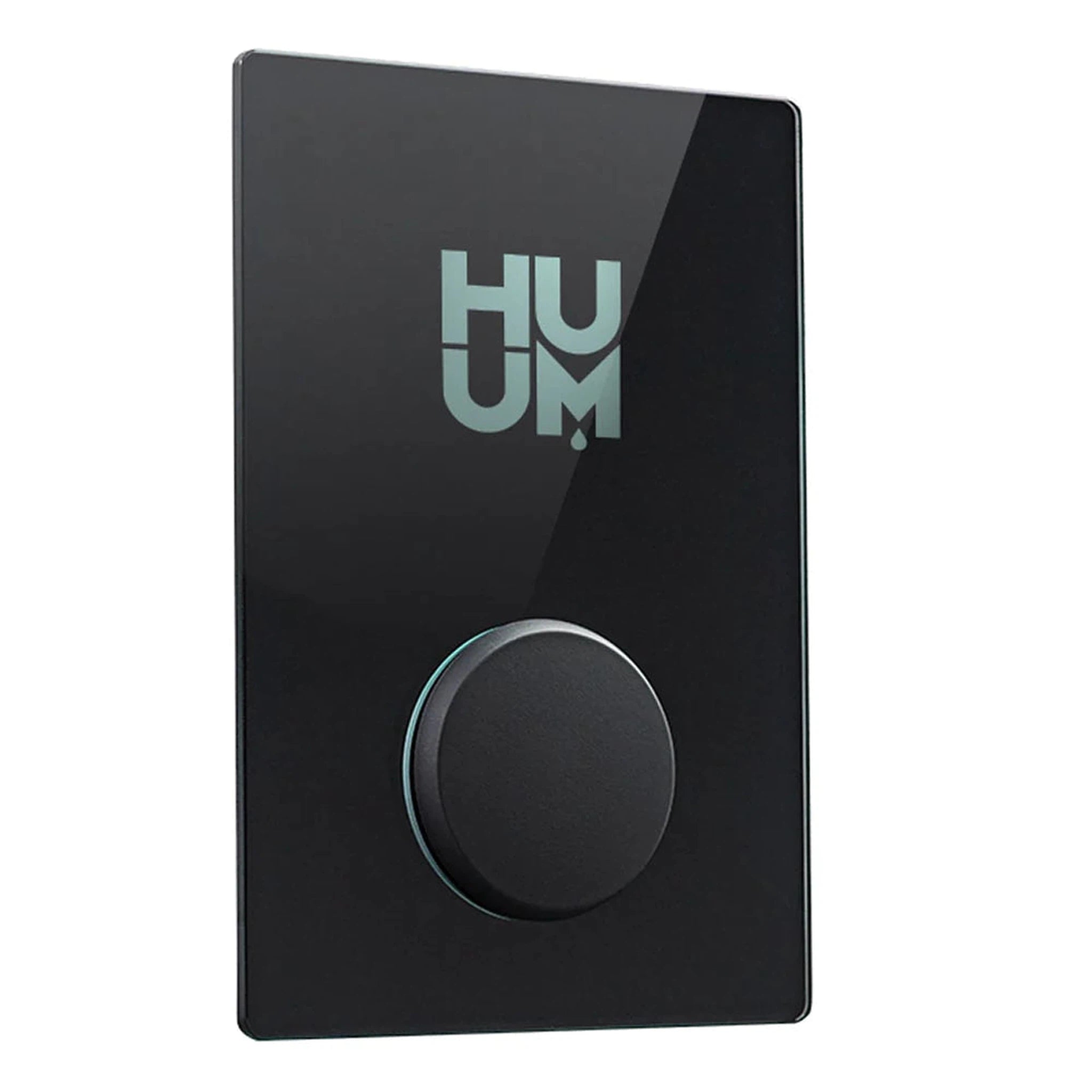

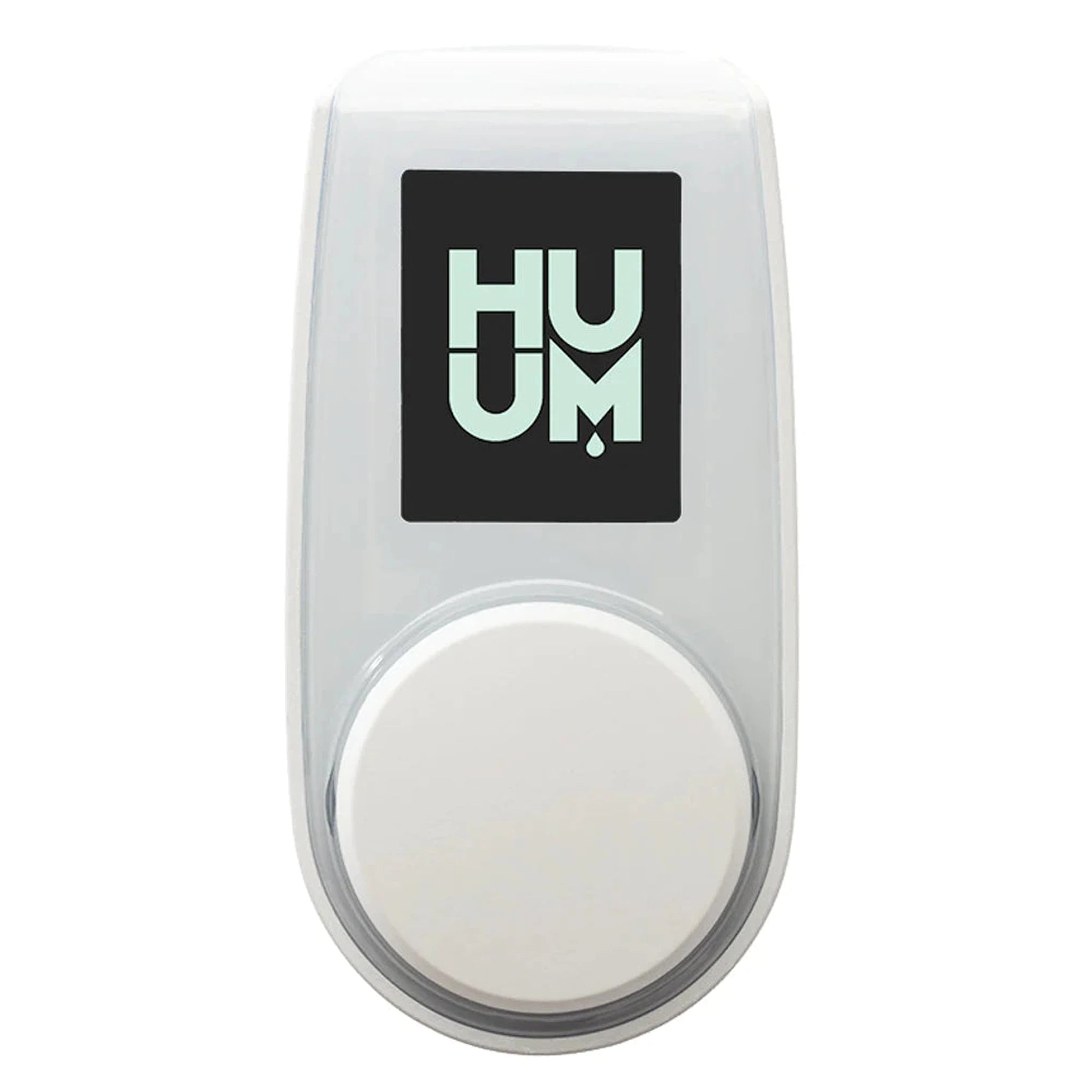

Which colors are available?

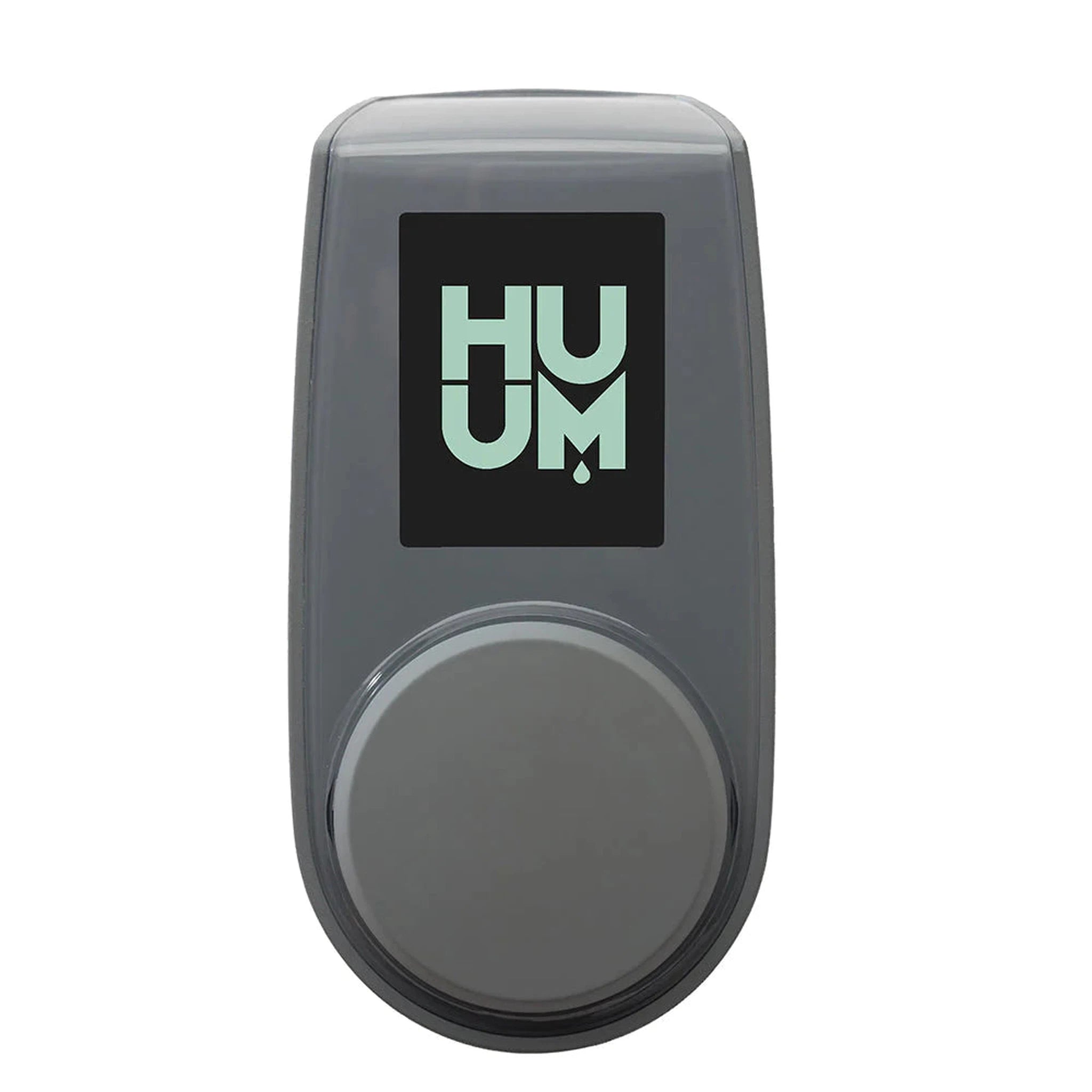

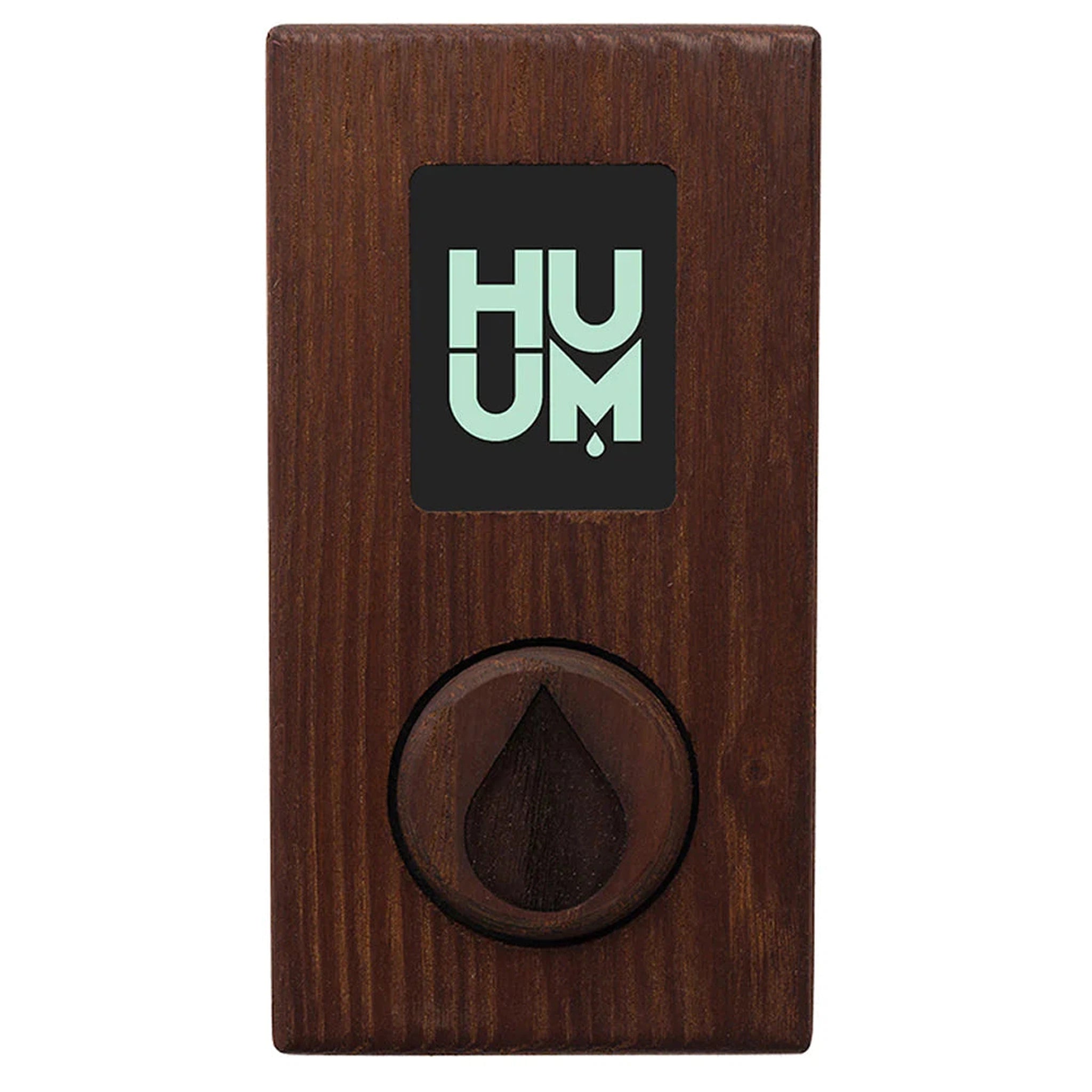

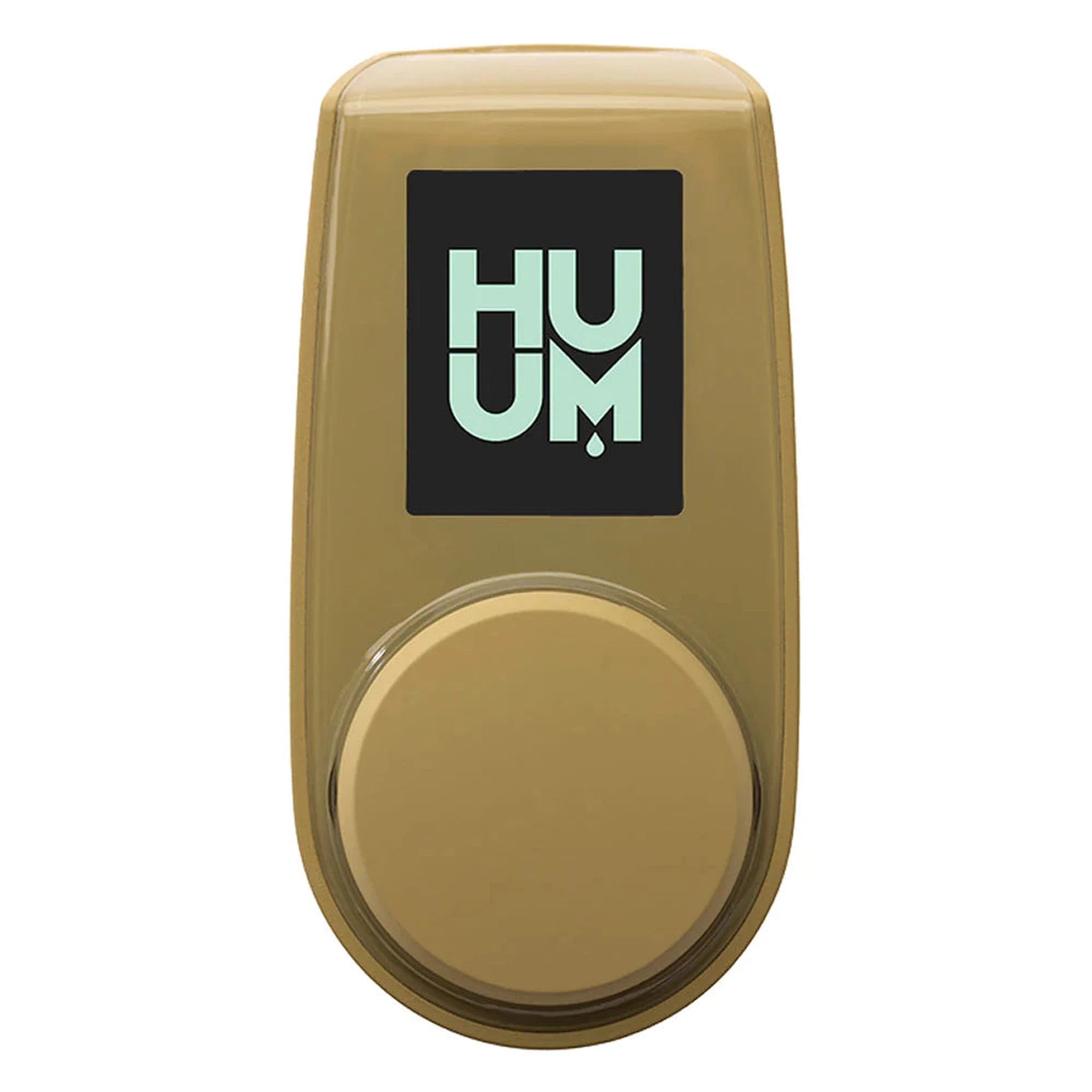

You can choose from a variety of materials, including glass, wood, and plastic in various colors. Each wooden case is handcrafted by hand from ash that has been thermo-treated and has a unique wood pattern. Black, white, metallic, light grey, and golden colors are available in plastic cases.
