Description
HUUM Thru-Wall Sauna Wood Stove Chimney Set

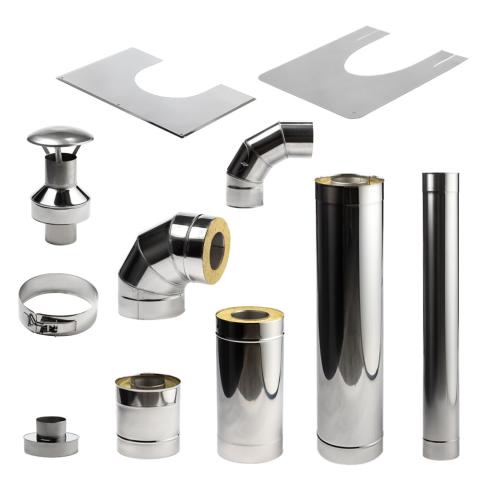

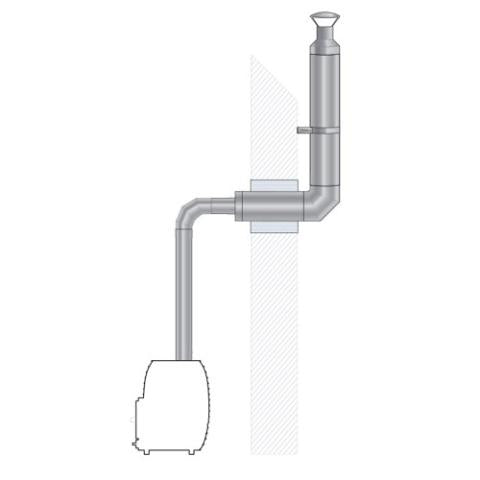

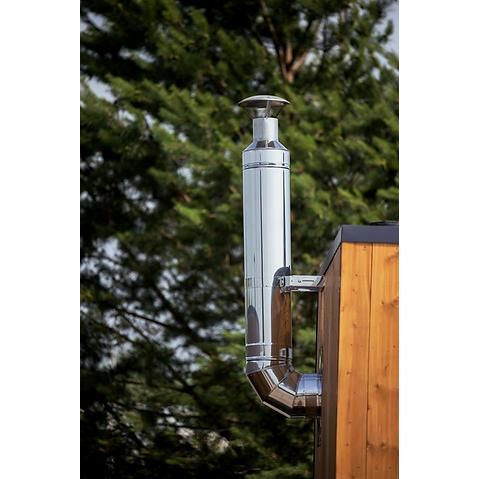

This chimney set is designed to extend through the wall and is compatible with HUUM's wood-fired sauna stoves. The set includes a single-wall 1m pipe, Single-wall elbow with cleaning hatch, Single-wall pipe 0.25 m, chimney base, a double-wall 0.5-meter chimney, a cover plate in two parts for wall, a 90-degree double-wall elbow, a double-wall 1-meter pipe, a chimney element bracket, and a chimney cap.
Includes
- Single-wall pipe (2)
- Chimney base
- Single-wall elbow with cleaning hatch
- Double-wall chimney
- Wall cover plates (2 parts)
- 90-degree double-wall elbow
- Double-wall pipe
- Chimney element bracket
- Chimney cap
- Installation manual
- 5 year limited warranty
Features
- Through wall
- Compatible with all HUUM wood sauna stoves
- Stainless steel
- Mounts in vertical position
- Works with smaller spaces
- Designed, engineered, and made in Estonia
- Limited 5-year warranty
Specifications
| Model | THRU-WALL CHIMNEY |
|---|---|
| Single-wall pipe (1) length | 39.37" (1000mm) |
| Single-wall pipe (2) length | 9.8" (250mm) |
| Double-wall chimney length | 19.7" (500mm) |
| Double-wall pipe length | 39.37" (1000mm) |
| Material | Stainless Steel |
| Total Length | 102.4" (2600mm) |
Technical Document
HUUM Wall Chimney Kit Specs 2022.pdf
