HUUM HIVE Series Electric Sauna Heater

HUUM HIVE Series Electric Sauna Heater

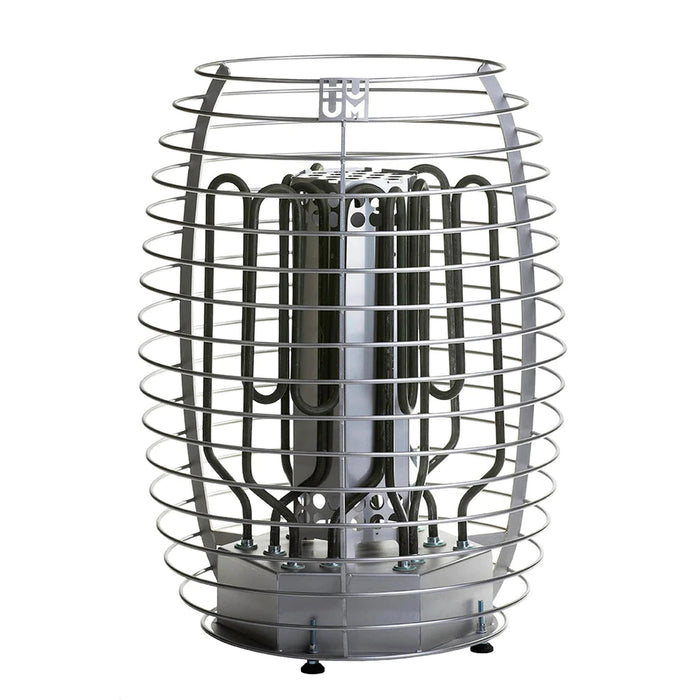

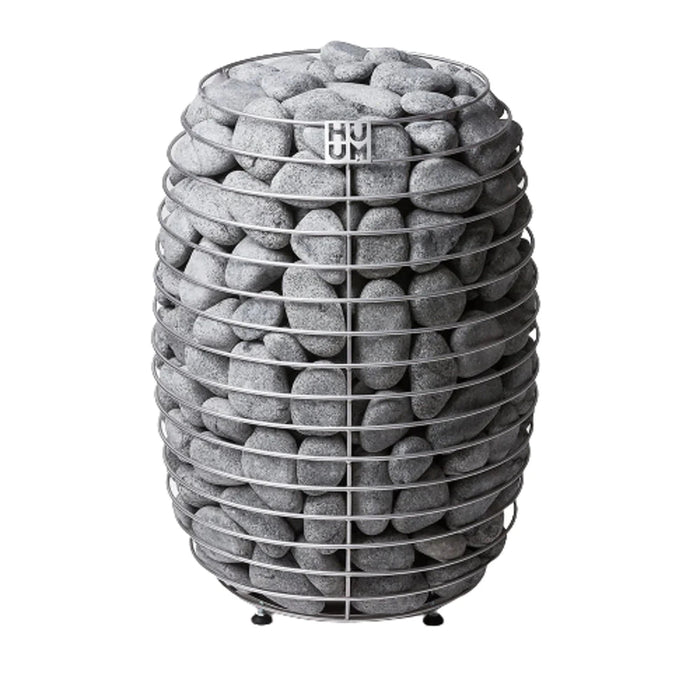

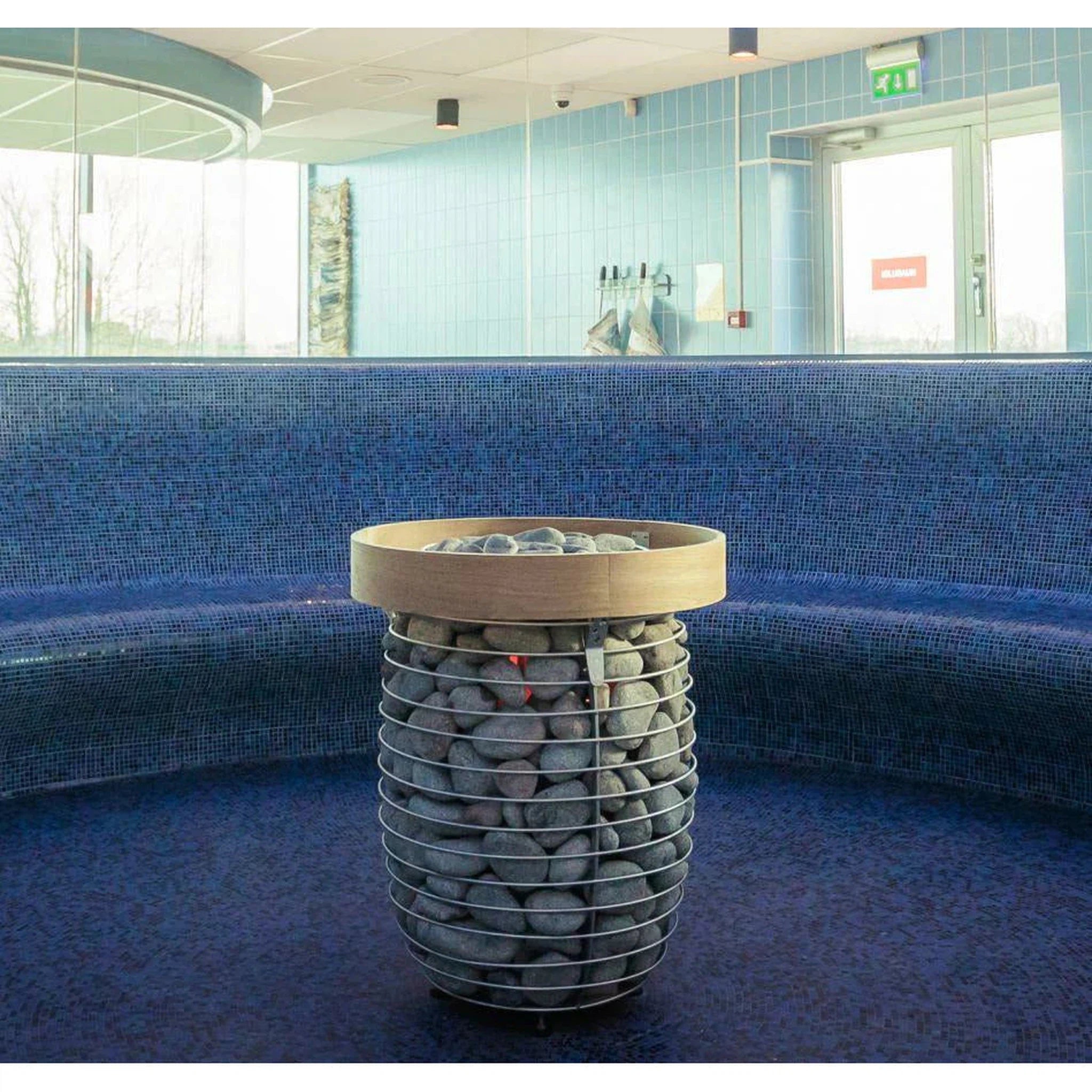

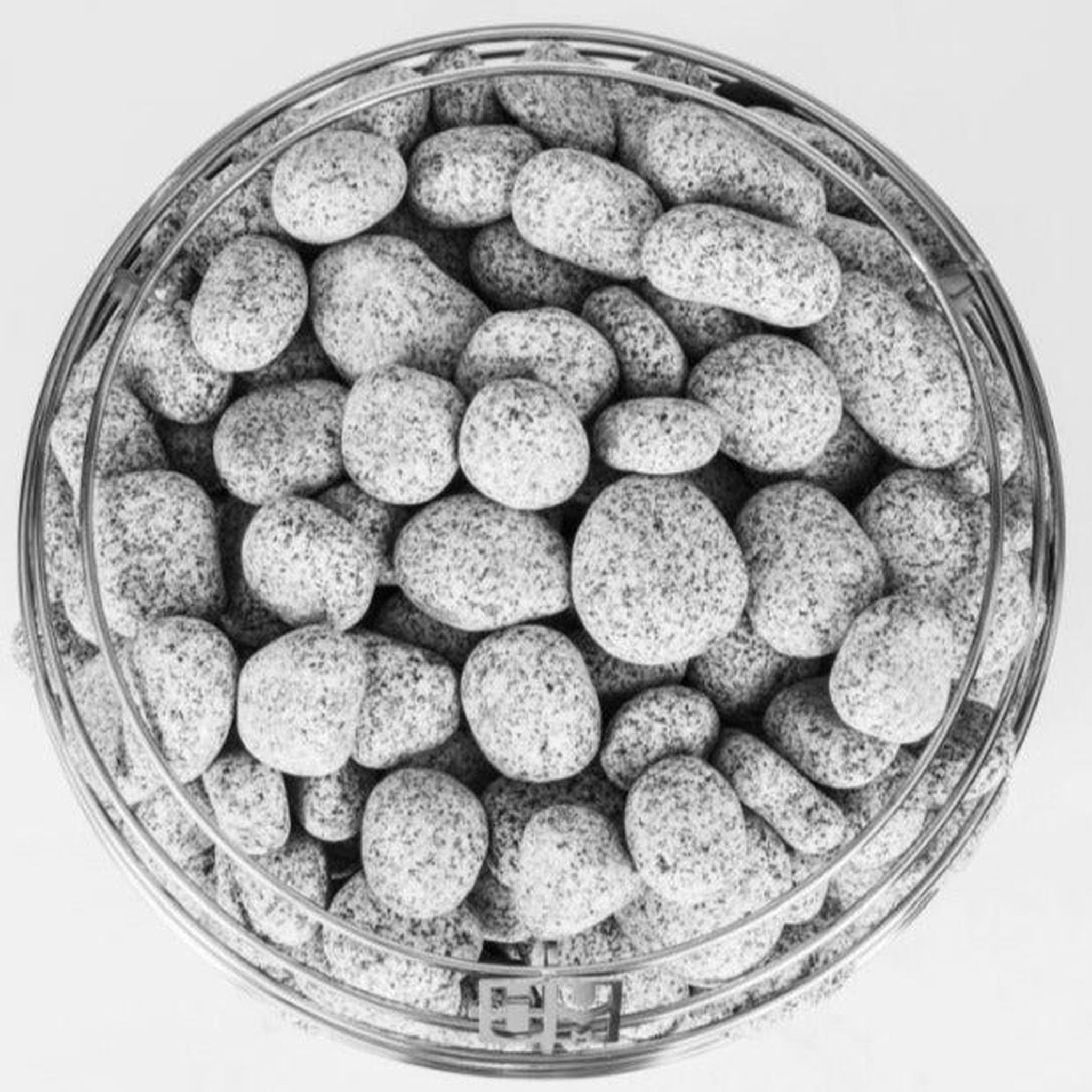

HIVE electric sauna heater is an elegant solution for bigger saunas, for example, for spas and gyms. This floor-mounted heater holds up to 270 kg of stones, which ensures long-lasting hot steam even for larger groups, without compromising on design.

Features

Features

• Stainless steel
• Elegant design
• Large Stone capacity
• 5-year guarantee
• Works with UKU controls (sold separately)
• Available Wi-Fi
• Direct contact between stones and heating elements
• More exposed stones for a longer, milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Floor-mounted with adjustable legs
• Designed and precision-crafted in Estonia
• SGS listed

• INSTALLATION & OPERATION MANUAL

Specifications

HUUM HIVE 12 KW

HEATER

• Sauna room: 12-25 m³ (424 - 883 CU. FT.)
• Stone capacity: 270kg
• Weight: 20 kg
• Height: 750 mm
• Diameter: 560 mm
• Rock Capacity: 595lbs
• Watts: 12KW
• Volts: 240VAC
• AMPS: 50AMPS
• Phase: 1PH
• Maximum Temperature Settings: 110C
• Installation Type: On the floor

POWER

• Fuse: 30 + 30 A
• Supply voltage 3-phase: 240 V ~
• Cable: 10 + 10 AWG

HUUM HIVE 15 KW

HEATER

• Sauna room: 15-30 m³ (530 - 1060 CU. FT.)
• Stone capacity: 270 kg
• Weight: 21 kg
• Height: 750 mm
• Diameter: 560 mm
• Rock Capacity: 550lbs
• Watts: 15KW
• Volts: 240VAC
• AMPS: 62.50
• Phase: 1PH
• Maximum Temperature Settings: 110C
• Installation Type: On the Floor

POWER

• Fuse: 50 + 50 A
• Supply voltage 3-phase: 240 V 2 ~
• Cable: 8 + 8 AWG

HUUM HIVE 18 KW

HEATER

• Sauna room: 18-35 m³ (636 - 1236 CU. FT.)
• Stone capacity: 270 kg
• Weight: 22kg
• Height: 590 mm
• Diameter: 335 mm
• Rock Capacity: 595lbs
• Watts: 18KW
• Volts: 240VAC
• AMPS: 75
• Phase: 1PH
• Maximum Temperature Settings: 110C
• Installation Type: Floor-Mount

POWER

• Fuse: 50 + 50 A
• Supply voltage 3-phase: 240 V 2~
• Cable: 8 + 8 AWG

HUUM HIVE : Dimensions

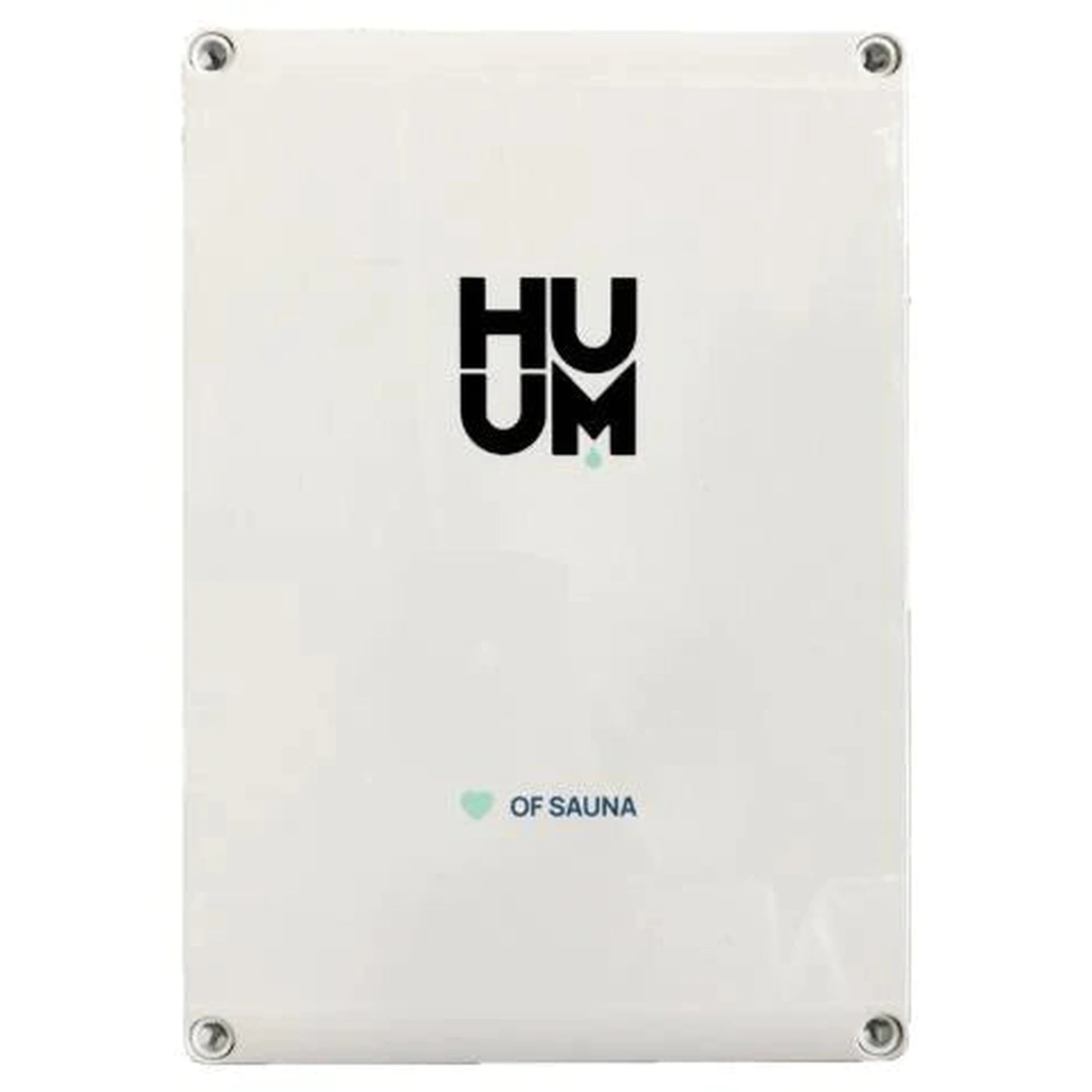

IMPORTANT: Extension Box information

• The main module can control up to 9kW heaters, for full range electrical heaters extension box is needed.
• Extension box is for heaters over 9kW
• Extension box should be purchased with the heater.
• For use with UKU controls (use with sauna heaters over 9kW requires UKU extension box - sold separately).
• Please refer to the diagram included in the photo section for installation.

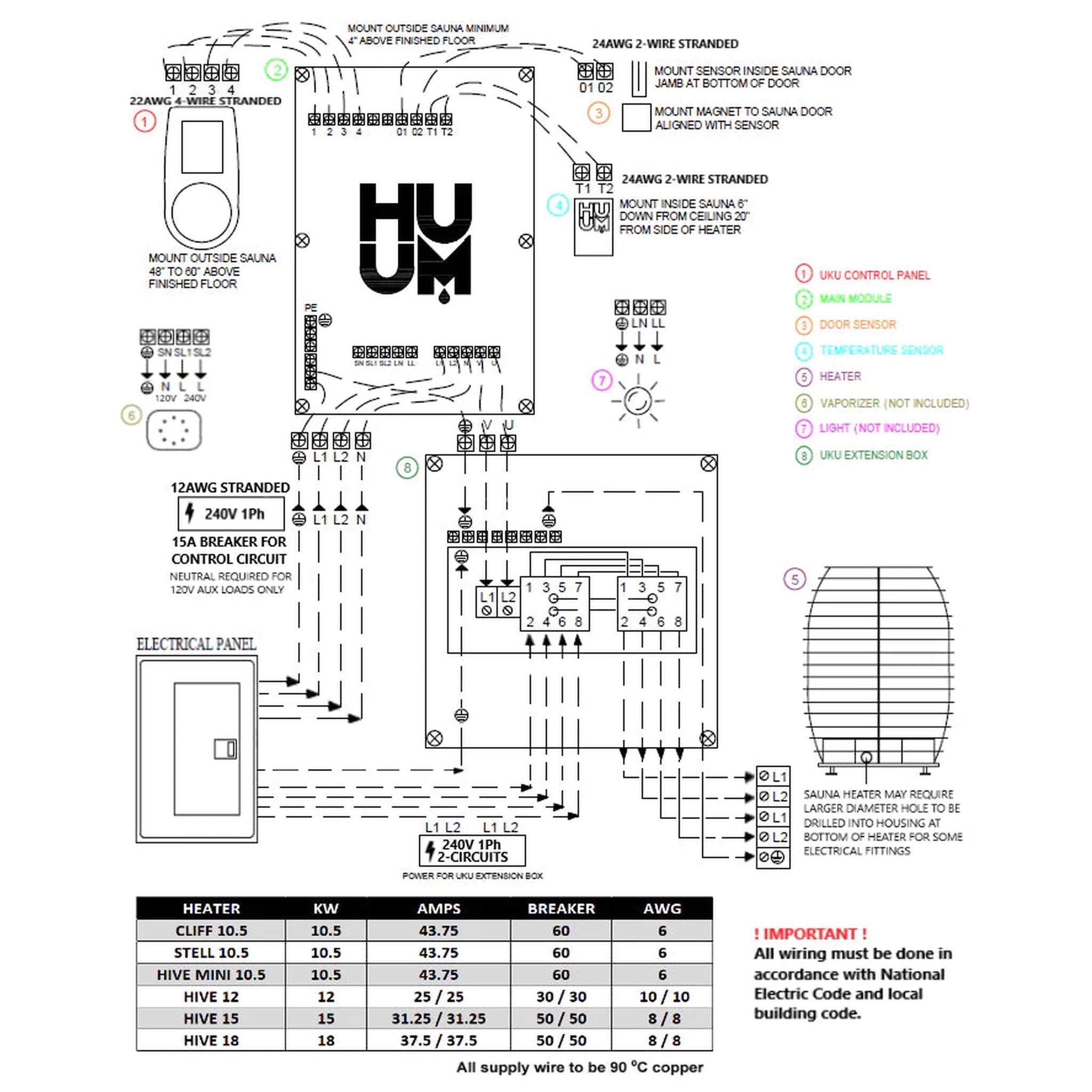

• HUUM Extension Box Wiring Diagram

Maintenance

MAINTENANCE INSTRUCTIONS

1. Use only clean water on Sauna stones. Do not use spa or pool water as it will destroy your heater.

2. Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use plastic bucket liner in bucket to prevent water leakage.

3. Scrub benches with a soft brush, using soap and water or a mild disinfectant, when needed – about once a week in commercial Saunas, or depending upon sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).

4. Remove possible removable flooring and wash waterproof floor with disinfectant (e.g. Pine Sol) about once a week or as often as needed. Hose off removable flooring to clean.

5. To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping a damp cloth occasionally.

6. Our Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 1 year of usage, the rocks may need replacing if they have crumbled or powered.

7. We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for a Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spread of foot diseases such as athlete‘s foot.

8. In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.

9. Seal wood around glass in door – inside and outside – with Thompson‘s Water Seal to prevent warpage.

10. When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore a beautiful appearance. We do not recommend stains or sealers as toxic vapors may appear when heated. However, 2 coats of Thompson‘s Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary – the wood will not absorb perspiration.

11. The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.

12. Required warning signs should be posted according to the instructions.

IMPORTANT!

• Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
• Owner of the sauna heater must obey these maintenance instructions!
