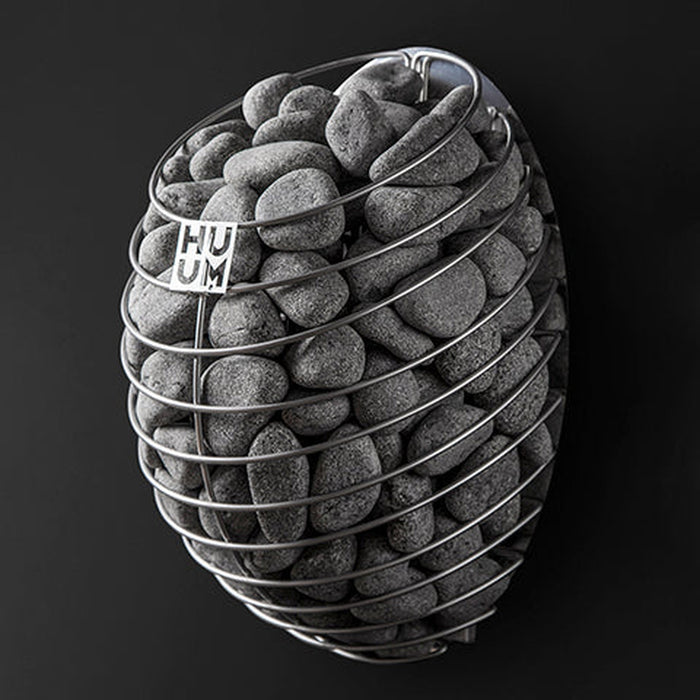

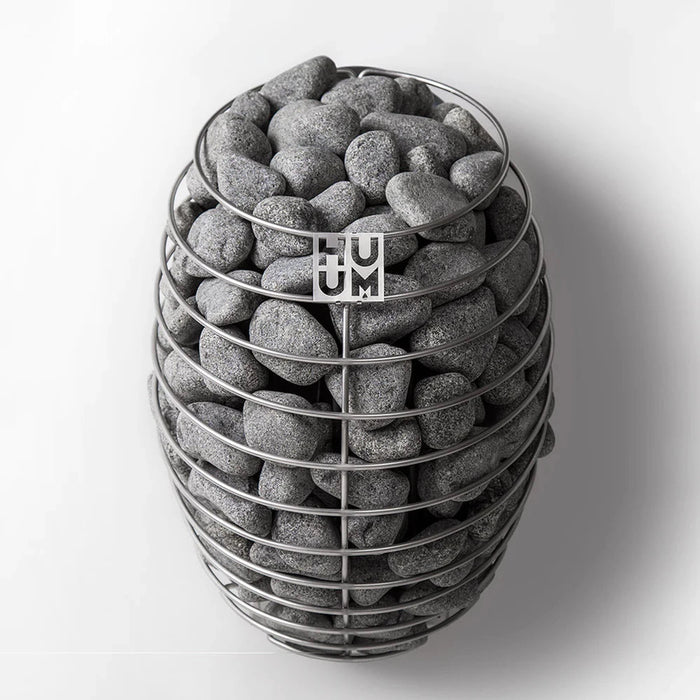

HUUM DROP Series Electric Sauna Heater

The design of the HUUM DROP sauna heater is inspired by the purest element in nature – a drop of water. Its rounded design softens and compliments the angular interior of a classic sauna, giving it a touch of elegance. But DROP isn’t only about the looks.

This compact wall-mounted heater has a large 122-pound rock capacity, more than most wood-burning stoves for a more intense steam sauna.

Winner of the prestigious Red Dot Award in Europe for design, the HUUM DROP combines sculptural beauty with engineering excellence. It's exceptionally large rock capacity allows the sauna bather to ladle more water onto the stones for a more intense bathing experience while creating a more consistent, soft high heat.

The available Wi-Fi control lets you preheat your sauna from anywhere. For bathers who want the absolute best sauna heater.

Features

• Unique water drop design
• 240V/1PH operation
• For sauna rooms from 106 to 247 cu. ft.
• Works with UKU controls (sold separately)
• 122 pound stone capacity (required 4 boxes sold separately)
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Wall-mounted design
• Designed, engineered, and made in Estonia
• Dimensions: 15.4"W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
• SGS Listed
• Limited 5-year warranty (excluding elements)

Includes

• 4.5kW sauna heater
• Wall-mount bracket
• Installation and operation manual
• Limited 5-year warranty (excluding elements)

Specifications

HUUM DROP 4.5 KW

HEATER

• Sauna room: 3-7 m³ (106 - 247 CU. FT.)
• Stone capacity: 55 kg (5-10 cm)
• Weight: 11 kg
• Height: 590 mm
• Width: 390 mm
• Depth: 335 mm
• Rock Capacity: 132lbs
• Watts: 4.5KW
• Volts: 240VAC
• AMPS: 18.8
• Phase: 1PH
• Maximum Temperature Settings: 110C
• Installation Type: Wall-Mount

POWER

• Fuse: 30 A
• Supply voltage 3-phase: 240V 2~
• Cable: 10AWG

HUUM DROP 6 KW

HEATER

• Sauna room: 5-10 m³ (177 - 353 CU. FT.)
• Stone capacity: 55 kg (5-10 cm)
• Weight: 11 kg
• Height: 590 mm
• Width: 390 mm
• Depth: 335 mm
• Rock Capacity: 132lbs
• Watts: 6KW
• Volts: 240VAC
• AMPS: 18.8 AMPS
• Phase: 1PH
• Maximum Temperature Settings: 110C
• Installation Type: Wall-Mount

POWER

• Fuse: 30 A
• Supply voltage 3-phase: 240 V 2~
• Cable: 10 AWG

HUUM DROP 7.5 KW

HEATER

• Sauna room:  7-12 m³ (230 - 441 CU. FT.)
• Stone capacity: 55 kg (5-10 cm)
• Weight: 25 lbs
• Height: 590 mm
• Width: 390 mm
• Depth: 335 mm
• Rock Capacity: 132lbs
• Watts: 7.5KW
• Volts: 240VAC
• AMPS: 31.25 AMPS
• Phase: 1PH
• Maximum Temperature Settings: 110C
• Installation Type: Wall-Mount

POWER

• Fuse: 40 A
• Supply voltage 3-phase: 240 V 2~
• Cable: 8 AWG

HUUM DROP 9 KW

HEATER

• Sauna room: 8-15 m³ (282 - 520 CU. FT)
• Stone capacity: 55 kg (5-10 cm)
• Watts: 9,000
• Volts: 240VAC
• Amps: 37.5 AMPS
• Phase: 1PH
• Rock Capacity: 121 LBS.
• Maximum Temperature Settings: 110C
• Installation Type: Wall-Mount
• Weight: 12 kg
• Height: 590 mm
• Width: 390 mm
• Depth: 335 mm

POWER

• Fuse: 50A
• Supply voltage 3-phase: 240 V 2~
• Cable: 8 AWG

HUUM DROP: Dimensions

IMPORTANT: Extension Box information

• The main module can control up to 9kW heaters, for full range electrical heaters extension box is needed.
• Extension box is for heaters over 9kW
• Extension box should be purchased with the heater.
• For use with UKU controls (use with sauna heaters over 9kW requires UKU extension box - sold separately).
• Please refer to the diagram included in the photo section for installation.
• HUUM Extension Box Wiring Diagram

HUUM DROP: Safety Distance

Inclusions

Prepare your sauna experience with a few taps on the phone

Heat the sauna comfortably with the HUUM mobile app. The main benefit of this is you don’t even have to be home to heat your sauna. You could be anywhere and have your sauna hot and ready at exactly the moment you step in the door. This is a great advantage for many home sauna owners as well as accommodation establishments. Continue reading and discover:

• how heating the sauna from your mobile phone can benefit you and also your accommodation establishment;
• what do you need for heating your sauna through the mobile app;
• how HUUM mobile app works and what features it offers.

Models Information

• 4.5 kW: sauna room size 3-7 m³
• 6 kW: sauna room size 5-10 m³
• 7.5 kW: sauna room size 7-12 m³
• 9 kW: sauna room size 8-15 m³

Package Contents:

• 4.5kW/ 6kW / 7.5KW / 9 kW Sauna heater, 15.75"W x 13.25"D x 23.25"H
• Wall-mount bracket
• Installation and Operation Manual
• 5-Year limited warranty

REQUIRES ALSO

• Control Unit
• Stones (5-10 cm)
• Heat-resistant Power Cable
• Good to Add: Safety Railings

Innovative sauna controllers for modern sauna lovers

If you value time and appreciate comfort, heating the sauna through HUUM mobile app might just bring your sauna to a new level. This easy and time-saving sauna controlling solution helps to better insert enjoyable sauna moments into a busy modern lifestyle.

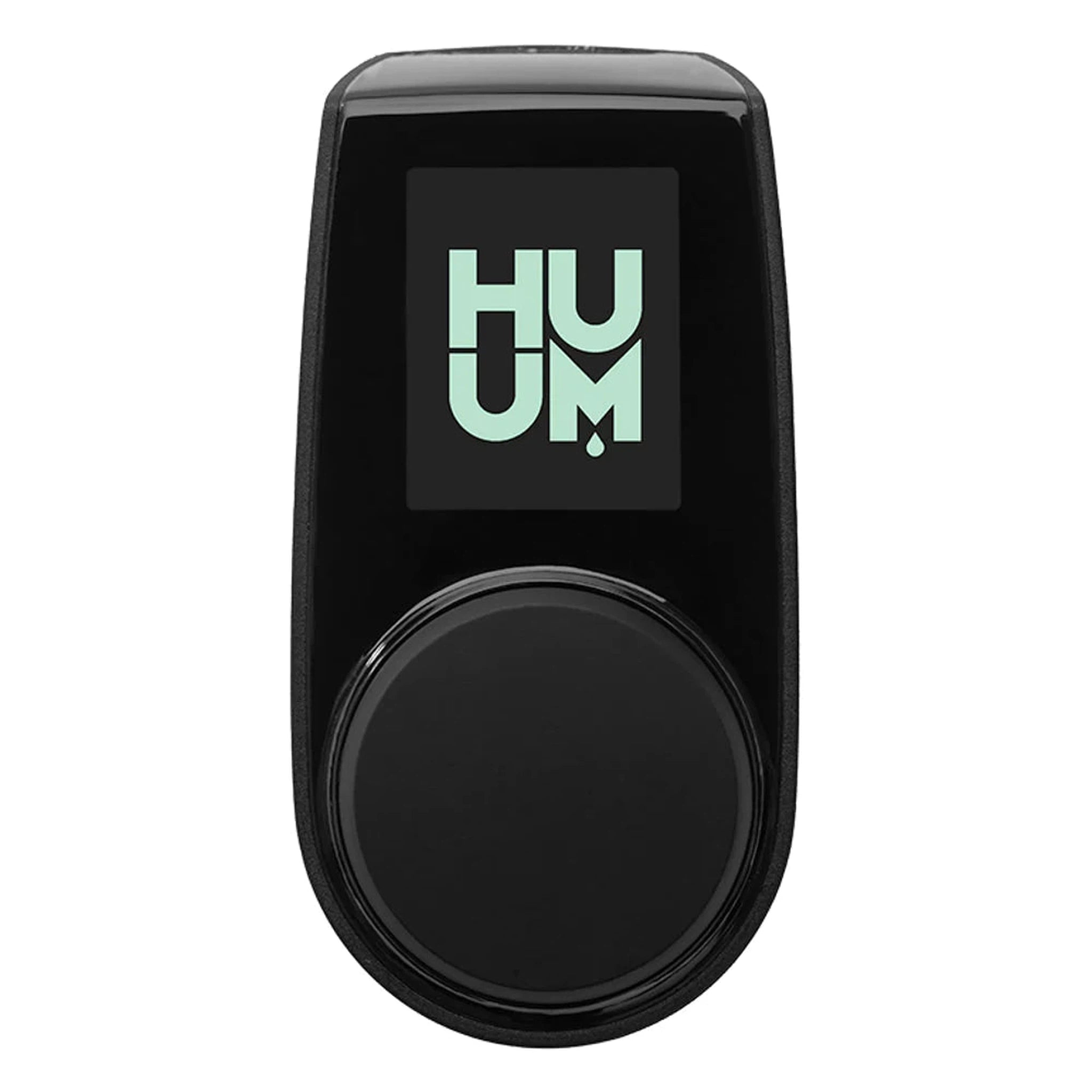

Remote Types: UKU Local, UKU Wi-Fi Control, Wi-Fi Control Glass / Mirror

*Please see our Upgrades Options and separate listings for UKU Controllers. Comes in different colors. *

Why choose a HUUM DROP heater?

Made with care in Estonia

	Easy to use
	Soft Steam
	Longer Relaxation
	Stainless Steel
	CE Certification
	Safety & Control
	Made in Estonia





---

Steam like in a traditional sauna

HUUM heaters are built by using very small amounts of metal so that the heat comes mainly from the stones and only very little from the metal. This way we can maximize the good negative ions from the stones, like in traditional saunas, and keep the positive ions from the metal at a minimum. Together with a high stone capacity, this is our secret to healthy, mild and long-lasting steam.
