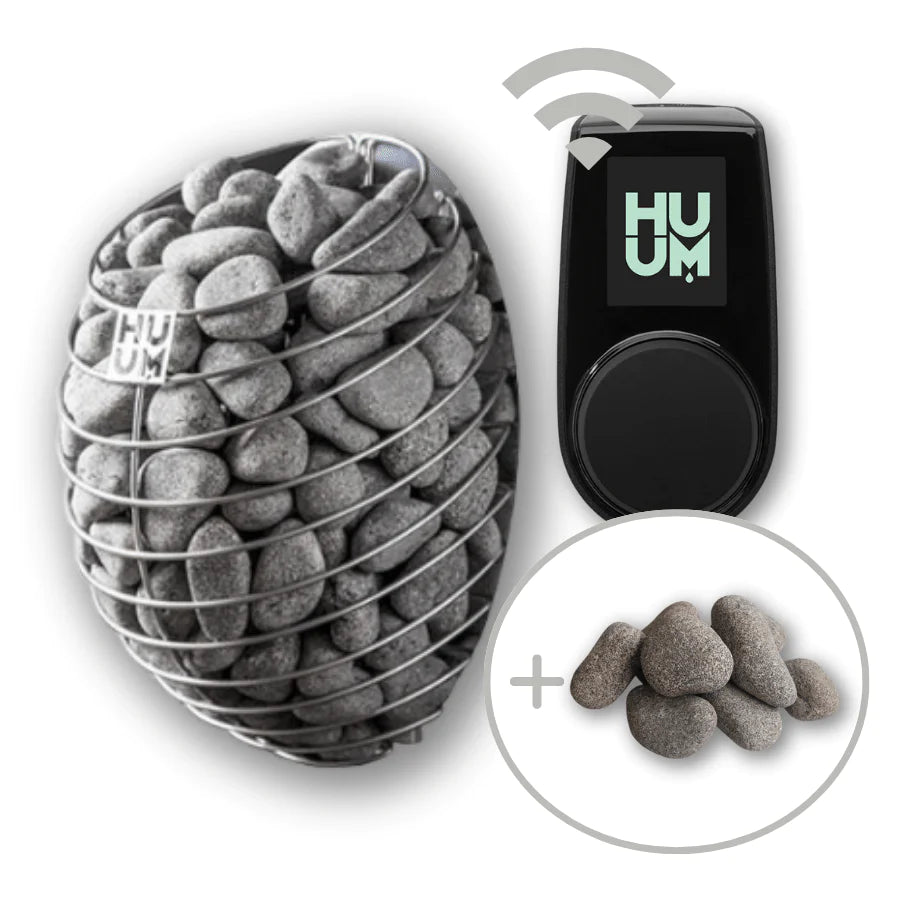

HUUM DROP Electric Heater Package w/ UKU Wifi Controller and Stones

HUUM DROP Electric Heater Package w/ UKU Wifi Controller and Stones

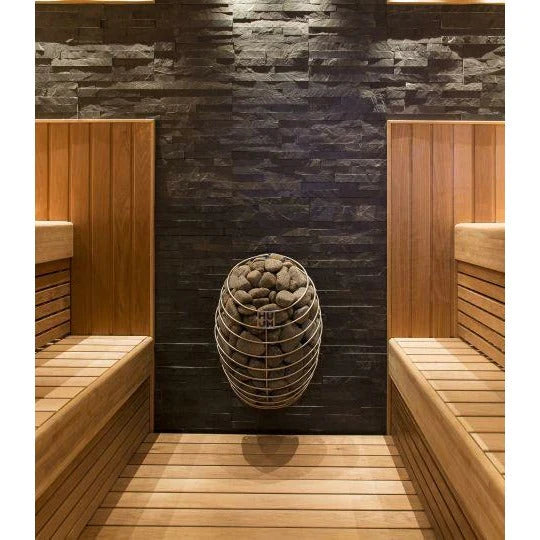

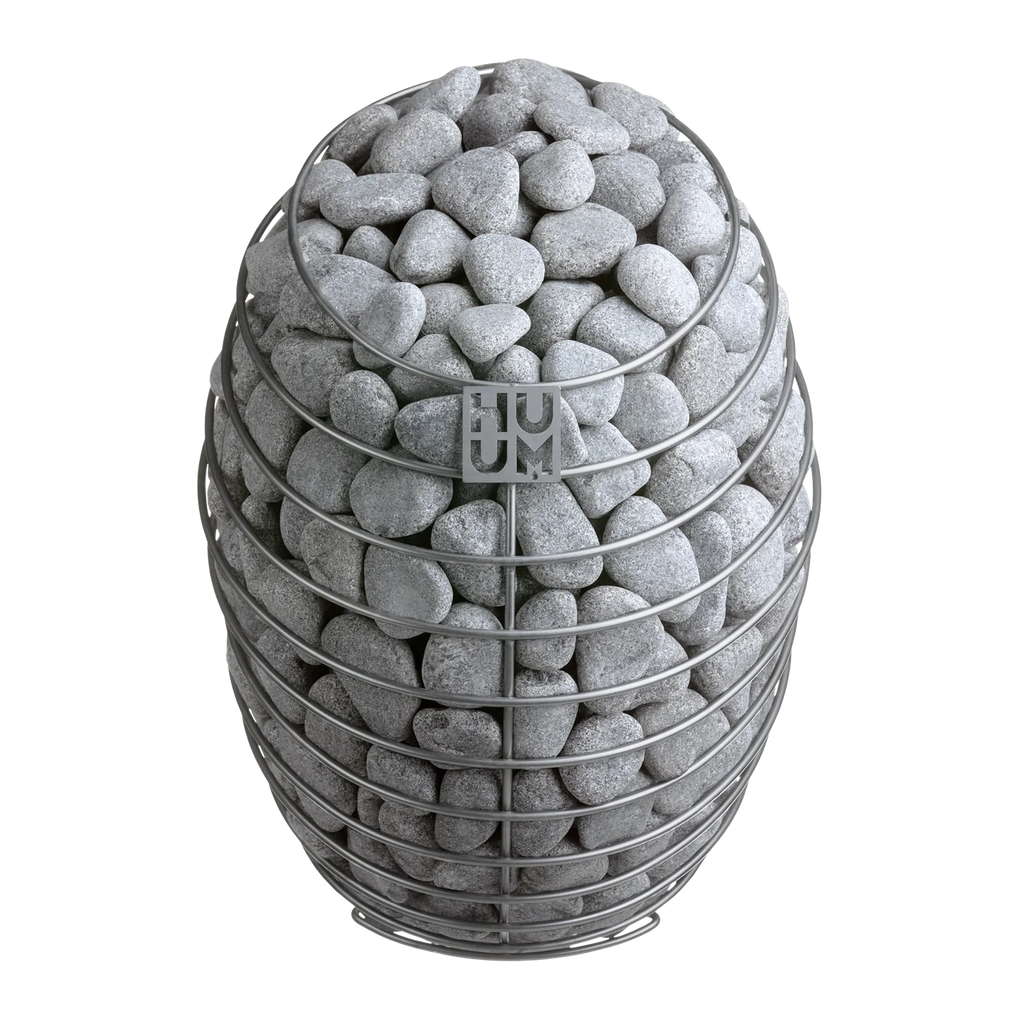

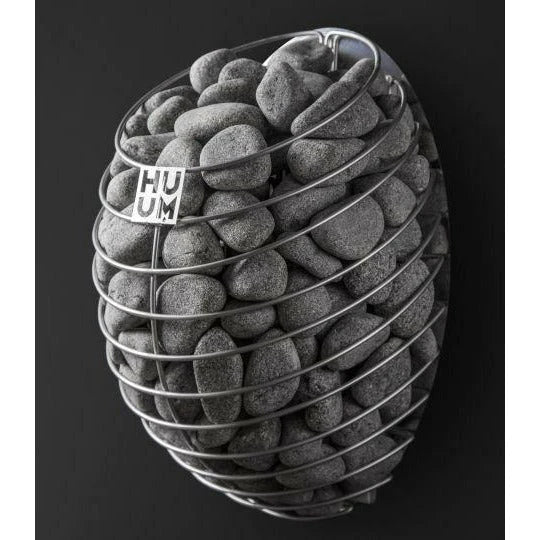

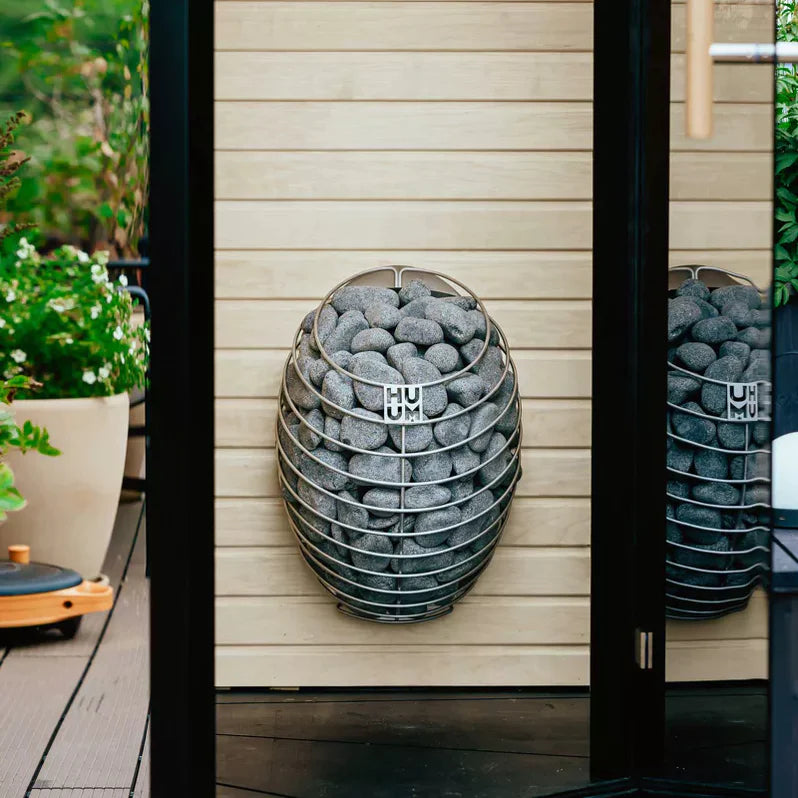

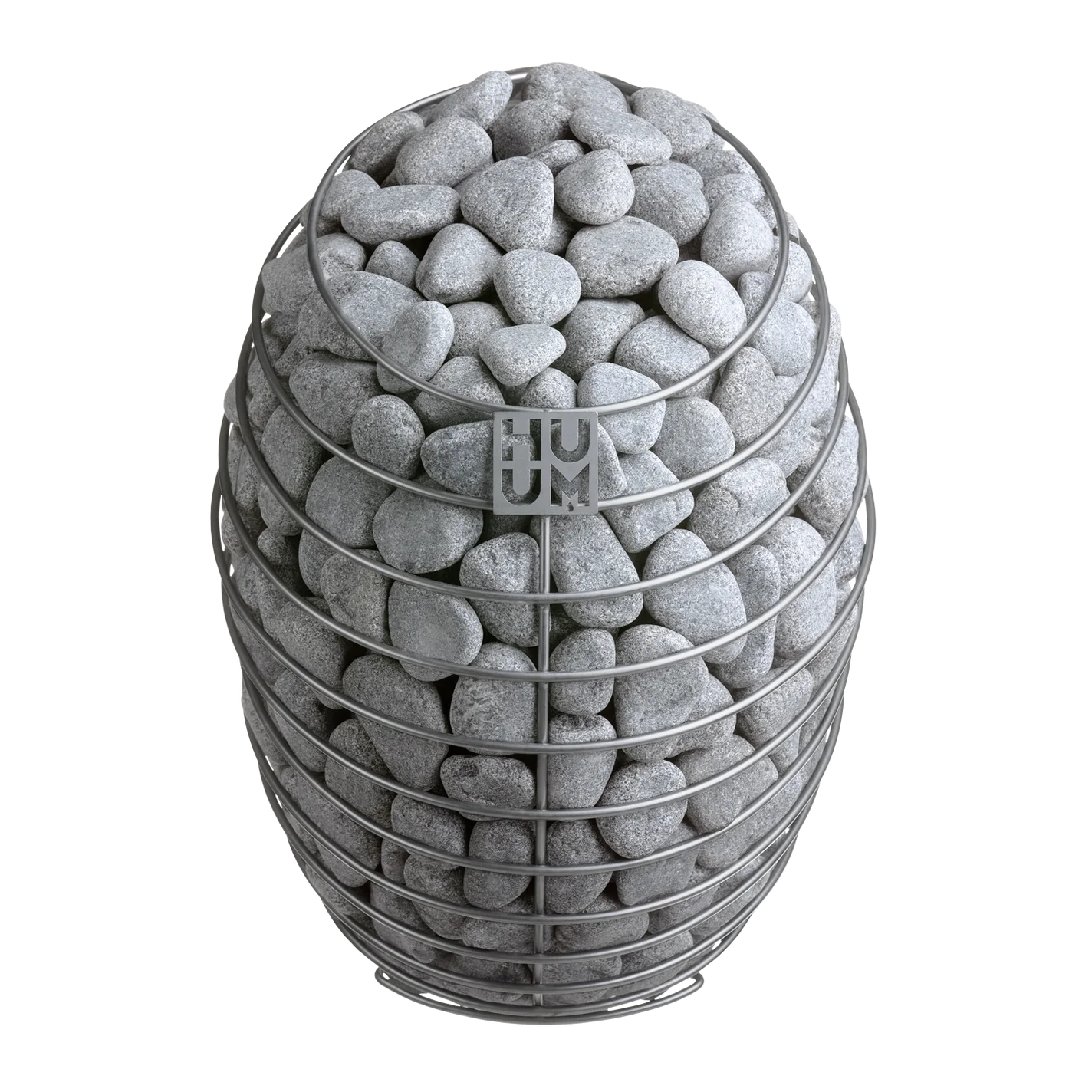

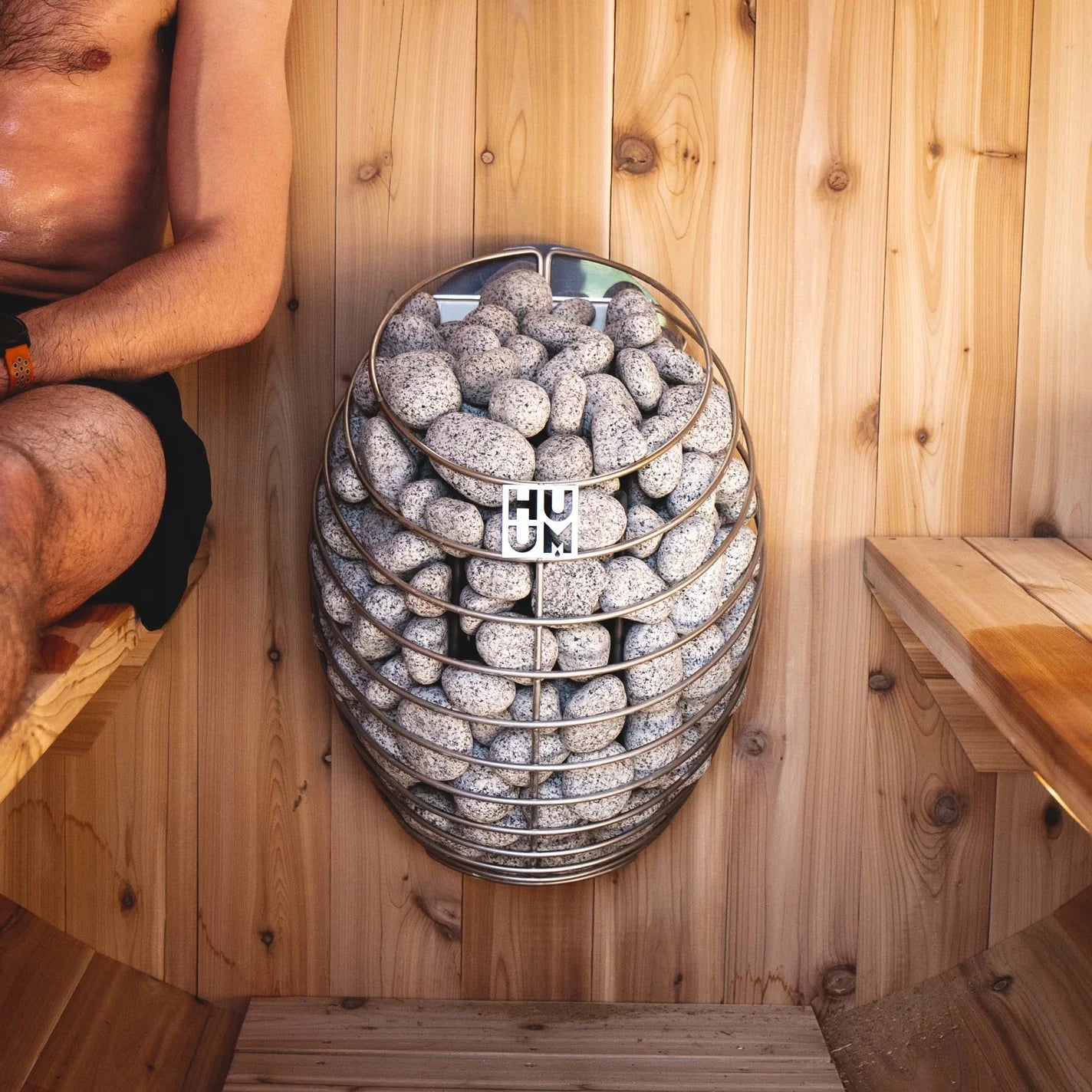

HUUM DROP heater is inspired by the purest element in nature – a water drop. The organic and minimalist design makes it a beautiful focal point of your sauna. This compact wall-mounted heater performs as well as it looks with a max temp of 230F and Wi-Fi control capability.

Features

• For sauna sizes from 106-530 cu. ft.
• Unique water-drop design
• 240V/1PH
• Wall-mounted
• Stainless steel construction
• High stone capacity for steady heat

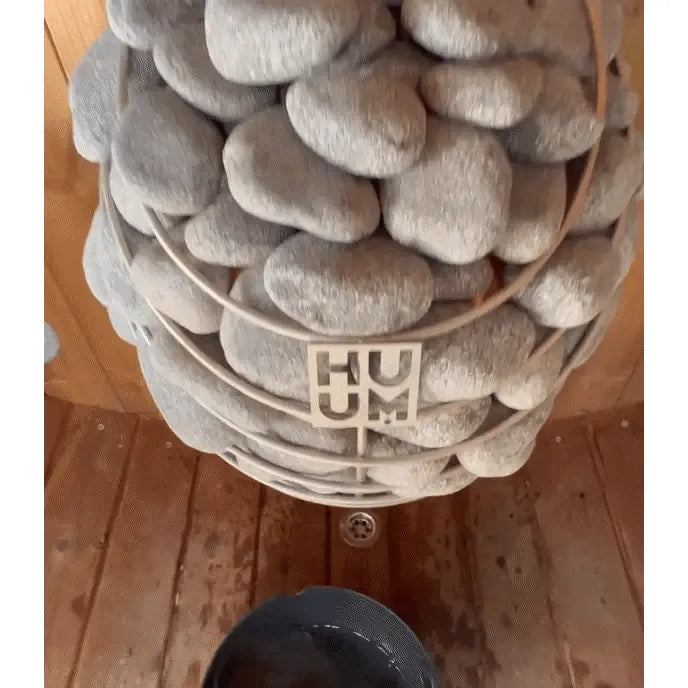

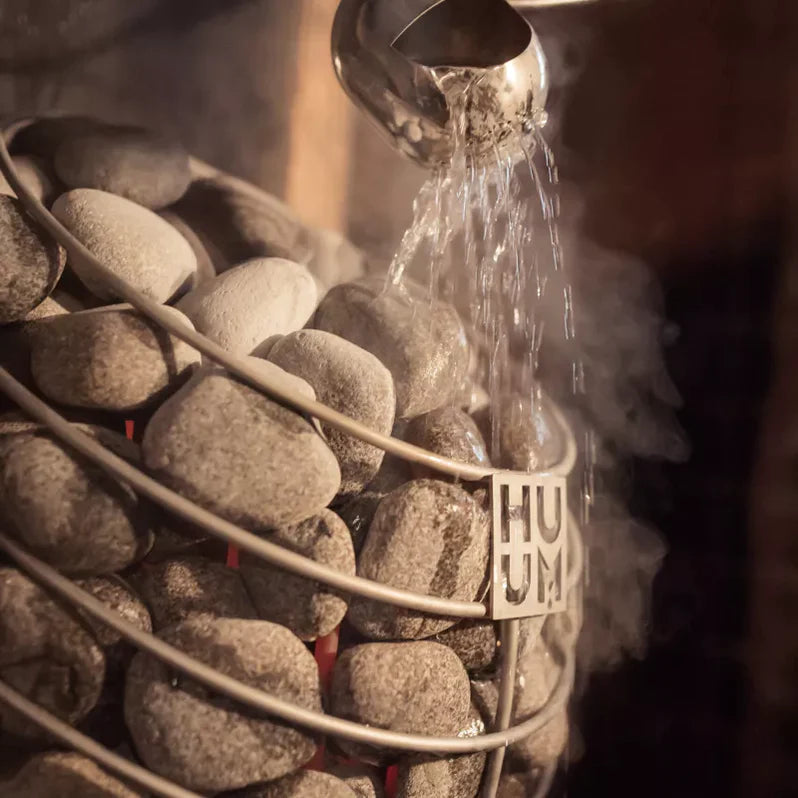

• Pour water on stones for steam

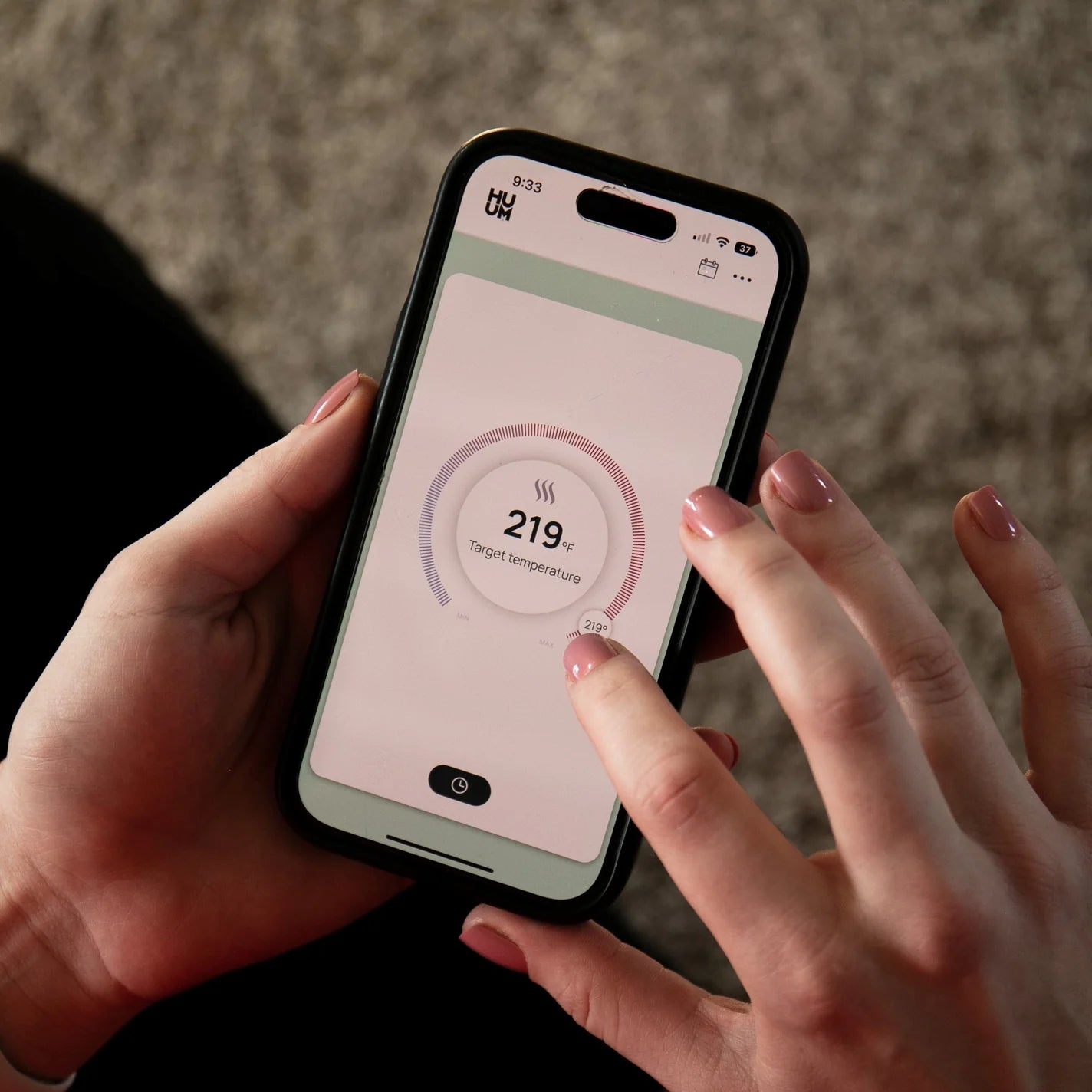

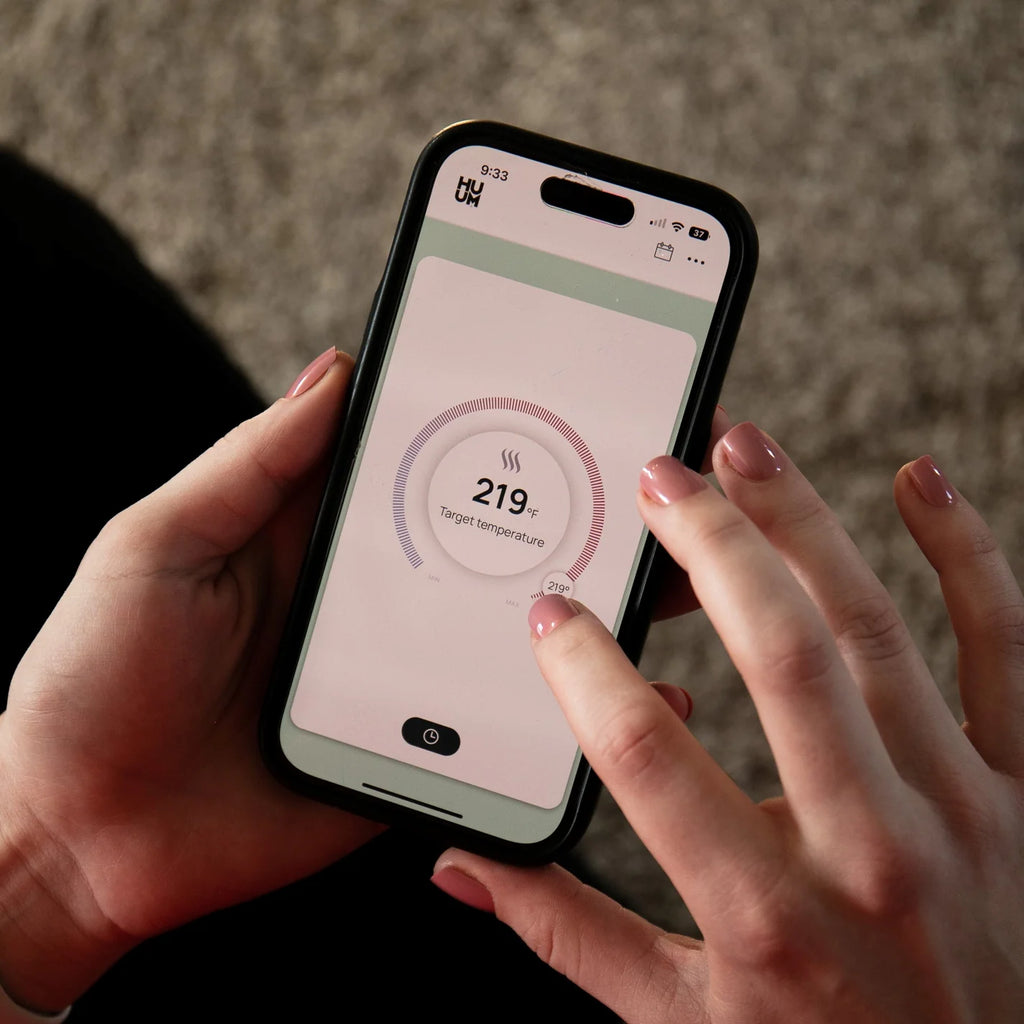

• Wi-Fi to control from your mobile phone

• Made in Estonia

Includes

• Wall-mount bracket
• Installation and operation manual
• Limited 5-year warranty

Specifications

All HUUM DROP

• Installation Type: Wall-Mount
• Voltage/Phase: 240V/1PH
• Dimensions: 15.4"W x 13.2"D x 23.3"H
• Stone capacity: 122 lbs

• Heater Weight: 24 lbs

• Min/Max Temperature: 104 F / 230 F

DROP 4.5 kW

• Sauna room: 106-247 ft³ (3-7 m³)
• Amps: 18.8 A
• Circuit Breaker Amperage: 30 A
• Wire Size: 10 AWG

DROP 6.0 kW

• Sauna room: 177-353 ft³ (5-10 m³)
• Amps: 25 A
• Circuit Breaker Amperage: 30 A
• Wire Size: 10 AWG

DROP 7.5 kW

• Sauna room: 230-441 ft³ (7-12 m³)
• Amps: 31.25 A
• Circuit Breaker Amperage: 40 A
• Wire Size: 8 AWG

DROP 9.0 kW

• Sauna room: 282-530 ft³ (8-15 m³)
• Amps: 37.5 A
• Circuit Breaker Amperage: 50 A
• Wire Size: 8 AWG

Minimum Safety Clearances

DROP 4.5kW A - 4 inches B - 23.5 inches C - 17 inches

DROP 6kW A - 4.5 inches B - 25 inches C - 18 inches

DROP 7.5kW A - 5 inches B - 26 inches C - 18.5 inches

DROP 9kW A - 6 inches B - 27 inches C - 19 inches
