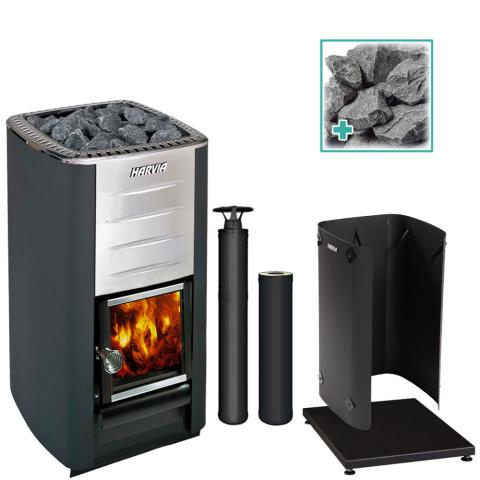

Harvia M3 Wood-Burning Stove Kit BK
The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, and a protective sheath. The sleek black finish brings class to your sauna and with this package your dream sauna is just one "add to cart" click away.
Features
M3 Heater
- 16.5 kilowatts
- Stainless Steel
- Black color
- Floor installation
- Wood-burning stove
- For sauna rooms 212 cu. ft. to 459 cu. ft.
- Dimensions: 15" W x 18" D x 28" H
- 2-year warranty
Protective Bedding
- Aluminum-zinc coated steel
- Black
- Adjustable feet
- For wood-burning sauna heaters
- Helps protect floors
- Dimensions: 17.7" W (450mm), 26" D (665mm), 2.4"-3" H (60-75mm)
- Can be installed on a sloping floor
- 2-year warranty
1500MM Chimney Kit
- Black powder-coated steel
- CE marking
- Mineral wool insulation material
- Mounts in a vertical position
- Works with wood-heated stoves
- Works with smaller fireplaces
- Works with iron-stoves
- Able to be easily extended
- Touch protection is not needed if installed in a sauna
- Soot fire resistant
- Freeze-thaw resistant
- Made in Finland
- 2-year warranty
1000MM Chimney Extension
- Innovative design
- Black powder-coated steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
- 2-year warranty
Protective Sheath
- 3-sided sheath
- Black color
- Reduces safety distance to combustible materials
- 2 year warranty
Stones
- Olivine diabase sauna stones
- Split-Face
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Specifications
| Model |
M3 |
| Kilowatt Rating |
16.5 kW |
| Primary Fuel |
Wood |
| Minimum Cubic Feet |
211 CF |
| Maximum Cubic Feet |
459 CF |
| Heater Weight |
97 lbs |
| Shipping Weight with Sauna Stones |
163 lbs |
| Width |
15" |
| Depth |
18" |
| Height |
28" |
| Model |
WL100 |
| Material |
Steel |
| Weight |
23.5 lbs |
| Width |
17.7" (450mm) |
| Depth |
26" (665mm) |
| Height |
2.4"-3" (60-75mm) |
| Model |
WHP1500M |
| Material |
Black powder coated steel |
| Non-vertical installations |
Not Allowed |
| Product Height |
59" (1500mm) |
| Product Diameter |
8-5/8" (220mm) |
| Net Weight |
25 lbs |
| Model |
WHP1000M |
| Flexural Strength- tensile strength |
16.4 ft (5m) |
| Non-vertical installations |
Not Allowed |
| Wind Load |
6.5 ft (2m) above last support |
| Maximum spacing of lateral supports |
9.8 ft (3m) |
| Weight |
14.8 lbs |
| Diameter |
8.6" (220mm) |
| Height |
39.3" (1000mm) |
