Description

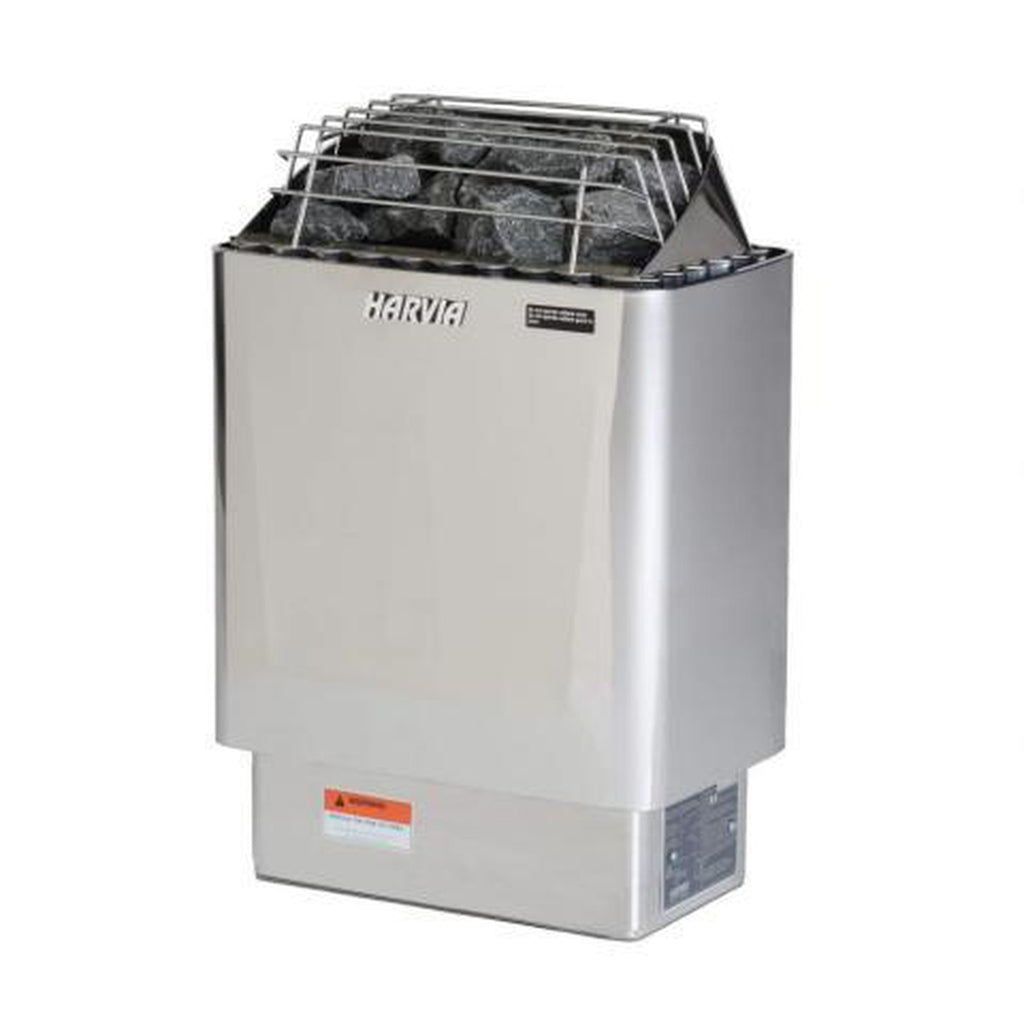

Harvia KIP Electric Heater
The Harvia KIP heater is a traditional wall-mounted sauna heater with built-in controls. The heater is constructed with stainless steel and includes a protective stone guard. The heater has a large stone cavity for maximum heat release, and the dual-wall construction allows the exterior to remain cool to the touch. The left dial controls the temperature and the right dial is the on/off control along with a delay timer. You can set the heater to turn on up to 8 hours after it is set, and the heater will automatically shut off after 60 minutes of operation.
Features
Harvia KIP Features
- The Harvia KIP heater is a traditional wall-mounted sauna heater that uses a multi-function digital Xenio wall-mounted control panel (sold separately). Its large stone capacity ensures optimal heat dispersion. The attractive polished stainless steel outer casing is durable and resists corrosion.
- Works with Xenio wall-mounted control (Sold separately)
- Wall-mounted heater
- 1hr timer
- Up to 8hr delay timer function
- Stainless Steel construction
- Industrial grade, serviceable heating elements
- Large rock capacity
- Direct rock-to-heating element contact
- Protective rock grill
- UL Listed
Specifications
Harvia KIP Electric Heater Dimensions
Dimensions
| PRODUCT WEIGHT | LENGTH / WIDTH | WIDTH / DEPTH | HEIGHT | DIAMETER | DIMENSIONS |
| 40 lbs | 16 | 11 | 24 | N/A | 16"W x 11"D x 24"H |
Specifications
KIP 3KW
| Model | KIP30W |
|---|---|
| Kilowatt Rating (KW) | 3kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 84 |
| Maximum Adjusted Cubic Feet | 130 |
| Voltage | 240V/208V |
| Phase | 1PH/3PH |
| 240V, Single Phase Amperage | 12.5 Amps |
| 208V, 3-Phase Amperage | 8.3 Amps |
| Heater Weight | 40 lbs |
| Shipping Weight with Sauna Stones | 84 lbs |
| Width In Inches | 16" (406mm) |
| Depth In Inches | 11" (279mm) |
| Height In Inches | 24" (609mm) |
| Certification | UL |
KIP 4.5 KW
| Model | KIP45W |
|---|---|
| Kilowatt Rating (KW) | 4.5kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 100 |
| Maximum Adjusted Cubic Feet | 210 |
| Voltage | 240V/208V |
| Phase | 1PH/3PH |
| 240V, Single Phase Amperage | 18.8 Amps |
| 208V, 3-Phase Amperage | 12.5 Amps |
| Heater Weight | 40 lbs |
| Shipping Weight with Sauna Stones | 84 lbs |
| Width In Inches | 16" (406mm) |
| Depth In Inches | 11" (279mm) |
| Height In Inches | 24" (609mm) |
| Certification | UL |
KIP 6KW
| Model | KIP60W |
|---|---|
| Kilowatt Rating (KW) | 6kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 170 |
| Maximum Adjusted Cubic Feet | 300 |
| Voltage | 240V/208V |
| Phase | 1PH/3PH |
| 240V, Single Phase Amperage | 25 Amps |
| 208V, 3-Phase Amperage | 16.7 Amps |
| Heater Weight | 40 lbs |
| Shipping Weight with Sauna Stones | 84 lbs |
| Width In Inches | 16" (406mm) |
| Depth In Inches | 11" (279mm) |
| Height In Inches | 24" (609mm) |
| Certification | UL |
KIP 8KW
| Model | KIP80W |
|---|---|
| Kilowatt Rating (KW) | 8kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 250 |
| Maximum Adjusted Cubic Feet | 425 |
| Voltage | 240V/208V |
| Phase | 1PH/3PH |
| 240V, Single Phase Amperage | 33.3 Amps |
| 208V, 3-Phase Amperage | 22.2 Amps |
| Heater Weight | 40 lbs |
| Shipping Weight with Sauna Stones | 84 lbs |
| Width In Inches | 16" (406mm) |
| Depth In Inches | 11" (279mm) |
| Height In Inches | 24" (609mm) |
Users Manual
Harvia KIP Guide
