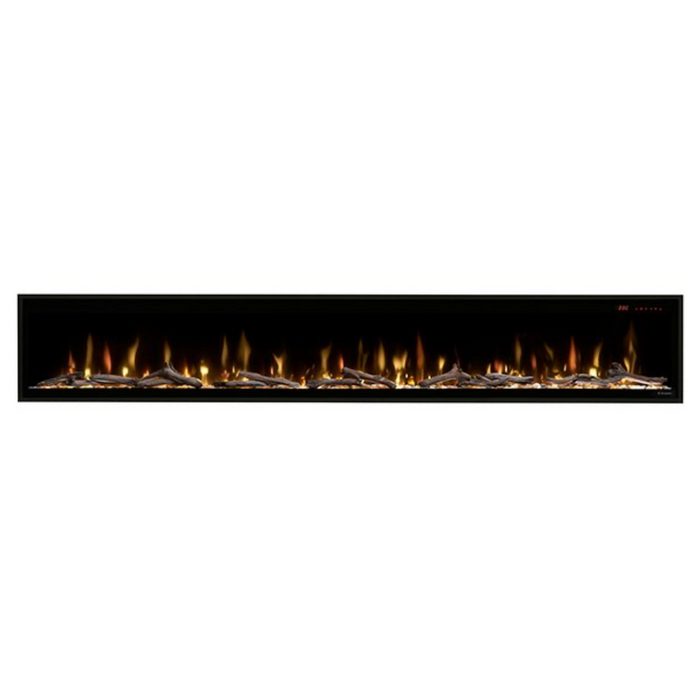

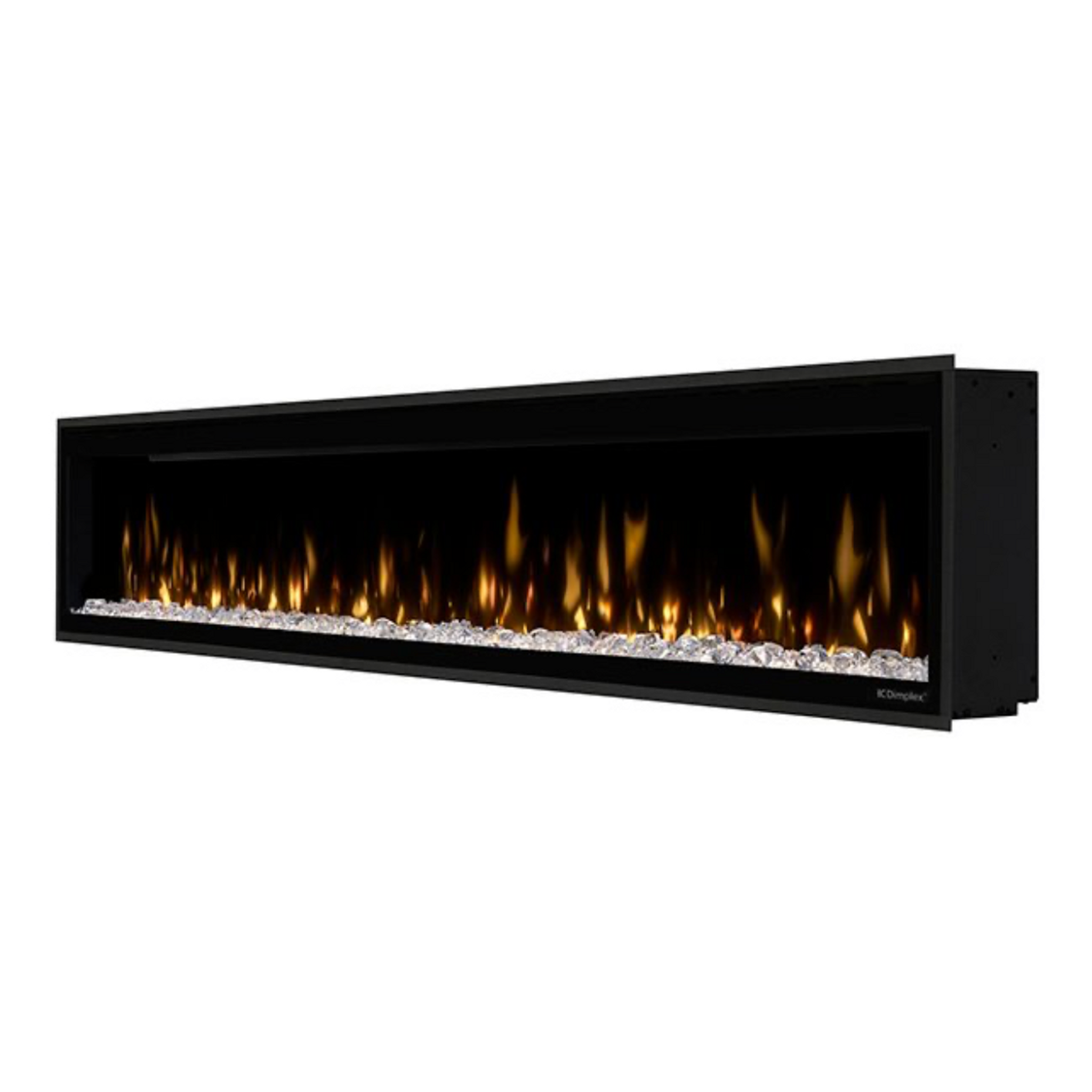

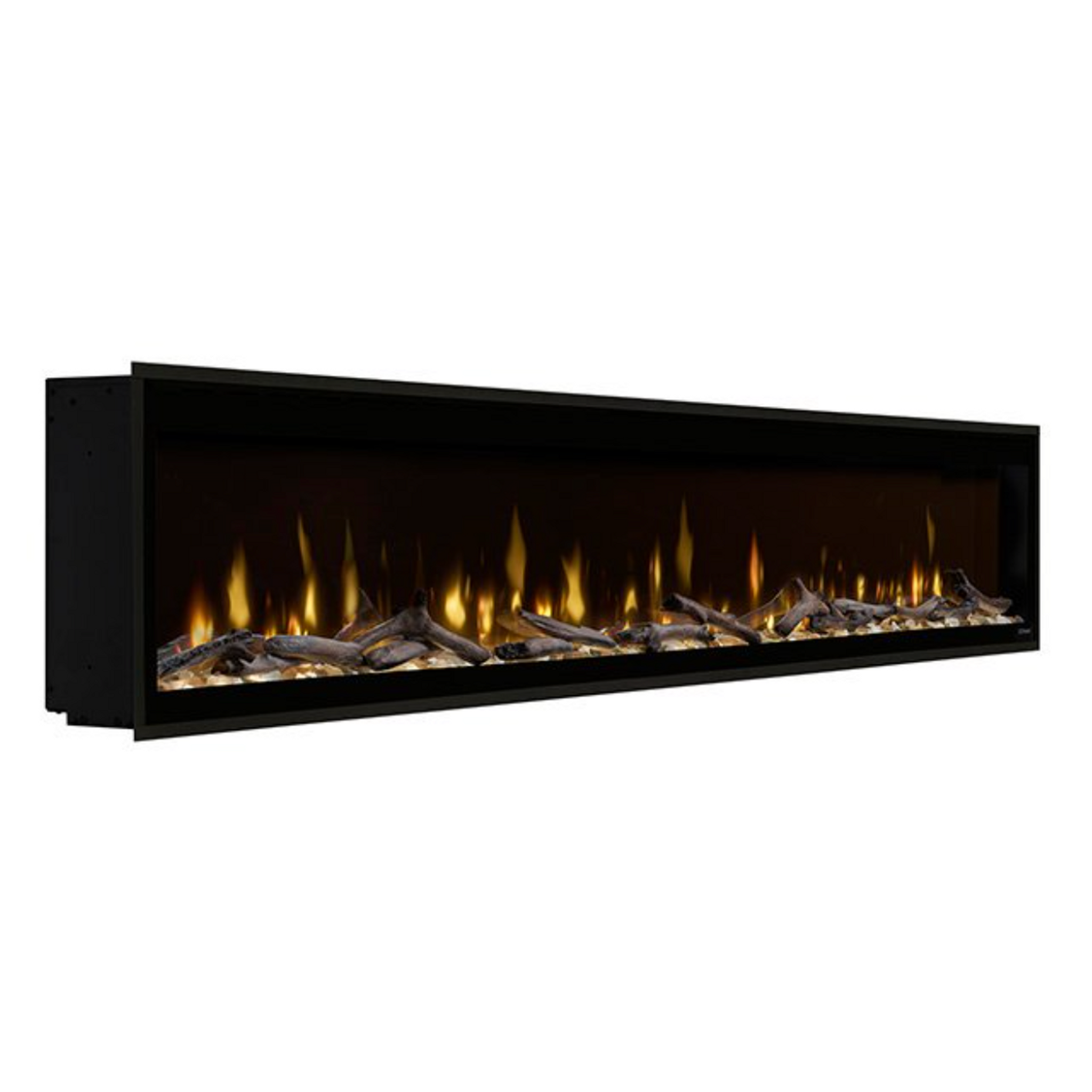

Dimplex Ignite Evolve 100" Linear Built-in Electric Fireplace

Dimplex Ignite Evolve 100" Linear Built-in Electric Fireplace

The fireplace landscape is evolving, and with that so has the Dimplex Ignite series. The new Ignite Evolve pushes boundaries to complement both modern and traditional spaces. Enjoy ultra realistic flames accompanied by multi-tonal tumbled glass and lifelike driftwood. Transform your space with Ignite Evolve.

• Adjust the speed of the flame with 5 speed settings to create the perfect atmosphere to suit your mood or room
• New tumbled glass media with translucent colors: amber, charcoal and white, and new driftwood media molded from real logs
• The patented Dimplex flame technology produces vivid, realistic flames for a traditional fire appearance
• Compatible with the Flame Connect app to let you control your fireplace from your phone

Features

• Multi-Fire XD® Flame Effect - The patented Dimplex flame technology produces vivid, realistic flames for a traditional fire appearance.
• Less Frame, More Flame - Clean front face with minimal trim makes the dazzling flames the focal point.
• Edgeless Design - The edgeless design installs without trim right up to stone, brick, and other solid wall finish materials; includes trim for drywall and tile surfaces.
• Media Accent Colors - Choose from a variety of brilliant color themes or cycle through a range of colors using the custom mode, freezing on the hue of your choice.
• Optional Media Modes - Utilize 3 different presets for customized views - prism, kaleidoscope, and midnight mode.
• Comfortsaver® - Dimplex’s exclusive Comfort$aver heater provides on-demand, supplemental heating that warms up to 1,000 sq. ft.
• Heat Boost - Quickly warms a room by delivering maximum heat output for a pre-determined amount of time.
• Cool-touch Glass - Glass remains cool making it safe for children and pets.
• Smart Self-Diagnostics - Integrated self-diagnostics that simplify troubleshooting and improve service.
• Seamless Installation - Low-profile design fully recesses in 2" x 6" wall construction and 2" x 4" with optional trim. Hardwire using 120V or 240V for powerful heating.
• Hardwire or Plug-in - Hardwire to 120V/240V power supply or use the optional 120V plug-in cord kit.
• Easy Installation - No venting, gas lines, or piping required;simply frame, wire and finish for quick and easy installation.

Best Design Styles

• Contemporary; Modern

Included

• Dimplex Ignite Evolve 100" Built In Linear Electric Fireplace
• Acrylic crystal media bed
• Driftwood media molded from real logs
• Tumbled glass media
• Mood-maker Remote
• 5 Year Warranty

Dimensions & Specifications

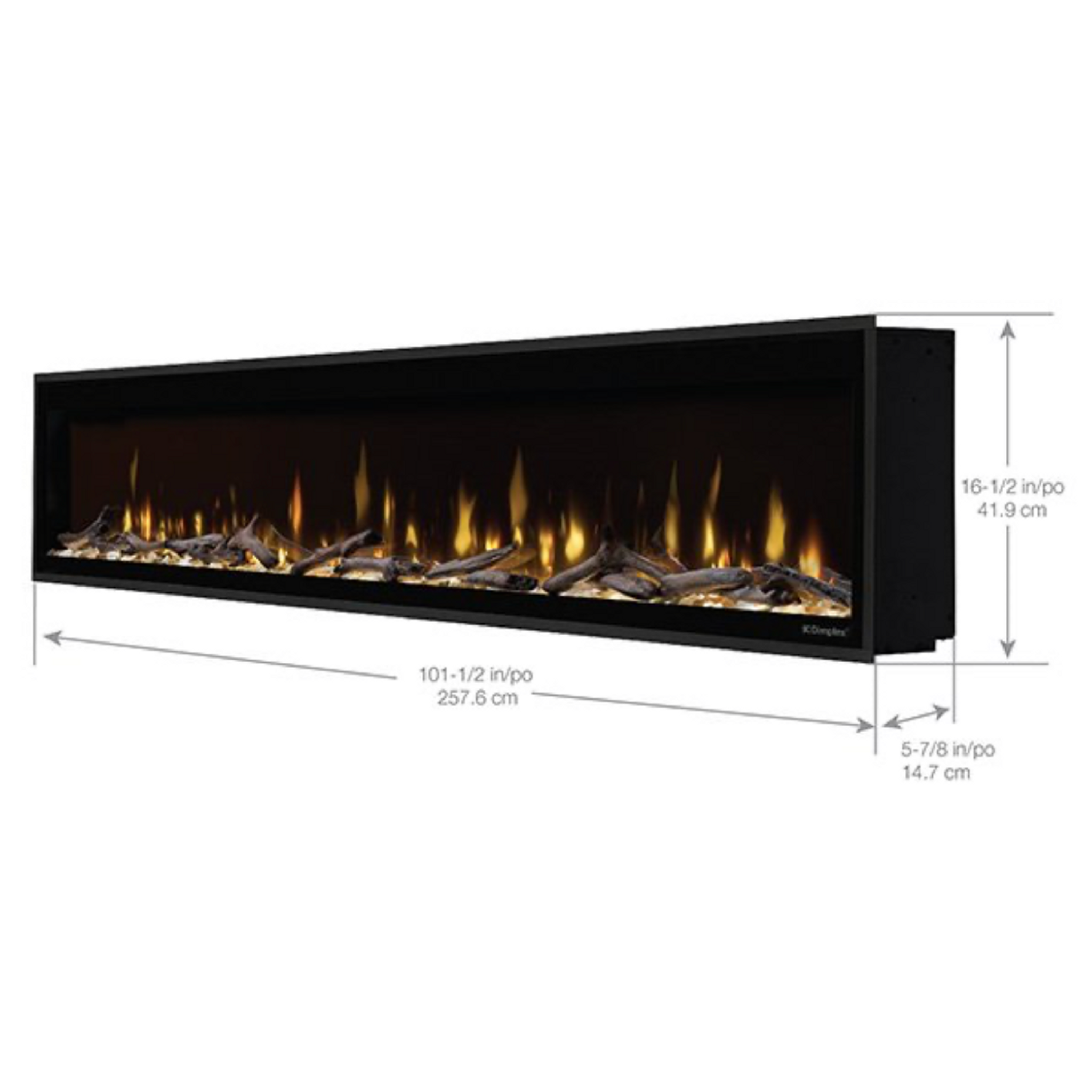

Fireplace Dimensions: 101-1/2" W x 16-1/2" H x 5-7/8" D

Framing Rough Dimension: 100-5/8" W x 16" H x 5-1/2" D

Viewing Area: 98-3/4" W  x 12 1/8" H

PRODUCT SPECS
Brand	Dimplex
Finish/Color	Black
Media Bed	Acrylic Crystal, Glass & Logs
Installation	Built-In
Weight	137.59 lbs
Heat Location	Front Top Vents
Warranty	5 Year
Remote Control	Multi-Function

ELECTRICAL SPECS
Volts	120V / 240V
Watts	1500/2500
Amps	12.5/10.4
Wiring	Direct Wire | Plug Kit
Bulb Type	LED
BTUs	5118 / 8530
Heat Type	Fan Forced
Heating Area	Up to 1000 sqft
Certification

User Manual & Guide

Specs Sheet

Install Manual

Service Manual
