Description

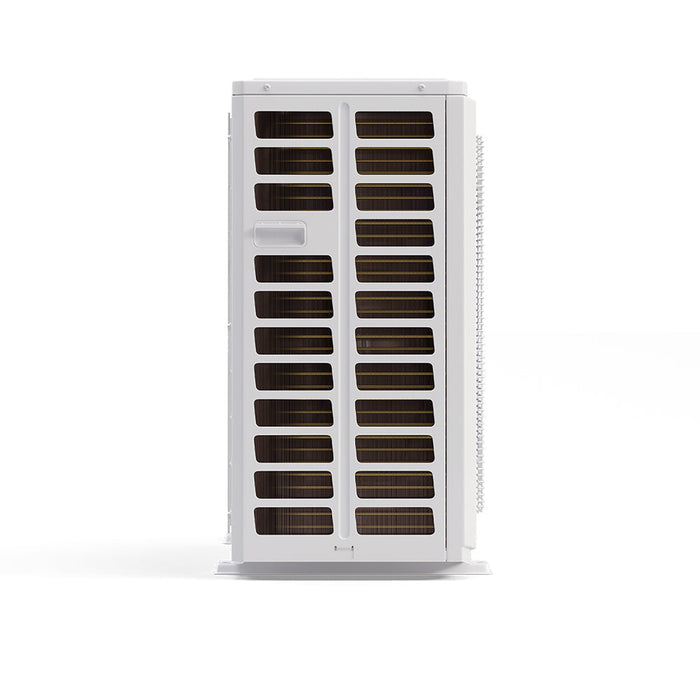

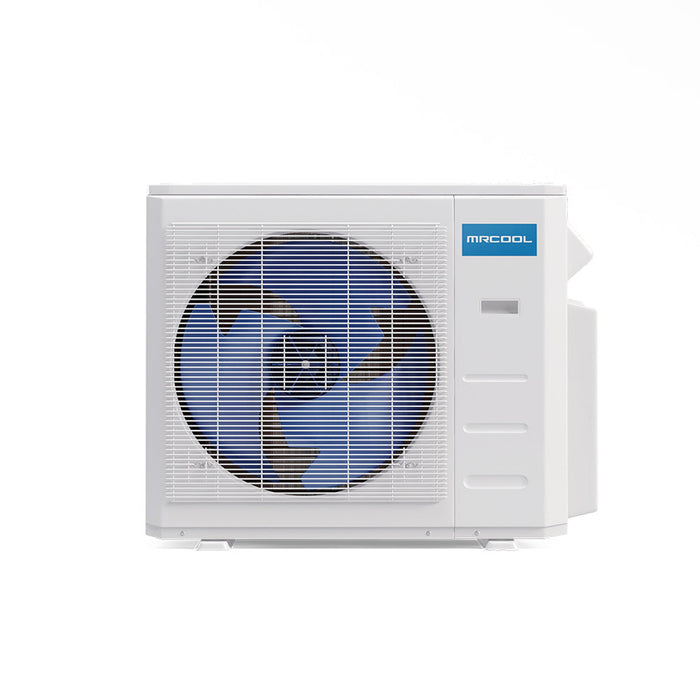

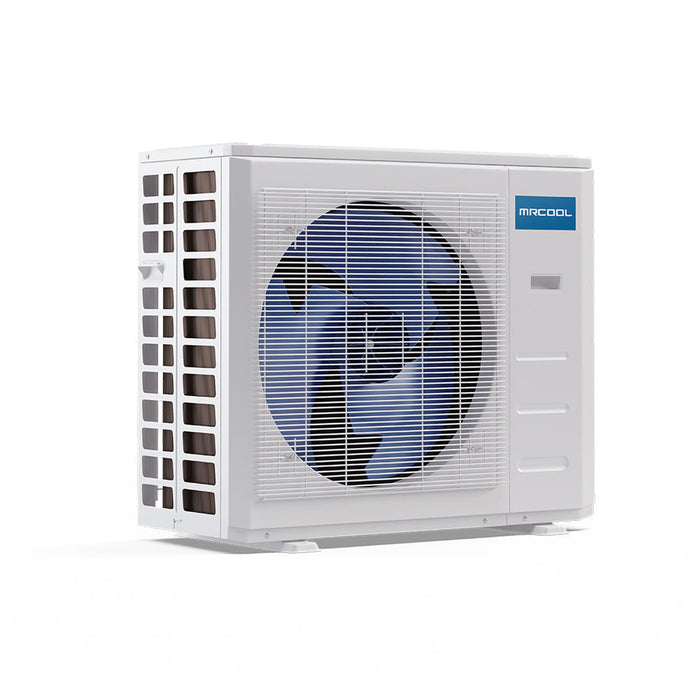

MrCool DIY 4th Gen Multi-Zone 3-Zone Condenser
Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool’s patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home’s heating and cooling.

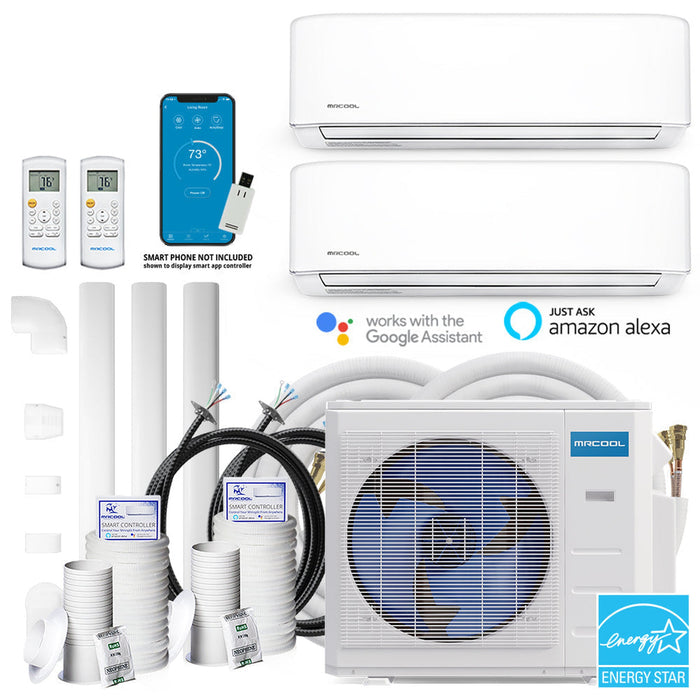

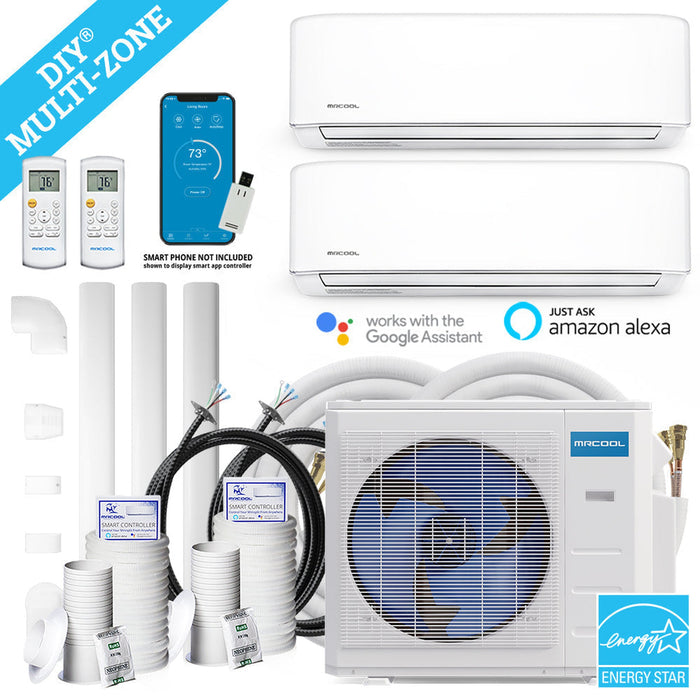

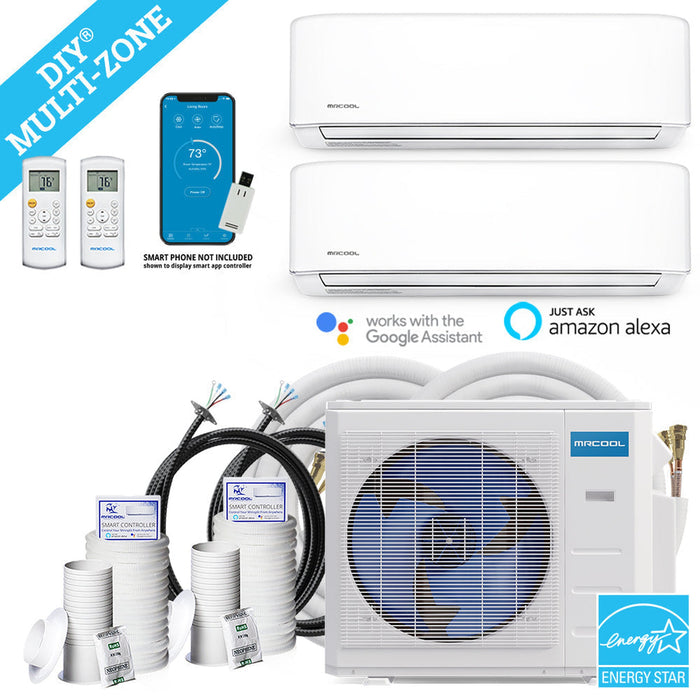

What's Included:
18K BTU 3-Zone Ductless Heat Pump Condenser |
9K BTU Ductless Wall Mounted Air Handler |
12K BTU Ductless Wall Mounted Air Handler |
25ft 1/4 x 1/2 Lineset Install Kit |
35ft 1/4 x 1/2 Lineset Install Kit |
Features
-
Up to 22 SEER
-
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
-
Energy Efficient DC Inverter
-
R-410A environmentally friendly refrigerant
-
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Users Manual & Documents
Brochure |
Install Manual |
Owner Manual |
Remote Manual |
Technical Manual |
Warranty Doc |
Specifications
SEER |
22 |
EER |
12 |
HSPF |
hspf4/hspf5 : 10.3/8.2 |
CFM |
2129.41 |
COOLING CAPACITY |
27000 BTU |
HEATING CAPACITY |
27000 BTU |
VOLTAGE |
208-230 V |
PHASE |
1 |
CYCLE |
60 Hz |
MAX FUSE BREAKER |
40 A |
MIN CIRCUIT AMPACITY |
26 A |
COLOR |
White |
COLOR FAMILY |
White |
ZONE CAPACITY |
Up to 3 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME |
91.71 oz |
DECIBEL RATING |
61 dBA |
INVERTER |
Yes |
MIN AMBIENT COOL |
5F ~ 122F |
MIN AMBIENT HEAT |
-13F ~ 75.2F |
MAX LINESET LENGTH |
147.64ft TOTAL |
LIQUID LINE SIZE |
1/4in |
SUCTION LINE SIZE |
3/8in |
COMPRESSOR MOTOR TYPE |
Twin - Rotary |
CONDENSER FAN MOTOR RPM |
1050/900/850 |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
NET DEPTH |
16.14 in |
NET HEIGHT |
31.89 in |
NET WIDTH |
37.24 in |
NET WEIGHT |
139.99 lbs |
GROSS DEPTH |
19.88 in |
GROSS HEIGHT |
35.04 in |
GROSS WIDTH |
42.91 in |
GROSS WEIGHT |
157.19 lbs |
Covered by the Best Warranty in the Industry! |
