Description

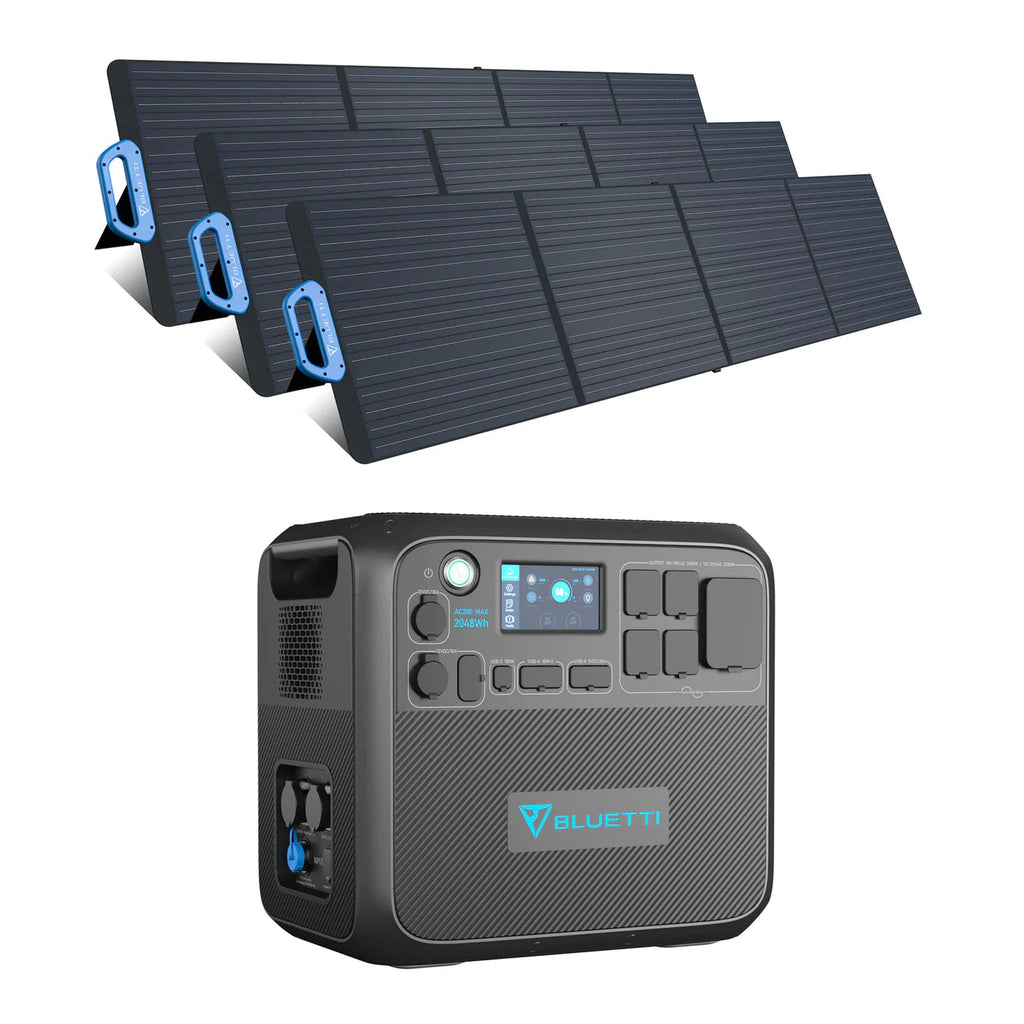

BLUETTI Solar Generator Kit | AC200MAX + 3*PV200
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
Features
- SMALL CHANGE, HUGE LEAP
The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.
- LESS TO SPEND, MORE TO LOVE
- GET CHARGED IN ANYWAY YOU PREFER
- INCOMPARABLE OUTLET VERSATILITY
- Never Run Out of Power
Specifications
| AC200MAX | ||
|---|---|---|
| BATTERY INFO | Capacity | 2,048Wh (51.2V, 40Ah) |
| Type | LiFePO4 (Lithium Iron Phosphate) | |
| Life Cycles | 3,500+ Cycles to 80% Original Capacity | |
| Shelf-life | Recharge to 80% Every 3-6 Months | |
| Management System | MPPT Controller, BMS, etc | |
| OUTPUT | AC Outlets | 4 x 120V/20A Outlets |
| 1 x 120V/30A NEMA TT-30 | ||
| 2200W In Total | ||
| Inverter Type | Pure Sine Wave | |
| Surge Power | 4800W | |
| USB-C Port | 1 x 100W Max. | |
| USB-A Port | 2 x 5V/3A USB-A | |
| 2 x 18W USB-A | ||
| 12V DC Outlets | 1 x 12V/30A (RV Outlet) | |
| 1 x 12V/10A (Car Outlet) | ||
| 2 x 12V/10A DC 5521 (5.5mm Outlet) | ||
| *All Regulated. | ||
| Wireless Charging Pad | 2 x 15W Max. (For Each) | |
| INPUT | AC Adapter Input | 500W. |
| Solar Input | 900W Max., VOC 10-145VDC, 15A | |
| Car Input | 12/24V from Cigarette Lighter Port | |
| Max Input | 1,400W, with AC+Solar Input | |
| RECHARGE TIMES | AC Adapter (400W) | ≈5.5~6 Hours |
| Solar (900W) | ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature) | |
| 12V/24V Car Outlet (100W/200W) | ≈10 or 20 Hours | |
| AC Adapter + Solar (1300W) | ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature) | |
| Dual AC Adapters (800W) | ≈3~3.5 Hours (Extra adapter is REQUIRED) | |
| GENERAL | 240V Split Phase Bonding | No. Need 240V power source? Explore here. |
| Scalability | Expandable w/ Up to 2 x B230 or 2 x B300 | |
| Pass-through Charging | Yes | |
| Weight | 61.9lbs (28.1kg) | |
| Dimensions (LxWxD) | 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm) | |
| Operating Temperature | -4-104℉ (-20-40℃) | |
| Storage Temperature | 14-113℉ (-10-45℃) | |
| Certifications | UL Standard, CEC, DOE, FCC, CA Prop 65 | |
| Warranty | 48 Months (Learn more about BLUETTI warranty policy) | |

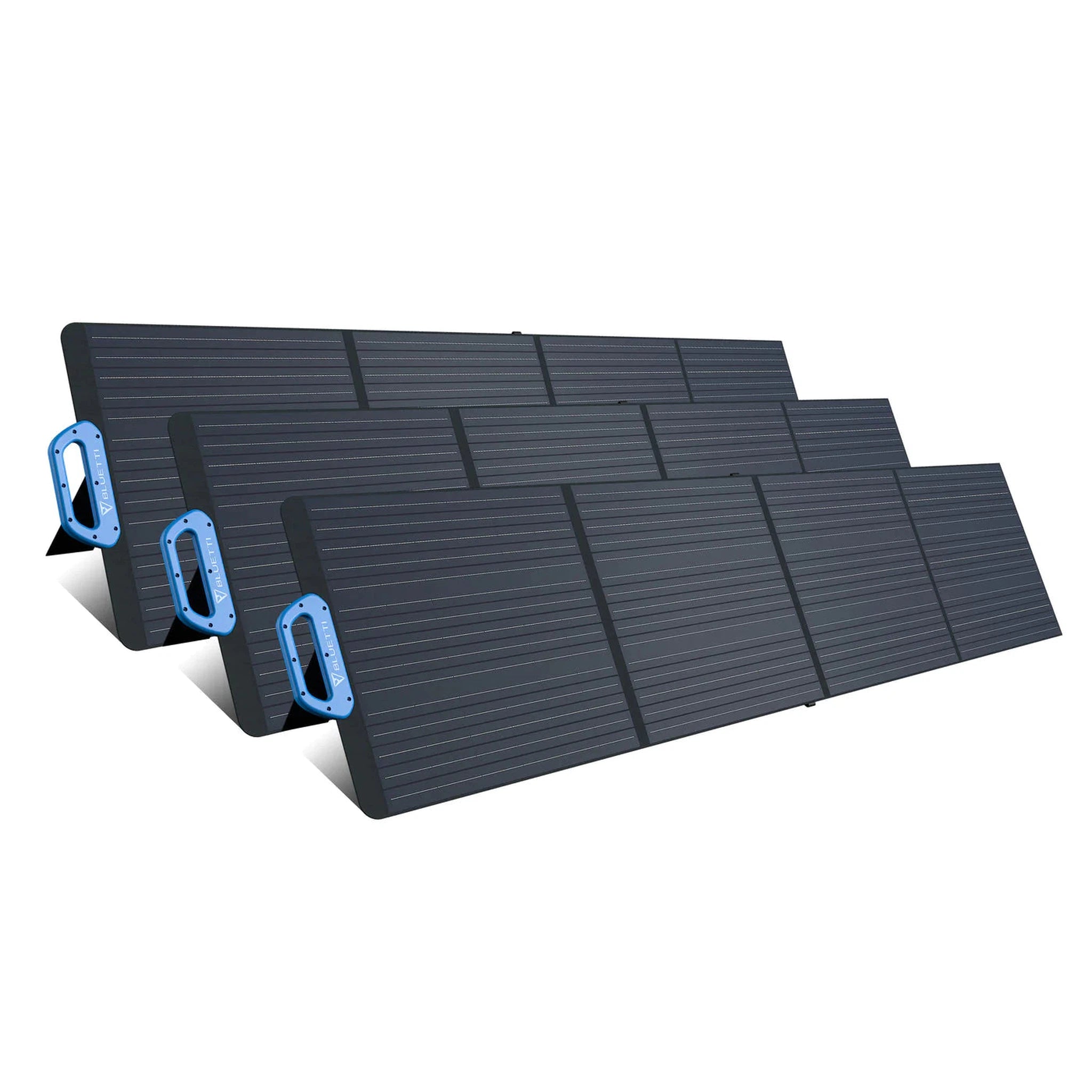

| 3*Pv200 | ||
| Power | Power | 200W |
| Lamination | ETFE (Ethylene tetrafluoroethylene) | |
| Cell Type | Monocrystalline Silicon | |
| Cell Efficiency | Up to 23.4% | |
| Voltage at Max Power(Vmp) | 20.5V | |
| Current at Max Power(Imp) | 9.7A | |
| Open Circuit Voltage(OCV) | 26.1V | |
| Short Circuit Current(Isc) | 10.3A | |
| GENERAL | Connector | Standard MC4 Connector |
| Weight | 16.1lbs (7.3kg) | |
| Dimensions (Unfolded) | 23.2 × 89.2in (59 × 226.5cm) | |
| Dimensions (Folded) | 23.2 × 24.8inch (59 × 60cm) | |
| Operating Temperature | 14-149℉ (-10-65℃) | |
| Best Working Temperature | 77℉ (25℃) | |
| Cable Length | 118in (3m) | |
| Certifications | FCC, CE, ROHS | |
| Warranty | 12 Months (Enter to learn more about BLUETTI warranty policy) | |
