Description

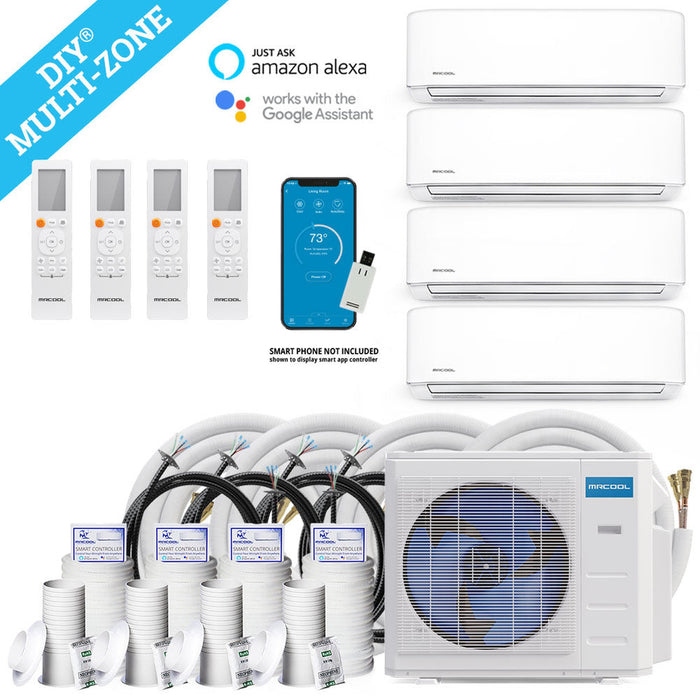

What's Included:
48K BTU 5-Zone Ductless Heat Pump Condenser |
||||
9K BTU Ductless Wall Mounted Air Handler | ||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
50ft 1/4 x 1/2 Lineset Install Kit |
DIYCOUPLER-1412K75C |
MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser
Introducing the latest in home comfort solutions with the new 4th Generation MrCool DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating.
MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets.
These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.
Features
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
SEER |
20.5 |
EER |
11 |
HSPF |
hspf4/hspf5 : 11/8.5 |
CFM |
4500 |
COOLING CAPACITY |
48000 BTU |
HEATING CAPACITY |
48000 BTU |
VOLTAGE |
208-230 V |
PHASE |
1 |
CYCLE |
60 Hz |
MAX FUSE BREAKER |
60A |
MIN CIRCUIT AMPACITY |
40 A |
COLOR |
White |
COLOR FAMILY |
White |
ZONE CAPACITY |
Up to 5 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME |
162 oz |
DECIBEL RATING |
61.5 dBA |
INVERTER |
Yes |
MIN AMBIENT COOL |
5F ~ 122F |
MIN AMBIENT HEAT |
5F ~ 75.2F |
MAX LINESET LENGTH |
246.06 ft TOTAL |
LIQUID LINE SIZE |
1/4in |
SUCTION LINE SIZE |
3/8in+1/2in |
COMPRESSOR MOTOR TYPE |
Rotary |
CONDENSER FAN MOTOR RPM |
900/850/800/750 |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
NET DEPTH |
16.34 in |
NET HEIGHT |
52.48 in |
NET WIDTH |
37.48 in |
NET WEIGHT |
222.89 lbs |
GROSS DEPTH |
19.49 in |
GROSS HEIGHT |
54.33 in |
GROSS WIDTH |
43.11 in |
GROSS WEIGHT |
254.41 lbs |
