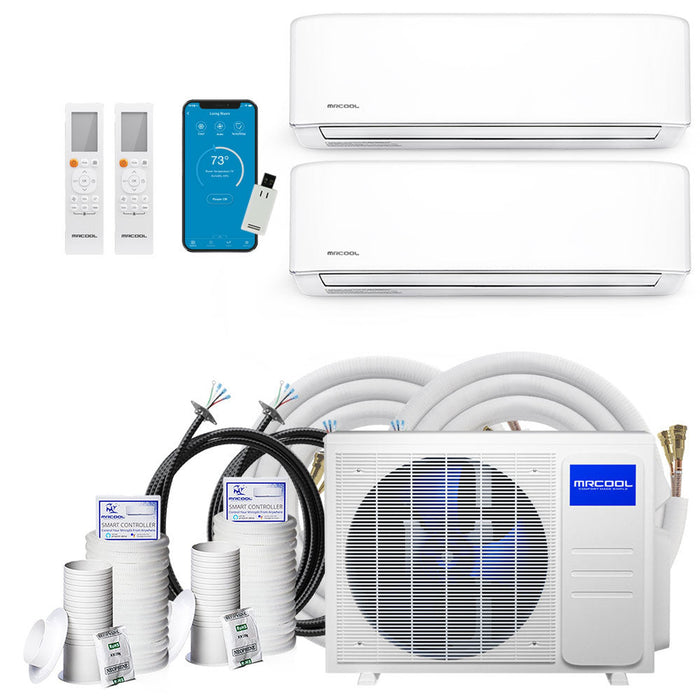

MRCOOL DIY 4th Gen 48K BTU 2-Zone Condenser with 24K+24K handlers and 2 x 35ft linesets Bundle DIYM248HPW01C13
MRCOOL DIY 4th Gen Mini Split Bundle
The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to two rooms. The easy installation, Do-It-Yourself
Bundle Includes:
-
MRCOOL DIY 4th Gen Multi-Zone 5-Zone 48K BTU Condenser Up to 20.5 SEER
-
MRCOOL DIY 4th Generation 24K BTU Heat Pump Wall Mount Air Handler with 25ft DIY Pro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant
-
Line Sets - length & quantity varies based on selection:
-
MRCOOL 16 Ft. 3/8" x 5/8" Line Set for DIY 24K, & 36K Indoor
-
MRCOOL 25 Ft. 3/8" x 5/8" Line Set for DIY 24K, & 36K Indoor
-
MRCOOL DIY 4th Generation 35 Ft. 3/8" x 5/8" Line Set for DIY 24K, & 36K Indoor
-
MRCOOL DIY 4th Generation 50 Ft. 3/8" x 5/8" Line Set for DIY 24K, & 36K Indoor
-
MRCOOL DIY 4th Generation 66 Ft. 3/8" x 5/8" Line Set Kit for DIY 24K, & 36K Indoor
-
MRCOOL DIY 4th Generation 75 Ft. 3/8" x 5/8" Line Set Kit for DIY 24K, & 36K Indoor
Features
MRCOOL Wall Mount Air Handler - 24K BTU - Quantity 2
MRCOOL Line Sets
- The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
-
Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
-
Length Options - Select which combination of lengths you require for your installation needs.
-
Need more length? Use a coupler to connect two lines together
- Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
- Connect up to 66 ft. or 77 ft. in total length
Specifications
Condenser
|
|
Dimensions
|
16.34" D x 52.48" H x 37.48" W
|
Voltage
|
208-230 V
|
SEER
|
20.5
|
Cooling Capacity
|
48K BTU
|
Heating Capacity
|
48K BTU
|
Min-Max Ambient Cool
|
5F ~ 122F
|
Min-Max Ambient Heat
|
5F ~ 75.2F
|
Refrigerant Type
|
R-410A
|
Max Line Set Length
|
246.06 ft TOTAL
|
24K Air Handler
|
|
Product Dimensions
|
8.90" D x 13.19" H x 42.52" W
|
Voltage
|
208-230 V
|
Cooling Capacity
|
23K BTU
|
Heating Capacity
|
25K BTU
|
Modes
|
- Auto - auto selects from Cool, Heat or Fan-Only
- Dry (Dehumidifies)
- Cool
- Heat
- Fan Only
- Quiet
- Sleep
|
Line Sets
|
|
Length
|
16 ft., 25 ft., 35 ft., or 50 ft.
|
Liquid Line Size
|
3/8"
|
Suction Line Size
|
5/8"
|
Couplers
|
- Connect 50 ft. line set to 16 ft. or 25 ft. line set
- For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
- For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
|
Restricted States
|
GU;PR;VI
|
