MRCOOL DIY 4th Gen 36K BTU 4-Zone Condenser with 9K+9K+9K+9K handlers and 4 x 16ft linesets Bundle
MRCOOL DIY 4th Gen Mini Split Bundle
The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to four rooms. The easy installation, Do-It-Yourself

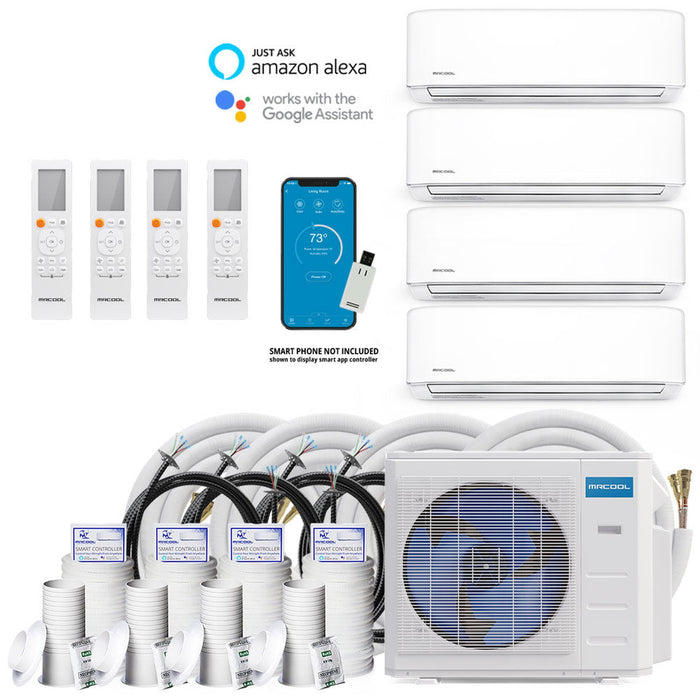

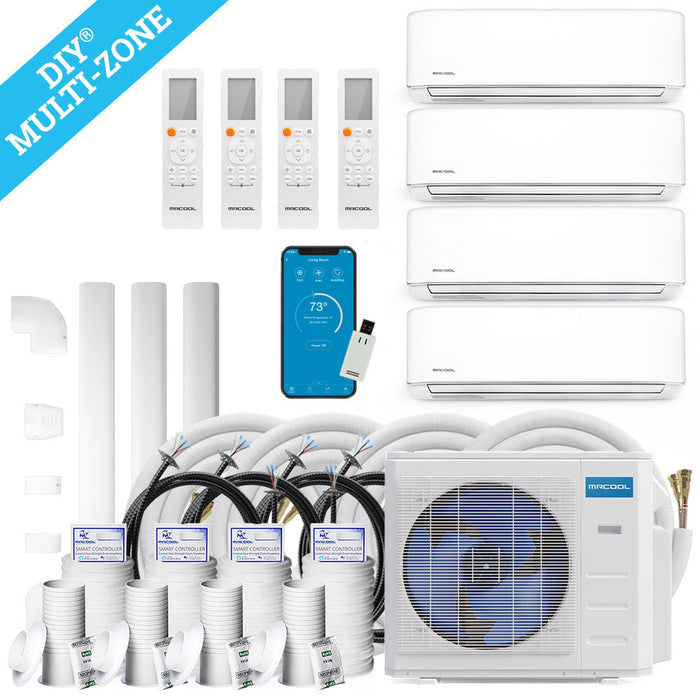

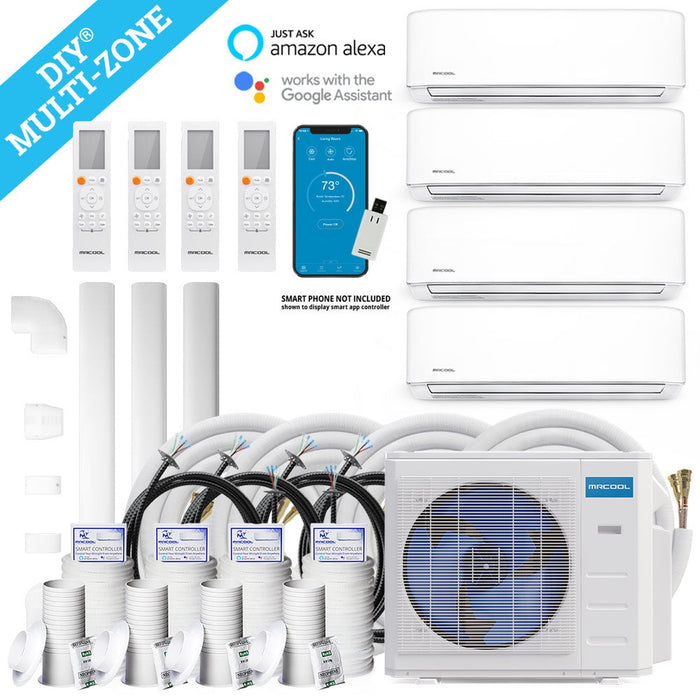

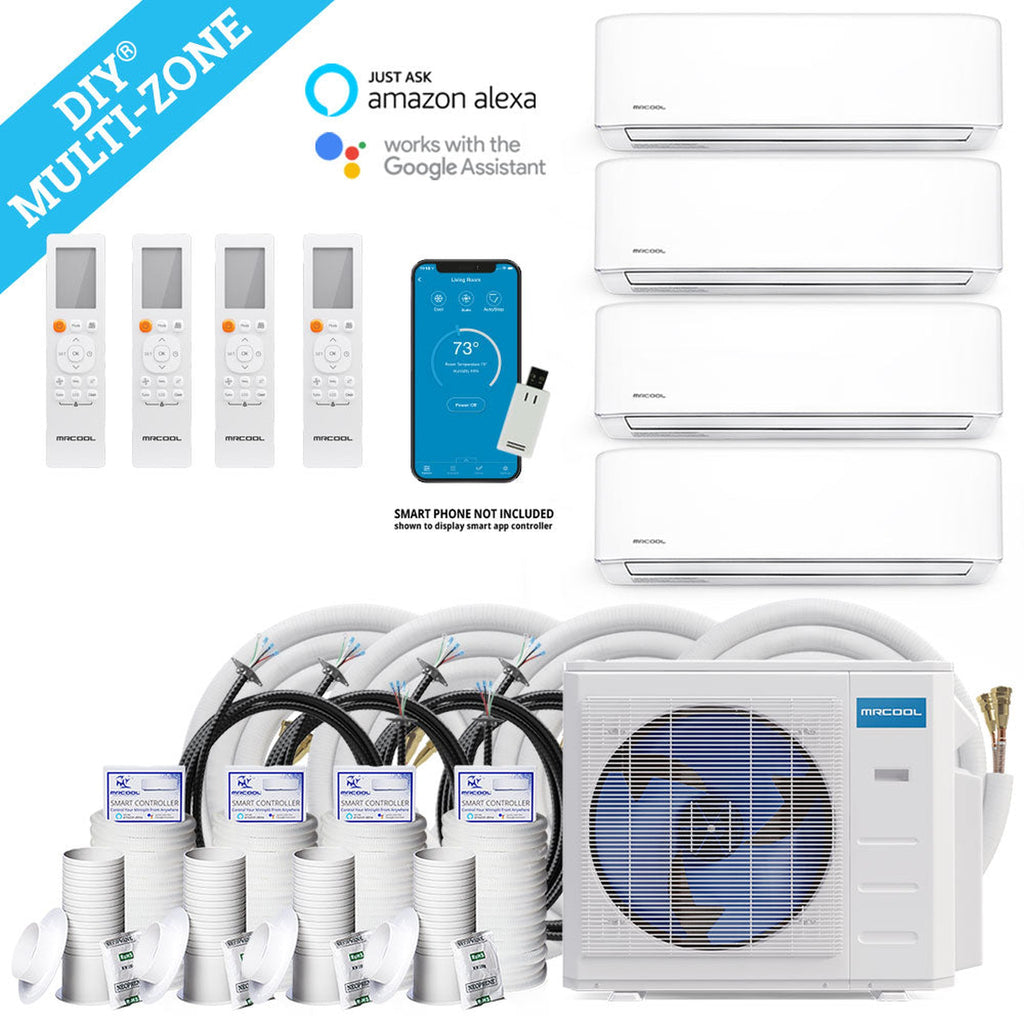

Bundle Includes
-
MRCOOL DIY 4th Gen Multi-Zone 4-Zone 36K BTU Condenser Up to 21.5 SEER
-
MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant
-
Line Sets - length & quantity varies based on selection:
-
MRCOOL 16 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K & 18K Indoor
-
MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
-
MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
-
MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor
Features
MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 4
MRCOOL Line Sets
- The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
-
Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
-
Length Options - Select which combination of lengths you require for your installation needs.
-
Need more length? Use a coupler to connect two lines together
- Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
- Connect up to 66 ft. or 77 ft. in total length
Specifications

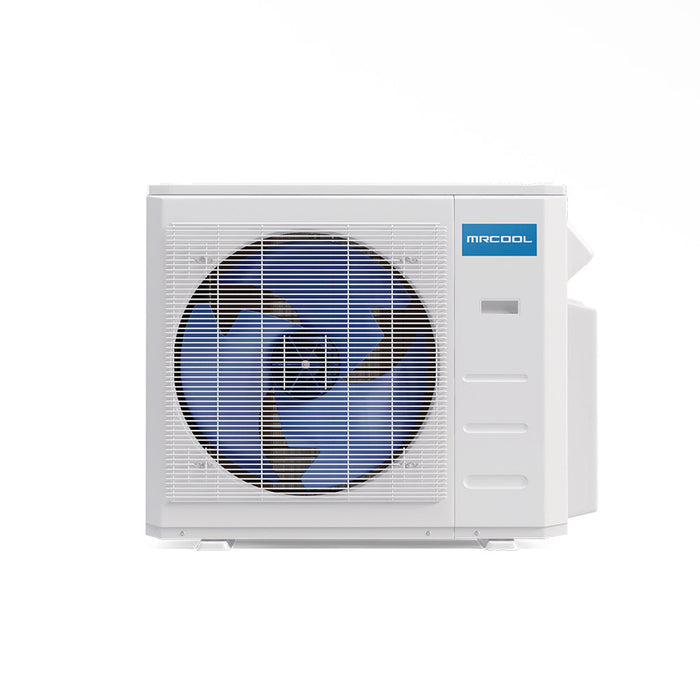

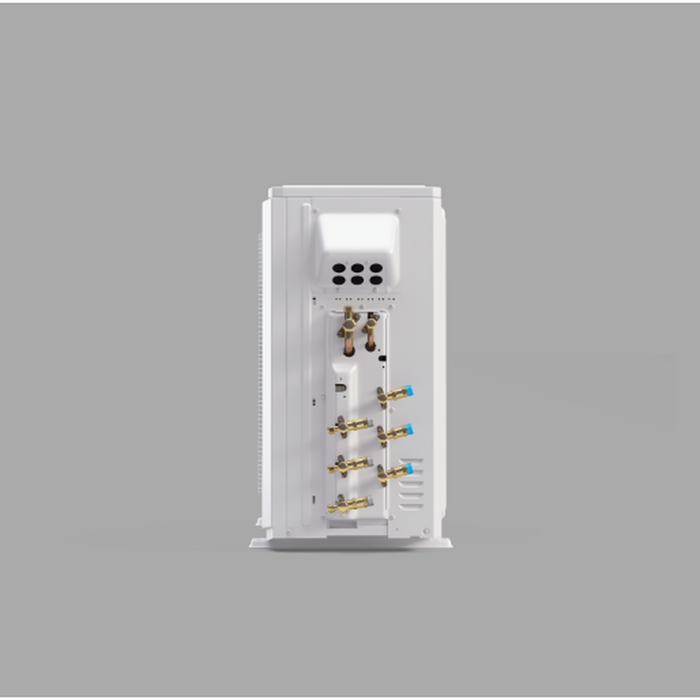

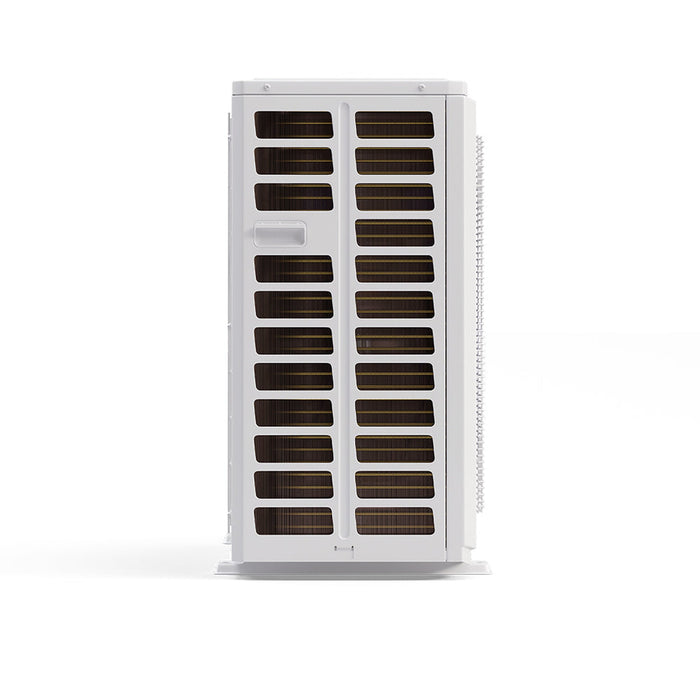

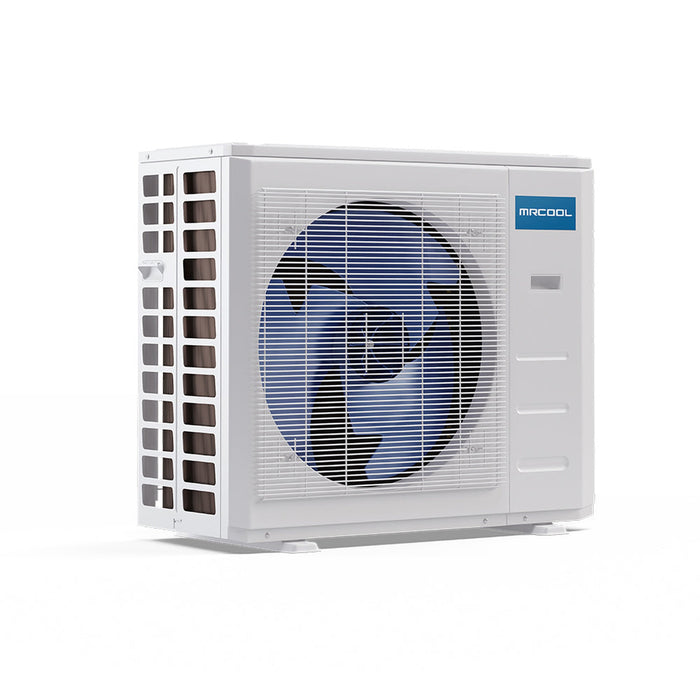

Condenser
|
|
Dimensions
|
16.14" D x 31.89" H x 37.24" W
|
Voltage
|
208-230 V
|
SEER
|
21.5
|
Cooling Capacity
|
36K BTU
|
Heating Capacity
|
36K BTU
|
Min-Max Ambient Cool
|
5F ~ 122F
|
Min-Max Ambient Heat
|
-13F ~ 75.2F
|
Refrigerant Type
|
R-410A
|
Max Line Set Length
|
196.85 ft TOTAL
|
9K Air Handler
|
|
Product Dimensions
|
7.44" D x 11.69" H x 31.57" W
|
Voltage
|
208V-240V
|
Cooling Capacity
|
9K BTU
|
Heating Capacity
|
9K BTU
|
Modes
|
- Auto - auto selects from Cool, Heat or Fan-Only
- Dry (Dehumidifies)
- Cool
- Heat
- Fan Only
- Quiet
- Sleep
|
Line Sets
|
|
Length
|
16 ft., 25 ft., 35 ft., or 50 ft.
|
Liquid Line Size
|
1/4"
|
Suction Line Size
|
1/2"
|
Couplers
|
- Connect 50 ft. line set to 16 ft. or 25 ft. line set
- For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
- For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
|
Restricted States
|
GU;PR;VI
|
Proposition 65 Warning
|
Yes
|
Line Sets
|
|
Length
|
16 ft., 25 ft., 35 ft., or 50 ft.
|
Liquid Line Size
|
3/8"
|
Suction Line Size
|
5/8"
|
Couplers
|
- Connect 50 ft. line set to 16 ft. or 25 ft. line set
- For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
- For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
|
Restricted States
|
GU;PR;VI
|
Users Manual
