MRCOOL DIY 4th Gen 36K BTU 4-Zone Condenser with 9K+9K+12K+24K handlers and 4 x 25ft linesets Bundle

by MRCOOL
Save $400.00 Save $400.00
Original price $6,451.00
Original price $6,451.00 - Original price $6,451.00
Original price $6,451.00
Current price $6,051.00
$6,051.00 - $6,051.00
Current price $6,051.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

MRCOOL DIY 4th Gen 36K BTU 4-Zone Condenser with 9K+9K+12K+24K handlers and 4 x 25ft linesets Bundle DIYM448HPW09C112

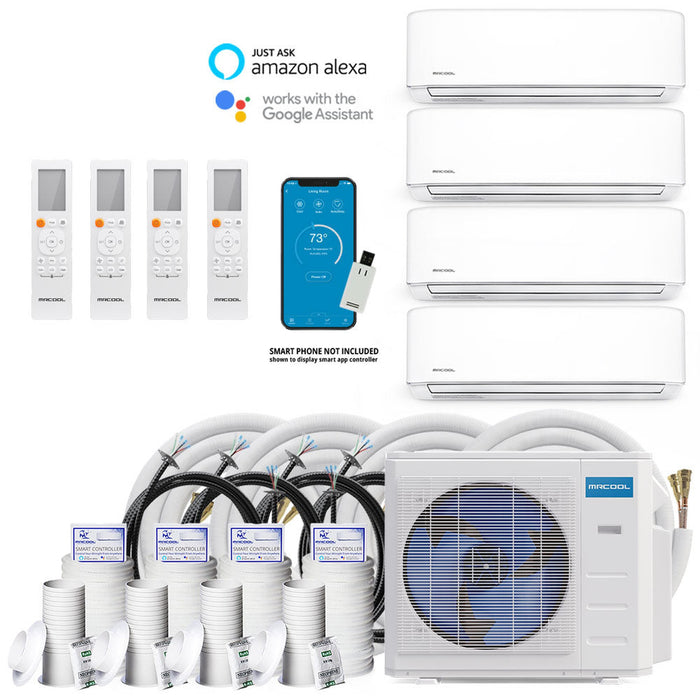

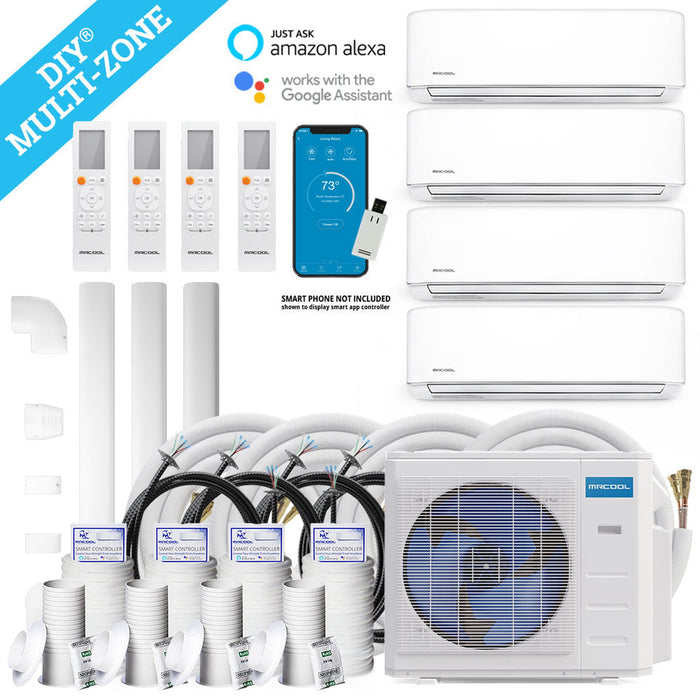

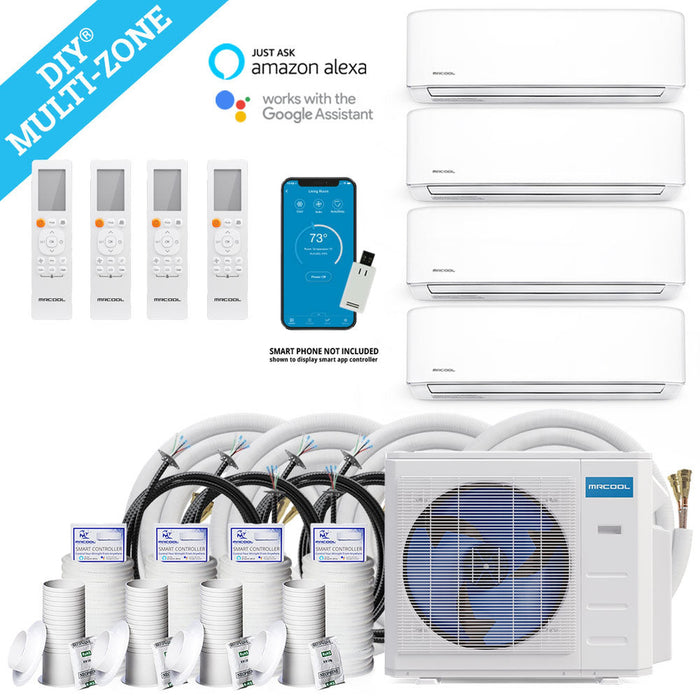

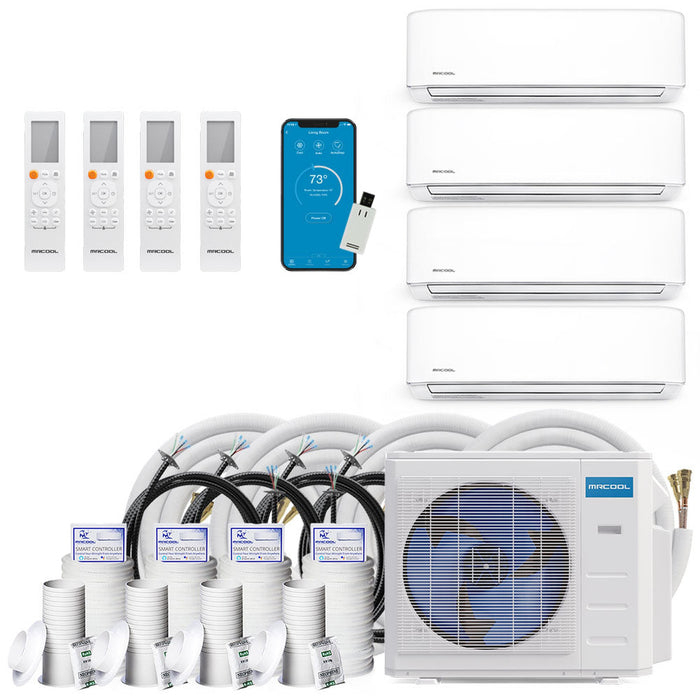

MRCOOL DIY 4th Gen Mini Split Bundle

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to four rooms. The easy installation, Do-It-Yourself

Bundle Includes:

  1. MRCOOL DIY 4th Gen Multi-Zone 5-Zone 48K BTU Condenser Up to 20.5 SEER

  2. MRCOOL DIY 4th Generation 24K BTU Heat Pump Wall Mount Air Handler with 25ft DIY Pro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant

  3. MRCOOL DIY 4th Generation 12K BTU Heat Pump Wall Mount Air Handler with Enhanced WiFi - WorKs with Alexa & Google Assistant

  4. MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler with 25 Ft. DIYPro Cable and Enhanced WiFi - WorKs with Alexa & Google Assistant

  5. Line Sets - length & quantity varies based on selection:

  • MRCOOL 25 Ft. 3/8" x 5/8" Line Set for DIY 24K, & 36K Indoor

  • MRCOOL 16 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K & 18K Indoor

  • MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor

  • MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor



Features

  • Power - 48K BTUs
  • Zones - Cool and heat up to five rooms in your home
  • SEER - SEER efficiency rating of up to 20.5
  • Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
  • Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
  • Environmentally Friendly - R-410A environmentally friendly refrigerant
  • Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

    MRCOOL Wall Mount Air Handler - 24K BTU - Quantity 1

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

    MRCOOL Wall Mount Air Handler -12K BTU - Quantity 1

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

    MRCOOL Wall Mount Air Handler - 9K BTU - Quantity 2

    • Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
    • Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate
    MRCOOL Line Sets
    • The MRCOOL copper line set is required to connect the Condenser to each Air Handler.

    • Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.

    • Length Options - Select which combination of lengths you require for your installation needs.

    • Need more length? Use a coupler to connect two lines together

      • Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set

      • Connect up to 66 ft. or 77 ft. in total length

    Specifications

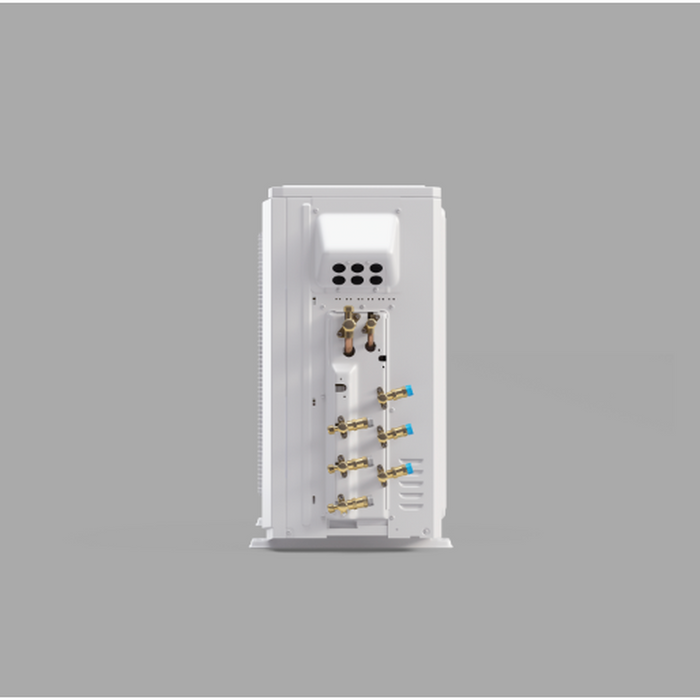

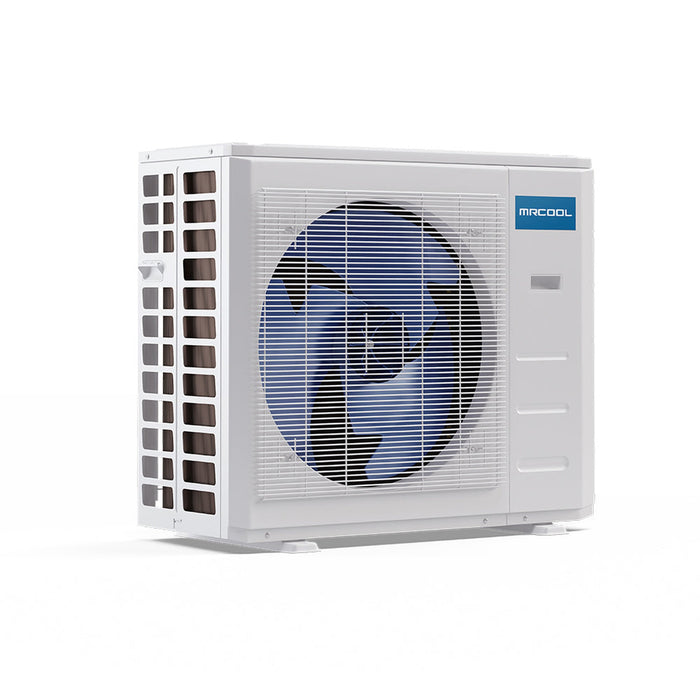

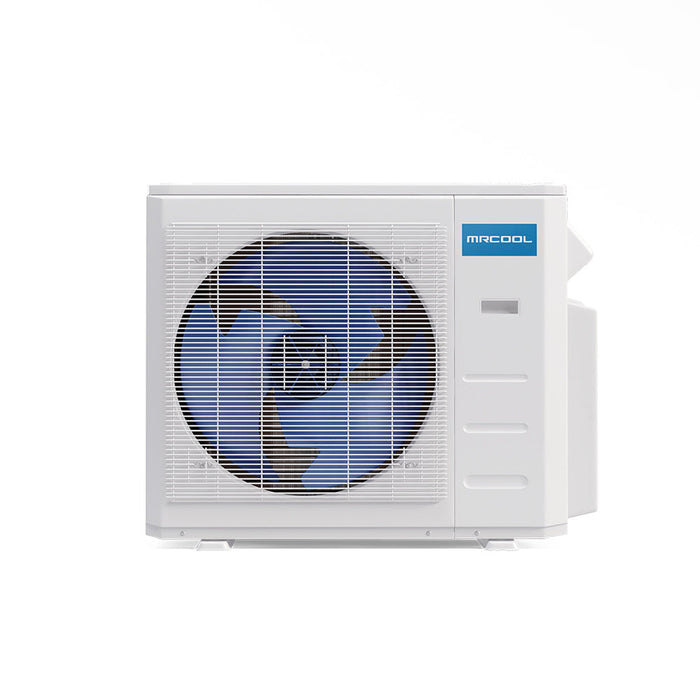

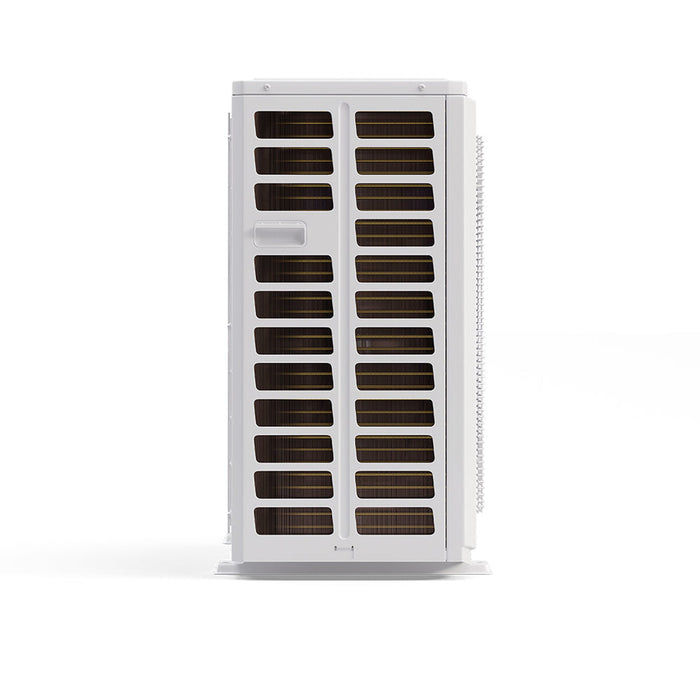

    Condenser

    Dimensions

    16.34" D x 52.48" H x 37.48" W

    Voltage

    208-230 V

    SEER

    20.5

    Cooling Capacity

    48K BTU

    Heating Capacity

    48K BTU

    Min-Max Ambient Cool

    5F ~ 122F

    Min-Max Ambient Heat

    5F ~ 75.2F

    Refrigerant Type

    R-410A

    Max Line Set Length

    246.06 ft TOTAL



    24K Air Handler

    Product Dimensions

    8.90" D x 13.19" H x 42.52" W

    Voltage

    208-230 V

    Cooling Capacity

    23K BTU

    Heating Capacity

    25K BTU

    Modes

    • Auto - auto selects from Cool, Heat or Fan-Only
    • Dry (Dehumidifies)
    • Cool
    • Heat
    • Fan Only
    • Quiet
    • Sleep




    12K Air Handler

    Product Dimensions

    7.44" D x 11.69" H x 31.57" W

    Voltage

    208-230 V

    Cooling Capacity

    12K BTU

    Heating Capacity

    12K BTU

    Modes

    • Auto - auto selects from Cool, Heat or Fan-Only
    • Dry (Dehumidifies)
    • Cool
    • Heat
    • Fan Only
    • Quiet
    • Sleep



    9K Air Handler

    Product Dimensions

    7.44" D x 11.69" H x 31.57" W

    Voltage

    208V-240V

    Cooling Capacity

    9K BTU

    Heating Capacity

    9K BTU

    Modes

    • Auto - auto selects from Cool, Heat or Fan-Only
    • Dry (Dehumidifies)
    • Cool
    • Heat
    • Fan Only
    • Quiet
    • Sleep



    Line Sets

    Length

    16 ft., 25 ft., 35 ft., or 50 ft.

    Liquid Line Size

    1/4"

    Suction Line Size

    1/2"

    Couplers

    • Connect 50 ft. line set to 16 ft. or 25 ft. line set
    • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
    • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C

    Restricted States

    GU;PR;VI



    Proposition 65 Warning

    Yes



    Line Sets

    Length

    16 ft., 25 ft., 35 ft., or 50 ft.

    Liquid Line Size

    3/8"

    Suction Line Size

    5/8"

    Couplers

    • Connect 50 ft. line set to 16 ft. or 25 ft. line set
    • For 24K or 36K Air Handler: DIYCOUPLER-3858K75C
    • For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C

    Restricted States

    GU;PR;VI


    Users Manual

    Brochure
    Install Manual
    Owner Manual
    Remote Manual
    Technical Manual
    Warranty Doc

    Service Manual
