MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+18K handlers, 1 x 16ft, 2 x 25ft, and 1 x 50ft linesets

Name: MRCOOL DIY 4th Gen 36K BTU 3-Zone Condenser with 9K+9K+18K handlers, 1 x 16ft, 2 x 25ft, and 1 x 50ft linesets
Brand: MRCOOL
SKU: DIYM336HPW02C12
Price: 5371.0 USD
Availability: InStock

by MRCOOL

Save $300.00

$5,671.00

$5,671.00 - $5,671.00

$5,671.00

$5,371.00

$5,371.00 - $5,371.00

$5,371.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

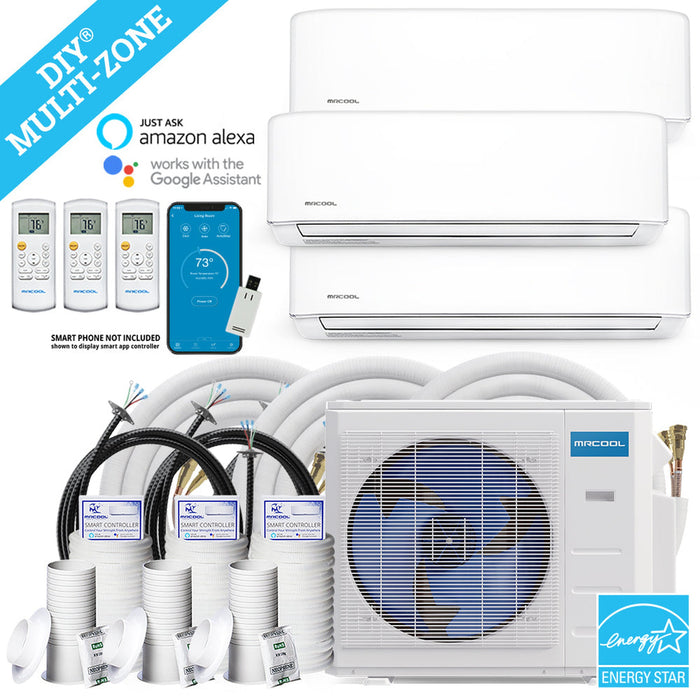

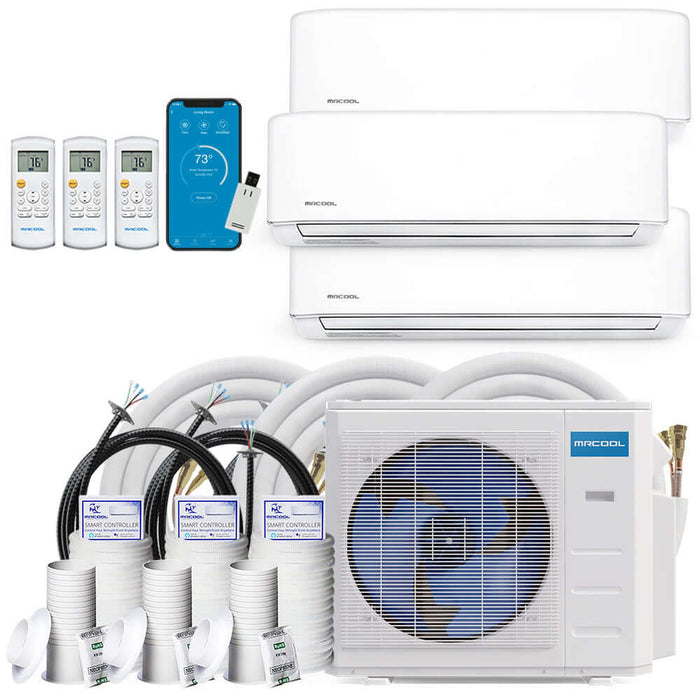

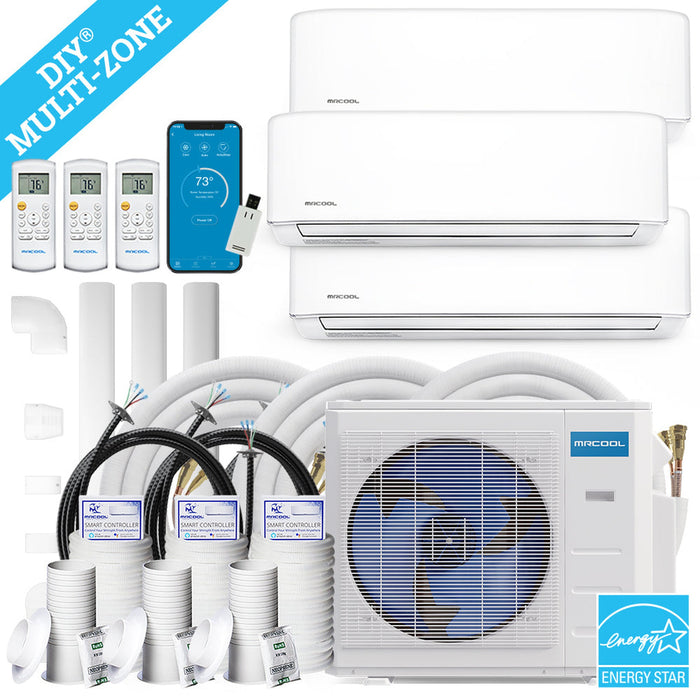

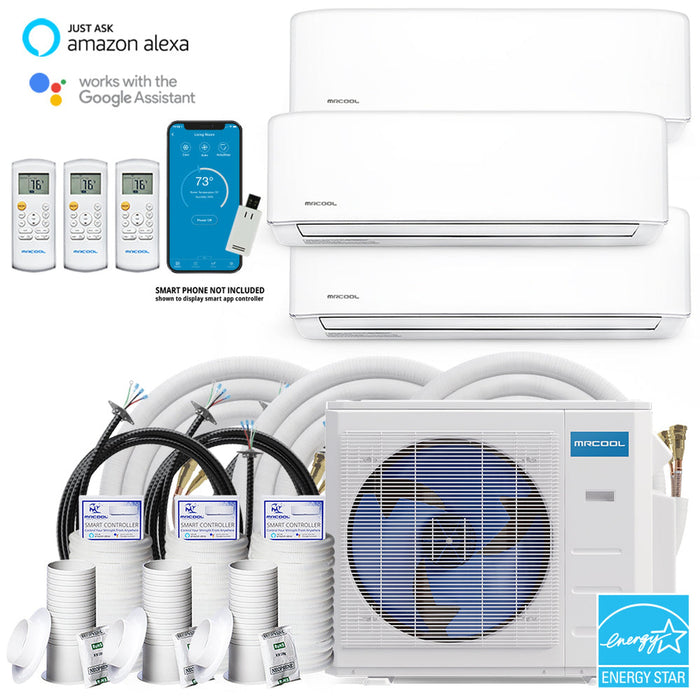

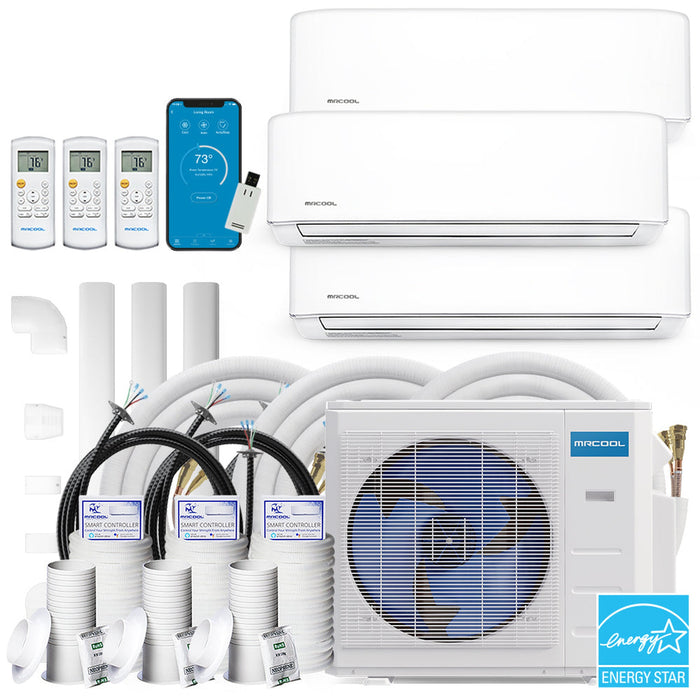

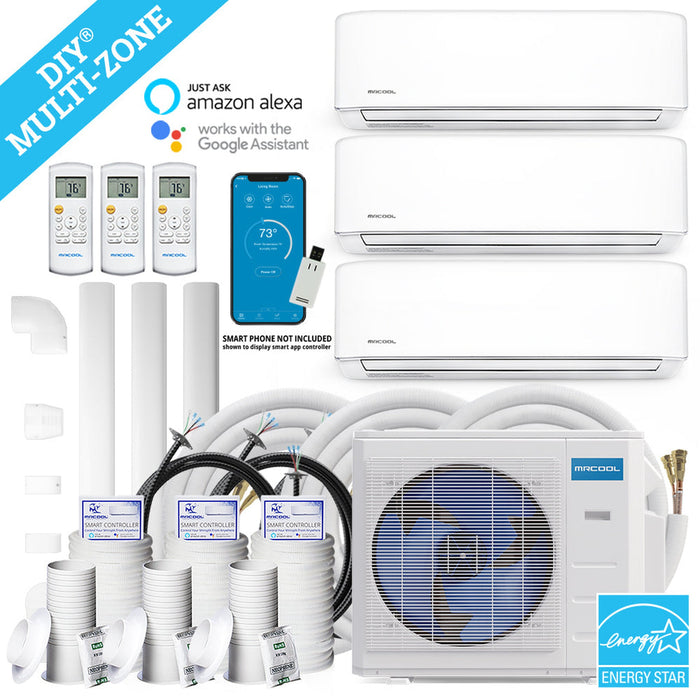

What's Included:

36K BTU 3-Zone Ductless Heat Pump Condenser

9K BTU Ductless Wall Mounted Air Handler

18K BTU Ductless Wall Mounted Air Handler

16ft 1/4 x 1/2 Lineset Install Kit

25ft 1/4 x 1/2 Lineset Install Kit

50ft 1/4 x 1/2 Lineset Install Kit

DIYCOUPLER-1412K75C

MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser

The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion.

MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets.

These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

Features

Up to 21.5 SEER
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Energy Efficient DC Inverter
R-410A environmentally friendly refrigerant
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

SEER	21.5
EER	10.5
HSPF	hspf4/hspf5 : 11/8.5
CFM	2147.06
COOLING CAPACITY	36000 BTU
HEATING CAPACITY	36000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	45 A
MIN CIRCUIT AMPACITY	27 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 4
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	134.04 oz
DECIBEL RATING	65 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-13F ~ 75.2F
MAX LINESET LENGTH	196.85 ft TOTAL
LIQUID LINE SIZE	1/4in
SUCTION LINE SIZE	3/8in+1/2in
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	1000/900/750
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.14 in
NET HEIGHT	31.89 in
NET WIDTH	37.24 in
NET WEIGHT	170.42 lbs
GROSS DEPTH	19.88 in
GROSS HEIGHT	35.04 in
GROSS WIDTH	42.91 in
GROSS WEIGHT	187.83 lbs
