Description
What's Included:
|

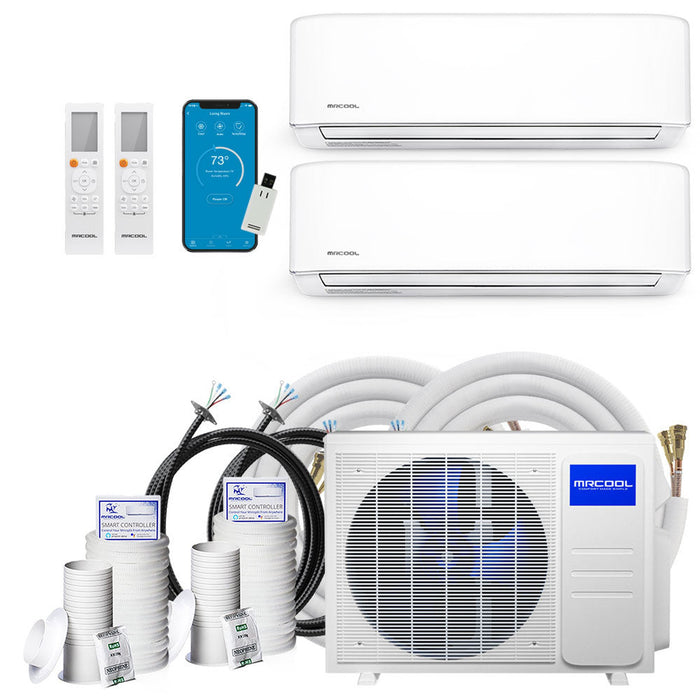

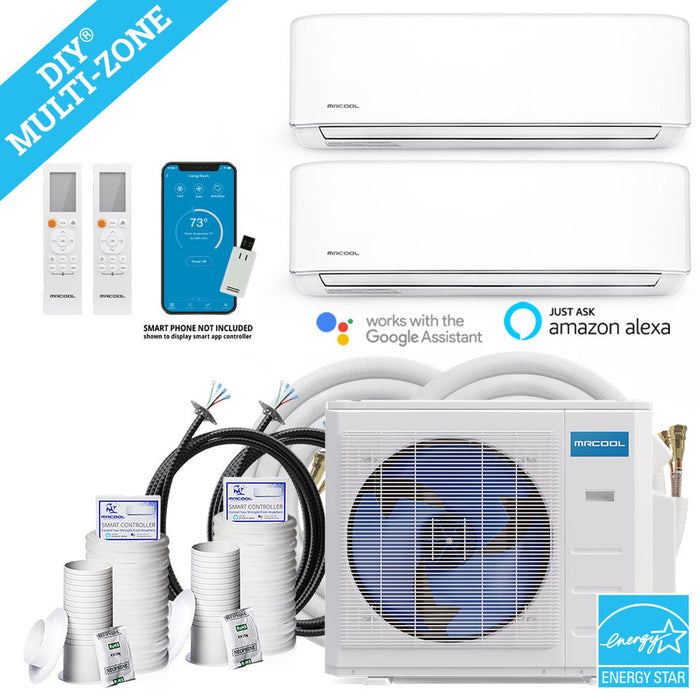

36K BTU 3-Zone Ductless Heat Pump Condenser |
| 18K BTU Ductless Wall Mounted Air Handler |
| 18K BTU Ductless Wall Mounted Air Handler |
| 25ft 1/4 x 1/2 Lineset Install Kit |
|
25ft 1/4 x 1/2 Lineset Install Kit |

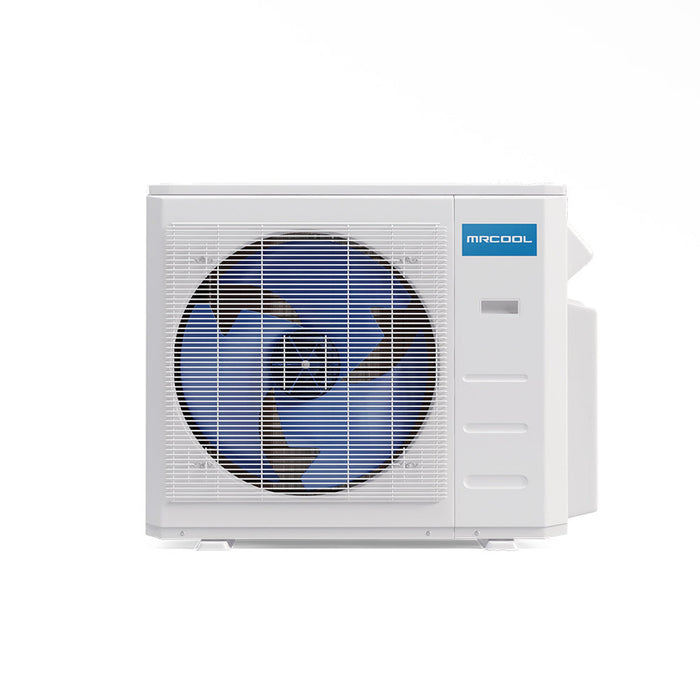

MrCool DIY 4th Gen Multi-Zone 4-Zone Condenser
The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion.
MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
Features
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
|
SEER |
21.5 |
|
EER |
10.5 |
|
HSPF |
hspf4/hspf5 : 11/8.5 |
|
CFM |
2147.06 |
|
COOLING CAPACITY |
36000 BTU |
|
HEATING CAPACITY |
36000 BTU |
|
VOLTAGE |
208-230 V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
45 A |
|
MIN CIRCUIT AMPACITY |
27 A |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
Up to 4 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
134.04 oz |
|
DECIBEL RATING |
65 dBA |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
-13F ~ 75.2F |
|
MAX LINESET LENGTH |
196.85 ft TOTAL |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
3/8in+1/2in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
1000/900/750 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
16.14 in |
|
NET HEIGHT |
31.89 in |
|
NET WIDTH |
37.24 in |
|
NET WEIGHT |
170.42 lbs |
|
GROSS DEPTH |
19.88 in |
|
GROSS HEIGHT |
35.04 in |
|
GROSS WIDTH |
42.91 in |
|
GROSS WEIGHT |
187.83 lbs |
Users Manual
| Brochure |
| Install Manual |
| Owner Manual |
| Remote Manual |
| Technical Manual |
| Warranty Doc |
Covered by the Best Warranty in the Industry! |
 |
