MRCOOL DIY 4th Gen 18K BTU 2-Zone Condenser with 9K+12K handlers, and 16ft and 50ft linesets Bundle

by MRCOOL
Save $400.00 Save $400.00
Original price $3,606.00
Original price $3,606.00 - Original price $3,606.00
Original price $3,606.00
Current price $3,206.00
$3,206.00 - $3,206.00
Current price $3,206.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

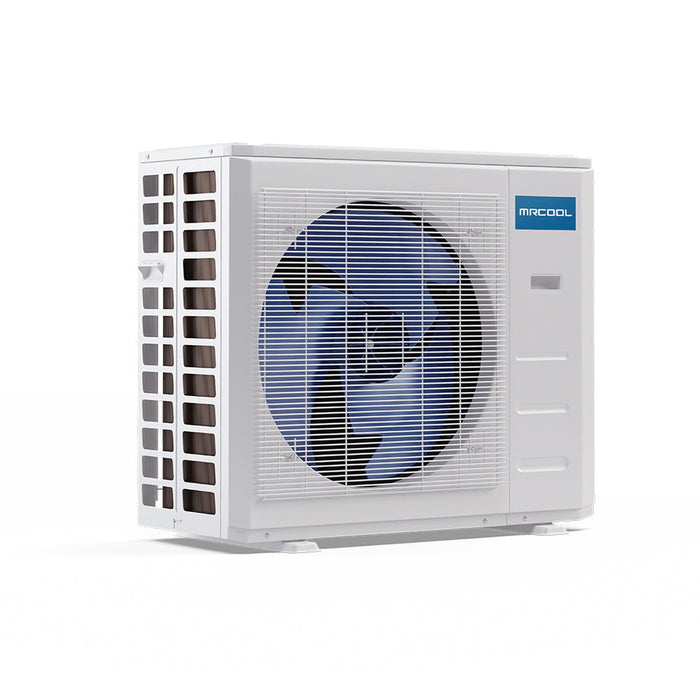

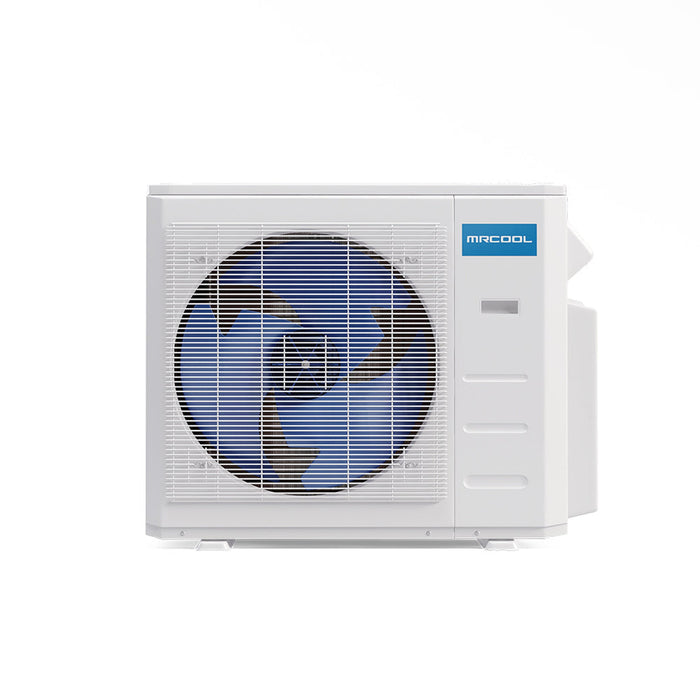

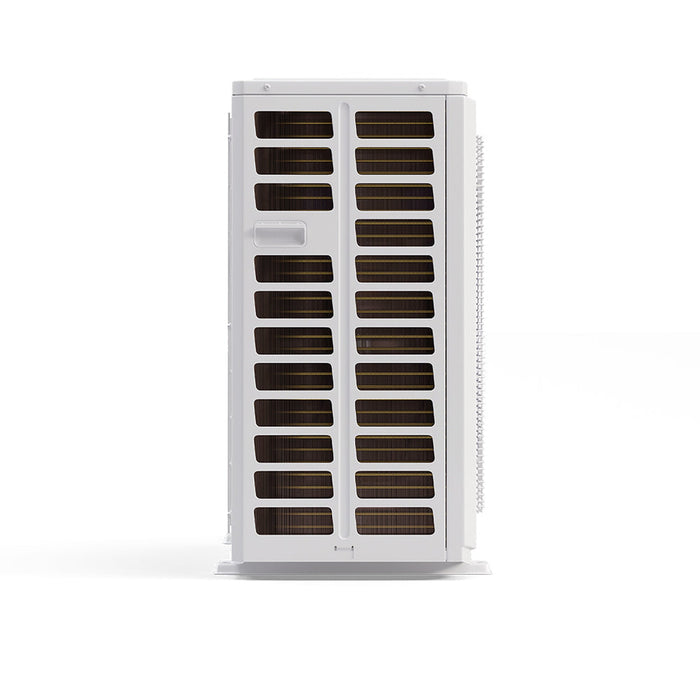

MrCool DIY 4th Gen Multi-Zone 3-Zone Condenser

Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating.

It can also provide heating performance all the way down to -13ยฐF. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner.

When used with MrCoolโ€™s patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your homeโ€™s heating and cooling.

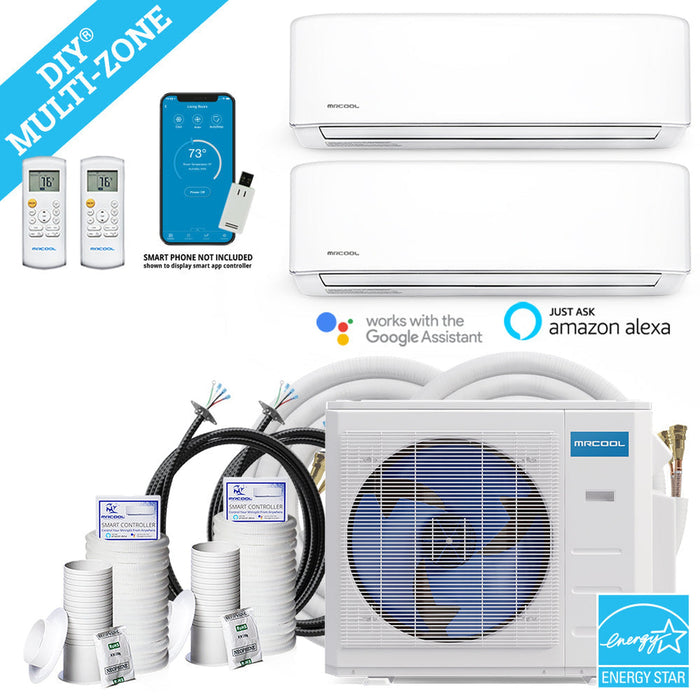

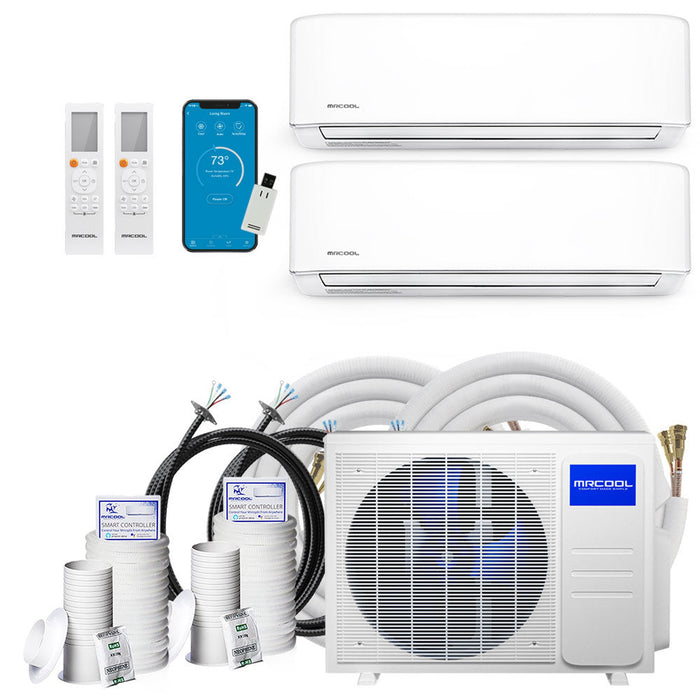

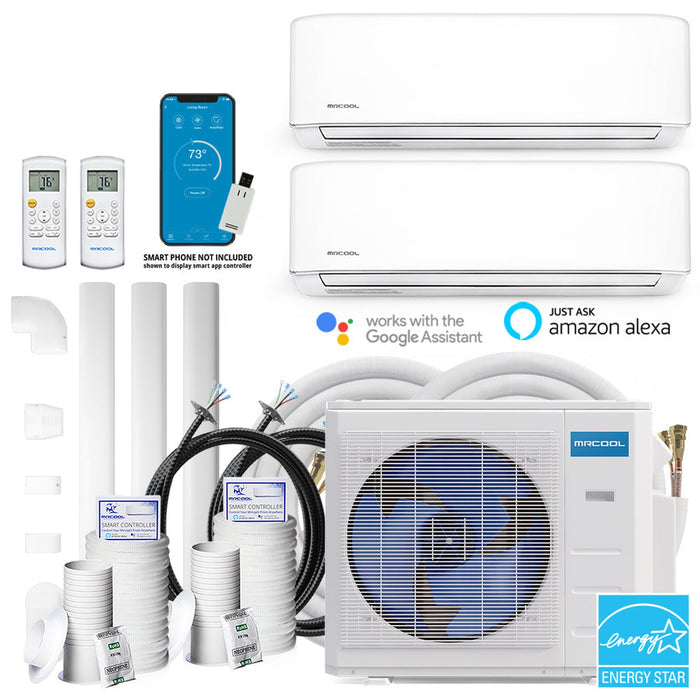

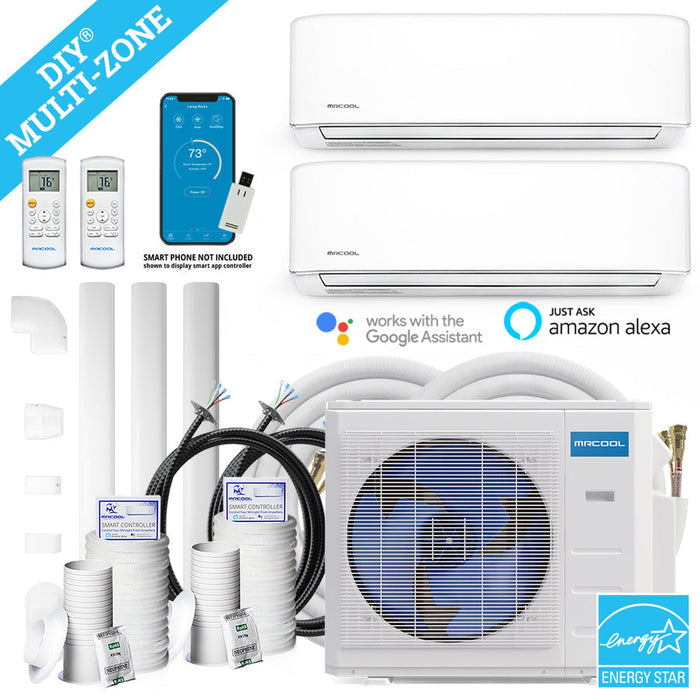

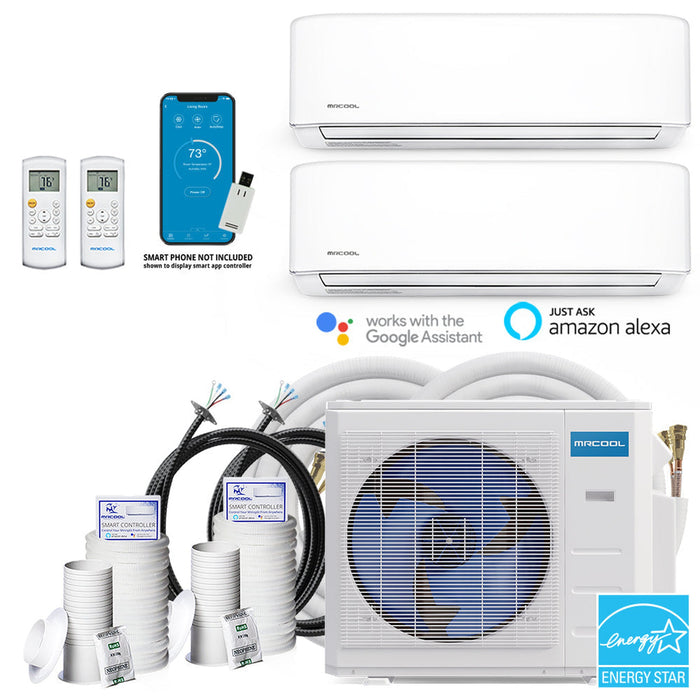

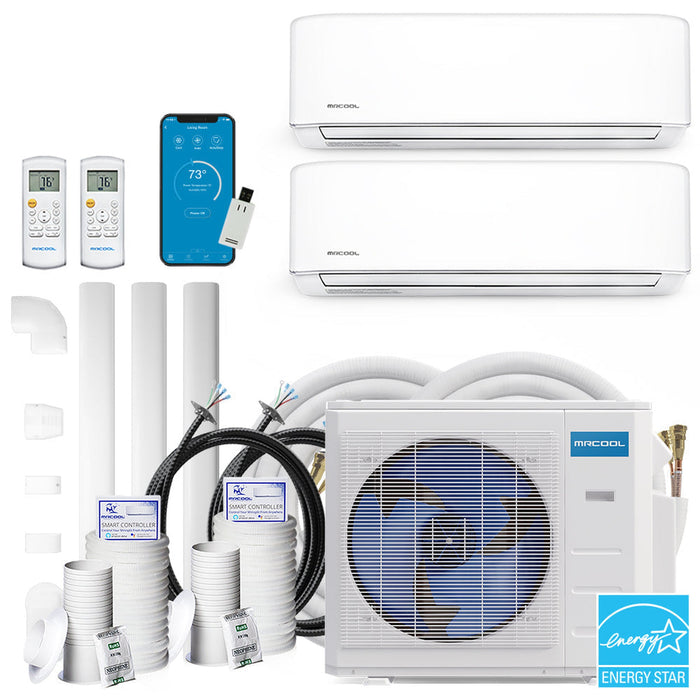

What's Included:

18K BTU 2-Zone Ductless Heat Pump Condenser
9K BTU Ductless Wall Mounted Air Handler
12K BTU Ductless Wall Mounted Air Handler
16ft 1/4 x 1/2 Lineset Install Kit
50ft 1/4 x 1/2 Lineset Install Kit


Features

  • Up to 21 SEER
  • Gold Finยฎ condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

    SEER

    22

    EER

    12

    HSPF

    hspf4/hspf5 : 10.3/8.2

    CFM

    2129.41

    COOLING CAPACITY

    27000 BTU

    HEATING CAPACITY

    27000 BTU

    VOLTAGE

    208-230 V

    PHASE

    1

    CYCLE

    60 Hz

    MAX FUSE BREAKER

    40 A

    MIN CIRCUIT AMPACITY

    26 A

    COLOR

    White

    COLOR FAMILY

    White

    ZONE CAPACITY

    Up to 3

    REFRIGERANT TYPE

    R-410A

    REFRIGERANT VOLUME

    91.71 oz

    DECIBEL RATING

    61 dBA

    INVERTER

    Yes

    MIN AMBIENT COOL

    5F ~ 122F

    MIN AMBIENT HEAT

    -13F ~ 75.2F

    MAX LINESET LENGTH

    147.64ft TOTAL

    LIQUID LINE SIZE

    1/4in

    SUCTION LINE SIZE

    3/8in

    COMPRESSOR MOTOR TYPE

    Twin - Rotary

    CONDENSER FAN MOTOR RPM

    1050/900/850

    WIFI COMPATIBILITY

    Yes

    APP COMPATIBILITY

    Yes

    WORKS WITH IOS

    Yes

    WORKS WITH ANDROID

    Yes

    REGISTERED WARRANTY

    Limited Lifetime Compressor

    BASE WARRANTY

    5-year Parts/7-year Compressor

    BASE PARTS WARRANTY

    5-year Parts

    REGISTERED COMPRESSOR WARRANTY

    Limited Lifetime Compressor

    BASE COMPRESSOR WARRANTY

    7-year Compressor

    CONTAINS ELECTRONICS

    Yes

    CONTAINS CHEMICALS

    Yes

    CONTAINS AEROSOL

    Yes

    CONTAINS COMPRESSED GAS

    Yes

    PROPOSITION 65 WARNING

    Yes

    NET DEPTH

    16.14 in

    NET HEIGHT

    31.89 in

    NET WIDTH

    37.24 in

    NET WEIGHT

    139.99 lbs

    GROSS DEPTH

    19.88 in

    GROSS HEIGHT

    35.04 in

    GROSS WIDTH

    42.91 in

    GROSS WEIGHT

    157.19 lbs

    ย

    Users Manual &ย  Technical Documents
