Description

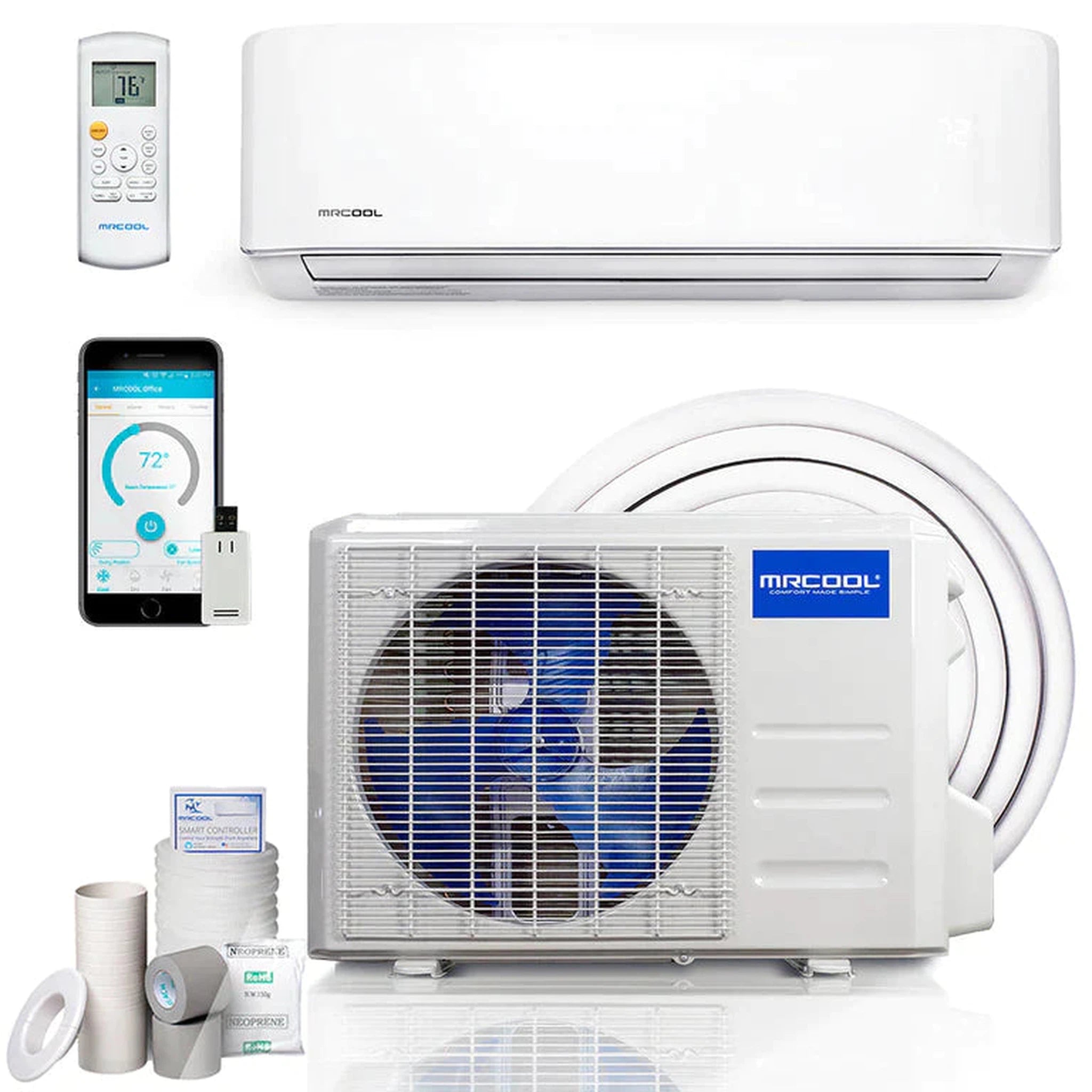

MRCOOL ADVANTAGE 4TH GEN 9,000 BTU 3/4 TON DUCTLESS MINI SPLIT AIR CONDITIONER AND HEAT PUMP
This system is meant to be installed by a HVAC technician. The newly designed 4th Gen Advantage Series, with improved efficiency ratings up to 19.5 SEER, delivers high performance comfort from the moment it's activated. And its competitive price makes it a consumer favorite that's tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.
Features
- Installation kit included with 16' lineset
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Installation by a licensed professional required where applicable
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, and auto restart functions
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
Specifications
| Product Dimensions | 58.74"W x 19.17"D x 33.27"H |
| Product Weight | 84 lbs |

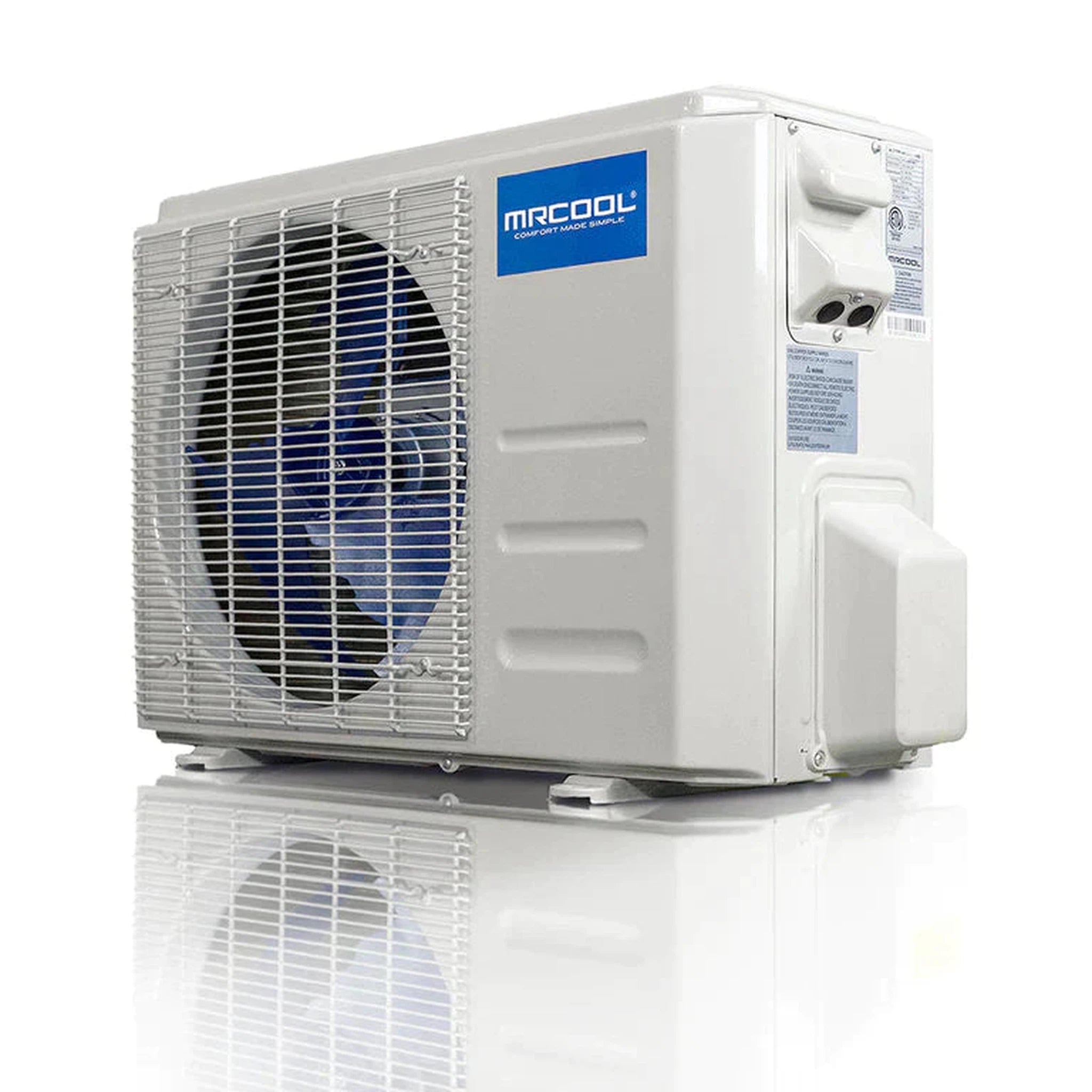

| Condenser Dimensions | 30.31"W x 11.81"D x 21.85"H |
| Condenser Weight |
66.8 lbs |

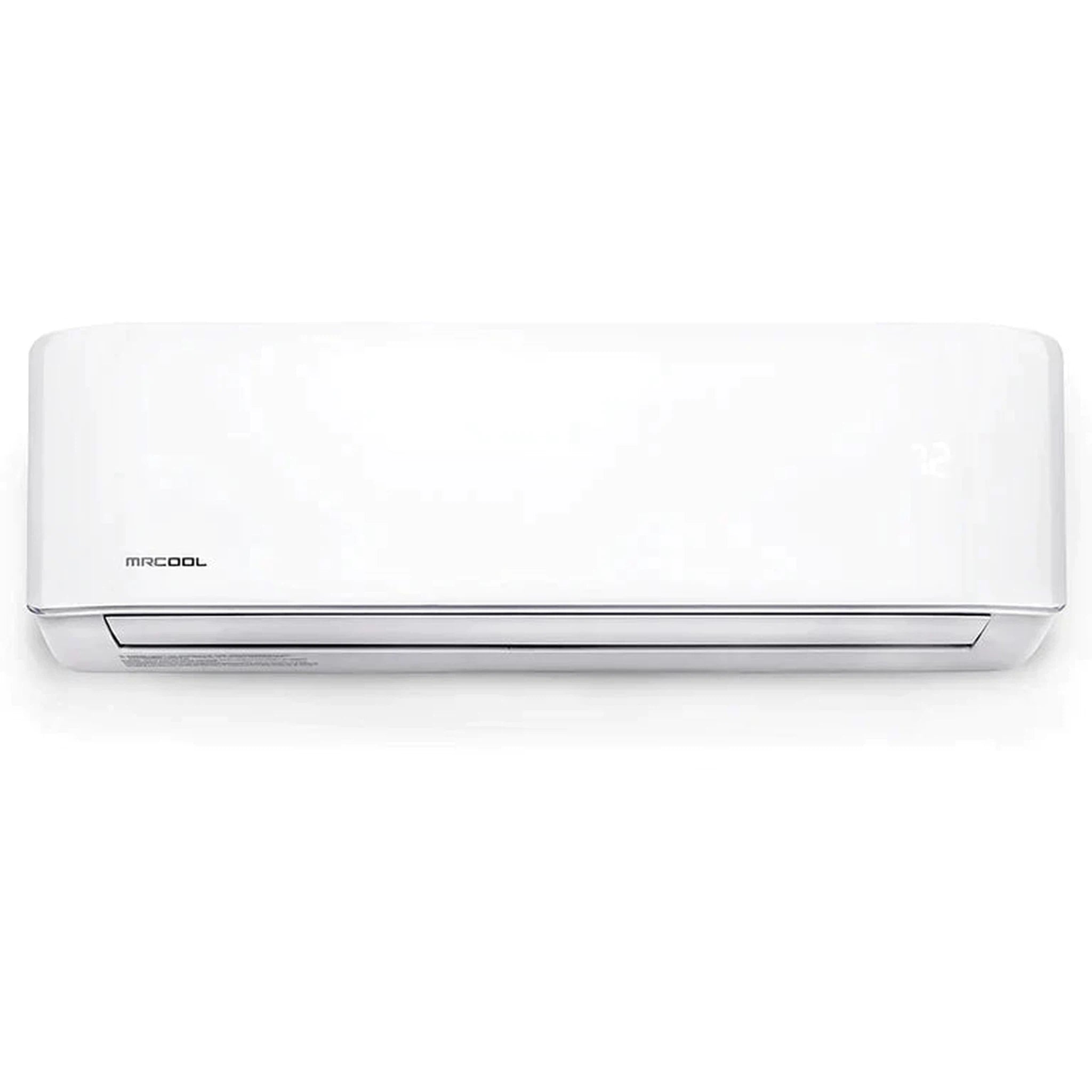

| Air Handler Dimensions | 28.43"W x 7.36"D x 11.42"H |
| Air Handler Weight | 17.2 lbs |
| Freight Class | 300 |
| Mount Type | Wall |
| Unit Type | Mini-Split |
| SEER | 19.5 |
| EER | 11.5 |
| HSPF | 10 |
| CFM | 247/182/129 |
| Tonnage | 3/4 |
| Cooling Capacity | 9000 BTU |
| Heating Capacity | 10000 BTU |
| Voltage | Requires a minimum of 115V/60HZ/15-20A |
| Phase | 1 |
| Cycle | 60 Hz |
| Color | White |
| Phase | 1 |
| Max Fuse Breaker | 20 A |
| Min Circuit Ampacity | 15 A |
| Max Coverage Area | 375 sq ft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 30 oz |
| Decibel Rating | 38/32/25 dBA |
| Decibel Rating Low | 25 dBA |
| Decibel Rating High | 38 dBA |
| Air Flow Direction | 4-Way |
| Speed | 4 |
| Oscillation | Yes |
| Inverter | Yes |
| Min Ambient Heat | 5 Degrees F |
| Line Set Length | 16ft - included |
| Liquid Line Fitting | 3/8 Inches |
| Liquid Line Size | 1/4 Inches |
| Suction Line Fitting | 1/2 Inches |
| Suction Line Size | 3/8 Inches |
| Control Type | LED |
| Filter Type | Washable |
| Overload Protection | Yes |
| Adjustable Thermostat | Yes |
| Modes |
Quiet Mode Fan Only Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with: |
iOS Android |
| Includes | Remote Control Batteries |
| Certifications | UL CSA ETL |
| Registered Warranty | 1-Year Compressor, 2-Year Parts and 1-Year Remote |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Restricted States | GU, PR, VI |
Users Manual & Guide
- Installation Manual
-
Owner Manual
- Remote Control Manual
- Product Brochure
- Warranty Document
- Accessory Manual
- Energy Guide
