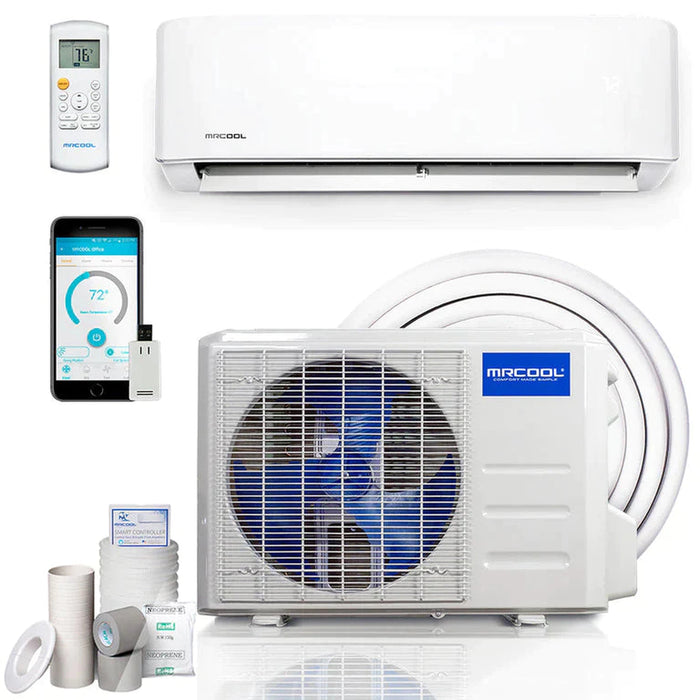

Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point that’s hard to beat. This combination air handler and condenser is great for those looking for quality, efficiency, quiet operation, and affordability. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free.
This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and you’re able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant

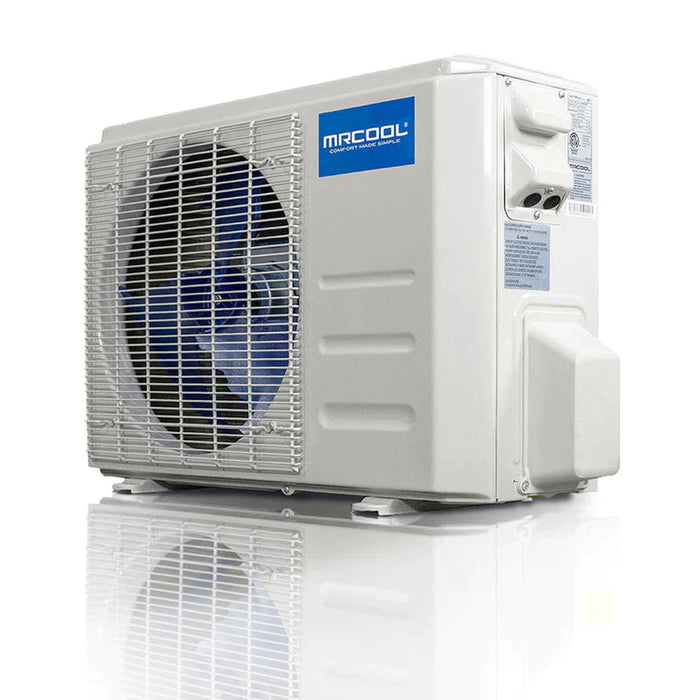

Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
Condenser Weight | 150.13 lbs |
Air Handler Dimensions | 49.57"W x 11.10"D x 14.25"H |
Air Handler Weight | 40.34 lbs |
SEER | 17.5 |
SEER2 | 17.5 |
EER2 |
8.5 |
COP 47 |
2.81 |
HSPF | hspf4/hspf5 : 12/8 |
HSPF2 | hspf4-2/hspf5-2: 8.7/6.8 |
Tonnage | 3 |
Cooling Capacity | 36,000 BTU |
Heating Capacity | 36,000 BTU |
Voltage |
Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
35 A |
Min Circuit Ampacity | 28 A |
Color | White |
Max Coverage Area | 1,500 sqft |
Zone Capacity | 1 |
Refrigerant Type | R-410A |
Refrigerant Volume | 119.9 oz |
Decibel Rating | 40 to 54.5 dBA |
Decibel Rating Low | 40 dBA |
Decibel Rating High | 54.5 dBA |
Inverter | Yes |
Min Ambient Cool | 5F - 122F |
Min Ambient Heat | 5F - 75F |
Line Set Length | 25ft |
Max Lineset Length | 98.42 ft |
Liquid Line Size | 3/8 in |
Suction Line Size | 5/8 in |
Compressor Motor Type | Rotary |
Condenser Fan Motor RPM | 950/250 |
Blower Motor RPM | 1200/950/750 |
Auxiliary Heater Available | No |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | UL Listed CSA LIsted ETL Listed |
Registered Warranty |
1-Year Compressor, 2-Year Parts and 1-Year remote |
Restricted States | GU;PR;VI |
