Description

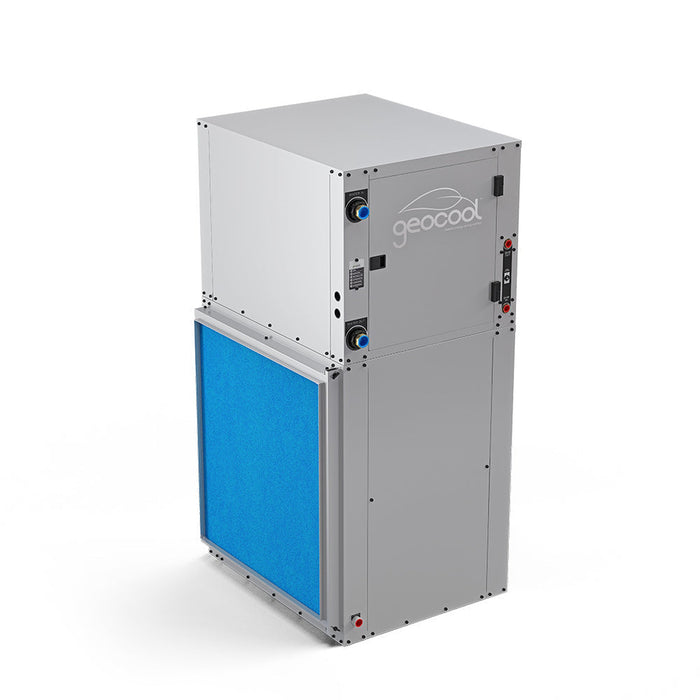

MRCOOL Geocool Geothermal 60K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return
60K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Specifications
|
Dimensions |
32" D x 64" H x 25.75" W |
|
EER |
Ground Water (FULL) 24.00 / Ground Loop (FULL) 15.17 |
|
EER Part Load |
Ground Water (PART) 31.00 / Ground Loop (PART) 23.17 |
|
COP 47 |
Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL) |
|
COP 47 Part Load |
Ground Water (PART) 5.20 / Ground Loop 4.60 (PART) |
|
HSPF |
Ground Water Fluid Flow Rate | COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL) |
|
AFUE |
Ground Loop Fluid Flow Rate | COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL) |
|
CFM |
COOLING (PART) 1950 - 2300 (FULL) / HEATING (PART) 1850 - 2200 (FULL) |
|
Tonnage |
5 |
|
Cooling Capacity |
Ground Water (PART) 55200 - 72500 (FULL) / Ground Loop (PART) 53400 - 66500 (FULL) |
|
Heating Capacity |
Ground Water (PART) 47000 - 64500 (FULL) / Ground Loop (PART) 41000 - 46900 (FULL) |
|
Voltage |
230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Two-Stage |
|
Max Fuse Breaker |
64(W/O Desuperh |
|
Min Circuit Ampacity |
38.6( |
|
Color |
Gray |
|
Color Family |
Gray |
|
Max Coverage Area |
2500 |
|
Refrigerant Type |
R-410A |
|
Compressor Motor Type |
Scroll |
|
Blower Motor Type |
Axial Flux (No Shaft) BLA |
|
Blower Motor Hp |
3/4 |
|
Filter Type |
Replaceable |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
LEED Certified |
No |
|
Ashrae Compliant |
No |
|
Energy Star Compliant |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10 year registered parts limited warranty & 10 year compressor warranty |
|
Base Warranty |
5 year limited parts warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
415 |
|
Freight Class |
85 |
