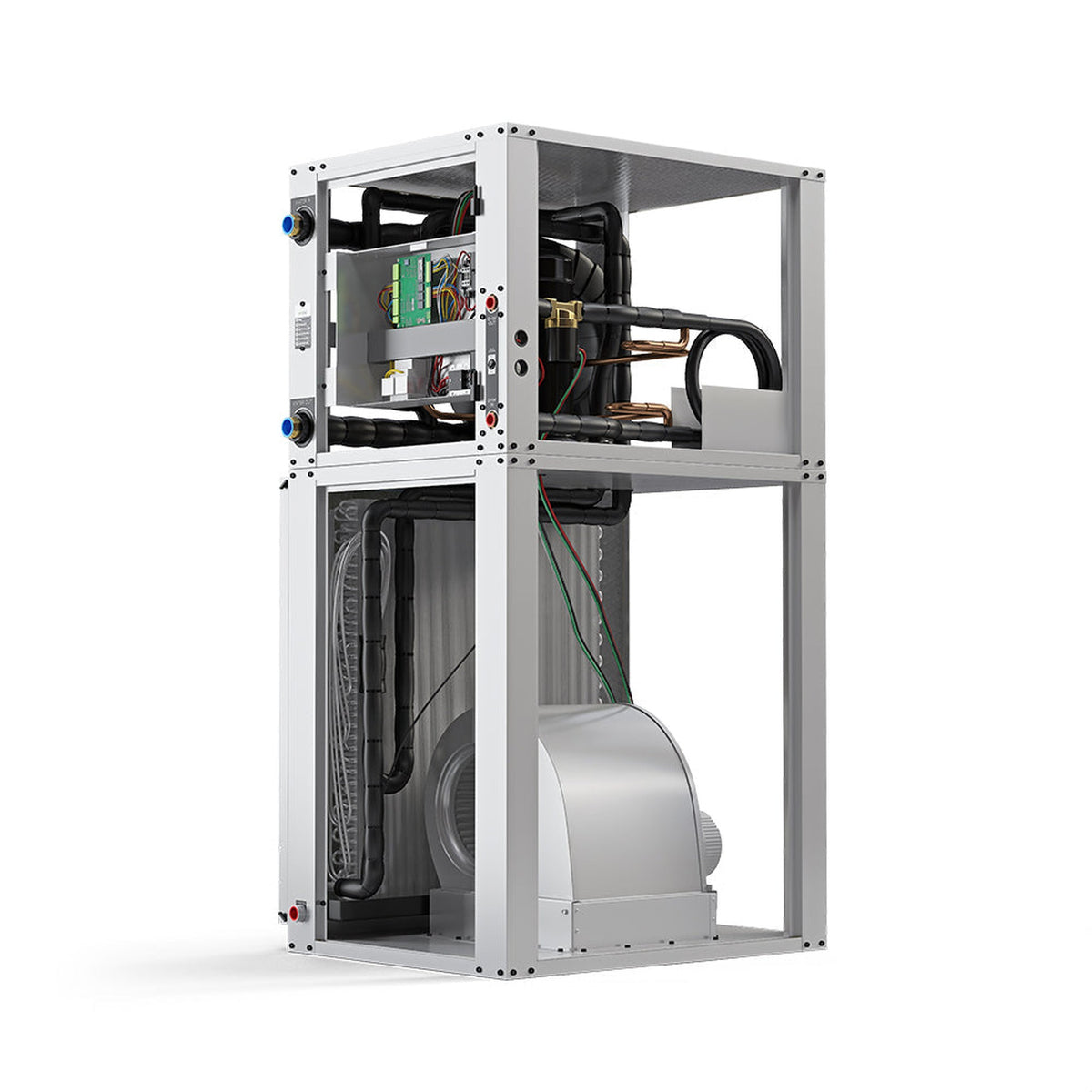

MRCOOL Geocool Geothermal 48K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return

by MRCOOL
SKU GCHPD048TGTANXL
Save $400.00 Save $400.00
Original price $6,641.00
Original price $6,641.00 - Original price $6,641.00
Original price $6,641.00
Current price $6,241.00
$6,241.00 - $6,241.00
Current price $6,241.00

Authorized Dealer

Lowest Price Guaranteed + No Sales Tax

FREE and FAST Shipping Times : 24-72 Hours For Orders To Ship Out

Questions? Call us at 1-833-600-1910 or on the Chatbot.

MRCOOL Geocool Geothermal 48K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left ReturnΒ

48K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return

Features

  • Qualifies for federal tax credit, and other incentives
  • Highest energy efficiency in its class
  • Safety high and low pressure switches
  • Quiet operation
  • Full featured sinusoidal eon motor control technology
  • Insulated sloped stainless steel drain pan
  • Advanced unit control board with diagnostic LEDs
  • Double O-ring water connections
  • Easy service access
  • Optional domestic water pre-heating
  • Made in the USA
  • 10 year compressor warranty

Specifications

Dimensions

32" D x 60" H x 25.75" WΒ

EER

Ground Water (FULL) 26.00 / Ground Loop (FULL) 16.65

EER Part Load

Ground Water (PART) 33.00 / Ground Loop (PART) 24.06

COP 47

Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL)

COP 47 Part Load

Ground Water (PART) 5.00 / Ground Loop 4.50 (PART)

HSPF

Ground Water Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL)

AFUE

Ground Loop Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL)

CFM

COOLING (PART) 1550 - 1850 (FULL) / HEATING (PART) 1500 - 1750 (FULL)

Tonnage

4

Cooling Capacity

Ground Water (PART) 41000 - 56000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL)

Heating Capacity

Ground Water (PART) 34500 - 50000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL)

Voltage

230

Phase

1

Cycle

60

Stage

Two-Stage

Max Fuse Breaker

57.9(W/O Desupe

Min Circuit Ampacity

35.2(

Color

Gray

Color Family

Gray

Max Coverage Area

2000

Refrigerant Type

R-410A

Β Compressor Motor Type

Scroll

Blower Motor Type

Axial Flux (No Shaft) BLA

Blower Motor Hp

3/4

Filter Type

Replaceable

UL Reconized

No

UL Listed

No

ETL Listed

Yes

ETL Certified

No

LEED Certified

No

Ashrae Compliant

No

Energy Star Compliant

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

10 year registered parts limited warranty & 10 year compressor warranty

Base Warranty

5 year limited parts warranty

Has Batteries

No

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

No

Net Weight

380

Freight Class

85
